Our company’s piezo switch housing is made of carefully selected aluminum oxide material, with bright and durable colors, anti-corrosion, rust proof, anti-collision and pressure resistant, flame retardant and high temperature resistant, precision manufacturing, high quality, and customizable.

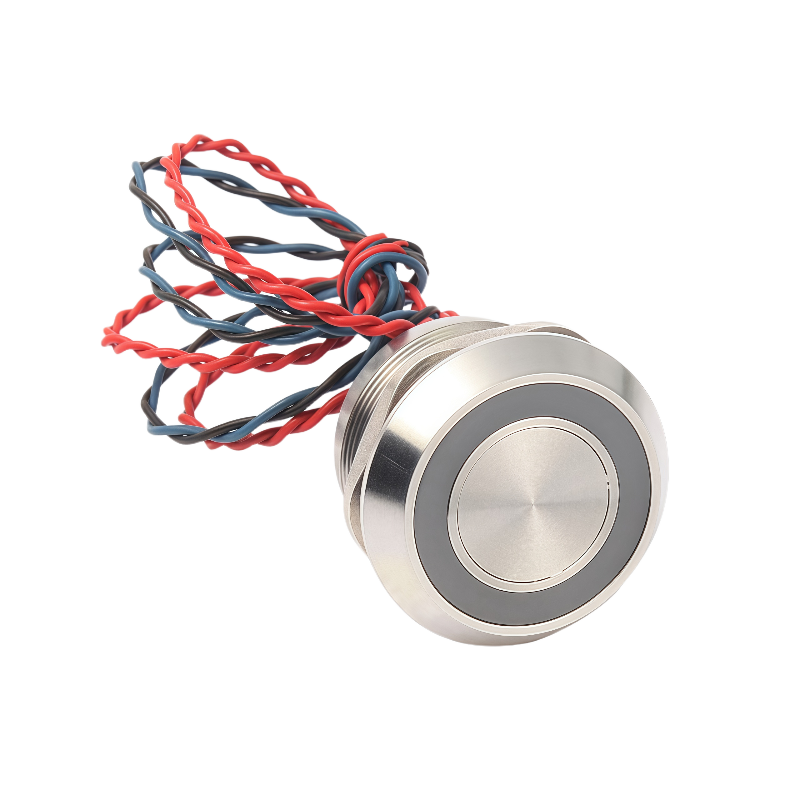

| Product Name | 30mm Segmented Dimming IK69 Momentary Piezoelectric Switch |
| Product Model | SCJ7P30FCF10+Custom Attributes |
| Category | Piezo Switches |
| Mounting Size | 30mm |
| Core Function | Segmented Dimming |
| Operation Type | Momentary (Self-reset) |
| Bezel Material | Metal |
| Head Material | SUS304 Stainless Steel |
| Shell Material | Aluminum Oxide, Anodized Metal, SUS304 |
| Protection Grade | IK69 Anti-impact, IP68 Waterproof & Dustproof |
| Working Temperature | -20℃ ~ 55℃ / -40℃ ~ +75℃ |
| Operating Force | 4 ~ 8N |
| Rated Voltage | 3-24V |
| Working Current | Below 20mA |
| Contact Resistance | Max 50mΩ |
| Insulation Resistance | Min 1000MΩ |
| Dielectric Intensity | 2000VAC, 50HZ/60HZ |
| Contact Material | Gold, Silver |
| Contact Configuration | 01-NC, 10-NO, 11-1NO+1NC, 22-2NO+2NC, 33-3NO+3NC, Prolongated Pulse |
| Head Type | Concave, Flat, Round, Square & Custom Shapes |

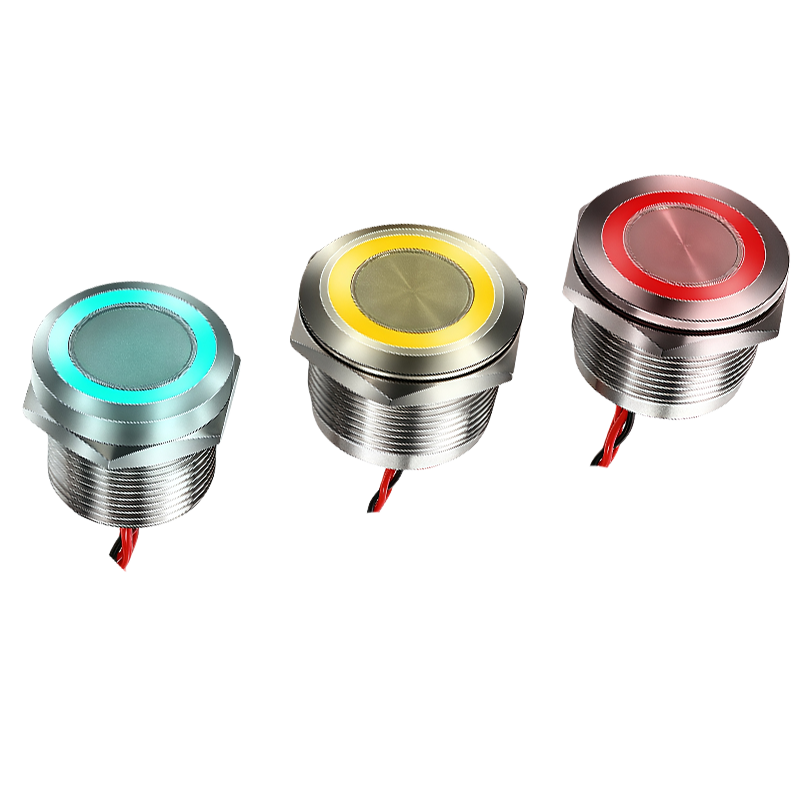

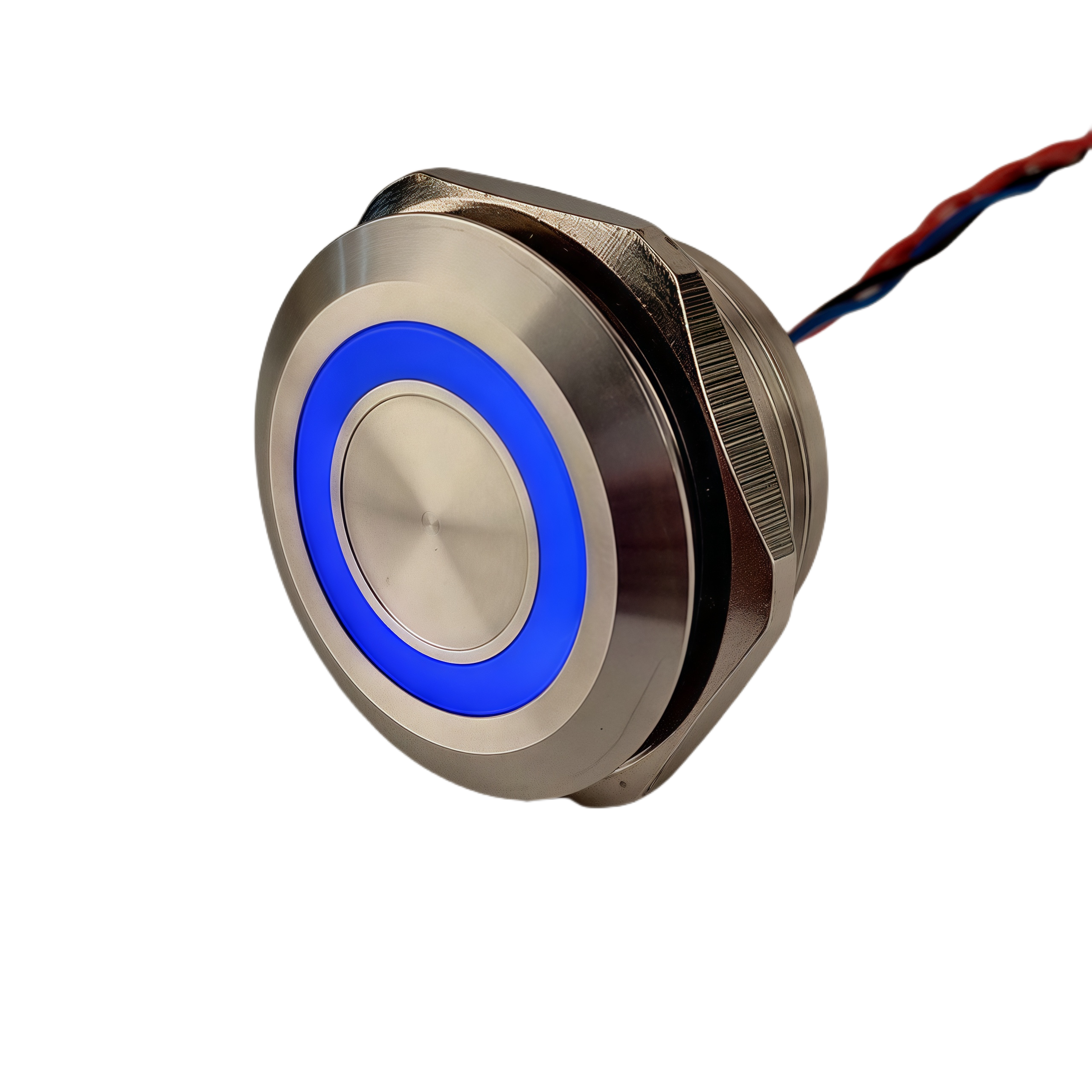

| Lamp Type | Dot Lamp, Ring Lamp (Illuminated / Non-Illuminated) |
| LED Color | Blue, Green, Orange, Purple, Red, White, Yellow, Dual Color, TriColor |
| LED Voltage | 3V/5V/6V/12V/24V/36V/110V/220V (AC/DC Universal) |
| Shell Length | 8/9/10/12/13/16/17/17.5/18mm & Custom |
| Connection Type | Welding, Prewired |
| Wire Spec | 24AWG / 26AWG, 150mm / 300mm (Customizable) |
| Mechanical Life | 1,000,000 Times |
| Electrical Life | 1,000,000 Times |
| Total Lifespan | 40000 Hours |
| Execution Standard | CE: EN 60947-5-1:2017 |
| Application | Smart Lighting, Industrial Control, Outdoor Equipment, Electronic Devices |
This 30mm segmented dimming piezo switch is a professional component specially designed for brightness adjustment. It adopts SUS304 stainless steel and aluminum oxide materials, featuring flame retardant, high temperature resistance, rust and corrosion resistance. With IK69 anti-impact and IP68 waterproof dual protection, it can work stably in complex outdoor and industrial environments. The momentary operation mode matches the use logic of segmented dimming, which is convenient for stepless and segmented brightness adjustment. The product supports 3-24V wide voltage and ultra-low operating current, which is energy-saving for long-term operation. Two wiring methods of prewired and welding meet different installation requirements. Gold and silver contacts ensure stable electrical conduction and long service life. It has two temperature adaptation ranges and excellent electrical indicators. A full range of customizable options including head shape, lamp type, lamp color, contact mode and shell specifications are available to meet personalized project needs. With 1 million mechanical and electrical cycles and 40000-hour total lifespan, it is reliable and durable. Compliant with CE international standards, it is the ideal choice for smart lighting systems, industrial control panels and various waterproof electronic equipment.
| Technical Parameter: | ||
| Working Temperature: | -20° – 55° | |
| Operating Temperature: | -40°C ~+75°C | |
| Terminal Type: | Wired with 150/300mm long 24AWG/26AWG or Customized | |
| Operating Force: | 4 to 8N | |
| Current: | below 20mA | |
| Rating: | 3- 24V, | |
| Contact Resistance: | 50mΩ max | |
| Insulation Resistance: | 1000MΩ Min | |
| Dielectric Intensity: | 2000VAC, 50HZ/60HZ | |
| Material: | SUS304 | |
| Life expectancy : | 40000hours | |
| Mechanical Life: | 1000000 times | |
| Electrical Life: | 1000000 times | |
| Protection Grade: | IP68 ，IK69 or Higher levels needs confirmation | |
| Compliant With Standards： | CE: EN 60947-5-1:2017 | |
1. What is the installation size and core function of this switch?
The mounting hole is 30mm, and it is a momentary piezo switch with segmented dimming function.
2. What protection levels and main materials does it have?
It has IK69 anti-impact and IP68 waterproof grade; made of SUS304 stainless steel and aluminum oxide.
3. What are the voltage and current parameters?
Rated voltage 3-24V, working current is below 20mA with low power consumption.
4. What temperature range and operating force?
Two ranges: -20℃~55℃ and -40℃~+75℃; operating force is 4 to 8N.
5. Contact material and electrical performance?
Contacts are gold and silver; max contact resistance 50mΩ, min insulation resistance 1000MΩ, withstand 2000VAC.
6. Wiring methods and wire specifications?
Support welding and prewired (24AWG/26AWG), 150mm/300mm length, customizable.
7. What lamp types and customizable items are available?
Dot lamp and ring lamp are optional; head style, LED, contact and shell can be customized.
8. Service life and executive standard?
Mechanical and electrical life reach 1 million times, total lifespan 40000 hours; comply with CE EN 60947-5-1.
9. What main scenarios is it suitable for?
Mainly used for smart lighting dimming, industrial control, outdoor waterproof equipment and electronic devices.
| Bezel | |
|---|---|
| Connection | |
| Contact Material | |
| Head Material | |
| Head Type | Concave with Chamfer, Concave With Round, Flat, Flat With Chamfer, Flat with Round, High Round, Square |
| Lamp | |
| Lamp Type | |
| LED Color | Blue, Double Color, Green, Orange, other, Purple, Red, TriColor, White, Yellow |
| LED Pressure | 12V, 24, 24V, 250V, 3V, 5V, 6V, AC 110V, AC 12V, AC 220V, AC 24V, AC 2V, AC 36V, AC 3V, AC 6V, DC 110V, DC 12V, DC 220V, DC 24V, DC 2V, DC 36V, DC 3V, DC 6V, other |
| Length of Shell | |
| Operation of Contact | 01-NC, 10-NO, 11 -1NO + 1NC, 22 -2NO + 2NC, 33 -3NO + 3NC, other, Prolongated Pulse |
| Shell Material | Aluminum Oxide(Black), Blue Anodized, Gold Anodized, Green Anodized, other, Purple Anodized, Red Anodized, Silver Anodized, SUS304 |
