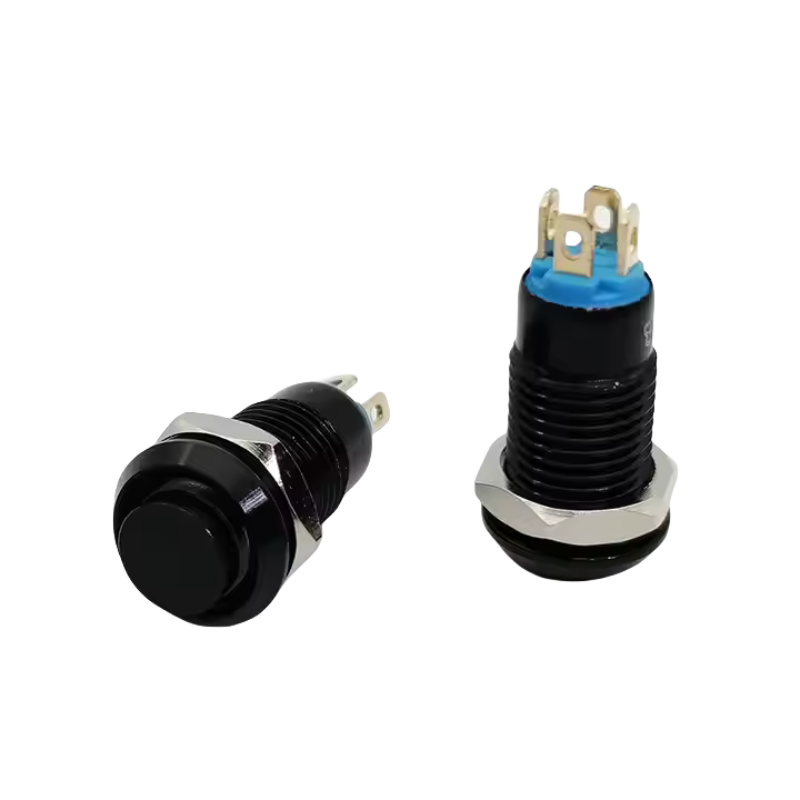

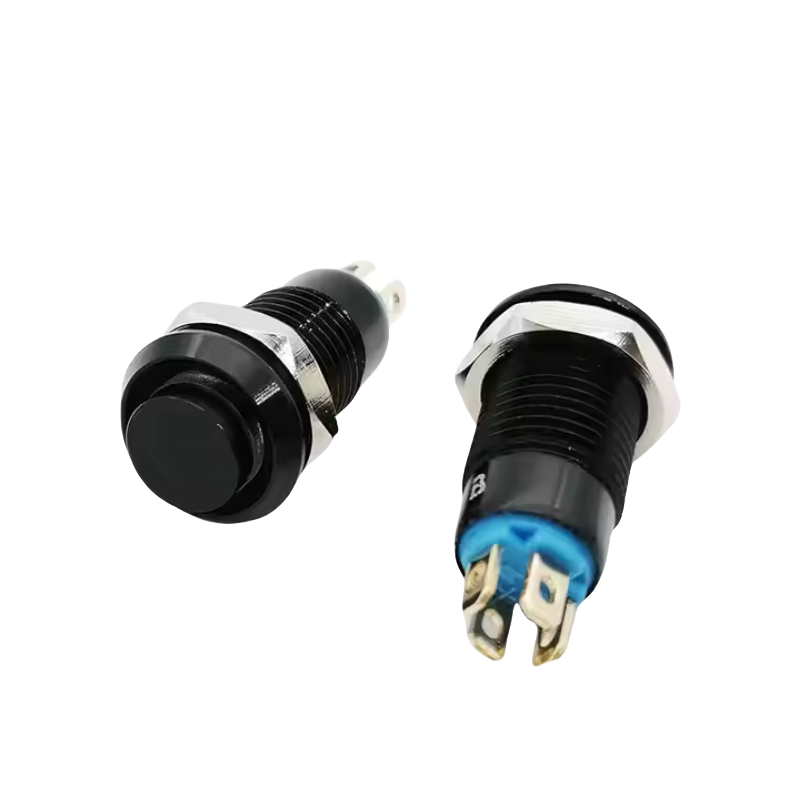

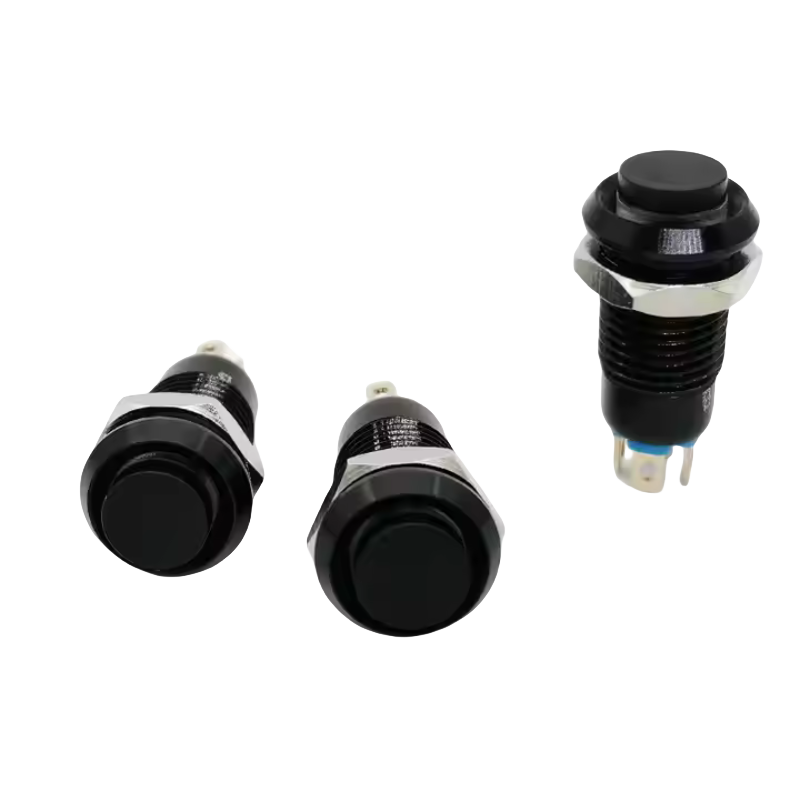

This 8mm mini metal push button switch features a compact, durable design with 4-pin wiring and built-in LED lighting for clear status indication. Designed for use in small electronics and toys, it offers on/off functionality and is available with a waterproof rating for added durability. Perfect for low-voltage applications such as remote-controlled toys, handheld devices, and DIY electronic projects.
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000mΩ |
Dielectric Strength | 1000VAC min |
| Protection Levels | IK10 |
Ambient Temperature | -30℃~+80℃ |
Waterproof | IP65/IP66 |
| Pins | H65 / H65 Silver Plated / Gold |
| Nut | Nickel brass |
This 8mm 4-pin mini LED metal push button adopts ultra-small compact structure, specially developed for toys and miniature electronic equipment. Built-in LED light is soft and eye-catching, convenient for power status recognition. Support momentary trigger and latching on-off two working modes to meet different toy circuit needs. IP65/IP66 waterproof and IK10 drop impact resistance, suitable for daily play and complex indoor environment. High-quality metal and silver contact materials ensure stable performance and long service life, easy to install and wire.
1. What is the mounting size?
8mm ultra-small standard mounting hole.
2. How many pins?
Standard 4 pin terminal design.
3. Is it suitable for toys?
Mini size specially designed for toy and small electronic devices.
4. Waterproof and drop resistant?
IP65/IP66 waterproof, IK10 high impact resistant.
5. Support latching and momentary?
Yes, momentary self-reset and latching on-off optional.
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material | |
| Position |
