Key Features

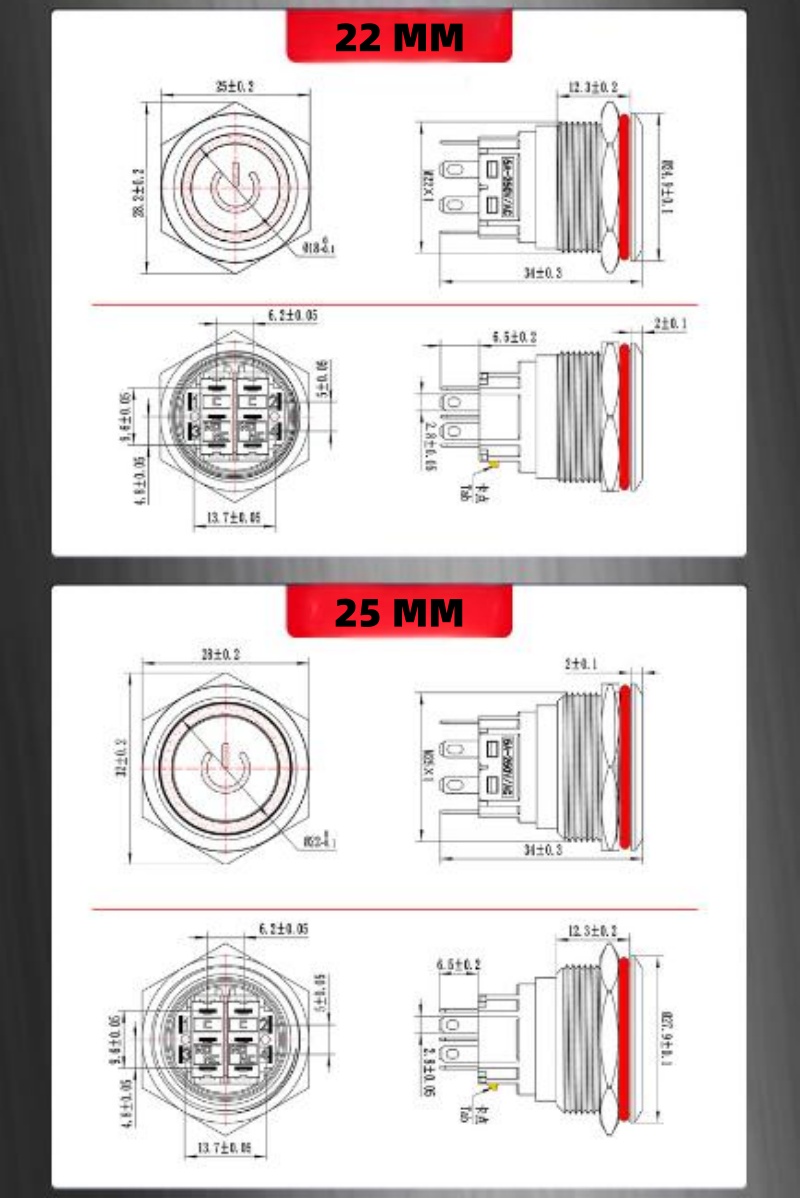

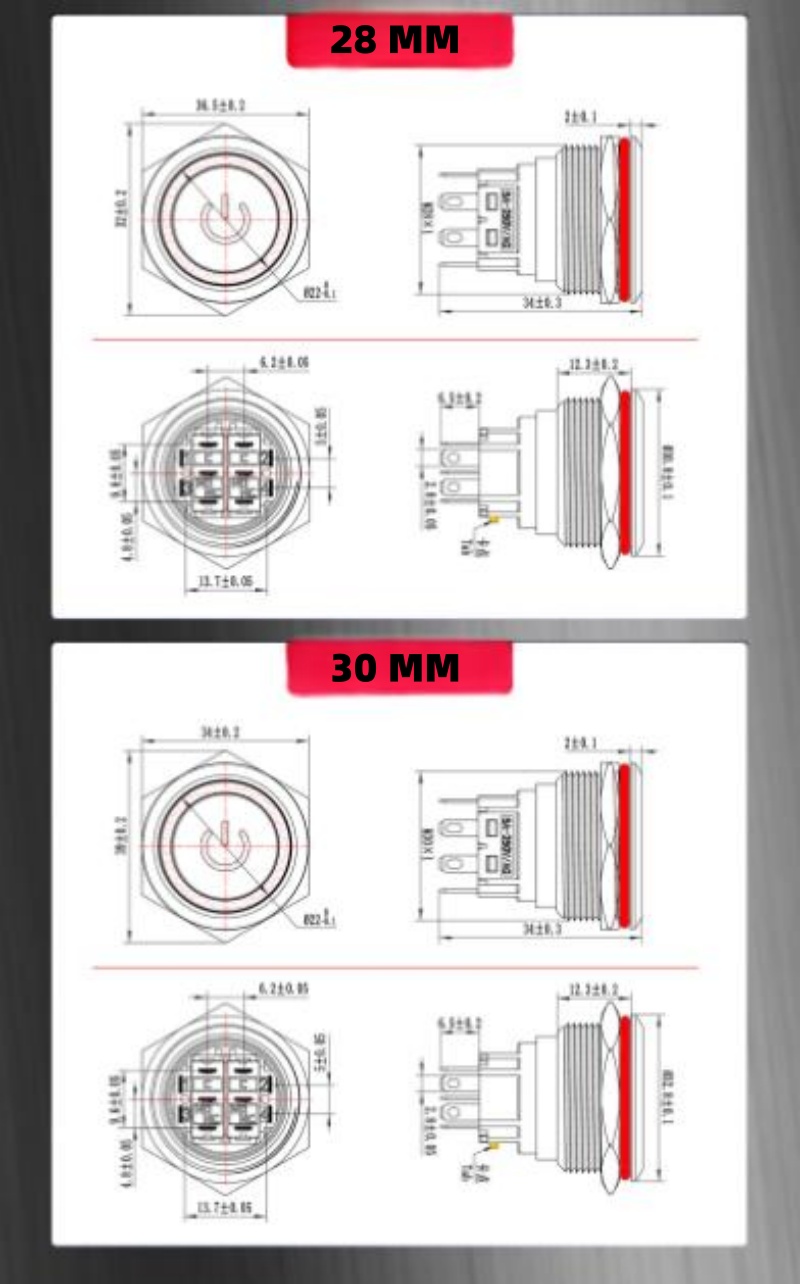

• Multiple mounting sizes: 22mm, 25mm, 28mm, 30mm
• Black oxide metal finish for anti-corrosion and matte texture
• Ring type LED indicator with soft visual effect
• IP67 waterproof and dustproof grade
• Maintained latching and momentary operation optional
• Pre-wired design for quick plug-and-play installation
• Multiple LED colors: Red, Green, Blue, White, Yellow
• Durable metal housing for long mechanical life
• Suitable for automotive power start and equipment control

Technical Specifications

Product Advantages

This 22-25-28-30mm black oxide metal push button switch adopts premium black oxide surface treatment, providing excellent anti-rust, anti-corrosion and high-grade matte appearance. Built with IP67 waterproof performance, it adapts to outdoor, vehicle and humid working environments. Ring type soft LED light makes status display clear and elegant. Support both maintained and momentary modes, and pre-wired structure saves installation time without extra soldering. Solid metal construction ensures stable conductivity and long service life.

Application Scenarios

• Automotive power start and modification retrofit
• Vehicle interior control and custom panel
• Industrial control cabinet and equipment start stop
• Outdoor electronic and damp environment devices
• New energy equipment and power control system
• High-end instrument and intelligent terminal panel

FAQ

1. What mounting sizes does this black oxide switch have?
It covers 22mm, 25mm, 28mm and 30mm large standard mounting sizes.

2. What is the surface treatment of the switch?
Adopts black oxide metal treatment, anti-corrosion, wear-resistant and matte texture.

3. Does it support maintained and momentary function?
Yes, both latching maintained and self-reset momentary types are optional.

4. Is it pre-wired for easy installation?
Comes with pre-wired harness, direct installation without soldering.

5. Is this switch waterproof?
IP67 waterproof and dustproof, suitable for automotive and outdoor use.
