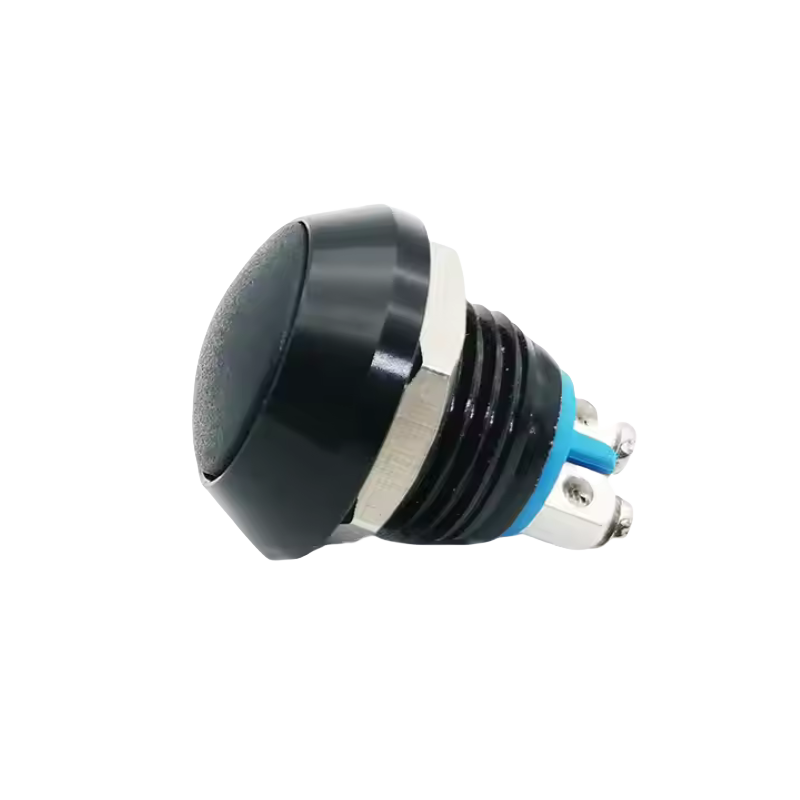

This 12mm domed head metal push button switch features anodized black aluminum construction for durability and style. Designed with a momentary reset function, it offers reliable performance in wet or dusty environments thanks to its waterproof rating. Ideal for control panels, industrial equipment, and custom electronics.
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000mΩ |
Dielectric Strength | 1000VAC min |
| Protection Levels | IK10 |
Ambient Temperature | -30℃~+80℃ |
Waterproof | IP65/IP66 |
| Pins | H65 / H65 Silver Plated / Gold |
| Nut | Nickel brass |
This 12mm domed head metal push button adopts high-grade aluminum oxidation black process, smooth surface, wear-resistant and scratch-resistant with high-end texture. Ergonomic domed head brings comfortable pressing feeling, ideal for frequent operation. Pure momentary self-rest design meets trigger control needs. IP65/IP66 waterproof and IK10 impact resistance adapt to indoor humid, dusty and vibration environment. Ultra-wide temperature resistance and stable electrical parameters ensure long-term reliable operation for various equipment panels.
1. What is the mounting size?
Standard 12mm mounting hole diameter.
2. What head design?
Elegant domed head with comfortable touch.
3. Surface process?
Aluminum oxidation black finish, anti-scratch and durable.
4. Operation mode?
Momentary self-rest, press on and release off.
5. Waterproof and impact grade?
IP65/IP66 waterproof, IK10 high impact resistance.
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material | |
| Position |
