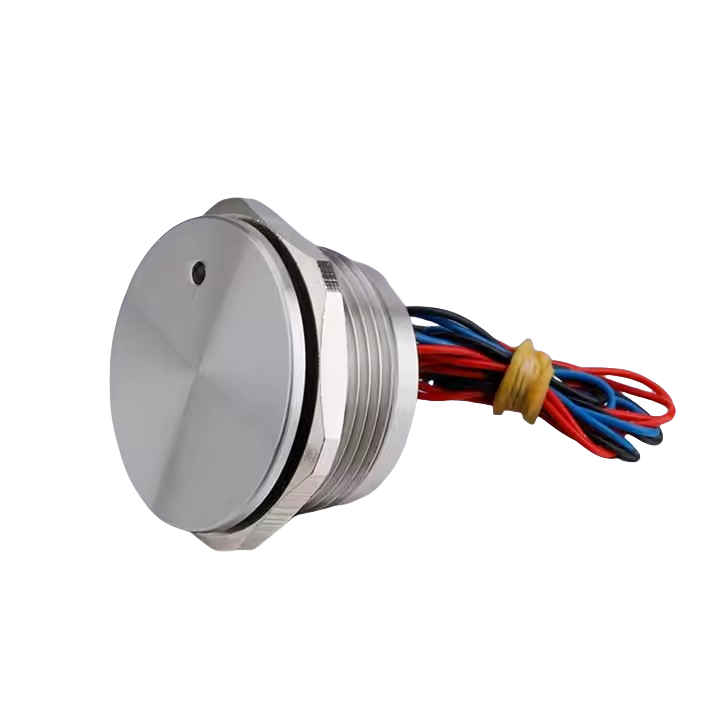

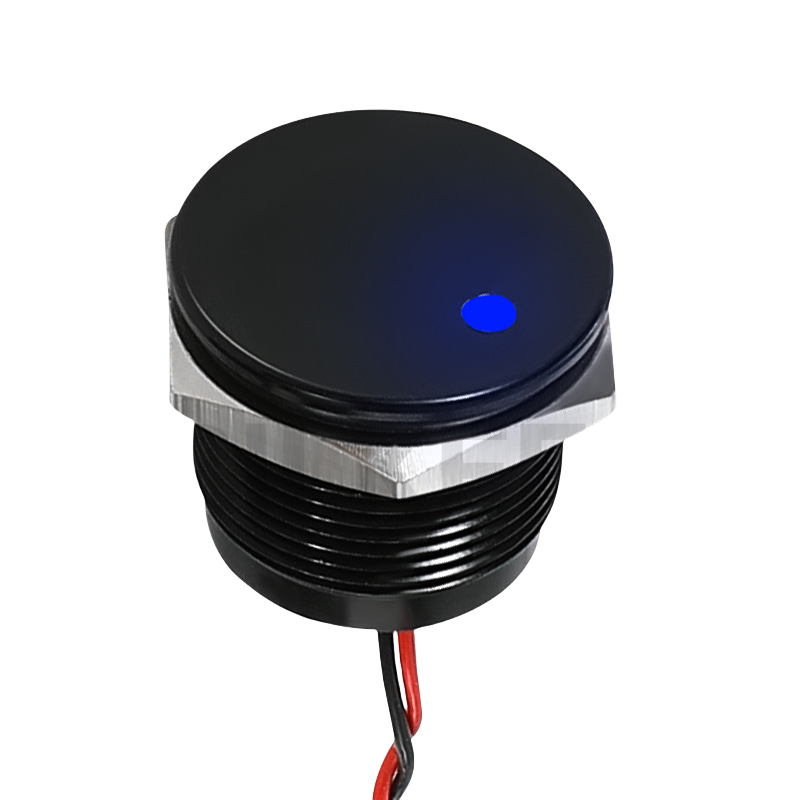

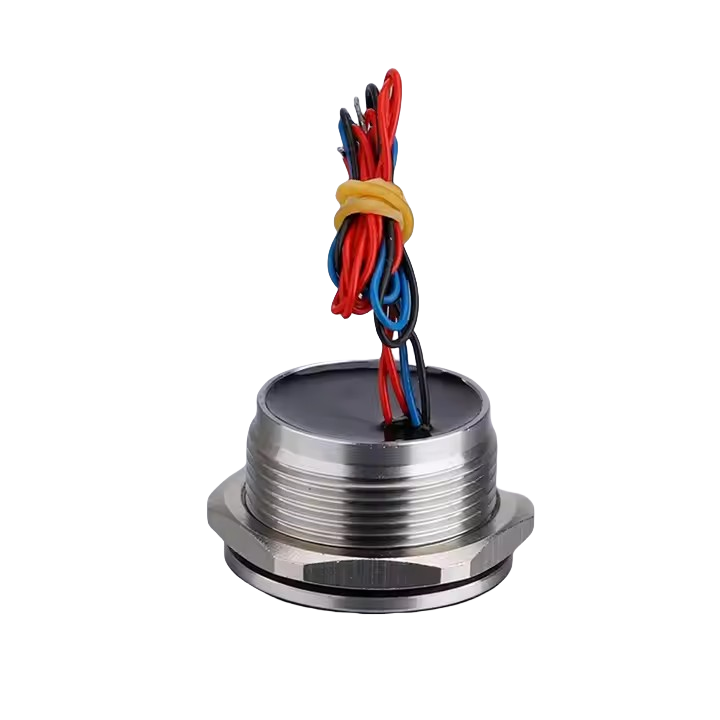

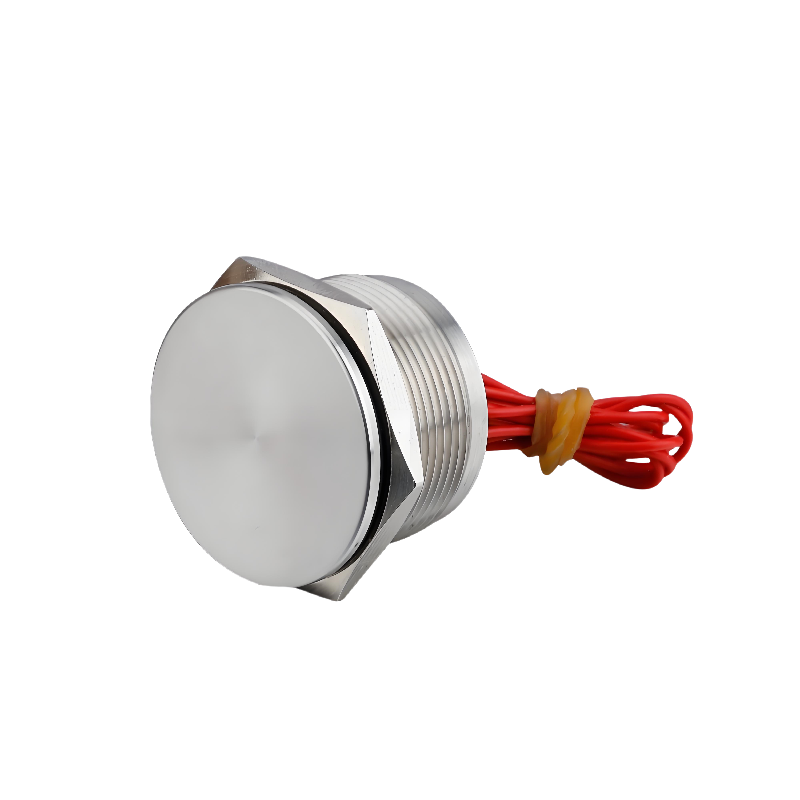

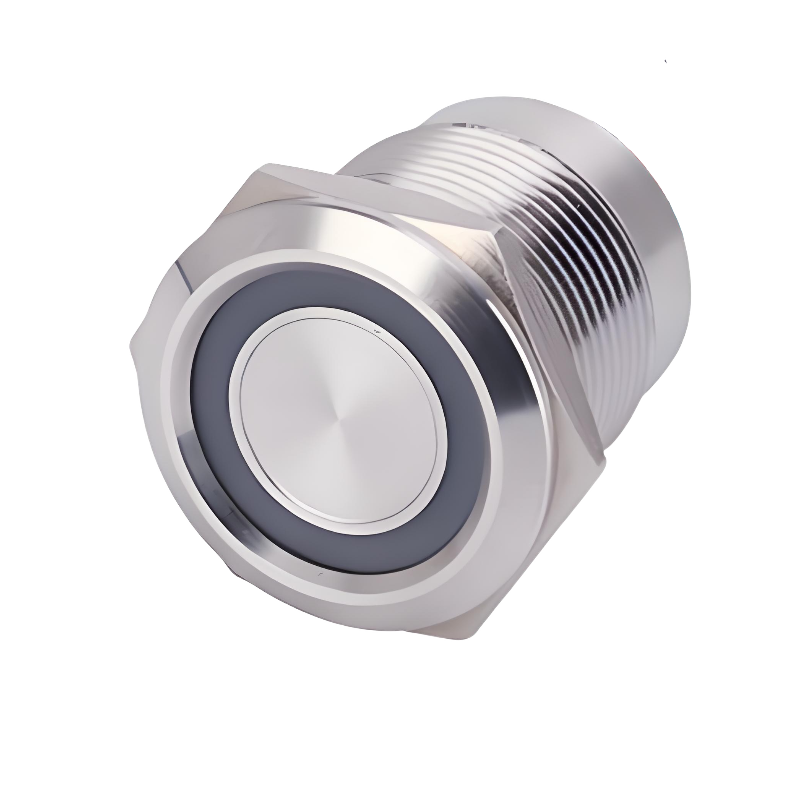

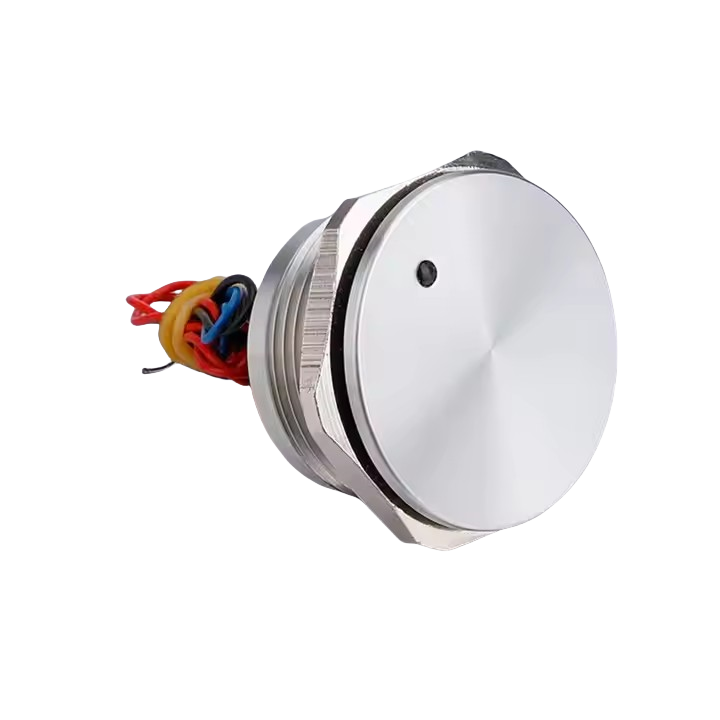

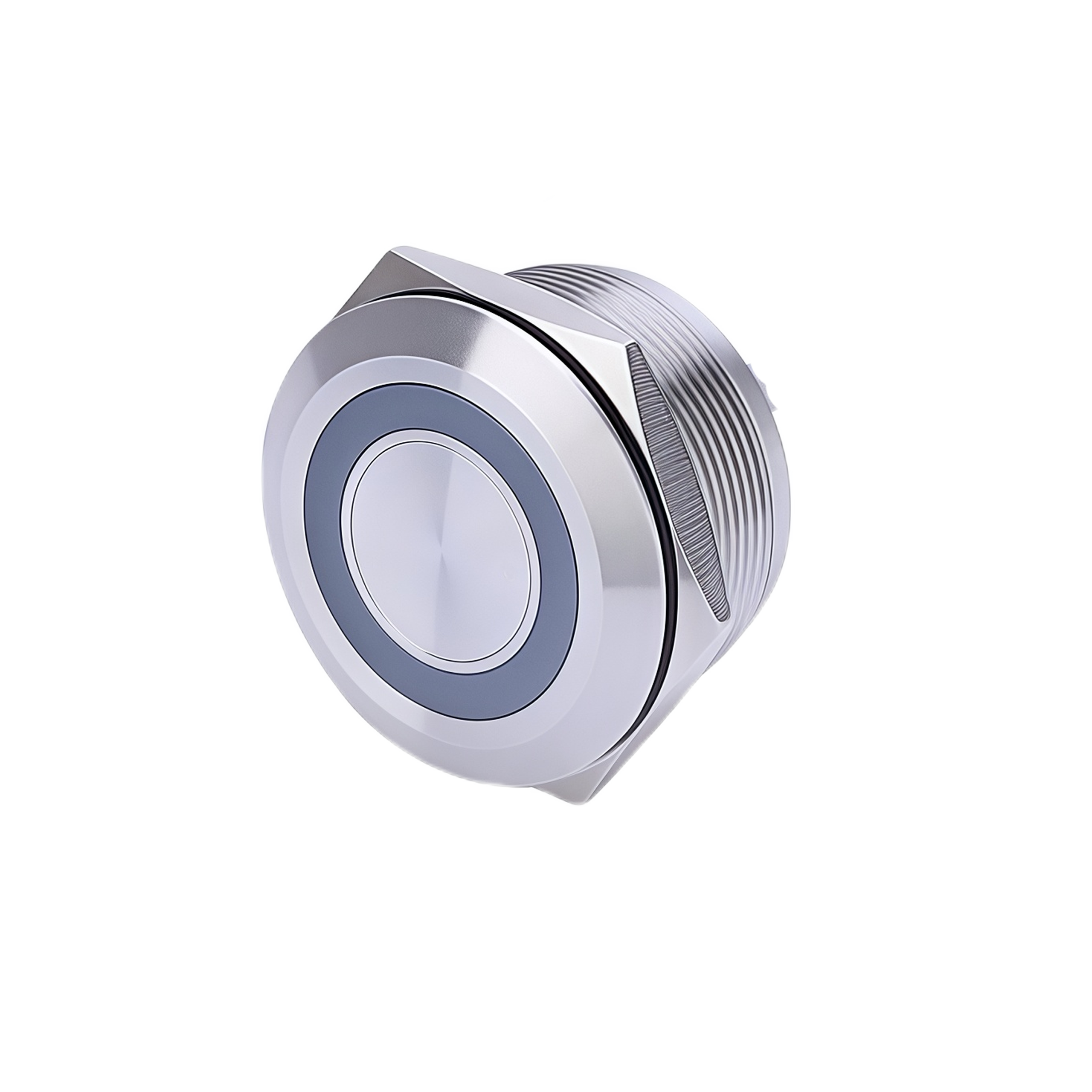

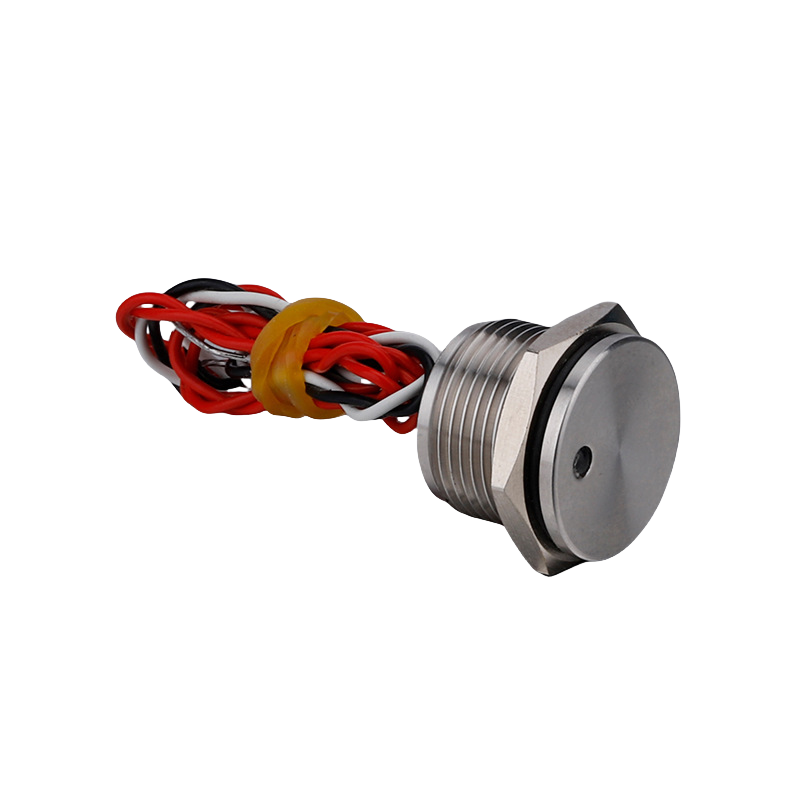

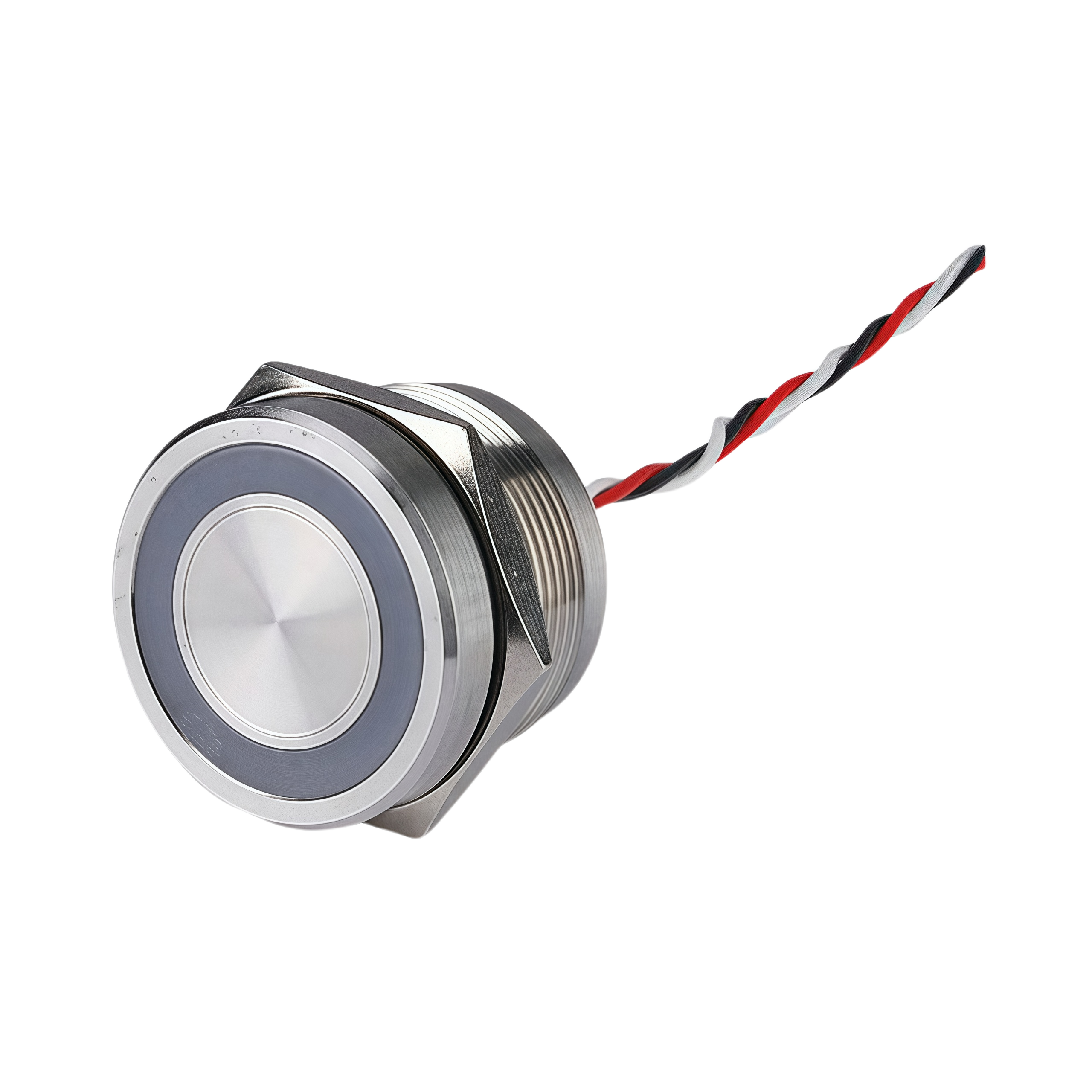

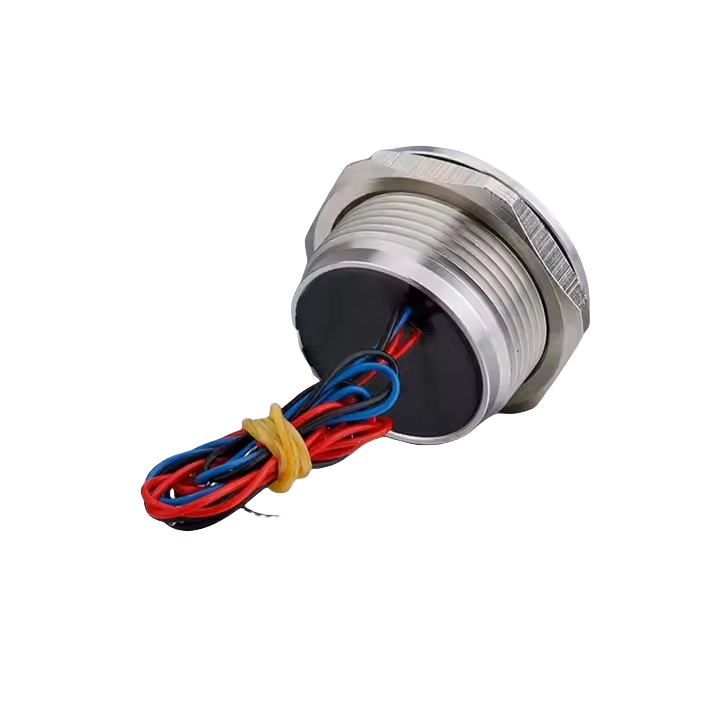

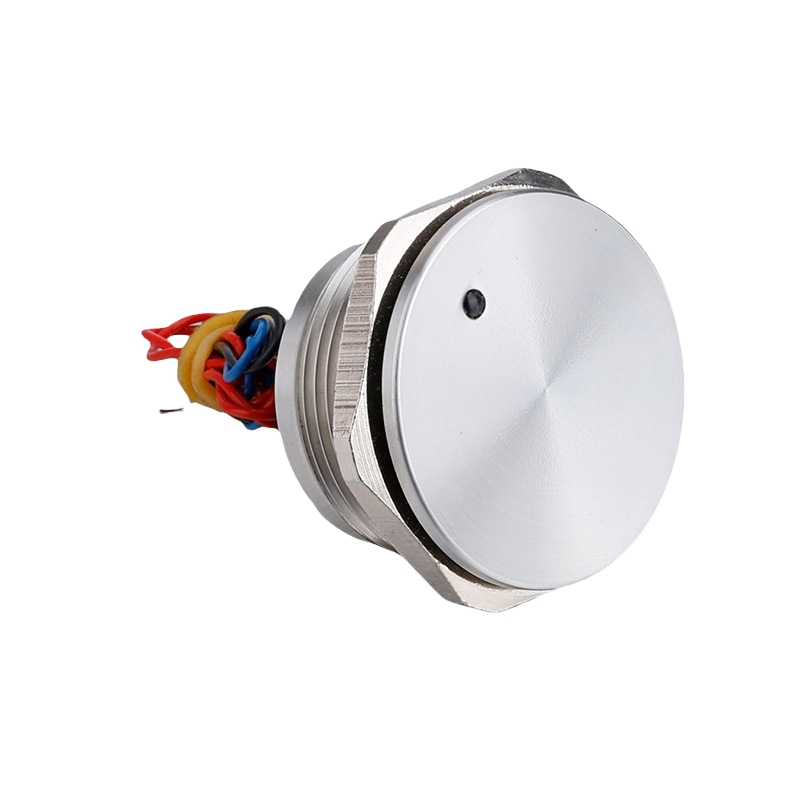

Our company’s piezoelectric switches have high durability, fast response, low power consumption, and compactness.Used for DIY projects of intelligent hardware development, impact sensor modules can be made, which can be programmed through a microcontroller to trigger tapping scenes (such as synchronized music rhythm and lighting control)
| Technical Parameter: | ||
| Working Temperature: | -20° – 55° | |
| Operating Temperature: | -40°C ~+75°C | |
| Terminal Type: | Wired with 150/300mm long 24AWG/26AWG or Customized | |
| Operating Force: | 4 to 8N | |
| Current: | below 20mA | |
| Rating: | 3- 24V, | |
| Contact Resistance: | 50mΩ max | |
| Insulation Resistance: | 1000MΩ Min | |
| Dielectric Intensity: | 2000VAC, 50HZ/60HZ | |
| Material: | SUS304 | |
| Life expectancy : | 40000hours | |
| Mechanical Life: | 1000000 times | |
| Electrical Life: | 1000000 times | |
| Protection Grade: | IP68 ，IK69 or Higher levels needs confirmation | |
| Compliant With Standards： | CE: EN 60947-5-1:2017 | |
| Bezel | |
|---|---|
| Connection | |
| Contact Material | |
| Head Material | |
| Head Type | Concave with Chamfer, Concave With Round, Flat, Flat With Chamfer, Flat with Round, High Round, Square |
| Lamp | |
| Lamp Type | |
| LED Color | Blue, Double Color, Green, Orange, other, Purple, Red, TriColor, White, Yellow |
| LED Pressure | 12V, 24, 24V, 250V, 3V, 5V, 6V, AC 110V, AC 12V, AC 220V, AC 24V, AC 2V, AC 36V, AC 3V, AC 6V, DC 110V, DC 12V, DC 220V, DC 24V, DC 2V, DC 36V, DC 3V, DC 6V, other |
| Length of Shell | |
| Operation of Contact | 01-NC, 10-NO, 11 -1NO + 1NC, 22 -2NO + 2NC, 33 -3NO + 3NC, other, Prolongated Pulse |
| Shell Material | Aluminum Oxide(Black), Blue Anodized, Gold Anodized, Green Anodized, other, Purple Anodized, Red Anodized, Silver Anodized, SUS304 |
