Key Features & Core Advantages

• DPDT (Double Pole Double Throw) 2-way circuit design, 6 pins for dual-circuit synchronous control
• (ON)ON momentary function, ideal for temporary signal triggering and mode switching
• 12mm flat metal handle, sturdy structure and comfortable operation feel
• Miniature compact size, saves installation space for small electronic devices
• Solder terminal design, easy soldering and wiring for PCB and conventional circuits
• Dual electrical ratings: 5A 125VAC & 2A 250VAC to meet different load demands
• Wide operating temperature: -25℃ ~ +80℃, adapts normal and low-temperature environments
• Long service life: 40000 mechanical cycles and 10000 electrical cycles
• Pure mechanical structure without smart modules, low failure rate and easy maintenance
• RoHS certified, complies with global environmental standards for export sales
• Integrated durable construction, stable performance for long-term frequent use
• Universal design, compatible with most standard industrial electrical equipment worldwide

Full Technical Specifications

Product Attributes

• Circuit: DPDT 2-Way Dual Circuit
• Operation Mode: (ON)ON Momentary
• Pins: 6 Pins
• Handle: 12mm Flat Metal Handle
• Terminal: Solder Terminal
• Electrical Rating: 5A 125VAC / 2A 250VAC
• Max Load: 2A, 250VAC
• Temp Range: -25℃ ~ +80℃
• Mechanical Lifespan: 40000 Cycles
• Electrical Lifespan: 10000 Cycles
• Certification: RoHS
• Structure: Pure Mechanical (Non-smart)

Product Advantages

This DPDT 6-pin miniature momentary toggle switch adopts mature dual-circuit design, which can synchronously control two independent circuits. The 12mm flat metal handle ensures firm structure and comfortable operation. With mini size, it is perfectly suitable for equipment with limited installation space. Equipped with solder terminals, it supports quick soldering for PCB boards and ordinary wiring. It has two sets of AC electrical parameters to match various low and medium load circuits. The wide temperature resistance enables stable operation in cold and normal working environments. Both mechanical and electrical life reach industrial standards, ensuring long-term reliable use. As a RoHS-compliant product, it meets global environmental requirements and is friendly for overseas trade. The pure mechanical structure features simple assembly, low failure rate and minimal maintenance work. It is a cost-effective universal component for various industrial electrical and miniature electronic products.

Application Scenarios

This RoHS-certified mini toggle switch is widely exported to Europe, North America, Southeast Asia and other global regions, dedicated to compact electrical devices and dual-circuit control systems.

• • Industrial electrical equipment and dual-circuit control panel components
  • PCB modular circuits and miniature embedded electronic modules
  • Portable electronic devices and handheld control equipment
  • Laboratory measuring instruments and testing device switches
  • Small household appliances and intelligent terminal control parts

• Electronic DIY projects and customized momentary control circuits

Max. Current： 2A
Max. Voltage： 250VAC
Model Number： MT-0-202-F001-T000-RS
Mechanical Life： 40000
Product name： Mini Toggle Switch
Function： DPDT ON ON
Application： Electrical Equipment
Electrical Life： 10’000 Cycles
Terminal type： Solder Terminal
Rating： 5A 125VAC 2A 250 VAC
Handle option: Metal Flat
Operated Temperature: -25~+80
Certification: RoHs

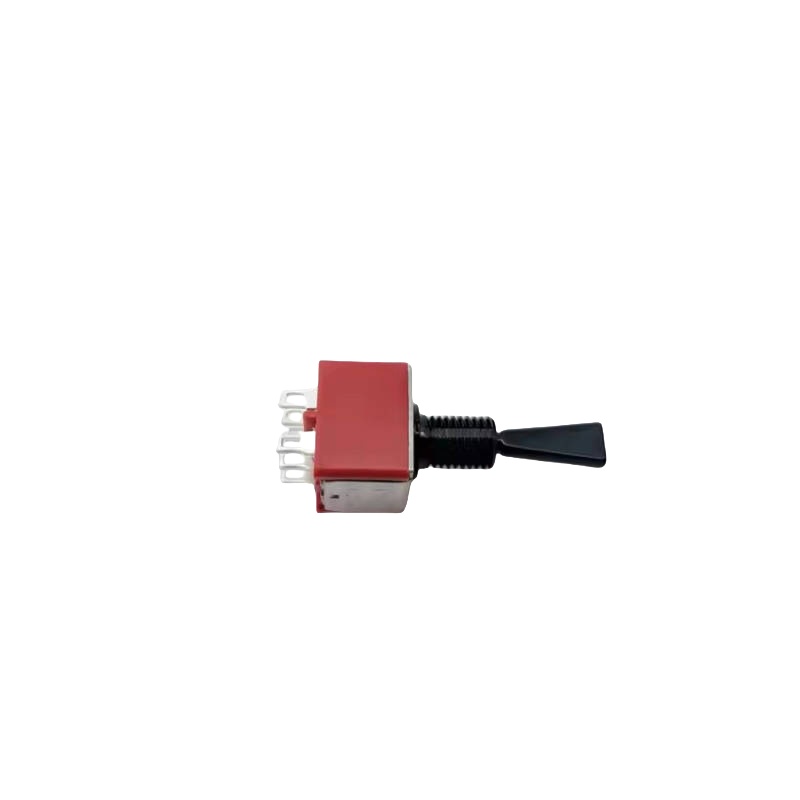

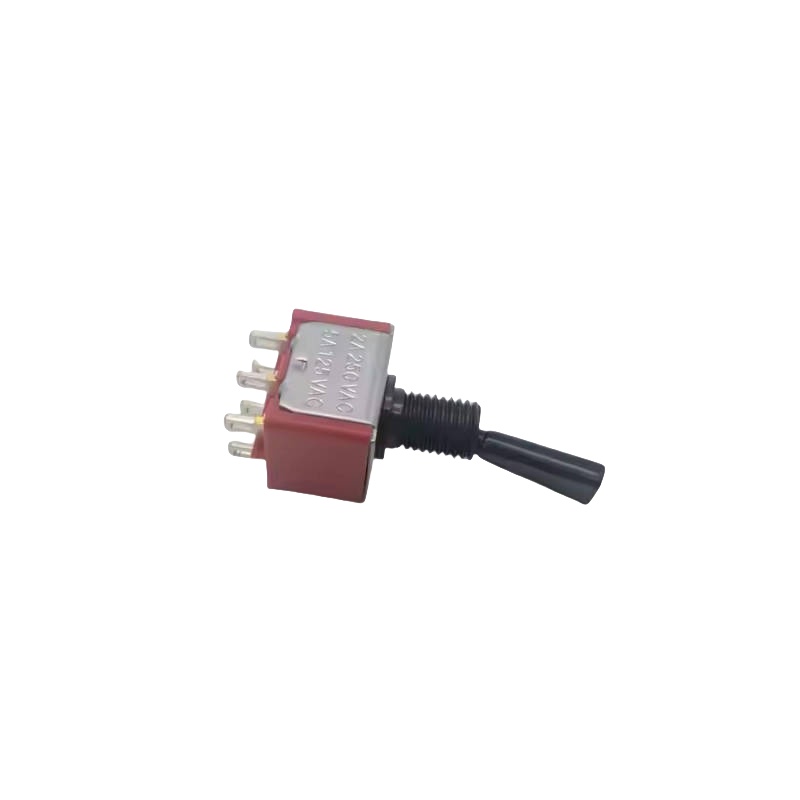

Product Images:

FAQ

1. What circuit type, pin count and function does this switch have?
It is DPDT 2-way type with 6 pins, and the switch function is (ON)ON momentary mode.

2. What is the specification of the handle?
It is equipped with 12mm flat metal handle for stable operation.

3. What terminal type does it use?
It adopts solder terminal, convenient for soldering and wiring work.

4. What are the voltage and current parameters?
Ratings: 5A 125VAC and 2A 250VAC; max current 2A, max voltage 250VAC.

5. What is the operating temperature range?
It can work stably at -25℃ to +80℃.

6. What about mechanical and electrical service life?
Mechanical life: 40000 cycles; Electrical life: 10000 cycles.

7. Does it have environmental certification?
Yes, it has passed RoHS certification to meet global environmental standards.

8. Does this switch have smart modules?
No, it is a pure mechanical toggle switch without any smart functions.

9. What main equipment is this switch applied to?
Mainly used for industrial electrical equipment, mini electronics, testing instruments worldwide.
