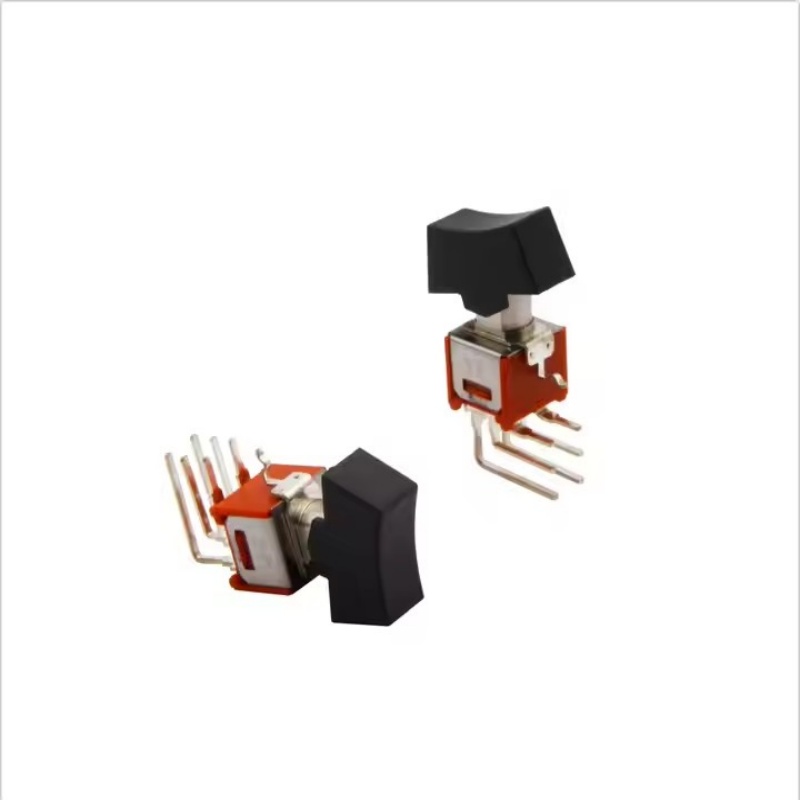

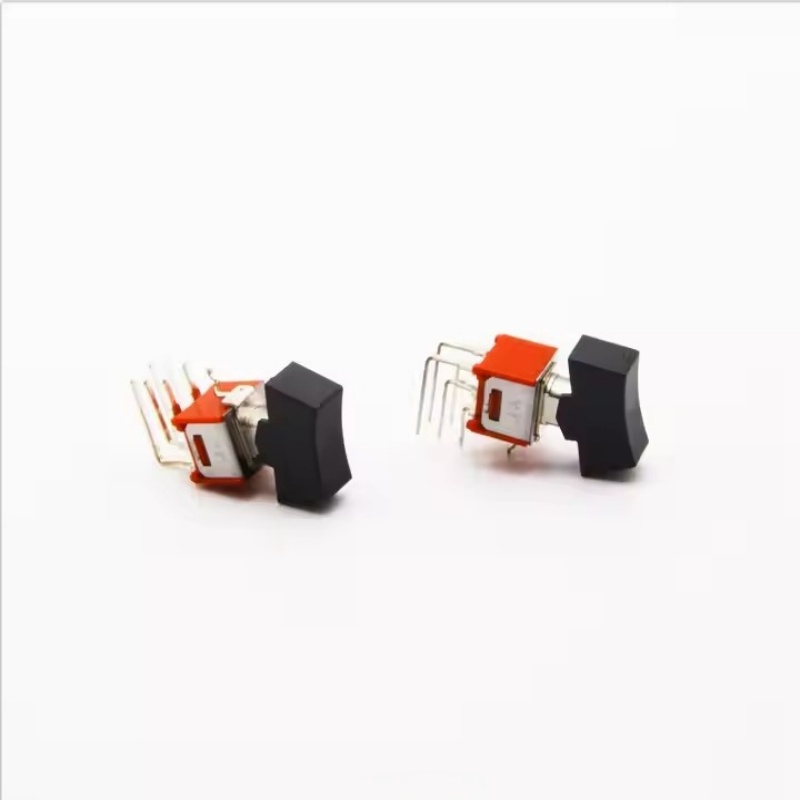

High-performance SUB-MINIATURE TOGGLE SWITCH (RS series) with DPDT ON-ON function, vertical right-angle PCB terminal design, 40000 mechanical cycles, IP11 rating. Compliant with TUV, CCC, CE, and RoHS certifications. Durable red rocker switch for industrial and electronic applications.
Mechanical Life： 40000
IP level： IP11
Function： ON-ON
Certifications: TUV CCC CE RoHS
Color: Red
Terminal: PCB Terminal
Product Name: Sub-Miniature Toggle Switch
Certification: RoHs
Rating: 3A 125VAC, 1.5A 250VAC
Contact Resistance: 20MΩ Max
Insulation Resistance: 500VDC 1000MΩ Min
Dielectric Strength:1000VAC， 1 Minute
Operatiing Temperature:-25ºC~+85ºC
Electrical Life:10000 cycles
Mechanical Life: 40000 cycles
Circuit: DPDT
Switch function: ON ON
Materials:
Case: PPA(UL94V-0)
Actuator: PA66(UL94V-0)，White or Black
Bushing：Brass,Nickel plated
Housing：Stainless Steel
Support Bracket：Brass,Tin-plated
Contact/Terminals：Copper Alloy, Silver or gold-plated
