Key Features

• M22×1 standard thread mounting hole for panel installation
• Classic red mushroom head design for quick emergency recognition
• Dustproof structure, stable performance in dusty industrial environment
• Switch combination: 1NO/1NC, 1NO1NC, 2NO/2NC, 2NO2NC optional
• Multiple housing material: SUS304 / Chromium Plated Brass / Aluminum Oxidation
• Shell length 8mm, compact structure easy for narrow panel mounting
• Pin type plug-in wiring method, fast assembly and reliable connection
• Rated insulation voltage up to 250V for electrical isolation safety
• 3A heating current, stable temperature resistance during operation
• Wide rated voltage range: 12V / 24V / 110V / 220V
• Complete AC 50/60Hz & DC resistive and inductive load parameters
• High-grade silver plated gold contact for stable conductivity
• Durable metal construction anti-corrosion and long service life
• Instant emergency power off to protect personnel and machine safety
• Suitable for industrial machinery, automation and workshop equipment

Product Attributes

• Connection: Plug in
• Head Material: SUS
• PIN Material: Silver
• Shell Material: Chromium Plated Brass, SUS304
• Shell Length: 8mm
• Contact Operation: 1NO+1NC , 2NO+2NC Optional

Product Advantages

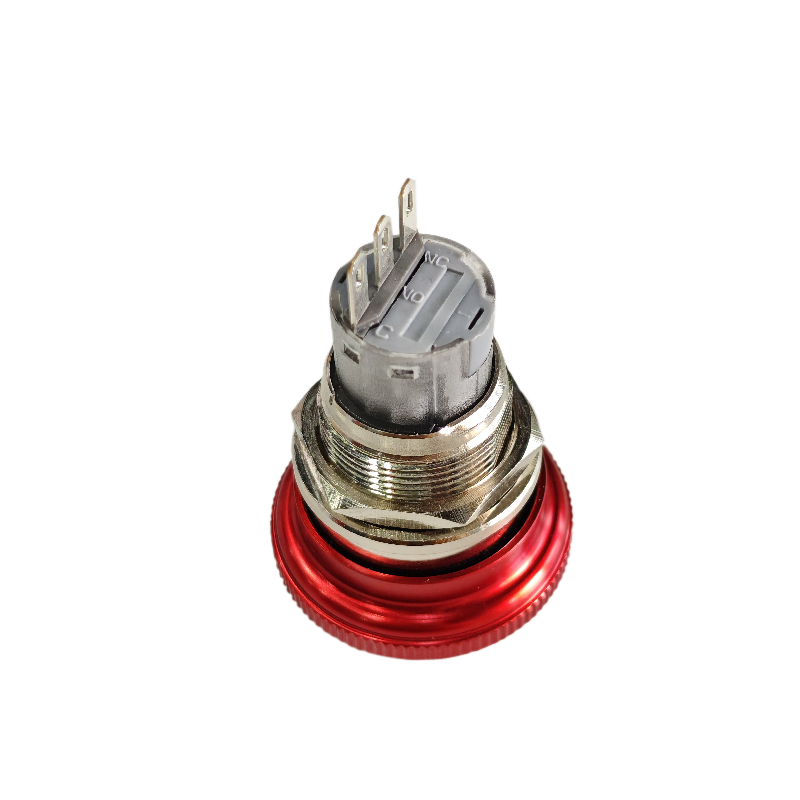

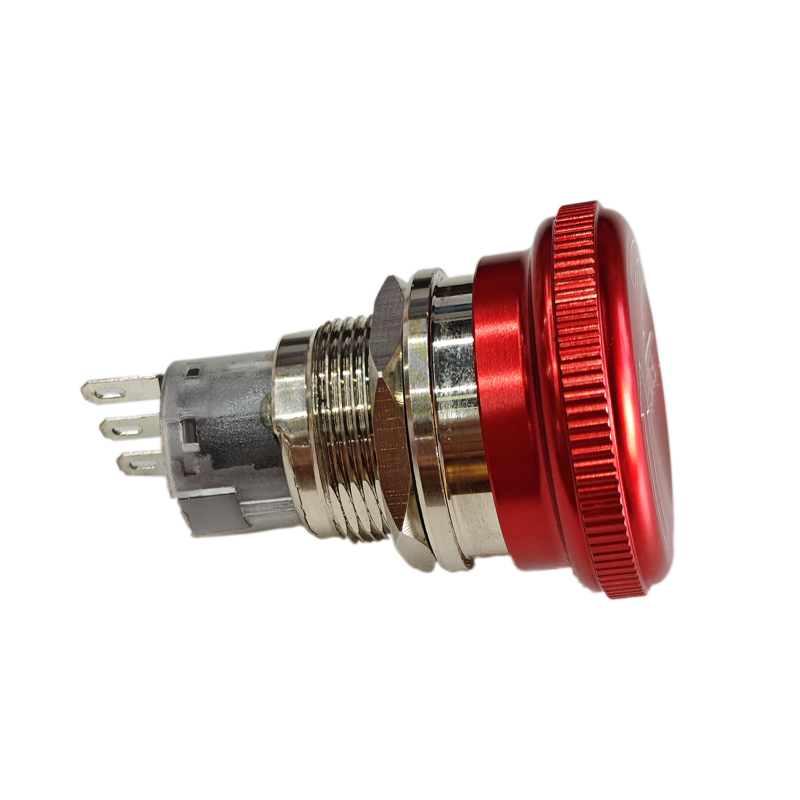

This dustproof red mushroom head emergency stop button adopts M22×1 thread mounting with 8mm short shell design. Obvious red mushroom head is easy to operate in emergency situations. Dustproof design adapts to dusty factory workshops. Multiple contact combinations and housing materials meet different project needs. Adopting silver plated gold contact, it provides stable conduction and long service life. Complete 12V–220V voltage and current parameters are compatible with most industrial control systems, ideal for industrial machinery and automation equipment emergency safety cutoff.

Applications

• M22 red mushroom head industrial dustproof emergency stop switch
• Automation equipment 1NO1NC safety emergency cutoff button
• Workshop dusty environment metal emergency push button
• Machinery control panel M22×1 thread mounting stop switch
• 3-220V universal industrial safety protection emergency button

FAQ

1. Mounting size?
M22×1 thread installation specification.

2. Design feature?
Red mushroom head + professional dustproof structure.

3. Contact type?
1NO1NC / 2NO2NC multi combinations optional.

4. Shell material?
SUS304 stainless steel, chromium plated brass, aluminum oxidation.

5. Voltage range?
Universal 12V to 220V for AC and DC systems.
