Key Features

• Marine-grade flanged connecting rod structure for fuel tank installation
• IP67 waterproof and dustproof for wet, humid and corrosive environments
• Made of SUS304 / SUS316 stainless steel, excellent corrosion resistance
• Extreme temperature range: -40℃ ~ +120℃ for harsh working conditions
• Compact 61mm sensor body length, save installation space
• Side mount design suitable for confined narrow installation position
• NO / NC normally open and normally closed contact optional
• Max 200VDC voltage and 1.5A current load capacity
• Rated voltage 100VDC / 220VDC, rated current 0.5A / 1.5A
• Contact rating 10W / 50W, match pump, alarm and control system
• Standard 350mm wire length, support customized cable length
• Switching transducer output for stable signal transmission
• Rugged marine grade performance for long-term industrial use

Technical Specifications

Product Attributes

• Structure: Flanged Connecting Rod Type
• IP Rating: IP67
• Material: SUS304 / SUS316
• Temperature Range: -40℃ ~ 120℃
• Body Size: 61mm
• Voltage: 100VDC / 220VDC / Max 200VDC
• Current: 0.5A / 1.5A
• Load: 10W / 50W
• Contact: NO / NC
• Cable: 350mm Customizable

Product Advantages

This flanged connecting rod float level switch adopts marine-grade stainless steel 304/316 material with strong anti-corrosion performance. IP67 protection adapts to wet, humid and corrosive harsh environments. It works stably at -40℃~120℃, compact 61mm body fits narrow space side installation. Complete electrical parameters and NO/NC optional contacts are compatible with water pumps, alarm and automatic control systems. Standard cable can be customized, stable switching output, ideal for marine fuel tank, vehicle and industrial liquid level monitoring.

Applications

• Marine and ship fuel tank liquid level monitoring sensor
• Automotive and vehicle oil tank & water tank level control
• Industrial equipment storage tank high precision level detection
• Humidifier and household electrical appliance level switch
• Harsh environment water treatment and fluid control system

Product name: Float Switch
IP level: IP67
Operating Temperature: -40C to 120C
Material： Stainless steel 304/316
SIZE： 61mm SENSOR BODY LENGTH
Application： car, automobile,industry equipment ,humidifier,etc
Contact Form： N.O/N.C
Wire length： 350mm or as required
Output： Switching Transducer
Max. Current: 1.5A
Max. Voltage: 200VDC
Rated Voltage： 100VDC/220VDC
Rated current： 0.5A/1.5A
Rating Load： 10W/50W

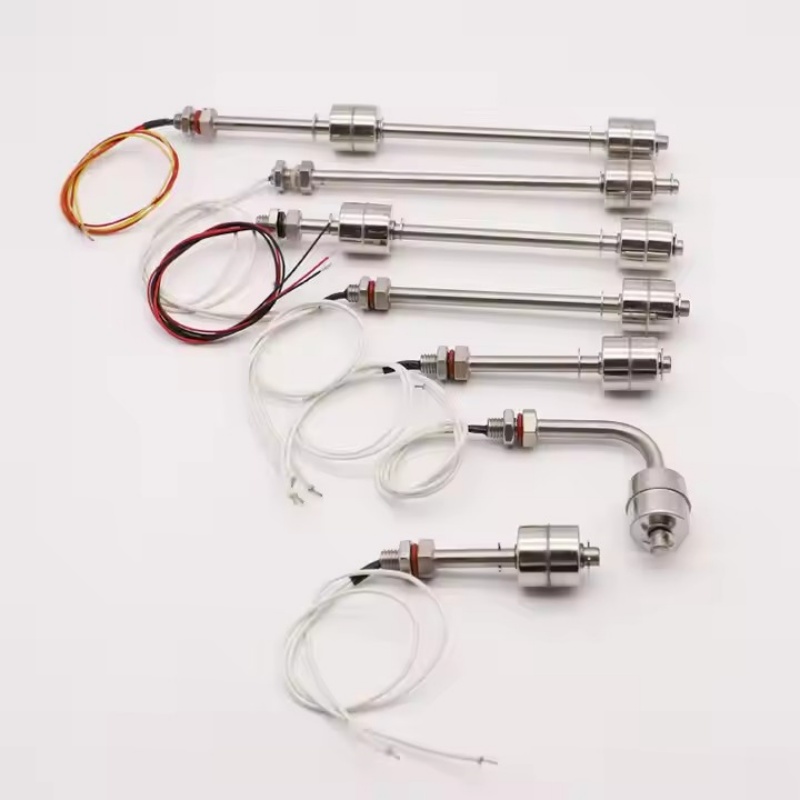

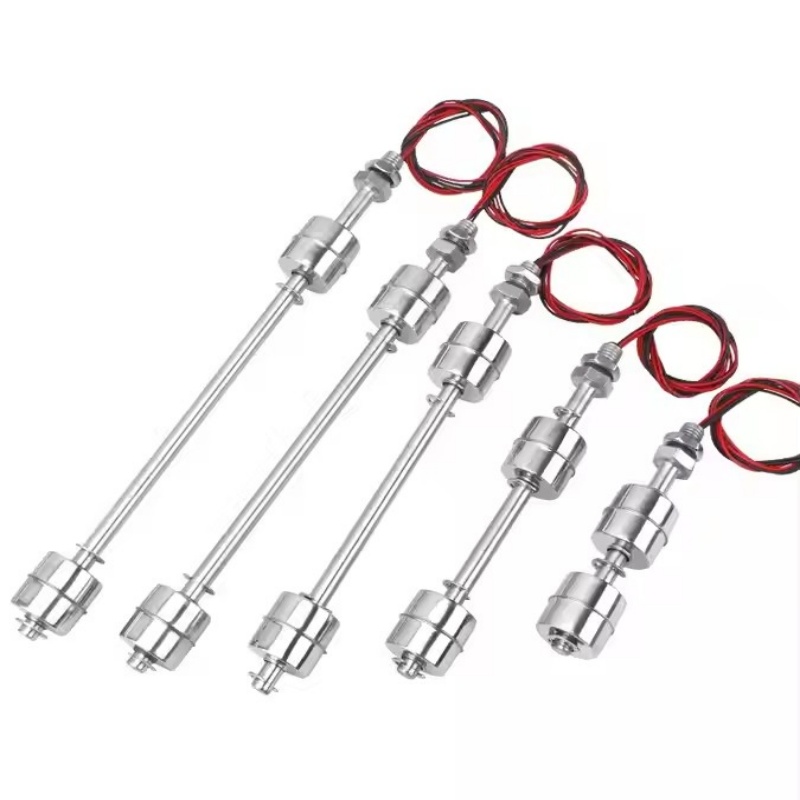

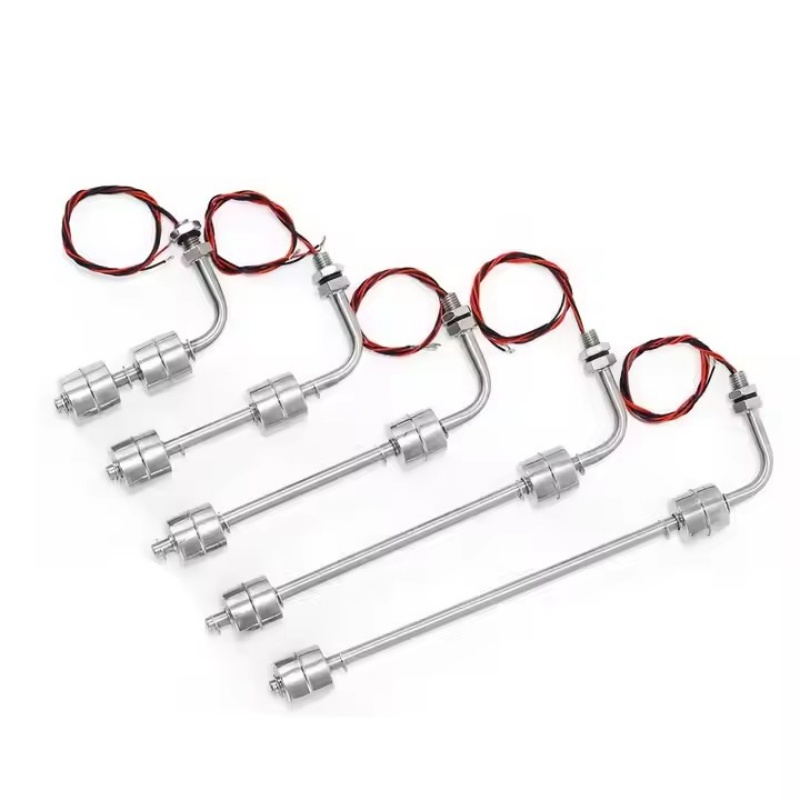

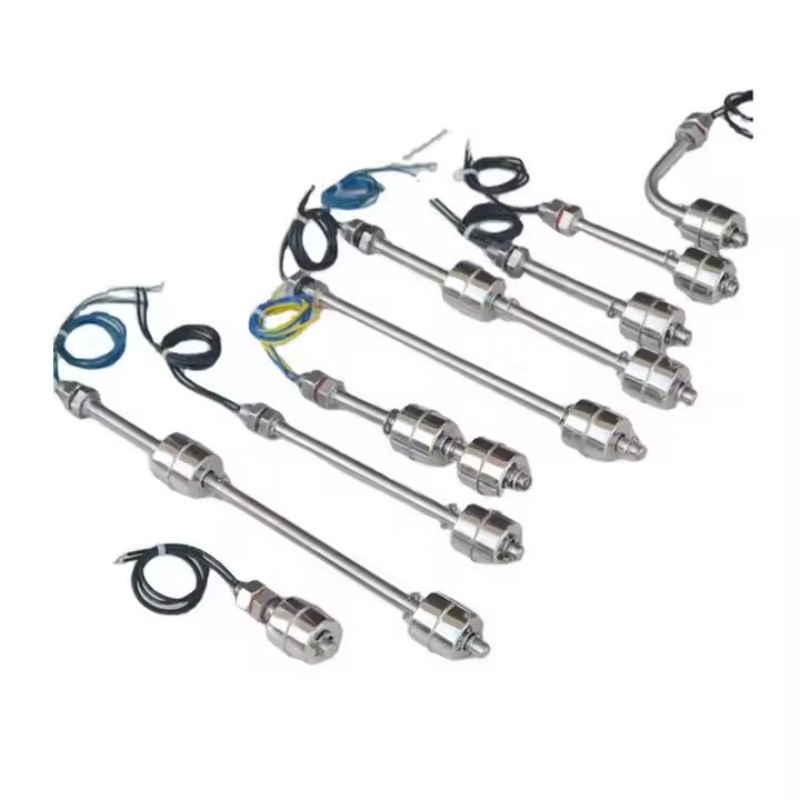

Product images

FAQ

1. What material is the switch made of?
High quality SUS304 / SUS316 stainless steel, corrosion resistant for marine use.

2. What is the waterproof rating?
IP67 waterproof and dustproof, suitable for humid and corrosive working conditions.

3. What temperature can it withstand?
Operating temperature range -40℃ ~ +120℃, adapt to extreme cold and high temperature.

4. What is the sensor body size?
Sensor body length is 61mm, compact and easy to install.

5. What electrical parameters does it support?
Max 200VDC, rated 100VDC/220VDC, 0.5A/1.5A, load 10W/50W.

6. Can I choose contact mode?
Yes, normally open NO and normally closed NC contact are optional.

7. What are the main application scenarios?
Widely used in marine fuel tank, automobile, industrial equipment and humidifier liquid level detection.
