Ideal for water dispensers, industrial tanks, and commercial systems, this sensor utilizes magnetic induction and a magnet reed switch mechanism to deliver reliable NO/NC signal outputs for seamless integration with control systems.

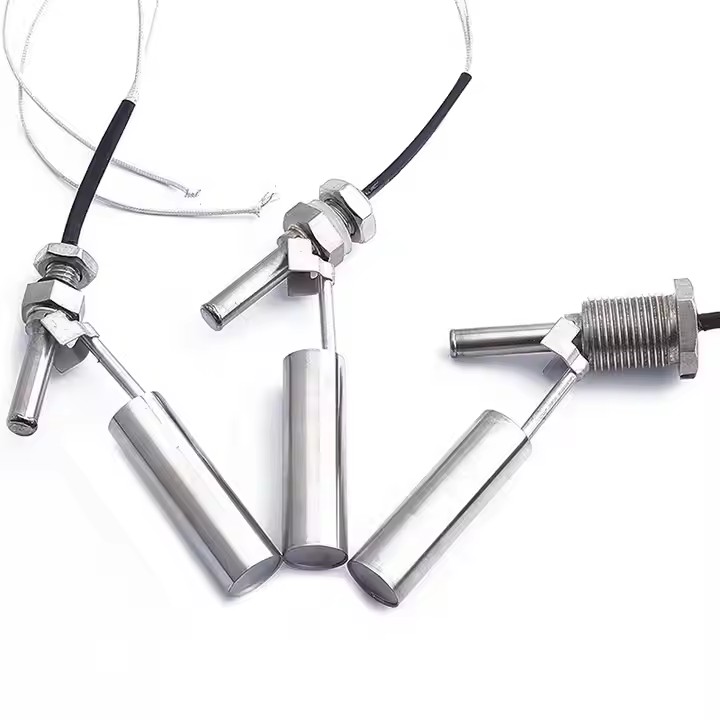

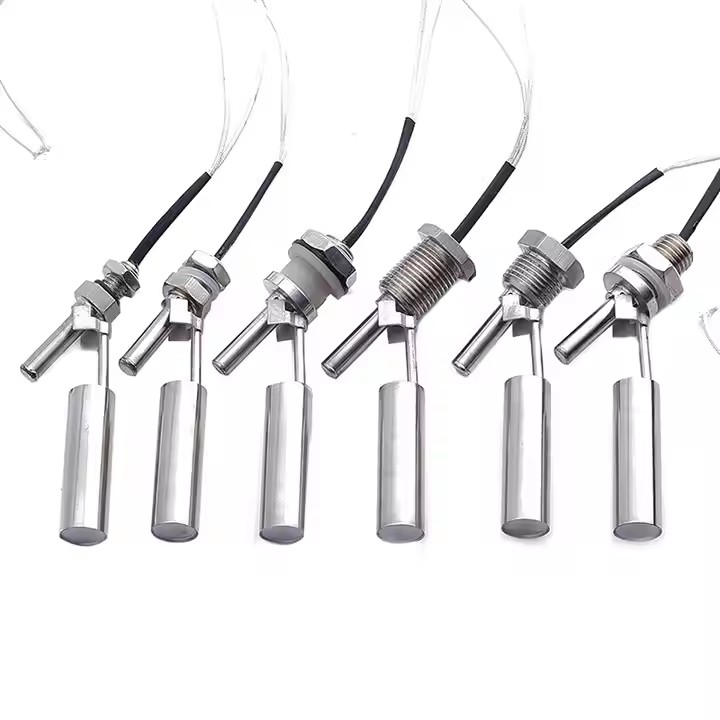

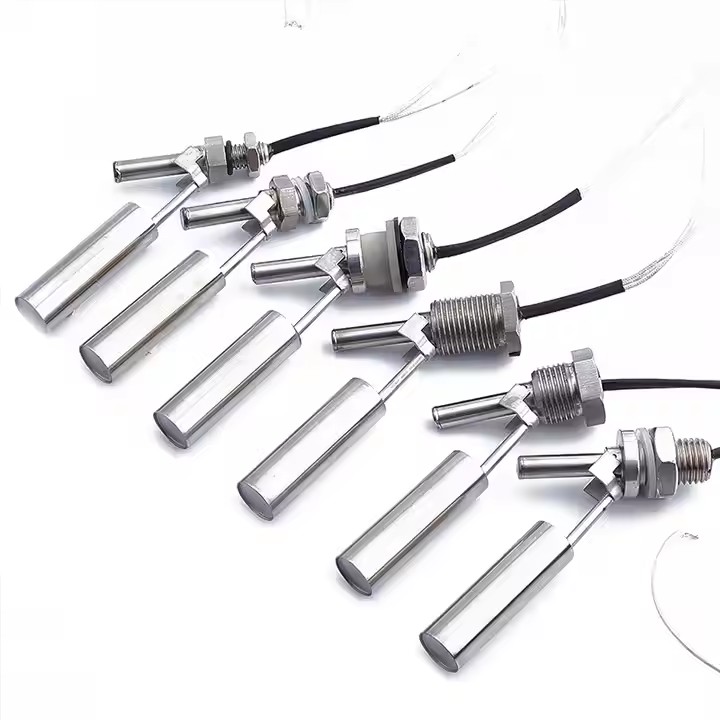

| Product Name | Horizontal Side-Mounted Float Switch |
| Product Model | SCJ5FDVIWP16 |
| Series | Stainless Steel Float Switch Series |
| Mounting Type | Horizontal / Side Mounted |
| Main Material | PP + SUS |
| Float Ball Material | Stainless Steel / Plastic |
| Working Principle | Magnet Reed Switch / Magnetic Induction |
| Operating Temperature | -10℃ ~ +85℃; -30℃ ~ +180℃ |
| Max Voltage | 200VDC |
| Max Current | 1.5A |
| Contact Form | Normally Open / Normally Closed |
| Output Type | Signal Output |
| Cable Length | 350mm (Customizable) |
| Application | Water Dispenser, Industrial Tank, Commercial System |
This horizontal side-mounted float switch is made of PP and stainless steel composite materials, with stainless steel and plastic float balls for selection. It applies mature magnetic reed switch technology to ensure precise liquid level detection. Two temperature ranges are available to adapt to normal and high-temperature working environments. With 200VDC and 1.5A electrical parameters and optional NO/NC signal output, it can be well matched with various control systems. The side-mounted structure is convenient for installation on the side of tanks, and the cable length can be customized freely. It features stable performance and strong compatibility, which is a reliable choice for water dispensers, industrial tanks and commercial liquid equipment.
1. What materials are used for this float switch and float ball?
The main body adopts PP and SUS composite material; the float ball can choose stainless steel or plastic material.
2. What working principle does this sensor adopt?
It works based on magnet reed switch and magnetic induction principle.
3. How many temperature ranges are available?
Two options: -10℃ ~ +85℃ and -30℃ ~ +180℃ for different working conditions.
4. What are the electrical parameters?
The maximum voltage is 200VDC and the maximum current is 1.5A.
5. What contact and output modes does it have?
It supports normally open and normally closed contacts with standard signal output.
6. What is the installation method and cable specification?
Designed for horizontal side mounting; standard cable length is 350mm and customization is supported.
7. What are the main application scenarios?
Mainly used for water dispensers, industrial tanks and various commercial liquid level measuring systems.
