Flygt ENM 10 Magnetic Float Switch – IP67 Smart Liquid Level Sensor for Harsh Industrial Tanks & Pools

The ‌Flygt ENM 10 Magnetic Float Switch‌ is an IP67-rated, smart liquid level control solution designed for precision monitoring in demanding industrial tanks, automotive reservoirs, and liquid pools. Built with ‌SUS 304/316 stainless steel‌ for superior corrosion resistance, this high-temperature sensor (-40°C to +120°C) combines robust construction with intelligent switching logic (N.O/N.C contacts) to prevent overfill, dry-run conditions, or leakage risks. Its 400mm sensor body and magnetic float mechanism ensure reliable, hysteresis-free detection, while a 1.5A/200VDC capacity (rated 10W/50W) supports integration with pumps, alarms, or automation systems.

Enquiry
SKU:SCJ5FD31PI10-01Category:
Description

Product name: flygt enm 10 float switch
Whether the smart: Yes
IP level: IP67
Operating Temperature: -40C to 120C
Material: SUS

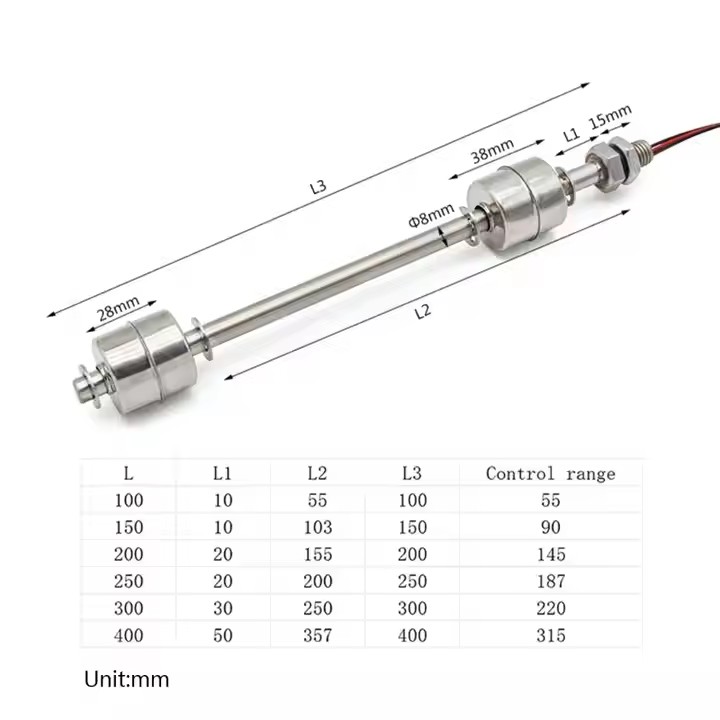

SIZE: 400MM SENSOR BODY LENGTH
Application: car, automobile,industry equipment ,humidifier,etc
Contact Form: N.O/N.C
Wire length: 350mm or as required
Output: Switching Transducer
Max. Current: 1.5A
Max. Voltage: 200VDC
Rated Voltage: 100VDC/220VDC
Rated current: 0.5A/1.5A
Rating Load: 10W/50W
