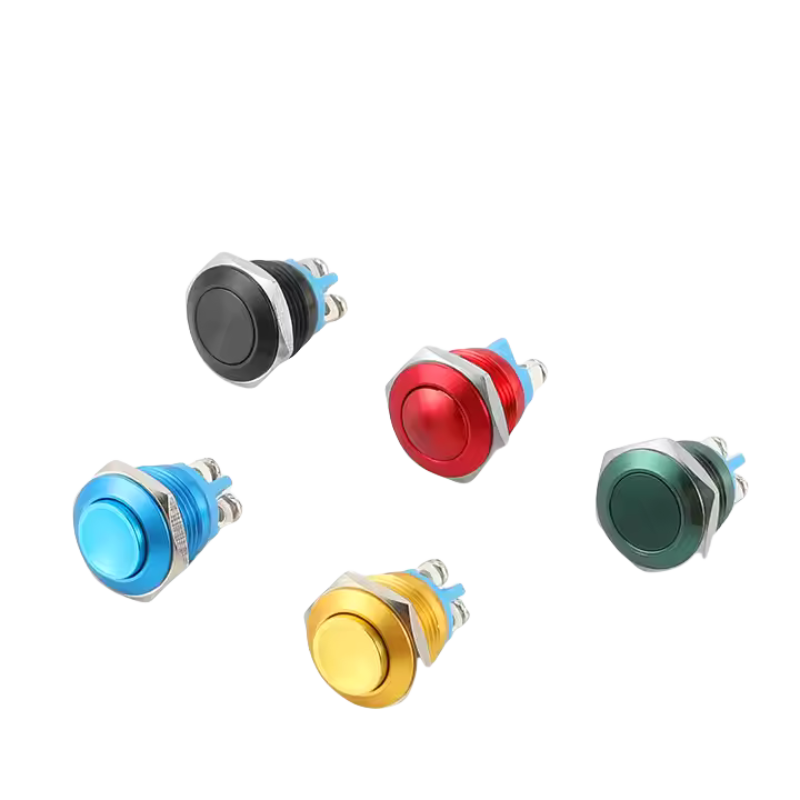

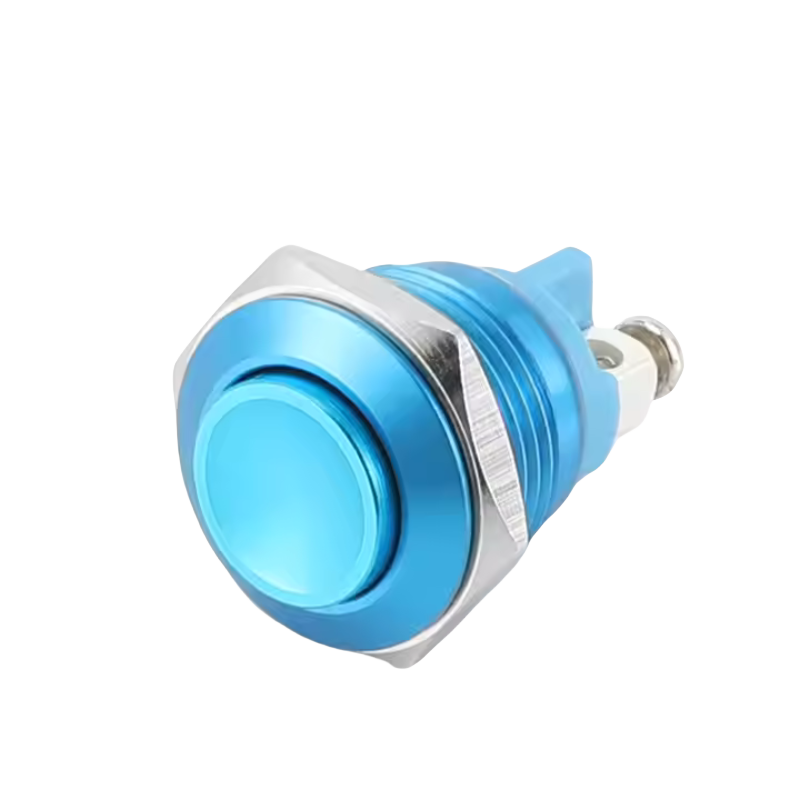

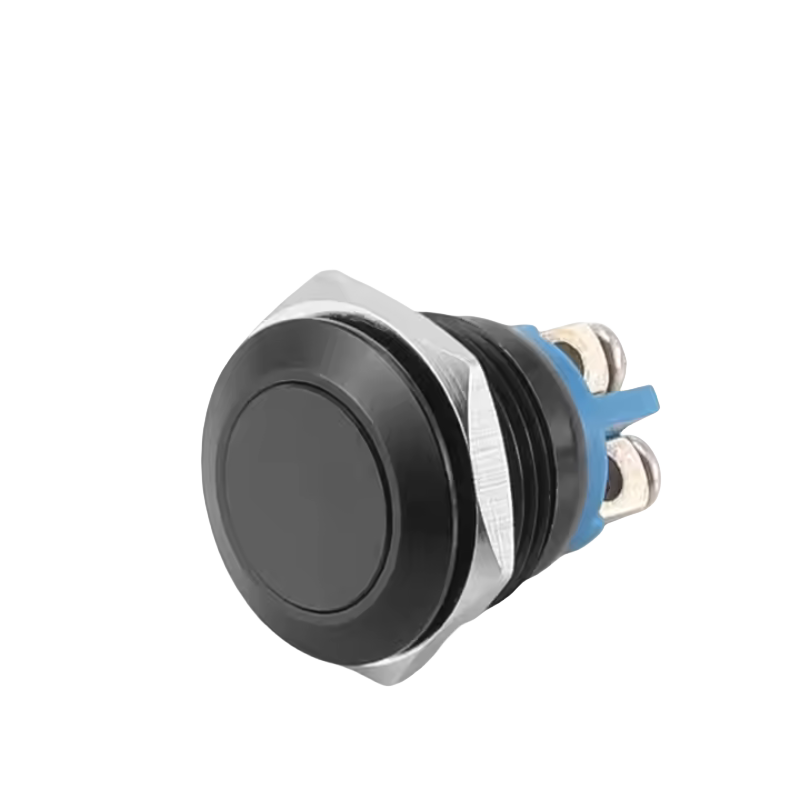

The 16mm high flat dome metal push button switch is a durable, IP66 waterproof momentary reset switch with an aluminum oxide finish. Featuring a 1NO contact configuration, this metal button offers reliable on/off control for industrial equipment, control panels, and electrical systems. Designed for precision and long-lasting performance in demanding environments.
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000mΩ |
Dielectric Strength | 1000VAC min |
| Protection Levels | IK10 |
Ambient Temperature | -30℃~+80℃ |
Waterproof | IP65/IP66 |
| Pins | H65 / H65 Silver Plated / Gold |
| Nut | Nickel brass |
This 16mm high flat dome metal push button adopts elegant high flat dome appearance with high-grade aluminum oxide surface treatment, featuring anti-wear, anti-scratch and high-end texture. 1NO normally open contact meets most basic trigger control needs. Momentary self-reset design is suitable for one-touch start and signal trigger scenarios. Up to IP66 waterproof grade can effectively prevent dust and water splash, adapting to workshop, humid and dusty harsh environments. Matched with IK10 impact resistance and ultra-wide temperature adaptability, it maintains stable performance for long-term industrial and civilian equipment use.
1. What is the mounting size?
Standard 16mm mounting hole diameter.
2. Head design?
High flat dome ergonomic design for comfortable pressing.
3. Surface treatment?
High-quality aluminum oxide finish, wear and scratch resistant.
4. Contact configuration?
1NO normally open simple and practical circuit design.
5. Waterproof level?
IP66 high-grade waterproof, dustproof and splash-proof.
| Connection | |
|---|---|
| Operation of Contact | |
| PIN Material |
