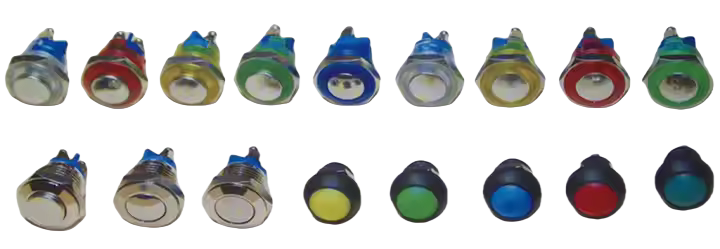

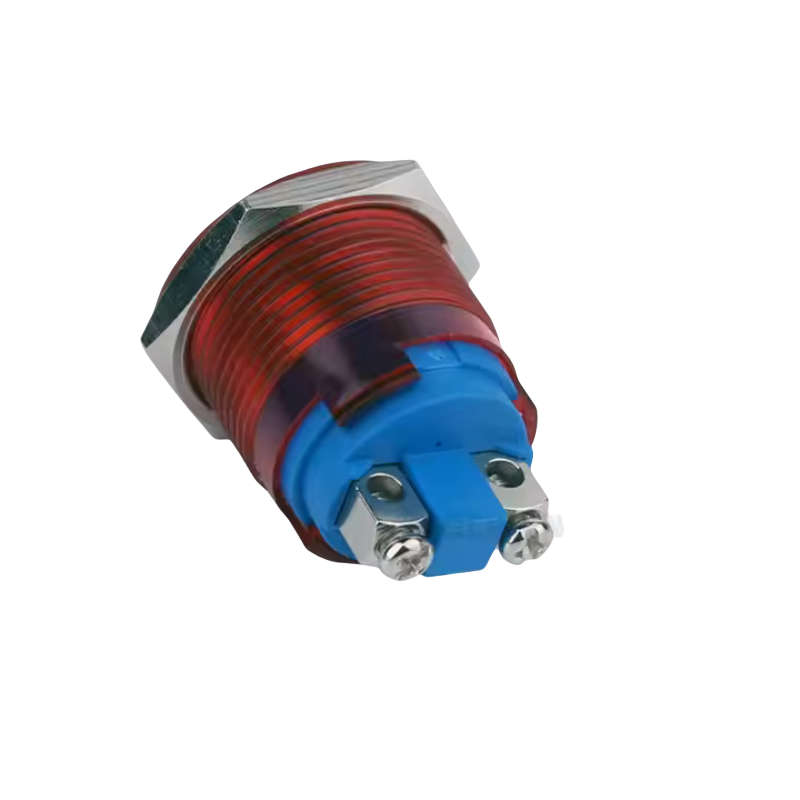

Compact 16mm metal push button switch with a short body design and color high head for easy identification. Rated IP65 and IK02, this 3A plastic switch features screw terminal connections and a momentary reset function. Suitable for control panels and low-voltage applications in light industrial environments.
Mounting diameter | 12mm 16mm 19mm 22mm 25mm 30mm |
Head shape | Flat head |
Switch Combination | 1NO |
Operation type | Momentary |
Rated Current | 2A 250VAC |
Illuminating type | Non-illuminated Ring LED |
Illuminating color | Red,green,blue,yellow,orange,white,purple |
Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
Shell material | Brass nickel,Stainless steel,aluminum oxide |
Contact Resistance | 50mΩ max |
Insulation Resistance | 2000VAC |
Dielectric Intensity | 2000VAC |
Accessories | Nut, Rubber Waterproof O-ring |
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material | |
| Position |
