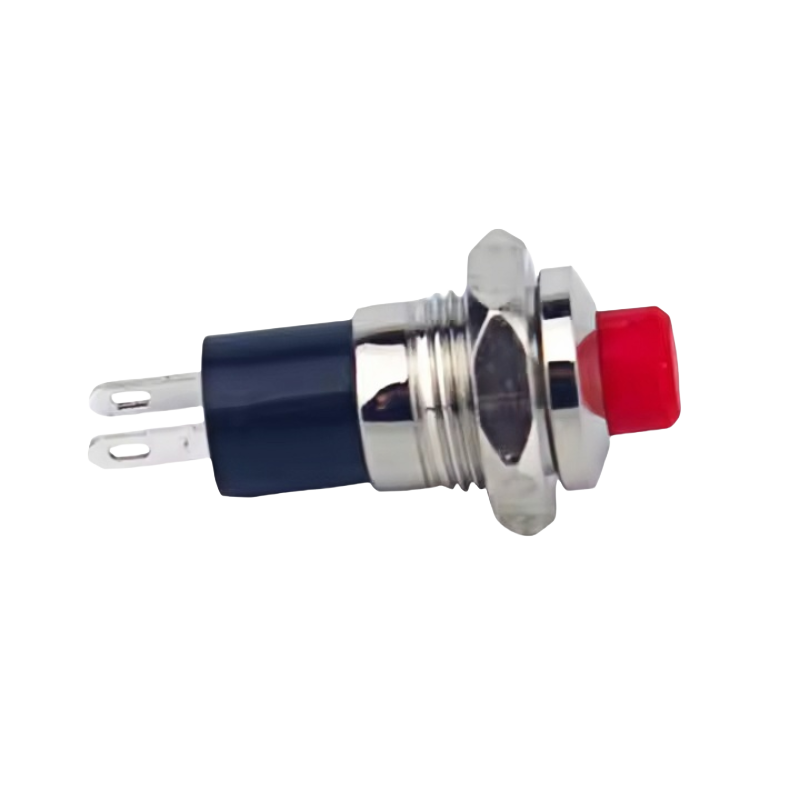

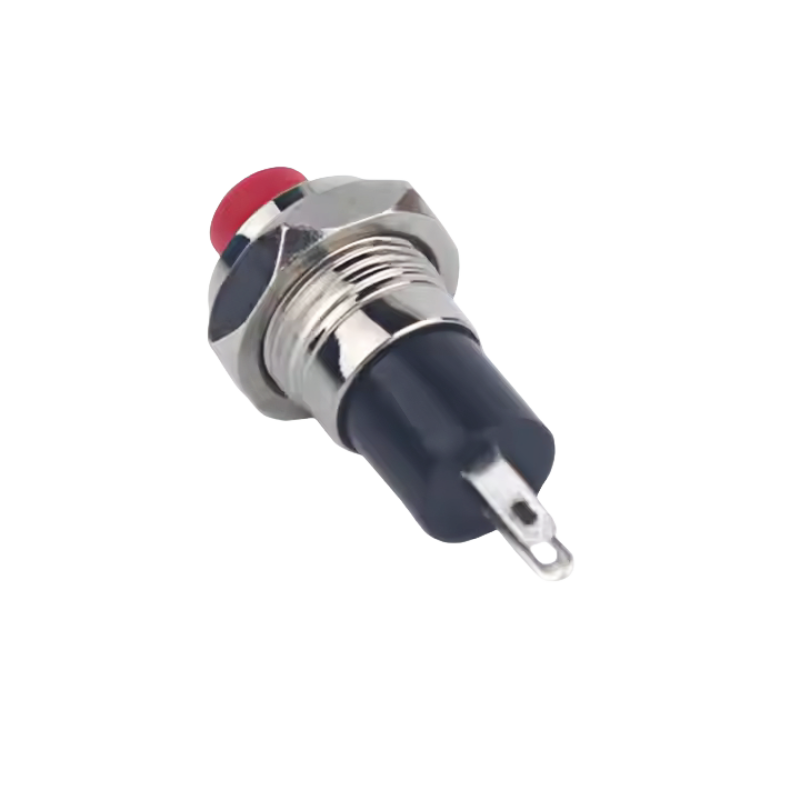

High Round Head Metal Push Button Switches Series 7mm Push Button Switch Push Buttons

Designed for precision and durability, this 7mm metal push button switch series features a high-round head design for enhanced tactile feedback and secure operation. Constructed from stainless steel or brass, it offers excellent corrosion resistance and long-term reliability in harsh industrial environments.

Enquiry
SKU:SCJ7M07FZCategory:
Description
Mounting Hole
7/10/12/ 16/19/22/25/28/30/40mm
Operation Type
Momentary / Latching
Switch Combination
1NO/ 1NO1NC
Head Type
Flat / High /Domed head
Terminal type
Solder Terminal
Enclosure Material
Brass nickel
Delivery Days
3-7 days after payment received
Contact Resistance
50 mΩ max
Insulation Resistance
1000MΩ Min
Dielectric Intensity
2000VAC
Operating Temperature
-20°C ~+55°C

Attributes
Connection

Contact Material

PIN Material

Position

,

Operation of Contact

,
