Key Features & Core Advantages

• 16mm standard mounting hole, compatible with most industrial, outdoor and civil control panels
• Dual operation modes: latching and momentary, for fixed control and temporary signal triggering
• Flat head design with comfortable pressing feel, compact and space-saving structure
• Two contact options: 1NO and 1NO1NC, adapt single and mixed circuit designs
• Rated 2A 250VAC, stable performance for common low-current AC circuits
• Dual illuminated types: metal ring LED and power logo LED, customizable lamp colors
• Silver contacts and silver pins, low contact resistance ≤50mΩ, excellent conductivity
• High electrical performance: min 1000MΩ insulation resistance, 2000VAC dielectric strength
• Integrated waterproof structure, works reliably in rainy, humid outdoor environments
• Plastic shell with lightweight and high insulation, durable for long-term use
• Plug-in terminal design, fast wiring and easy for mass assembly & maintenance
• Pure mechanical structure without smart modules, low failure rate and long service life
• Versatile design for indoor and outdoor multi-scene applications worldwide

Full Technical Specifications

Product Attributes

• Installation Size: 16mm Standard Panel Mount
• Head Style: Flat Head
• Operation: Latching + Momentary Dual Modes
• Contact Type: 1NO / 1NO1NC Optional
• Rated Spec: 2A 250VAC
• Light Style: Ring LED & Power Logo LED, Color Customizable
• Contact & Pin: Silver Material
• Contact Resistance: ≤50mΩ
• Insulation Resistance: ≥1000MΩ
• Withstand Voltage: 2000VAC
• Shell: Plastic, Good Insulation
• Wiring: Plug-in Terminal
• Protection: Waterproof for Outdoor & Wet Areas
• Structure: Pure Mechanical (Non-smart)
• Core Strength: Color Customizable, Dual Light, Waterproof, Dual Modes

Product Advantages

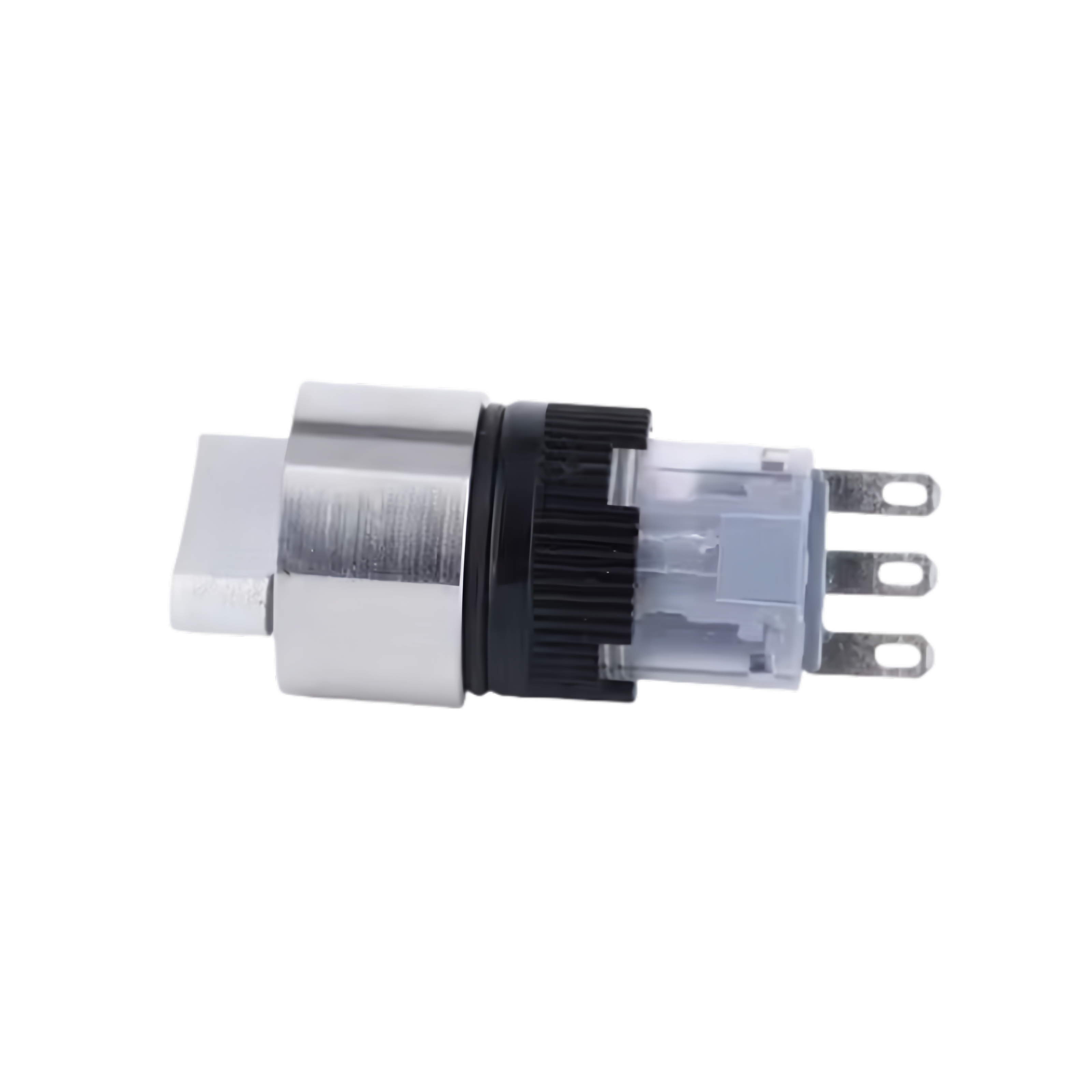

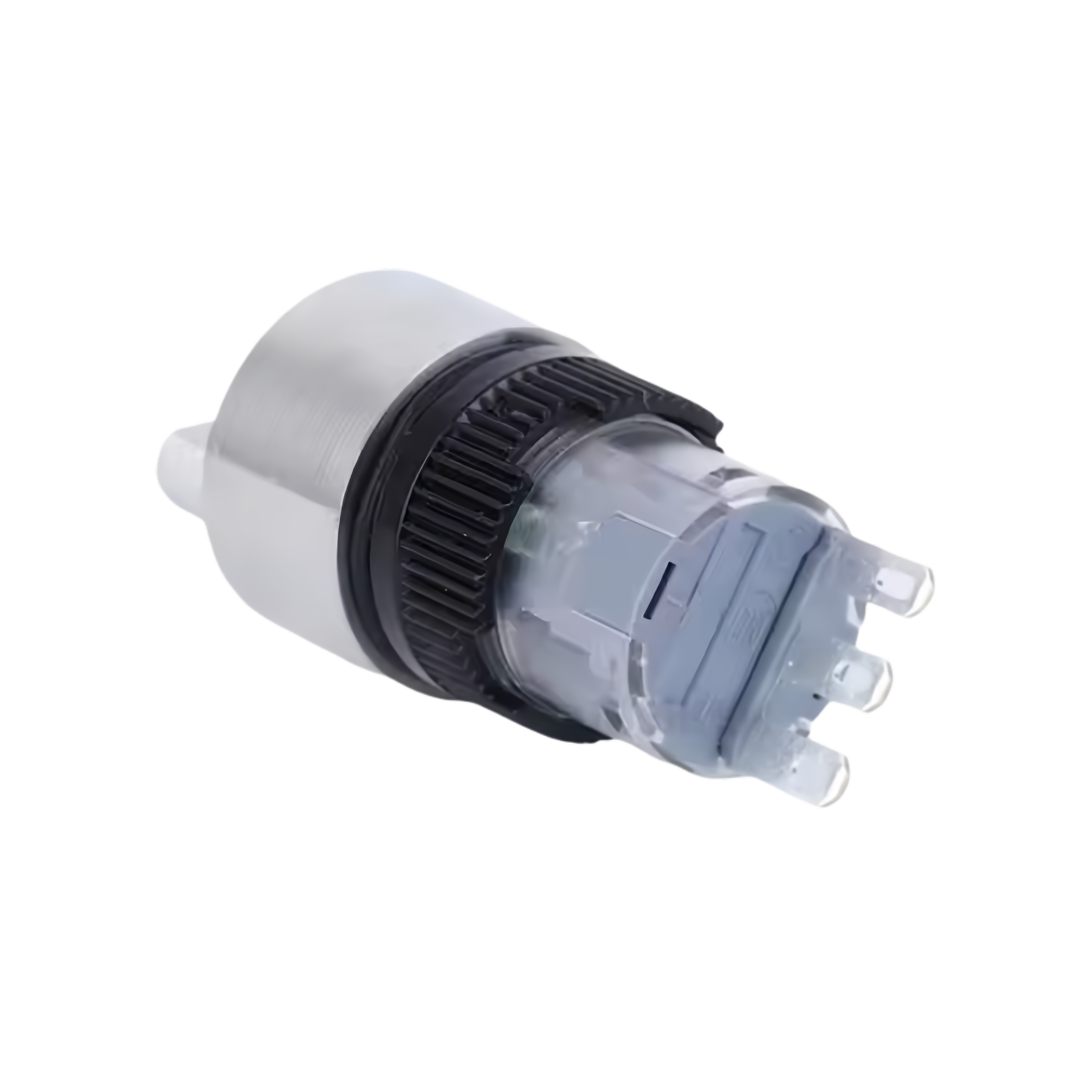

This 16mm flat push switch with metal ring LED is a multi-functional control component. The standard 16mm size fits most common control panels on the market. Equipped with latching and momentary dual modes, it can satisfy fixed power control and temporary signal output. Two mainstream contact combinations cover different circuit design requirements. With 2A 250VAC rating and excellent electrical parameters, it ensures stable operation for low-current AC circuits. It provides ring LED and power logo dual lighting styles, and users can customize various lamp colors to match different equipment styles. Silver contacts and pins effectively reduce resistance and prevent oxidation, extending the service life. The plastic shell features light weight and superior insulation. Built-in waterproof structure allows the switch to work normally on rainy days and in humid outdoor environments. Plug-in terminals simplify wiring and post-maintenance work. The flat head design is compact and comfortable to press. As a pure mechanical switch, it has a simple internal structure and low failure rate. It is a cost-effective choice for indoor and outdoor electrical projects around the world.

Application Scenarios

This LED waterproof push switch is widely sold to Europe, North America, Southeast Asia and other global regions, suitable for indoor and wet outdoor environments.

• Industrial control panels and workshop low-voltage circuit control buttons
• Outdoor electrical facilities and rainy area waterproof control components
• Automotive interior circuits and vehicle auxiliary function switches
• Household and commercial electrical appliances power control knobs
• Laboratory instruments and testing equipment function selectors
• Electronic DIY projects and customized circuit modules

FAQ

1. What is the mounting size and head type?
The standard mounting hole is 16mm, and it adopts classic flat head design.

2. What operation modes does it support?
It has two operation modes: latching and momentary.

3. What contact combinations are optional?
1NO and 1NO1NC two contact types for different circuit needs.

4. What are the rated current and voltage?
Rated current 2A, rated voltage 250VAC for low-current AC circuits.

5. What are the lighting styles and color options?
Two light types: metal ring LED and power logo LED; lamp colors can be customized.

6. What materials are contacts and pins made of?
Both contacts and pins are made of silver with stable conductivity.

7. What are the key electrical parameters?
Max contact resistance 50mΩ, min insulation resistance 1000MΩ, withstand 2000VAC.

8. Does it have waterproof function and wiring type?
Yes, it is waterproof for outdoor use; it uses plug-in terminal for wiring.

9. What is the shell material and main applications?
The shell is plastic; widely used in industrial panels, outdoor devices, automotive and home appliances worldwide.
