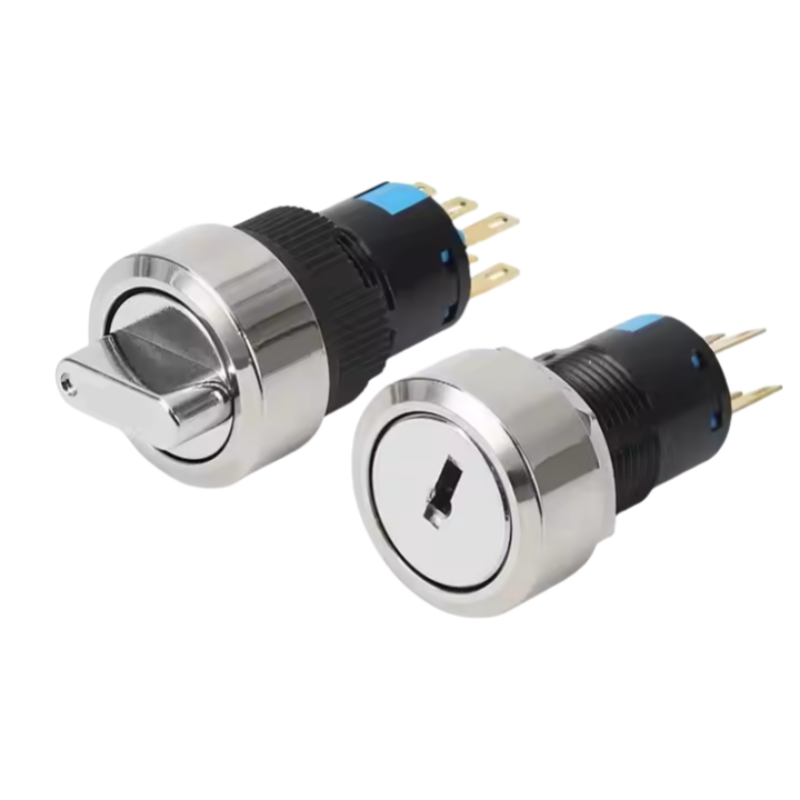

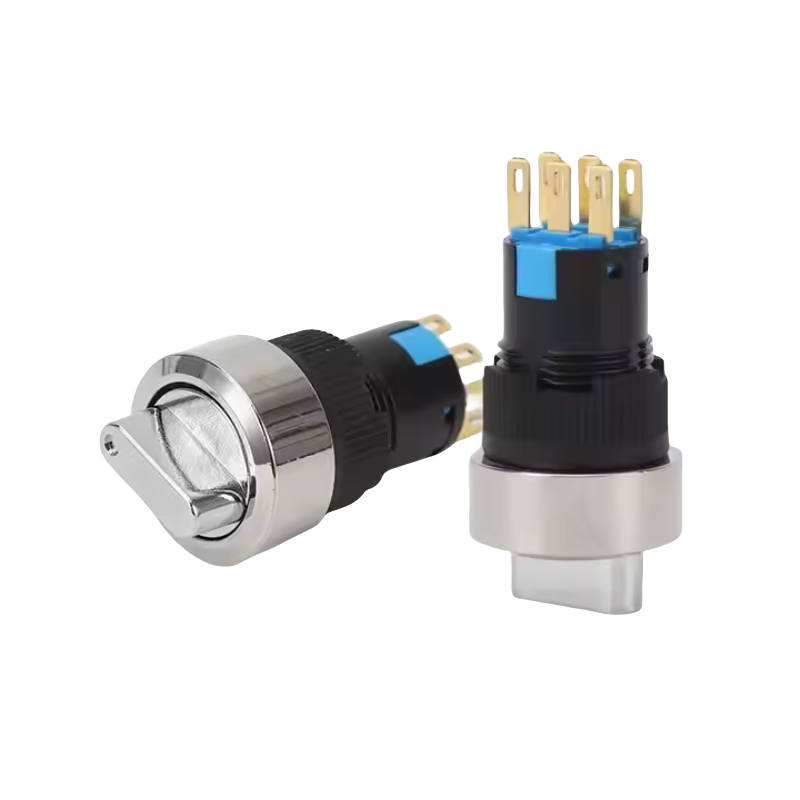

The M16 electronic rotary switch features a durable metal knob with a self-locking design, offering stable position selection. With a 1NO1NC contact configuration, it supports 2 or 3 position control, ideal for industrial equipment, control panels, and electrical systems requiring precise switching. Compact and reliable.
| Max. Current | 3A |
| Max. Voltage | 250V |
| Place of Origin | China |
| LED | No |
| Application | Industrial automation |
| Material | Metal |
| Structure | Electronic |
| Head Type | Round |
| Terminal Type | Screw terminal |
| Whether the smart | NO |
| illuminated Type | No |
| IP level | Ip65. |
| Switch Combination | 1NO1NC |

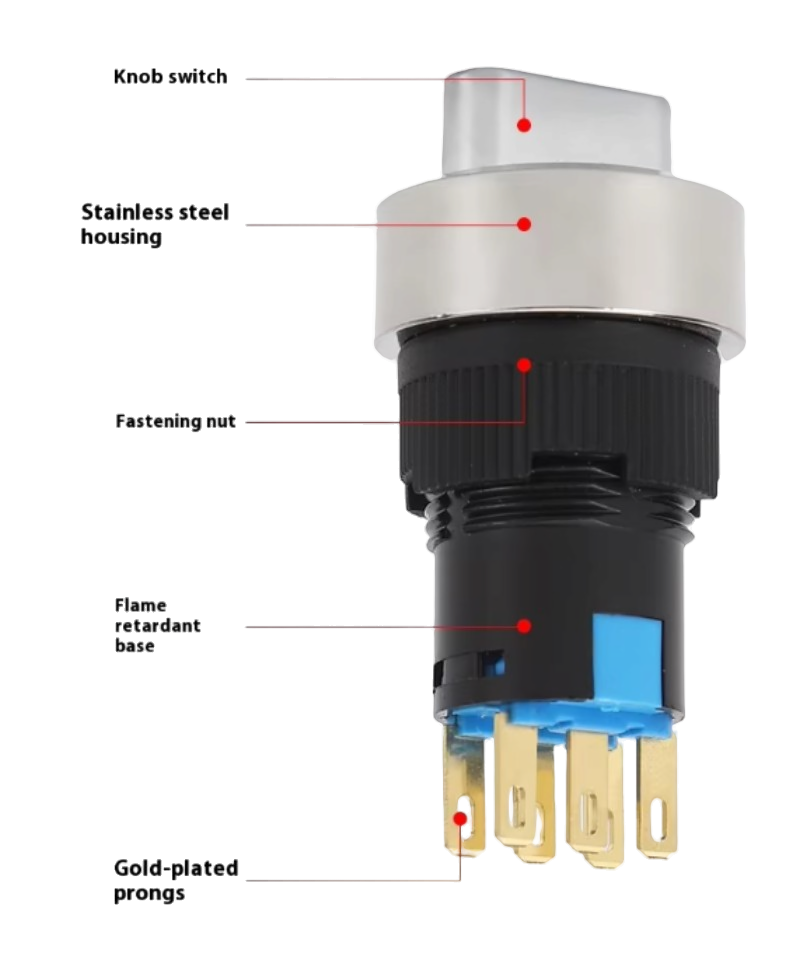

M16 metal rotary selector switch adopts high-quality metal knob, smooth rotation and clear gear feel. It provides 2-position and 3-position two control modes to meet different circuit switching needs. Self-locking positioning structure can stably maintain the selected gear without accidental shift. Equipped with standard 1NO1NC contact configuration, compatible with most industrial control circuits. IP65 waterproof design adapts to workshop dust and humid environment. Screw terminal wiring is firm and reliable, overall compact structure, durable for long-term industrial use.
1. What mounting size is it?
Standard M16 mounting diameter.
2. Position options?

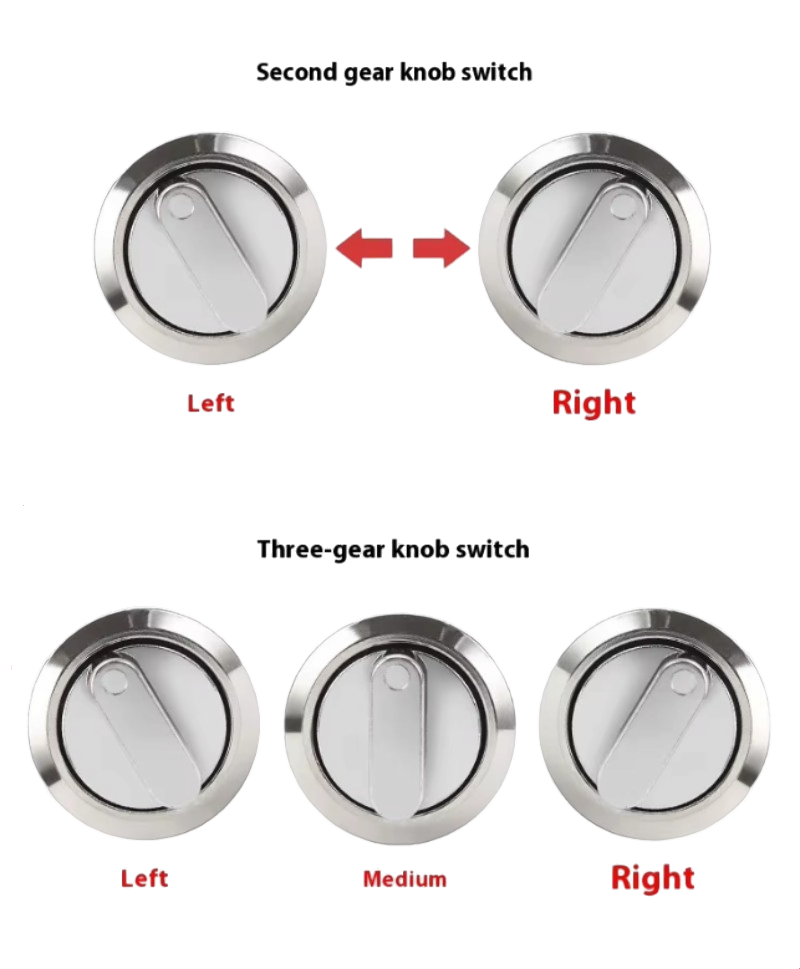

2 position and 3 position selection optional.
3. Contact configuration?
1NO1NC standard combination for circuit switching.
4. Waterproof level?
IP65 dustproof and waterproof grade.
5. Terminal type?
Screw terminal for stable wiring installation.
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material | |
| Position |
