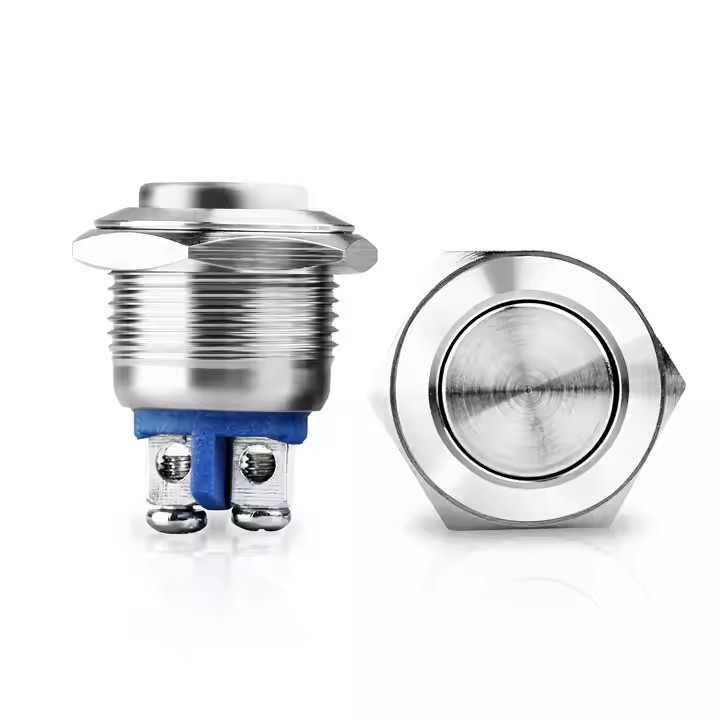

Metal Illuminated IP67 Waterproof 5A Electrical Ring Led Momentary NO 22mm 12vlot Metal Push Button Switch

This 22mm metal push button switch features an IP67 waterproof rating, making it highly resistant to dust and water. Designed with a momentary NO contact, it’s ideal for 12V electrical systems in harsh environments. The built-in LED ring illumination provides clear visual feedback, available in multiple colors. With a rated current of 5A, this durable switch is suitable for industrial controls, automotive setups, and outdoor equipment where reliability and visibility are essential.

Enquiry
SKU:SCJ7M22FZ5Category:
Description
Mounting Hole
22mm
Operation Type
Momentary
Switch Combination
1NO
Head Type
Flat head
Terminal type
Internal Wiring
Enclosure Material
Stainless steel
Delivery Days
3-7 days after payment received
Contact Resistance
50 mΩ max
Insulation Resistance
100MΩ Min
Operating Temperature
-25°C ~+85°C
