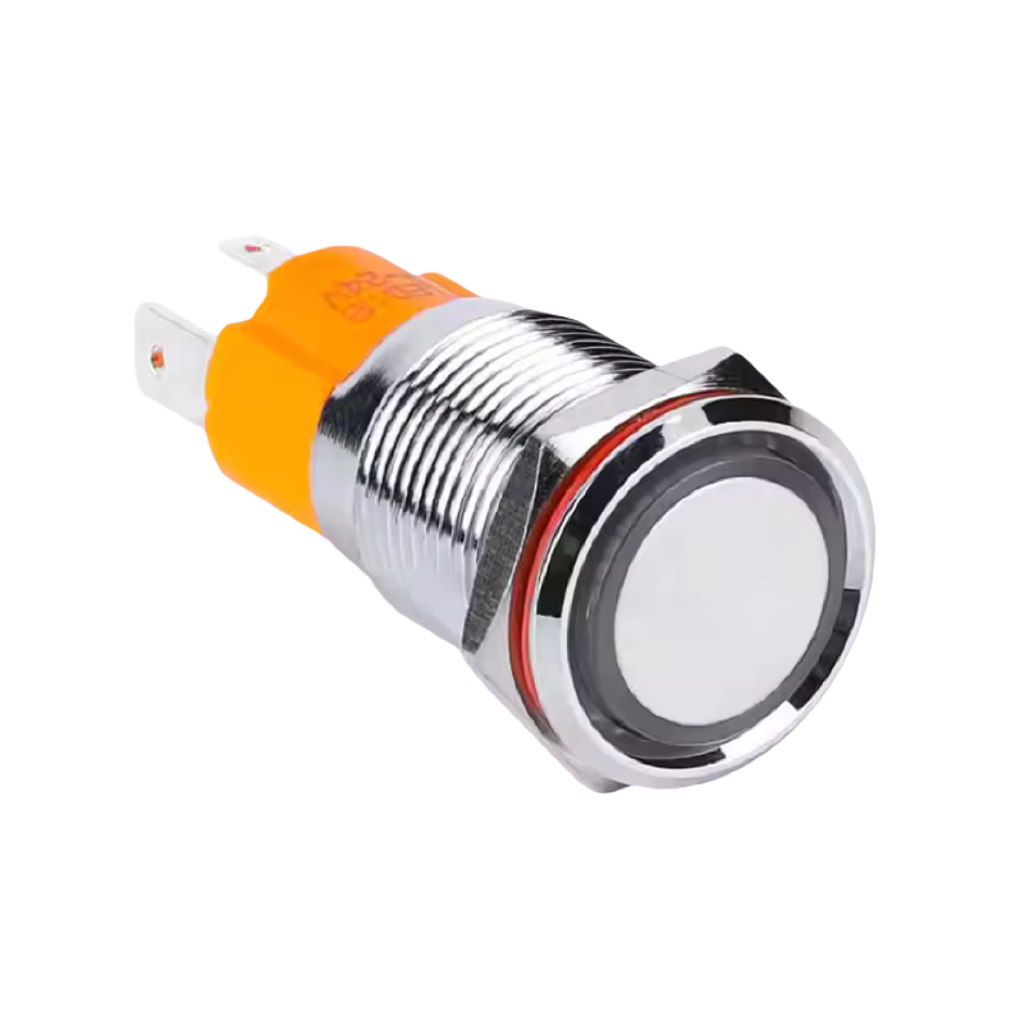

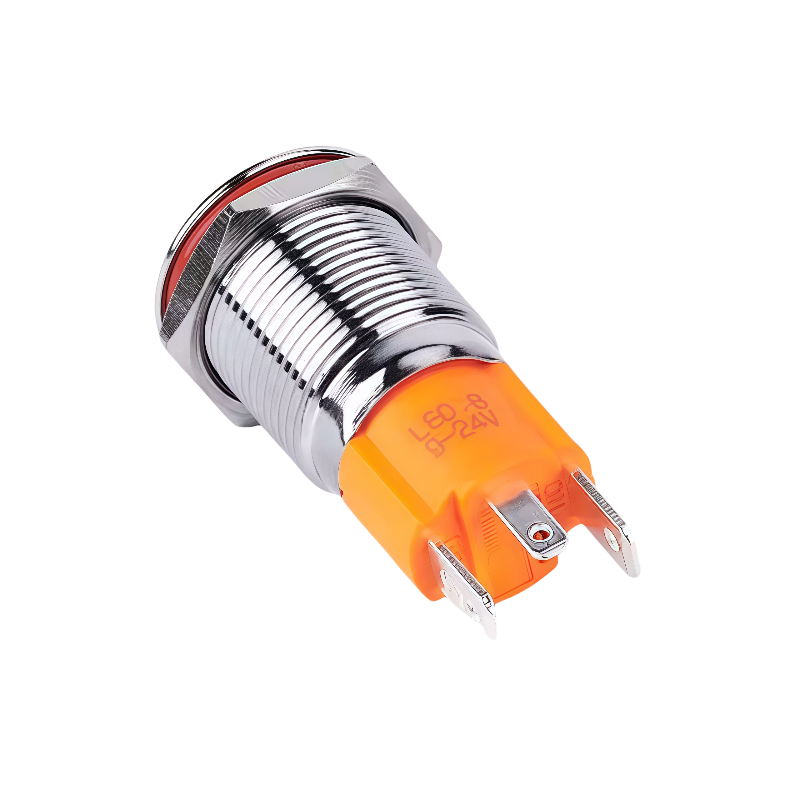

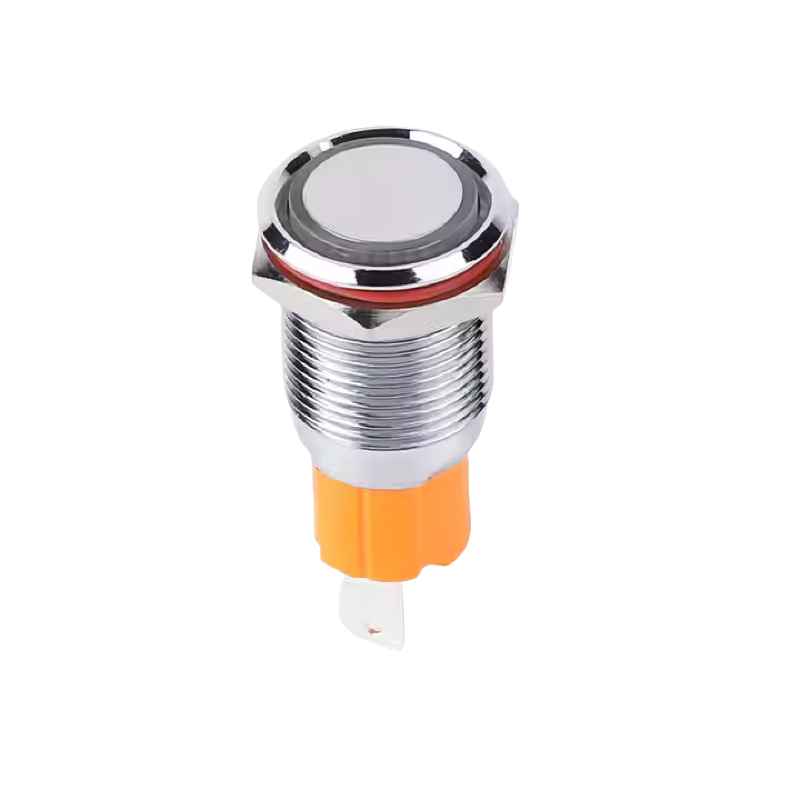

Metal Push Button Switch 10A 250Vac 19Mm Momentary 1No Ip67 Waterproof Ring Led Push Button Switch

19mm IP67 Waterproof Metal Push Button Switch with LED Ring Light – A high-performance, momentary action switch rated for 10A at 250VAC, featuring a durable metal housing and a 1NO contact configuration. Designed with an integrated LED ring illumination for clear visibility and status indication, this switch offers reliable operation in harsh environments. With an IP67 waterproof rating, it’s ideal for industrial machinery, outdoor equipment, electric vehicles, and control panels where durability and performance matter most.

Enquiry
SKU:SCJ7M16ZF2Category:
Description
Mounting diameter
19mm
Head shape
Flat head
Switch Combination
1NO
Operation type
Momentary / Latching
Rated Current
10A
Illuminating type
Ring led, Power logo, Ring and power
Illuminating color
Red,green,blue,yellow,orange,white,purple
Lamp voltage
2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell material
Brass nickel,Stainless steel,aluminum oxide
Contact Resistance
50mΩ max
Insulation Resistance
1000MΩ Min
Dielectric Intensity
2000VAC

Attributes
