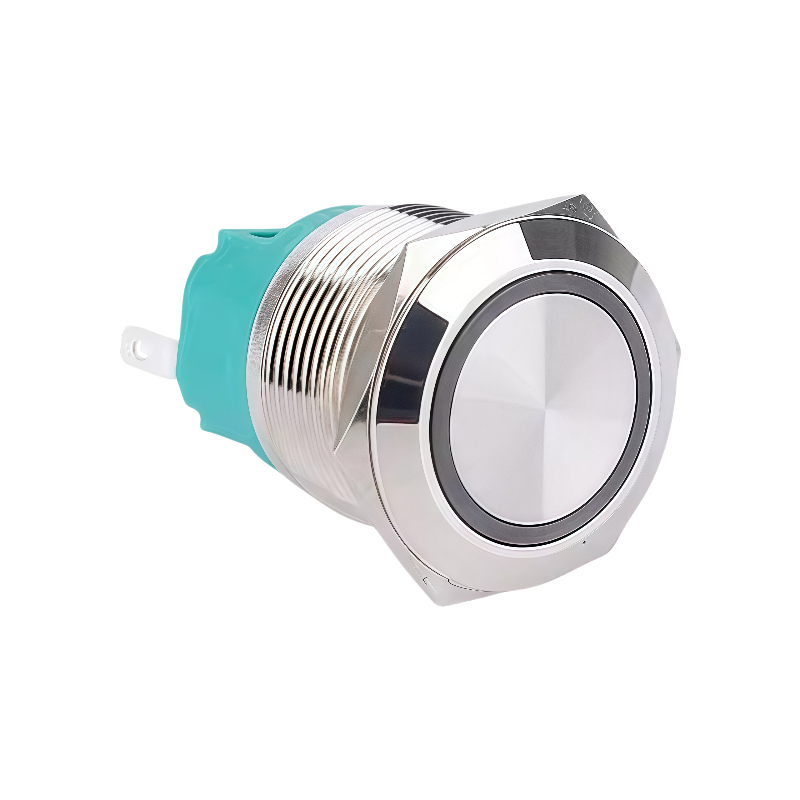

1 10
3 10

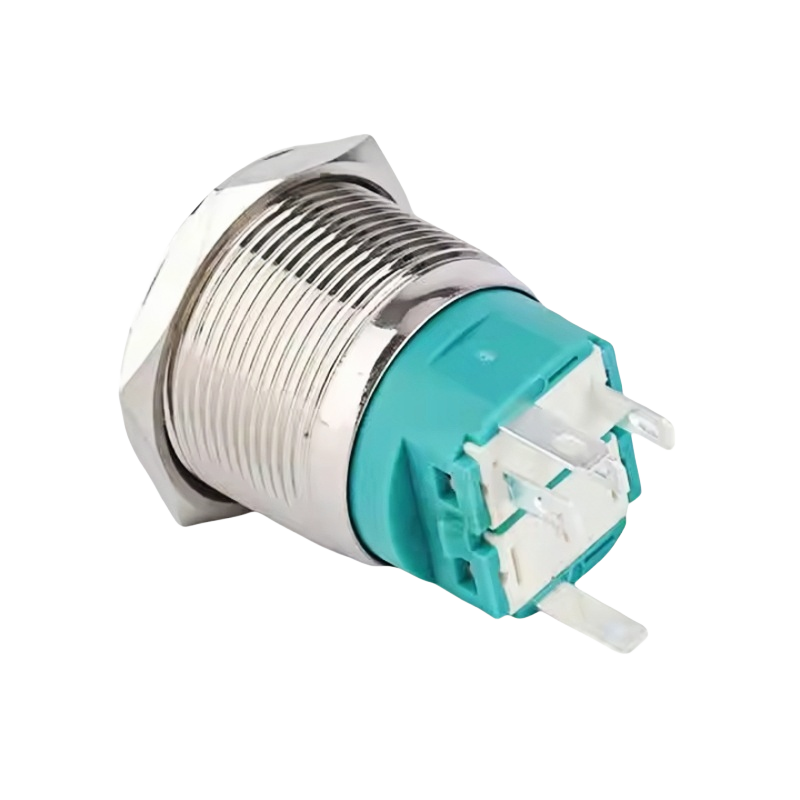

2 10
There Are no reviews yet.

Metal Push Button Switch IP67 IK08 5A Nickel Plated Brass/Stainless Steel /Aluminum 22mm Momentary/Latching Pin Terminal

This 22mm metal push button switch is a high-performance, versatile solution for industrial, commercial, or DIY applications. Constructed from nickel-plated brass, stainless steel, or aluminum, it offers excellent durability and resistance to corrosion, wear, and environmental stress. The IP67 waterproof rating ensures protection against dust and water ingress, while the IK08 impact resistance makes it suitable for harsh environments with frequent use or mechanical vibrations. Designed for 5A current capacity, it supports both momentary (on-while-pressed) and latching (toggle-style) operation modes, providing flexibility for diverse control needs. The pin terminal design allows quick and secure wiring, ideal for compact installations in machinery, control panels, or automation systems

Enquiry
SKU:SCJ7M22ZFCategory:
Description
Mounting diameter
12mm 16mm 19mm 22mm 25mm 30mm
Head shape
Flat head
Switch Combination
1NO
Operation type
Momentary
Rated Current
2A 250VAC
Illuminating type
Non-illuminated Ring LED
Illuminating color
Red,green,blue,yellow,orange,white,purple
Lamp voltage
2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell material
Brass nickel,Stainless steel,aluminum oxide
Contact Resistance
50mΩ max
Insulation Resistance
2000VAC
Dielectric Intensity
2000VAC
Certification
CE
Switch combination
1NO1NC/2NO2NC
Mounting hole diameter
22mm
Protection Level
IP67 IK08
Accessories
Nut, Rubber Waterproof O-ring
Attributes
Connection

Contact Material

Operation of Contact

,

PIN Material

Position

,
