Key Features

• 8mm ultra-small mounting hole, perfect for space-constrained installation

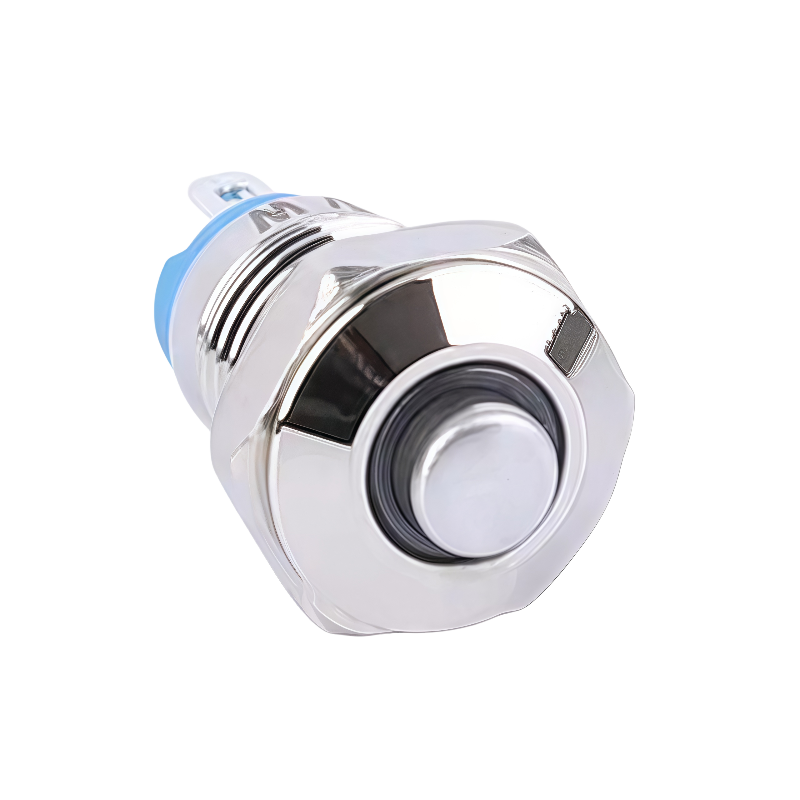

• High round head design, mini compact metal structure
• Momentary push-to-on operation type, only on when pressed
• 1NO switch combination for basic circuit control

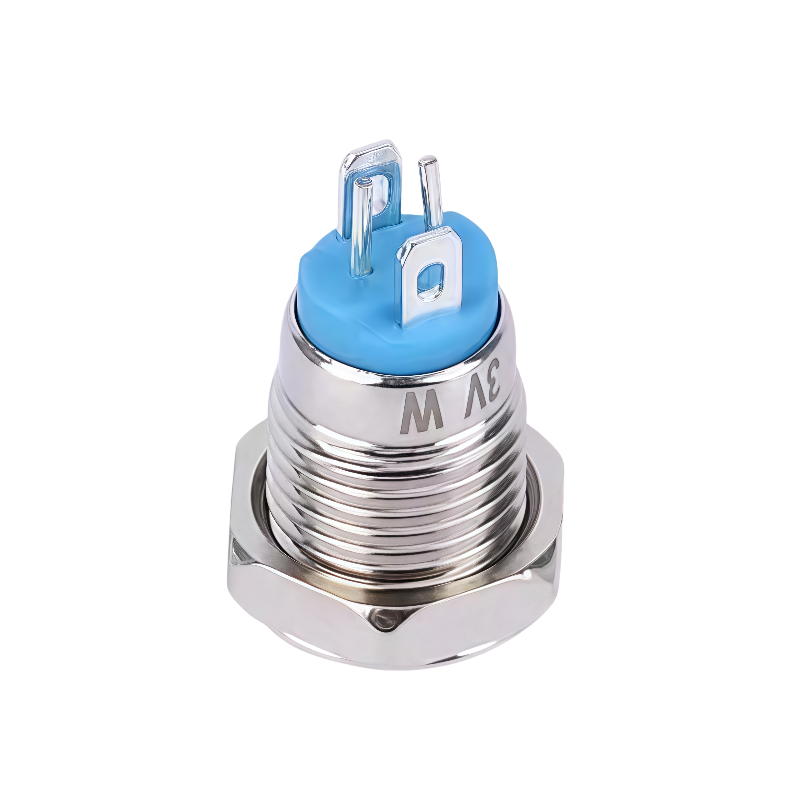

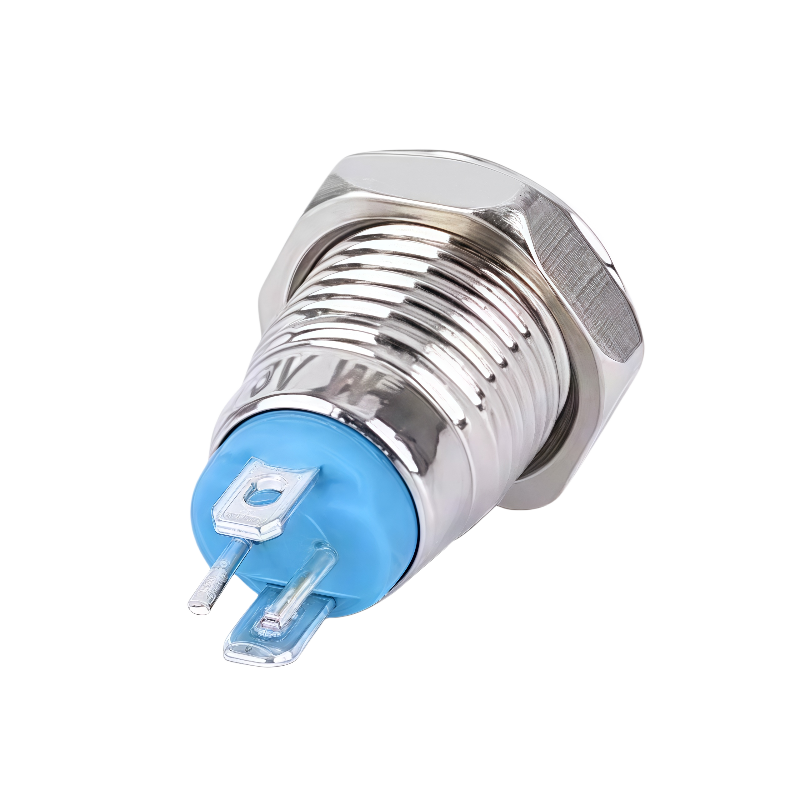

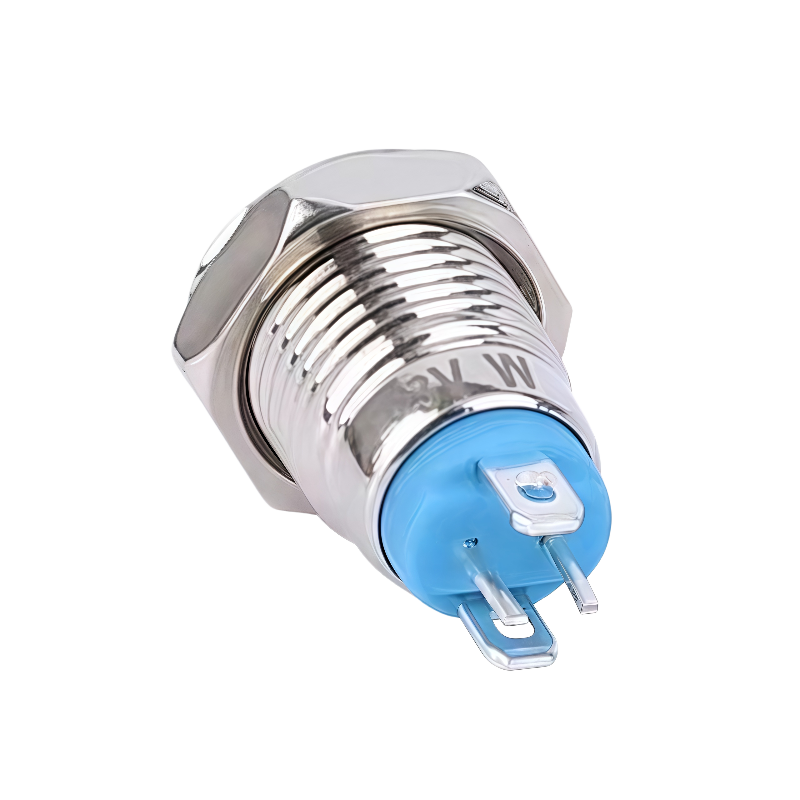

• 4 pin terminals design with plug-in connection mode

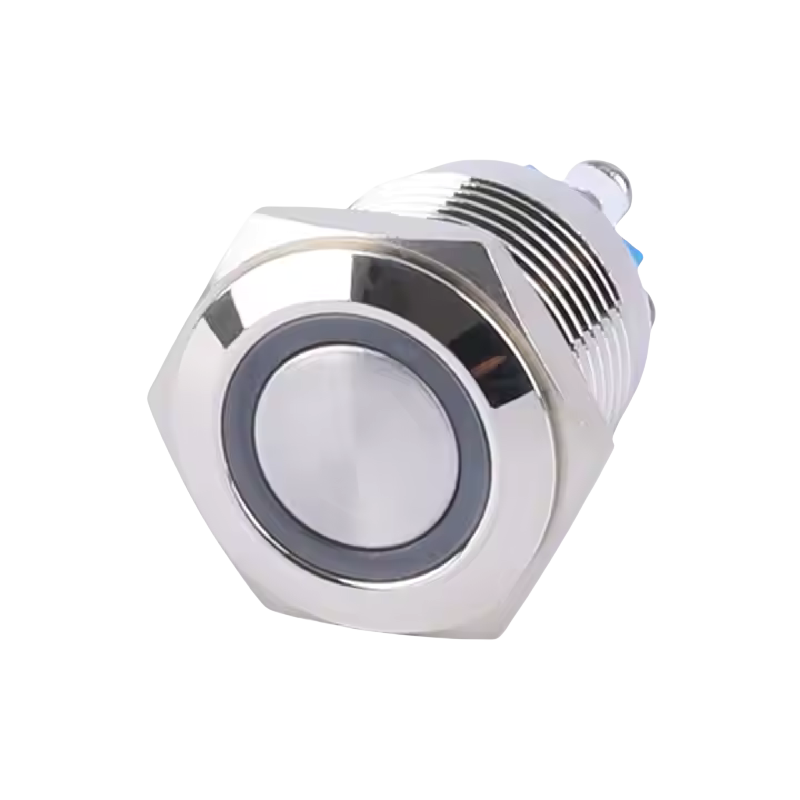

• Built-in ring LED illuminated with clear status indication
• LED optional color: Blue, Red, Green, Yellow, White, Orange
• Multi LED voltage: 3V/5V/12V/24V/110V/220V customizable
• Premium brass nickel enclosure, corrosion resistant and durable
• Max contact resistance 50mΩ, stable electric conduction
• Insulation resistance ≥1000MΩ for safe isolation
• Dielectric intensity up to 2000VAC high voltage resistance
• Wide working temperature -20°C ~ +55°C for complex environments
• Silver contact and PIN material, anti-oxidation long service life
• Optional latching / momentary dual position modes
• Fast delivery 1-7 days after payment

Technical Specifications

Product Attributes

• Connection: Plug in
• Contact Material: Silver
• PIN Material: Silver
• Contact Specification: 1NO+1NC / 2NO+2NC Optional
• Position Mode: Two Position Maintained / Two Position Momentary

Product Advantages

This 8mm mini ring LED illuminated push button adopts high round head compact design, specially made for narrow installation space. It supports momentary push-to-on function, equipped with 4-pin plug-in terminal for easy wiring. Multiple LED colors and wide voltage options meet 12V and other mainstream circuit needs. Brass nickel metal shell offers excellent anti-corrosion and stable performance. Low contact resistance, high insulation and wide temperature resistance make it reliable for long-term use in industrial, automotive and DIY custom electronic projects.

Applications

• 8mm small panel mini momentary control button
• Automotive 12V ring LED indicator push button
• Space limited equipment and instrumentation switch
• DIY custom electronics illuminated control button
• Industrial mini machinery low voltage start switch

FAQ

1. Mounting hole size?
8mm mini standard mounting diameter.

2. LED color option?
Blue, Red, White, Green, Yellow, Orange available.

3. Voltage support?
Standard 12V, customizable 3V/5V/24V/110V/220V.

4. Terminal type?
4 pin terminals with plug-in connection.

5. Suitable usage?
Automotive, industrial control and DIY electronic projects.
