Key Features

• Standard 16mm mounting hole for automotive and industrial panel installation
• Elegant flat head design, simple and easy to match control panel
• Dual operation mode: Momentary / Latching optional
• Switch combination optional: 1NO / 1NC for different circuit needs
• Solder terminal design, support wire soldering and firm connection
• Premium brass nickel enclosure, anti-corrosion and long service life
• Max contact resistance 50mΩ, stable and reliable conduction
• Insulation resistance ≥1000MΩ, safe electrical isolation
• Dielectric intensity up to 2000VAC, high voltage withstand
• Wide working temperature: -20°C ~ +55°C adapt to complex environment
• Plug-in connection optional for flexible assembly
• Silver contact and PIN material, oxidation resistance and durable
• Multiple contact combinations and position modes customizable
• Accept wire connector and wire soldering service, fast shipping
• Delivery within 3-7 days after payment

Technical Specifications

Product Attributes

• Connection Mode: Plug in
• Contact Material: Silver
• PIN Material: Silver
• Contact Specification: 1NO+1NC / 2NO+2NC Optional
• Position Mode: Two Position Maintained / Two Position Momentary

Product Advantages

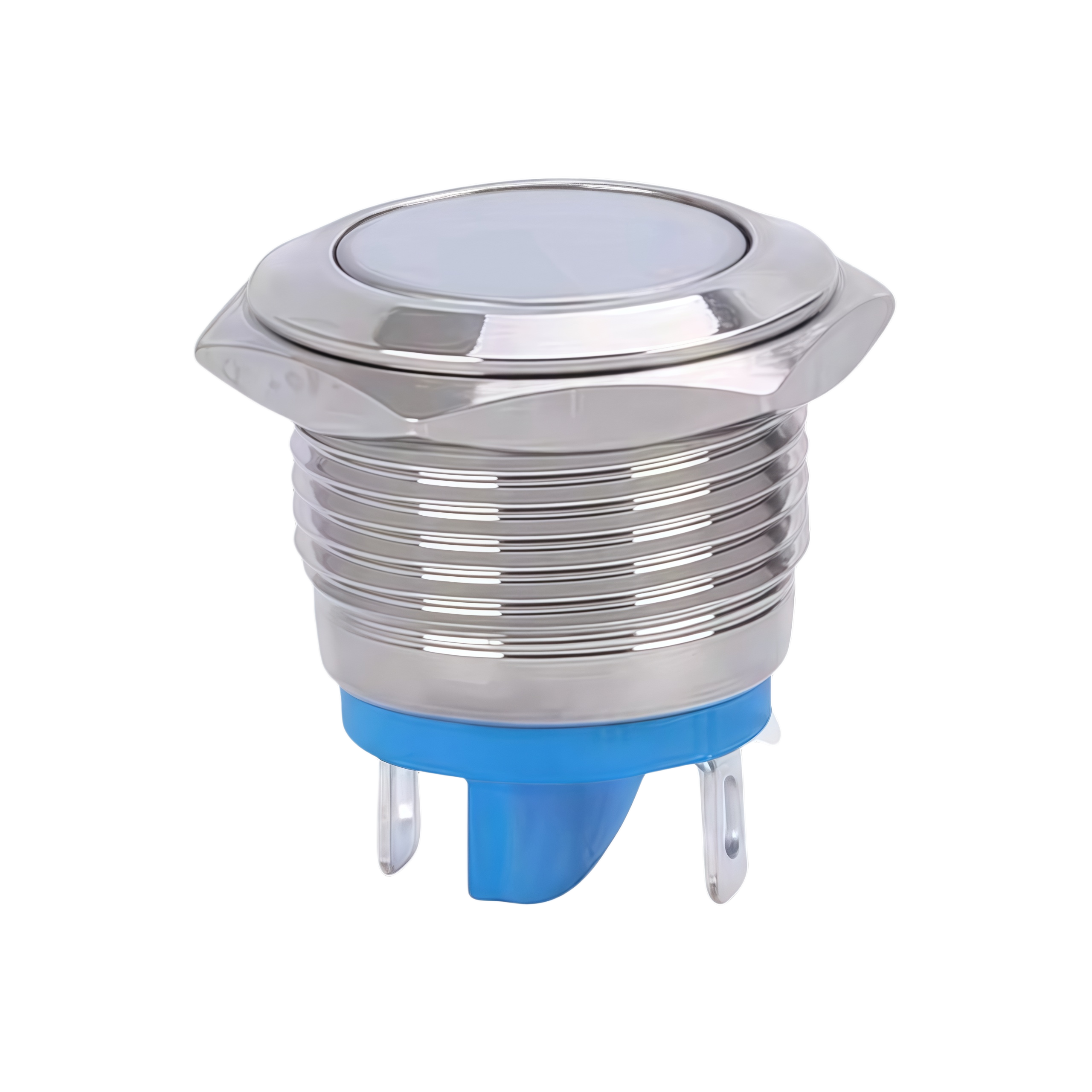

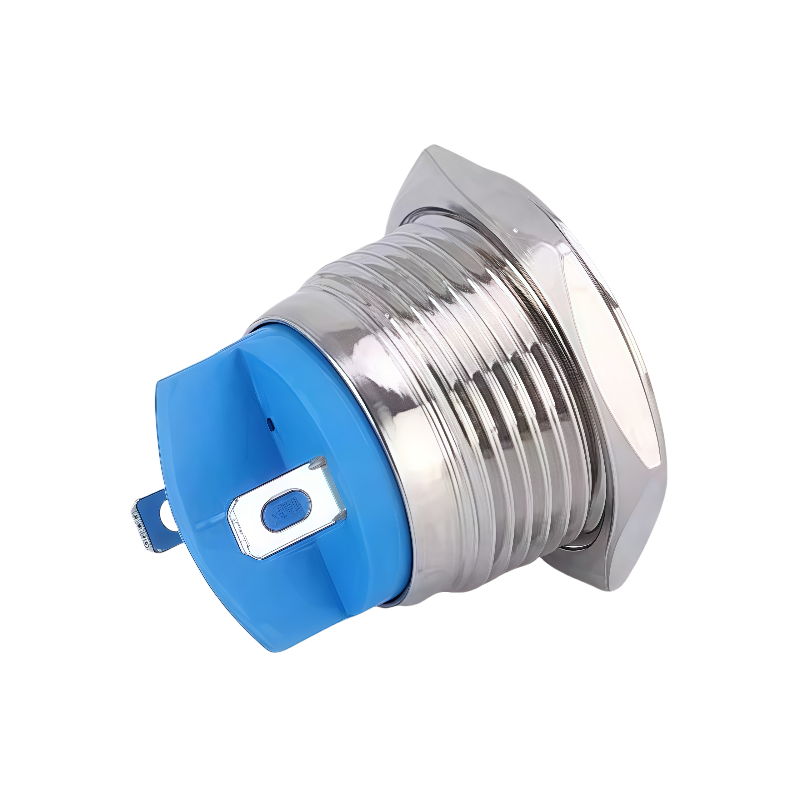

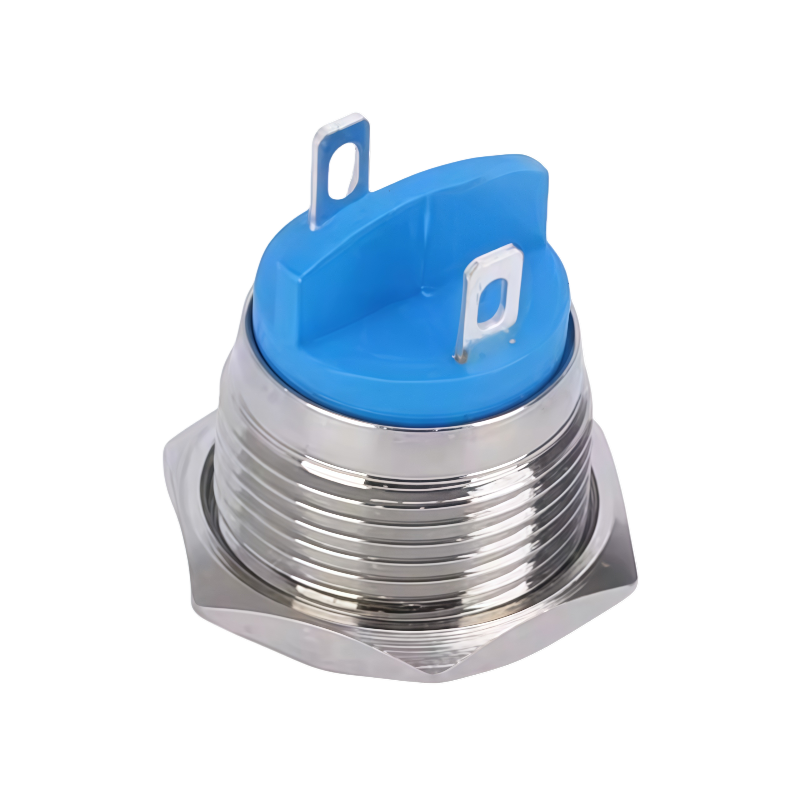

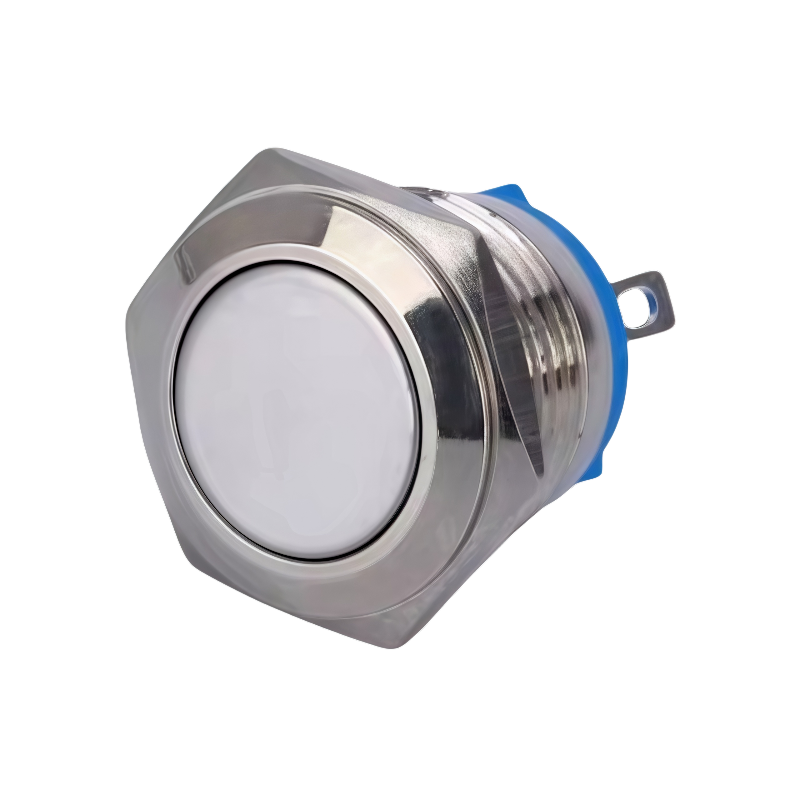

This 16mm flat head metal push button is engineered with high reliability for new energy electric vehicles. Adopt brass nickel durable metal housing with excellent anti-corrosion and anti-aging performance. Support momentary and latching two operation modes, 1NO/1NC optional contact configuration. Solder terminal design ensures firm wiring, and accepts wire connector and soldering customization. With low contact resistance, high insulation and wide temperature resistance, it runs stably in harsh environments, ideal for automotive control panels, battery management systems and industrial mechanical equipment.

Applications

• New energy electric vehicle control panel push button
• Automotive battery management system control switch
• 16mm flat head industrial machinery momentary/latching button
• Instrument and electrical equipment panel embedded switch
• Solder terminal type high reliability replacement button

FAQ

1. Mounting size?
Standard 16mm mounting hole diameter.

2. Operation mode?
Momentary and Latching two types optional.

3. Contact type?
1NO / 1NC switch combination optional.

4. Terminal feature?
Solder terminal, support wire soldering and connector service.

5. Application scenario?
New energy electric vehicle, industrial control and mechanical equipment.
