Key Features

• Standard 22mm mounting hole for industrial machine panel universal installation
• Green non-illuminated momentary emergency stop design for machine safety
• Red and green two head color optional for different identification needs
• High-strength transparent PBT base, stable structure with visible internal details
• Multiple head types: Domed, Flat, High Round, Key, Mushroom, Rotary, Square
• Various shell length options fit different panel thickness requirements
• Multiple position modes: 2-position / 3-position maintained & momentary
• Default IP40 protection grade, customizable IP65 waterproof version
• Rated insulation voltage up to 690V for high voltage safety isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 & DC-13 voltage and current load specifications
• Contact material optional: Brass, Gold, Silver
• Flat & mushroom head mechanical life up to 1 million times
• Electrical life: AC 500,000 times; DC 200,000 times
• Spiral embedded terminal, wiring range 0.5mm² ~ 2.5mm²
• Working temperature: -5℃ ~ 40℃ suitable for industrial machine environment
• Complies with IEC60947-5-1 and GB/T 14048.5 industrial safety standards
• Pure mechanical non-illuminated design, no light failure risk

Product Attributes

• Lamp: Non Illuminated
• Head Color: Green , Red
• Head Type: Domed , Flat , High Round , Key , Mushroom, Rotary , Square
• Position Mode: Three Position Left Maintained And Right Momentary , Three Position Maintained , Three Position Momentary, Two Position Maintained , Two Position Momentary
• Contact Material: Brass , Gold , Silver
• Shell Length: 8mm,9mm,10mm,12mm,13mm,16mm,17mm,17.5mm,18mm

Product Advantages

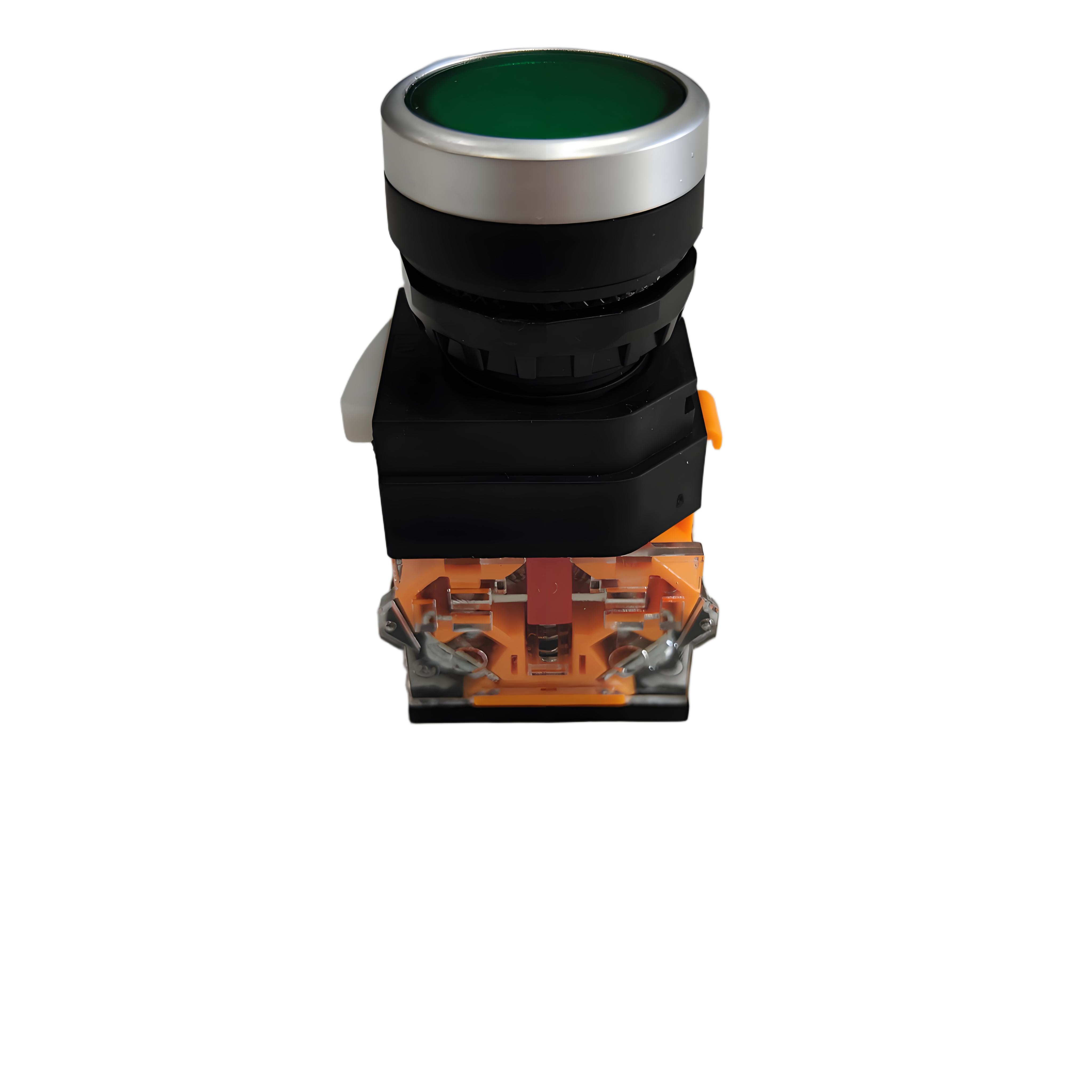

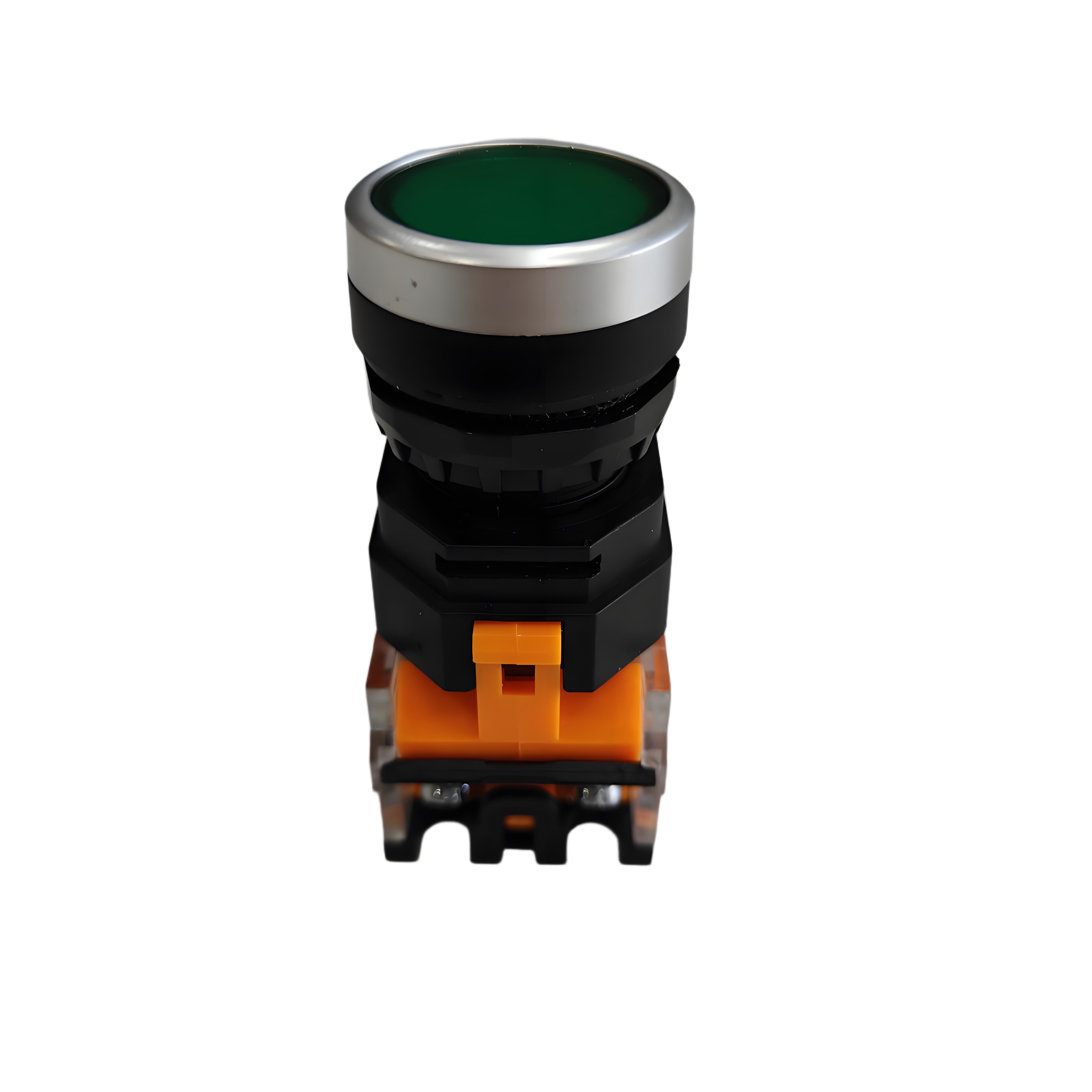

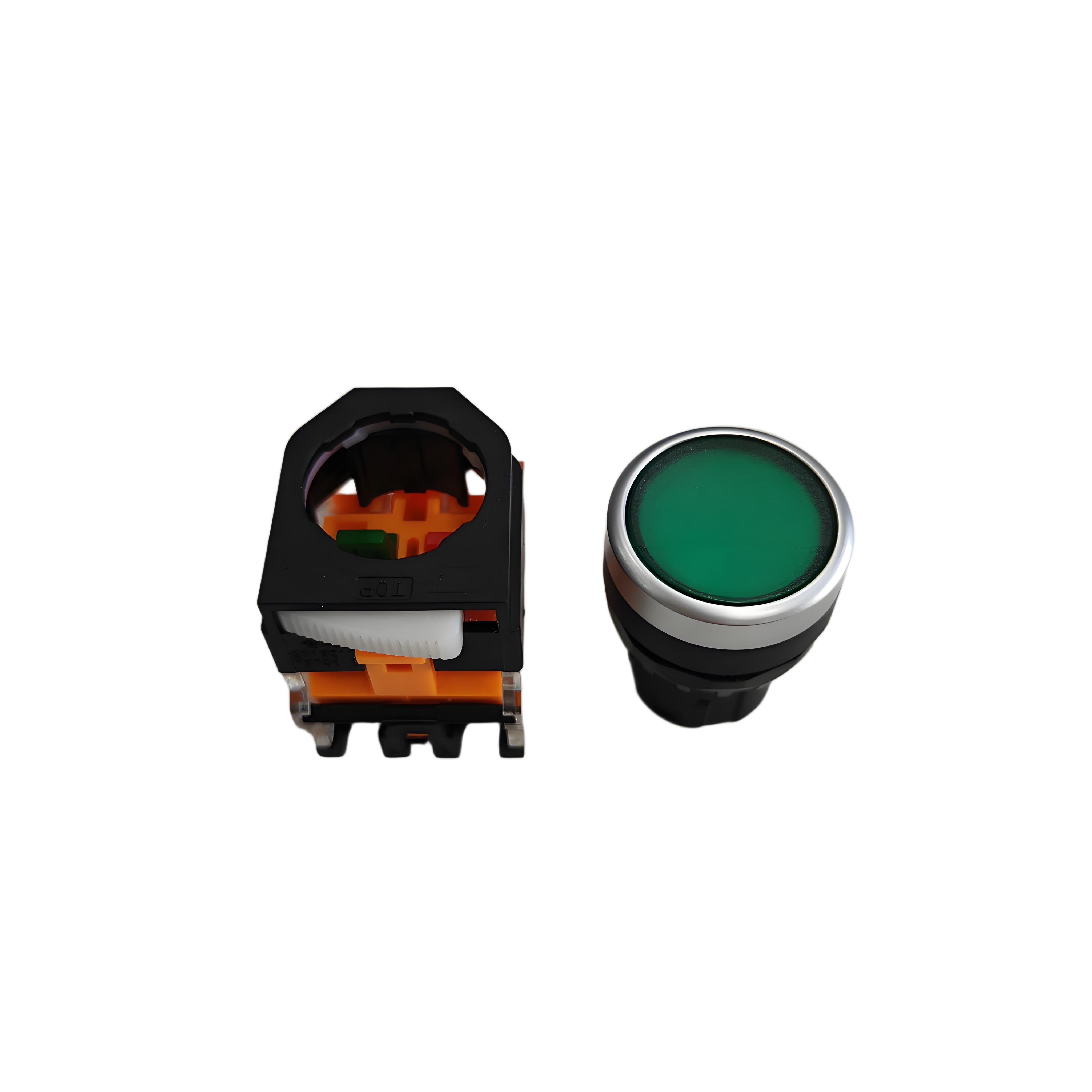

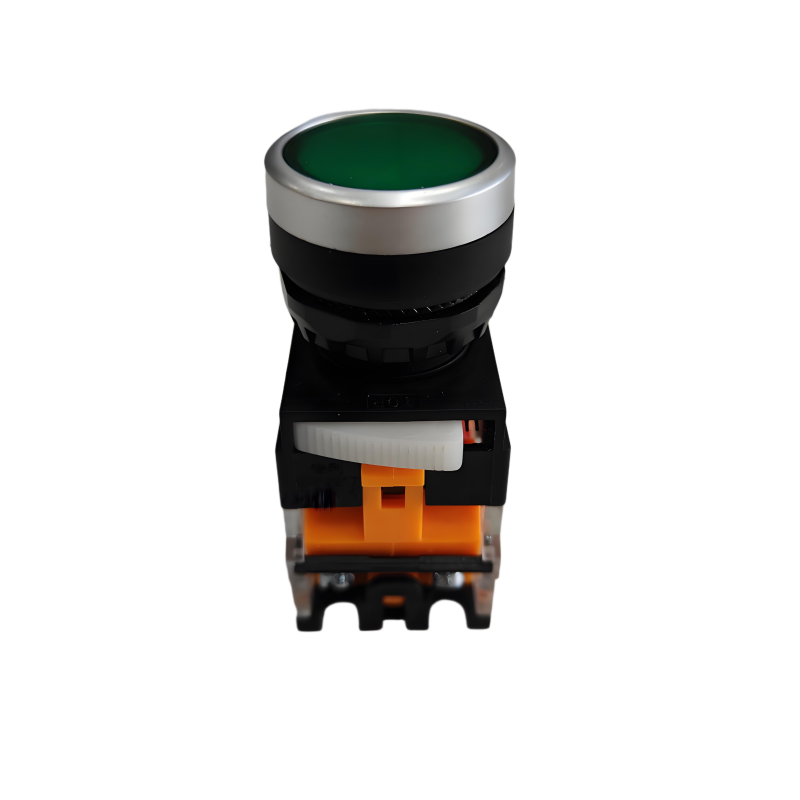

This 22mm green non-illuminated momentary emergency stop switch adopts high-strength transparent PBT base with sturdy structure and clear internal layout. It supports green and red dual head color options, plus multiple head styles and shell lengths to match various industrial machine panels. Multiple two-position and three-position operation modes meet diverse circuit control requirements. Standard IP40 protection with customizable IP65 waterproof version adapts to dusty and humid factory environments. With 690V high insulation voltage and complete AC/DC load parameters, optional brass/gold/silver contacts ensure stable conduction. Long mechanical and electrical service life, cost-effective and durable for long-term industrial machine use.

Applications

• 22mm green non-illuminated momentary emergency stop for industrial machine
• Automation machinery and production line safety control button
• CNC machine tool mechanical equipment emergency reset switch
• Indoor workshop IP40 conventional environment safety protection
• IP65 waterproof version for humid factory and dust workshop sites

FAQ

1. What is the mounting size?
Standard 22mm mounting hole, suitable for all kinds of industrial machine control panels.

2. Is there color option?
Yes, green and red two head colors are optional.

3. Is this illuminated type?
No, it is non-illuminated pure mechanical momentary emergency switch.

4. What head styles can I choose?
Domed, Flat, High Round, Key, Mushroom, Rotary, Square multiple types.

5. What protection levels are available?
Default IP40, IP65 waterproof version can be customized for wet conditions.

6. What contact materials are optional?
Brass, Gold, Silver three contact materials for different conductivity demands.

7. What is the main application?
Specially designed for industrial machine tools, automation equipment and workshop safety emergency stop control.
