Key Features

• Standard 22mm mounting hole for universal industrial panel installation
• Non-illuminated pure mechanical design, stable without light failure
• Metal head design with multiple head types optional
• Transparent high-strength PBT base, clear internal structure visible
• Momentary self-resetting operation type for emergency control
• Rich shell length options to fit different panel thickness
• Default IP40 protection grade, IP65 waterproof version customizable
• Fast flat jump contact structure, short stroke fast response
• Rated insulation voltage up to 690V for high voltage isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 / DC-13 voltage and current load parameters
• Contact optional: Brass, Gold, Silver for different demands
• Mushroom & flat head mechanical life up to 1 million times
• Long electrical life: AC 500,000 / DC 200,000 times
• Spiral embedded terminal, wiring range 0.5mm² ~ 2.5mm²
• Working temperature: -5℃ ~ 40℃ for indoor industrial use
• Complies with IEC60947-5-1 and GB/T 14048.5 standards

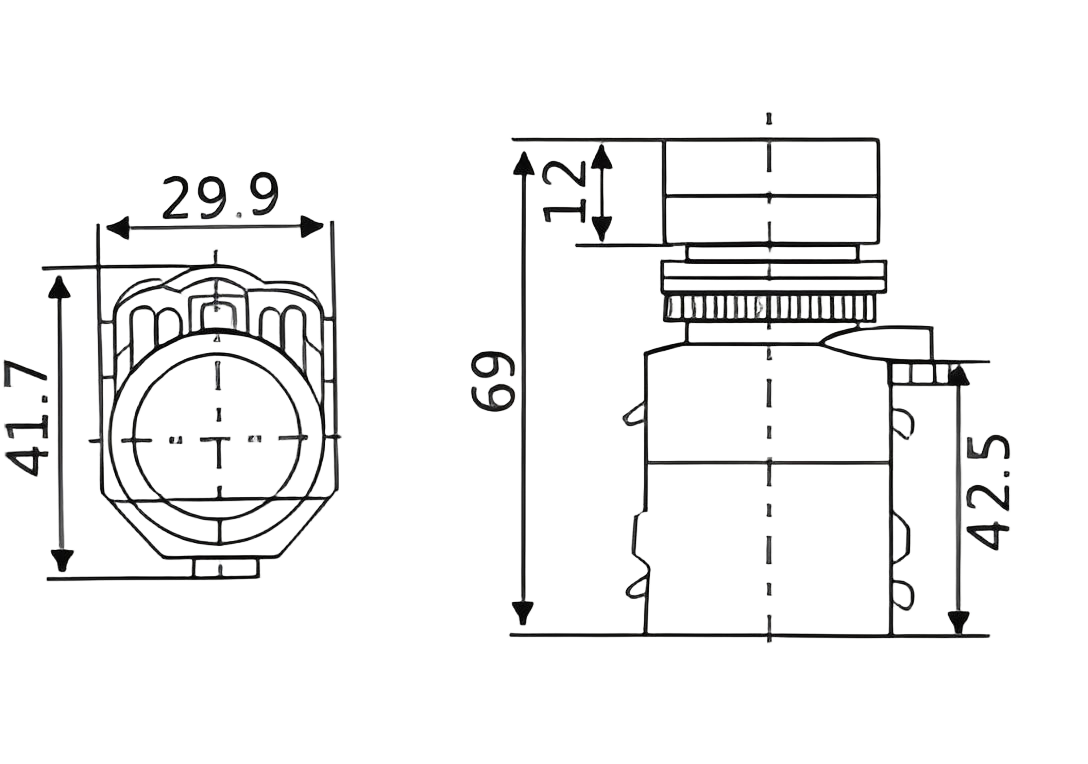

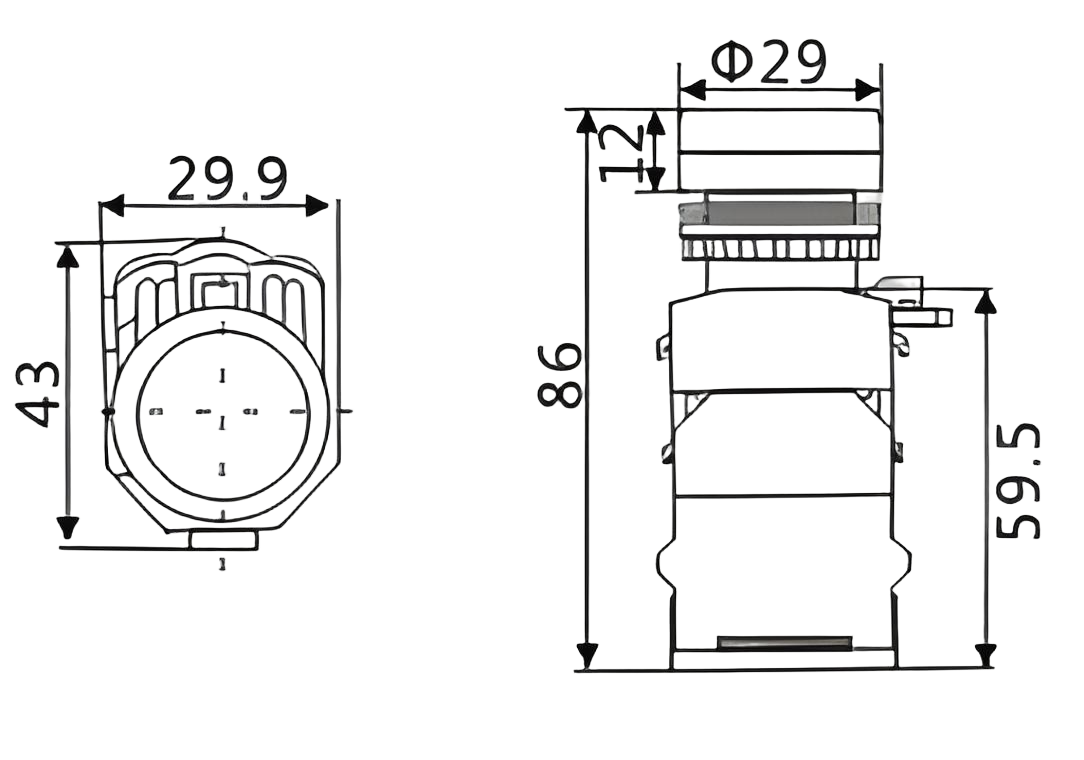

                                                                                                    without LED                                                              with LED

Product Attributes

• Lamp: Non Illuminated
• Head Type: Domed, Flat, High Round, Key, Mushroom, Rotary, Square
• Position Mode: Two / Three Position Maintained & Momentary
• Contact Material: Brass , Gold , Silver
• Shell Length: 8mm,9mm,10mm,12mm,13mm,16mm,17mm,17.5mm,18mm

Product Advantages

This 22mm non-illuminated metal head momentary emergency stop switch adopts high-strength transparent PBT base with clear internal view and sturdy structure. Multiple head styles and shell lengths are optional to meet different panel installation needs. Momentary self-resetting design is suitable for instant emergency control. IP40 default protection and optional IP65 waterproof adapt to various environments. With 690V high insulation voltage and complete AC/DC load specifications, optional brass/gold/silver contacts match different conductivity requirements. Long mechanical and electrical service life, spiral embedded wiring is convenient and reliable, fully compliant with industrial safety standards.

Applications

• 22mm non-illuminated momentary metal head industrial emergency stop button
• High-frequency automation production line self-resetting safety switch
• CNC machine tools and mechanical equipment emergency control button
• Indoor workshop IP40 conventional environment safety protection
• IP65 customized version for humid factory and dust workshop

FAQ

1. What is the mounting size?
Standard 22mm mounting hole, fits most industrial control panels.

2. Is this illuminated type?
No, it is non-illuminated pure mechanical momentary emergency switch.

3. What head styles are available?
Domed, Flat, High Round, Key, Mushroom, Rotary, Square multiple options.

4. Can I choose shell length?
Yes, many shell lengths from 8mm to 18mm are optional.

5. What protection levels are available?
Standard IP40, IP65 waterproof version can be customized.

6. What contact materials can I pick?
Optional Brass, Gold, Silver contact for different usage needs.

7. What working scenarios is it suitable for?
Ideal for machine tools, automation lines, indoor workshops and optional waterproof industrial sites.
