Key Features

• Standard 22mm mounting hole for universal industrial panel installation
• Red non-illuminated momentary emergency stop design for safety control
• High-strength transparent PBT base, sturdy with visible internal structure
• Multiple head types optional: Domed, Flat, Flat With Chamfer, High Round, Key, Mushroom, Rotary, Square
• Various shell length sizes fit different panel thickness requirements
• Multiple position modes: 2-position / 3-position maintained & momentary
• Default IP40 protection grade, customizable IP65 waterproof version
• Rated insulation voltage up to 690V for high voltage safety isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 & DC-13 voltage and current load specifications
• Contact material optional: Brass, Gold, Silver
• Flat & mushroom head mechanical life up to 1 million times
• Electrical life: AC 500,000 times; DC 200,000 times
• Spiral embedded terminal supports 0.5mm² ~ 2.5mm² wiring
• Working temperature range: -5℃ ~ 40℃
• Complies with IEC60947-5-1 and GB/T 14048.5 industrial standards
• Pure mechanical non-illuminated design, stable and failure-free

Product Attributes

• Lamp: Non Illuminated
• Head Color: Red
• Head Type: Domed , Flat , Flat With Chamfer , High Round , Key , Mushroom, Rotary , Square
• Position: Three Position Left Maintained And Right Momentary , Three Position Maintained , Three Position Momentary, Two Position Maintained , Two Position Momentary
• Contact Material: Brass , Gold , Silver
• Length of Shell: 8mm,9mm,10mm,12mm,13mm,16mm,17mm,17.5mm,18mm

Product Advantages

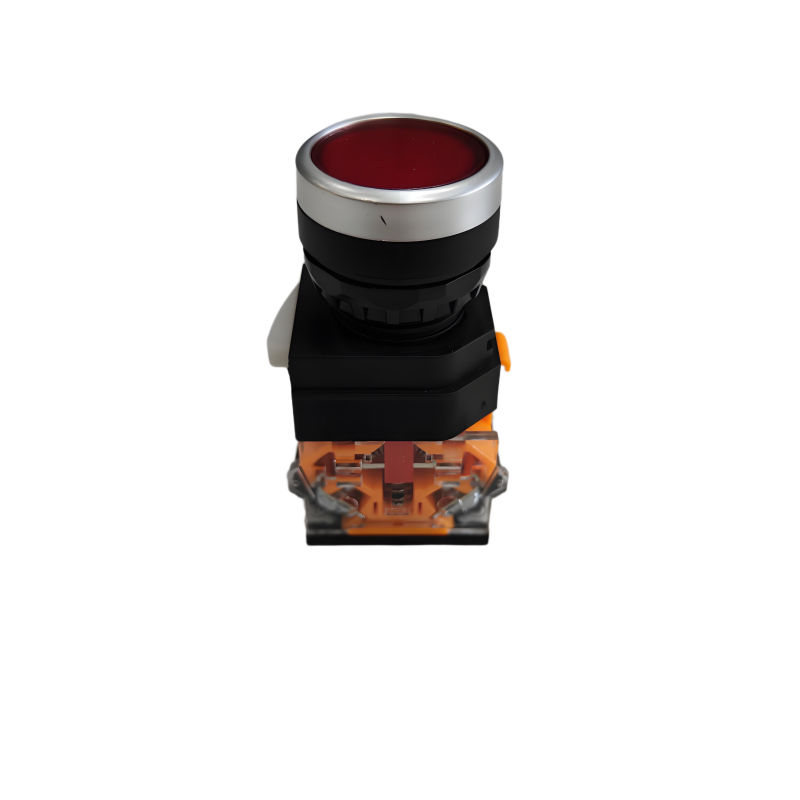

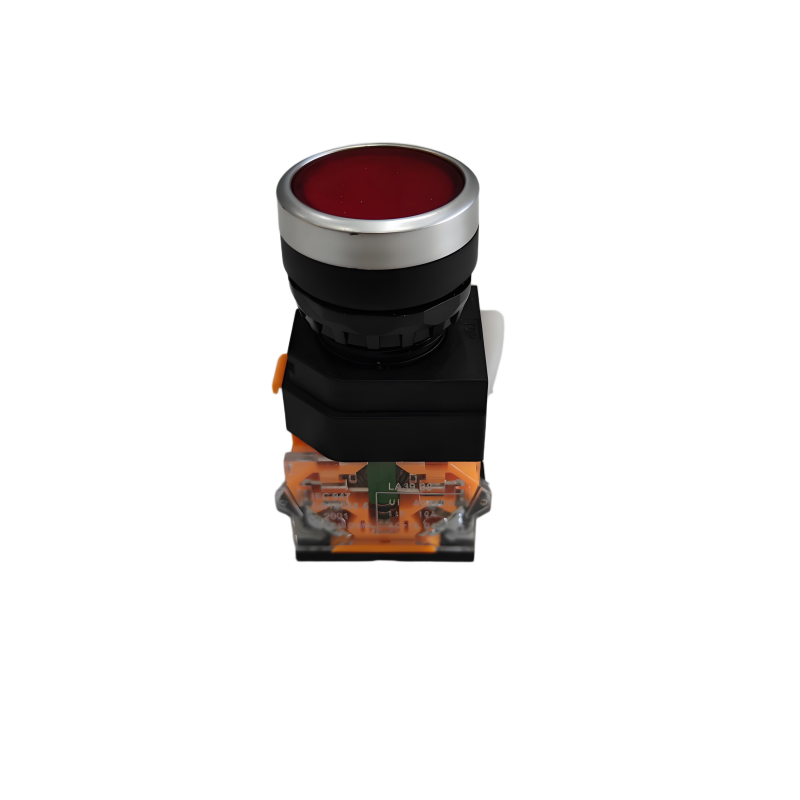

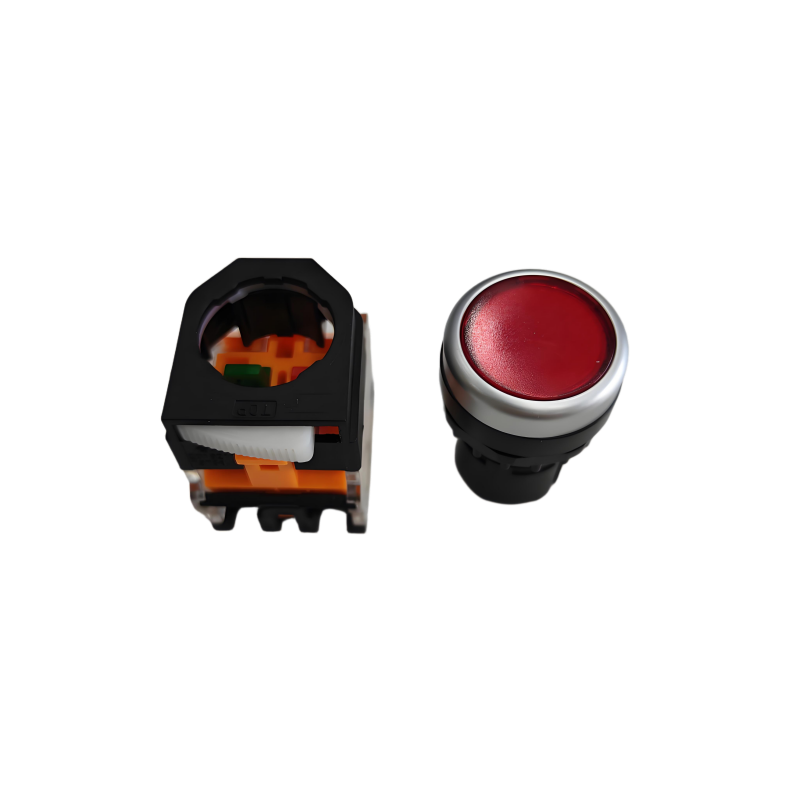

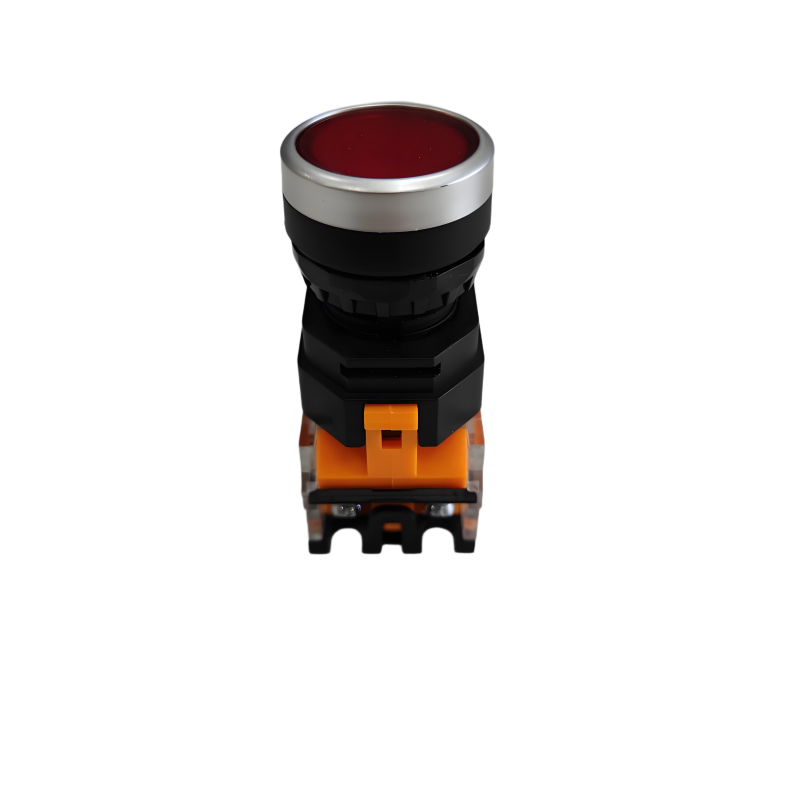

This 22mm red non-illuminated momentary emergency stop switch adopts high-strength transparent PBT base with solid structure and clear internal view. Red classic emergency color design with multiple head types and shell lengths for free combination. Supports various two-position and three-position operation modes to meet complex circuit demands. Standard IP40 protection and customizable IP65 waterproof version adapt to dusty and humid workshops. 690V high insulation voltage and complete AC/DC load parameters match most industrial power systems. Optional multi-contact material and ultra-long mechanical life ensure stable performance for high-frequency long-term use.

Applications

• 22mm red non-illuminated momentary emergency stop button for control panel
• Industrial automation production line high-frequency safety protection switch
• CNC machine tool and mechanical equipment instant reset emergency button
• Indoor workshop IP40 conventional environment safety control device
• IP65 waterproof customized version for humid and dusty industrial sites

FAQ

1. What is the mounting size?
Standard 22mm mounting hole, compatible with all conventional 22mm control panels.

2. Is it illuminated type?
No, it is non-illuminated pure mechanical momentary emergency switch.

3. Are there multiple head options?
Yes, Domed, Flat, Mushroom, Rotary and many other head types optional.

4. Can I choose shell length?
Multiple shell lengths from 8mm to 18mm are available for different panel thickness.

5. What protection levels are available?
Standard IP40, IP65 waterproof version can be customized for wet environments.

6. What contact materials can I choose?
Optional Brass, Gold, Silver to meet different conductivity needs.

7. What application scenarios is it suitable for?
Widely used in machine tools, automation lines, electrical cabinets, indoor workshops and optional waterproof industrial occasions.
