Key Features

• Professional side-mounted design, perfect for industrial water tank installation
• High-quality PP/POM material, excellent corrosion and high temperature resistance
• IP68 waterproof grade and CE certification, reliable for harsh environments
• Dual temperature options: normal 80-85℃ and high temperature up to 120℃
• Adopts magnet activation principle for accurate liquid level signal output
• Wide voltage compatibility: 110VDC / 220VDC for diverse circuits
• Rated current: 0.5A / 1.0A to meet different load requirements
• Max contact rating 10W / 50W for stable long-term operation
• Standard 350mm cable length, support customized wire length
• Compact structure, easy installation and low maintenance cost
• Complete specifications, suitable for electrical appliances and hot water mattress
• Standard single package: 15X10X5 cm, single gross weight 0.300 kg

Technical Specifications

Product Attributes

• Type: Side Mounted Float Level Sensor
• Material: PP / POM
• IP Rating: IP68
• Certification: CE
• Temperature: 80-85℃ / Max 120℃
• Voltage: 110VDC / 220VDC
• Current: 0.5A / 1.0A
• Load: 10W / 50W
• Working Theory: Magnet Activation
• Cable: 350mm Customizable
• Package: 15X10X5 cm, 0.300 kg

Product Advantages

This side mounted plastic float switch is made of durable PP and POM materials with great corrosion resistance. It is certified with IP68 waterproof and CE standards, so it can work reliably in wet industrial environments. Two temperature grades are available, including conventional 80-85℃ and high temperature 120℃ version, adapting to different heating equipment. Equipped with complete electrical parameters, it matches 110VDC/220VDC circuits, 0.5A/1.0A current and 10W/50W load. With magnet activation technology, it outputs stable liquid level signals. The side-mounted structure is easy to install, the cable length can be customized, and the compact package is convenient for transportation and storage. It is a cost-effective choice for industrial water tanks, household appliances and hot water mattresses.

Applications

• Industrial water tank and storage tank side-mounted liquid level measurement
• Household and commercial electrical appliances internal level sensor
• Hot water mattress and heating equipment liquid level control
• General fluid equipment real-time liquid level signal output system
• Low-power industrial automation equipment level monitoring device

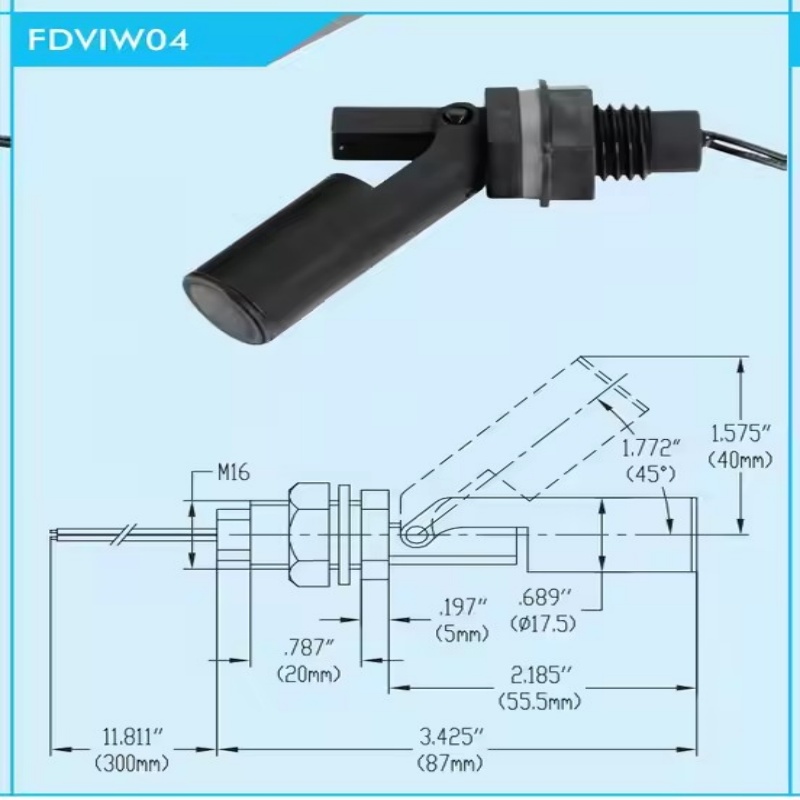

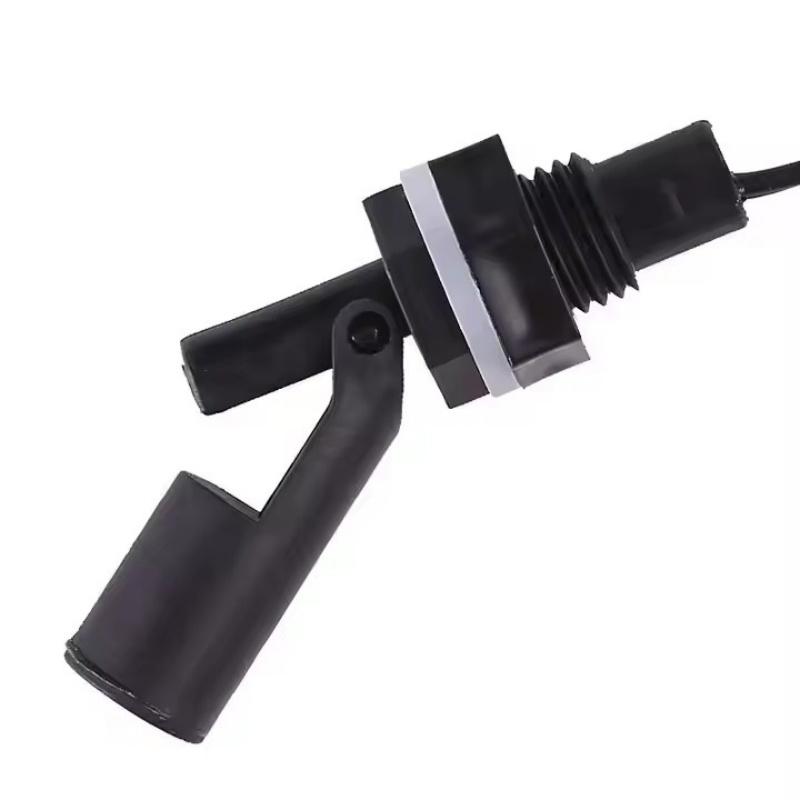

Product Images:

FAQ

1. What material is this side mounted float switch made of?
It is made of high-performance PP and POM materials with good corrosion resistance.

2. What certifications and waterproof level does it have?
It has IP68 waterproof grade and CE certification, meeting international quality standards.

3. What temperature ranges can it adapt to?
The normal working temperature is 80-85℃, and the high-temperature version can reach 120℃.

4. What are the main electrical parameters?
Compatible with 110VDC/220VDC voltage, rated current 0.5A/1.0A, contact load 10W/50W.

5. What working principle does it adopt?
It uses magnet activation principle to realize accurate liquid level signal output.

6. Is the cable length customizable?
The standard cable length is 350mm, and customized length is supported.

7. What are the main application scenarios?
It is widely used for industrial water tanks, various electrical appliances and hot water mattresses.
