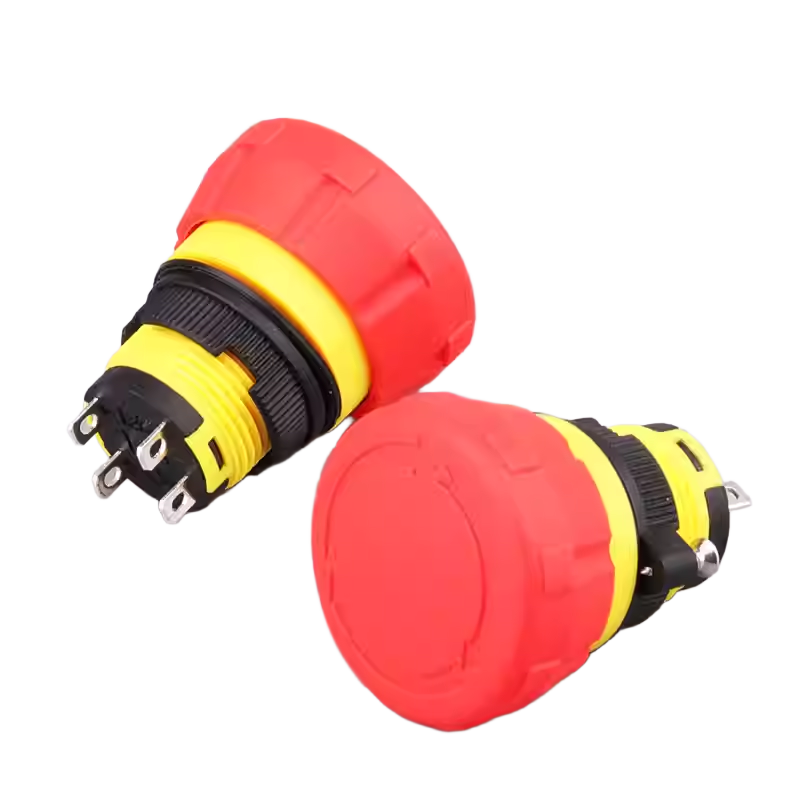

Key Features

• Standard 16mm mounting diameter for standard panel hole installation
• Classic red mushroom head design, eye-catching for emergency operation

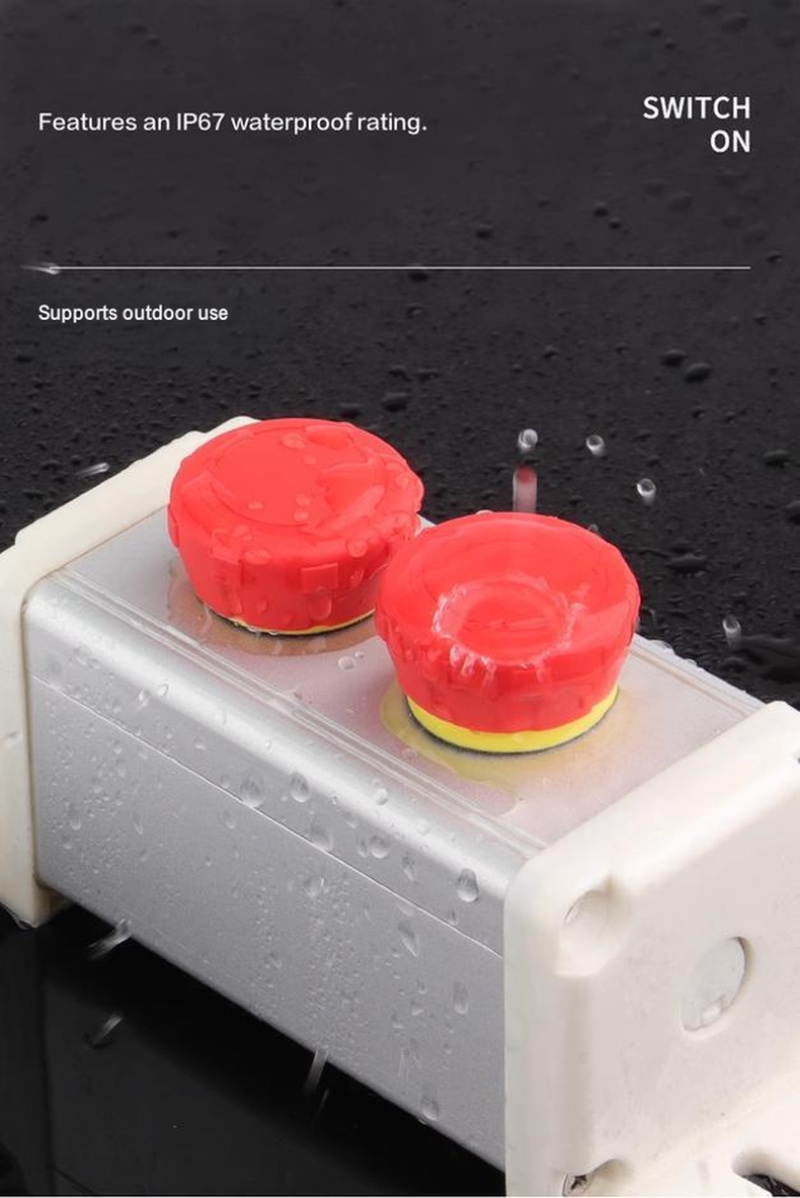

• IP67 high waterproof and dustproof grade for harsh wet and dusty environments
• Non-illuminated mechanical type, simple structure and stable performance
• Dual operation type: Momentary self-resetting and Maintained latching optional
• Standard 1NO+1NC contact configuration for most safety control circuits
• High-quality gold contact material for good conductivity and oxidation resistance
• Silver PIN terminal, reliable plug-in connection and long service life
• Rated 5A current, wide voltage range 1.5V~250V AC/DC universal
• Full plastic bezel, head and shell, lightweight, cost-effective and corrosion-resistant

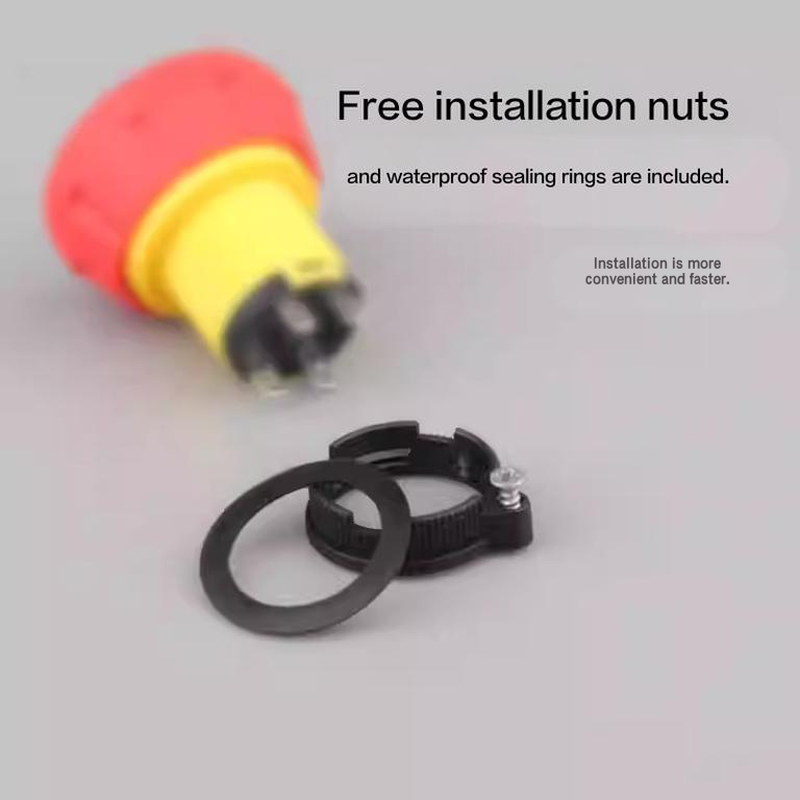

• Plug-in wiring method, easy installation, replacement and maintenance
• Professional IP67 sealed structure prevents dust and water intrusion

Technical Specifications

Product Attributes

• Bezel: Plastic
• Shell Material: Plastic
• Head Material: Plastic

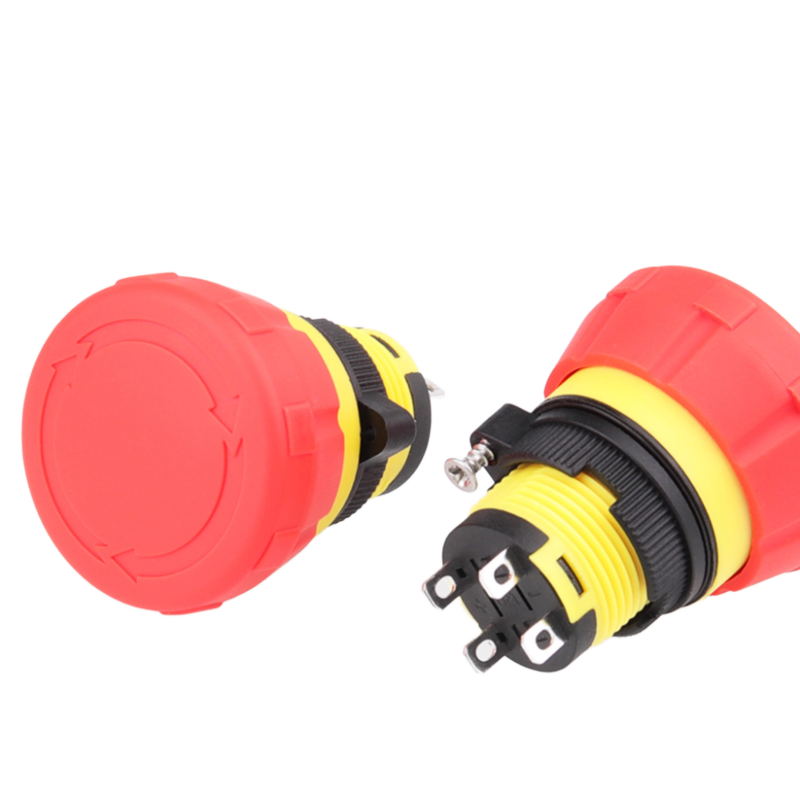

• Head Type: Mushroom
• Head Color: Red
• Lamp: Non-Illuminated
• Contact Material: Gold
• PIN Material: Silver
• Operation of Contact: 1NO+1NC
• Operation type: Momentary, Maintained

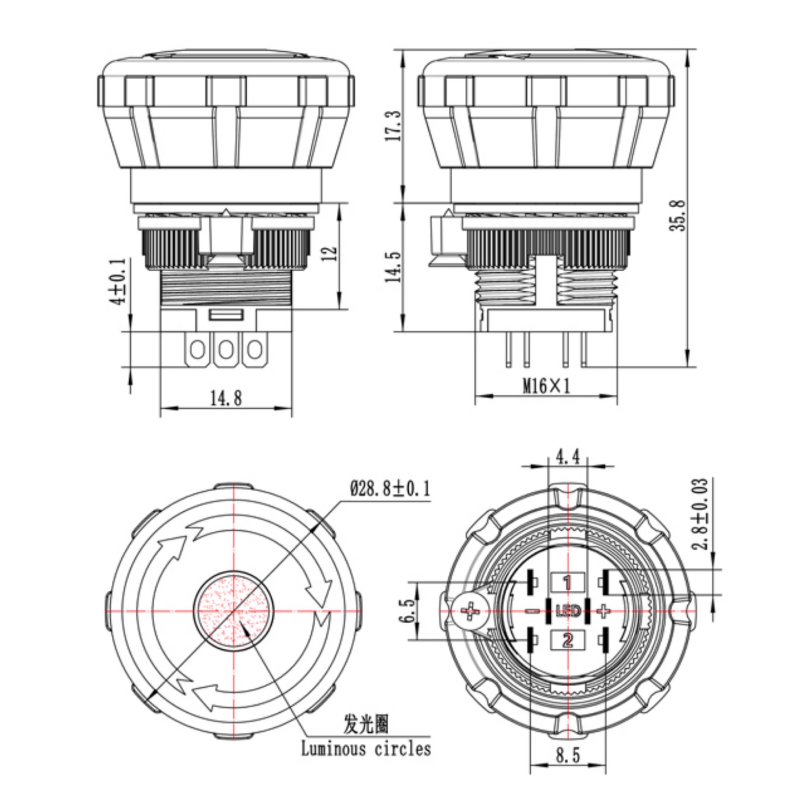

• Mounting diameter: 16mm
• Connection: Plug in
• Rated Current & Voltage: 5A, 1.5V~250V AC/DC

Product Advantages

This 16mm IP67 non-illuminated mushroom head emergency stop switch adopts full plastic lightweight structure and IP67 sealed waterproof design. It supports momentary and maintained dual working modes, with standard 1NO1NC contact matching most industrial and civil safety circuits. Gold contact brings excellent conductivity and anti-oxidation ability, silver pin ensures stable plug-in connection. Wide 1.5V~250V AC/DC voltage and 5A current rating adapt to most power systems. Cost-effective, dustproof and waterproof, perfectly suitable for marine, medical, new energy and access control equipment emergency safety cutoff.

Applications

• 16mm panel IP67 plastic mushroom head waterproof emergency stop button
• Marine and boat wet environment dustproof non-illuminated safety switch
• Medical facility and hospital equipment mechanical emergency stop control
• New energy equipment and automation system 1NO1NC protection button
• Access control cabinet and intelligent equipment IP67 emergency shutdown switch

FAQ

1. What is the mounting size?
Standard 16mm mounting diameter, fits 16mm reserved panel mounting holes.

2. What is the waterproof level?
IP67 professional dustproof and waterproof rating, suitable for humid, dusty indoor and light outdoor environments.

3. Does it support two working modes?
Yes, both momentary self-resetting and maintained latching types are available.

4. What is the contact specification?
Adopts standard 1NO+1NC contact configuration for universal safety circuits.

5. What are the electrical parameters?
Rated current 5A, wide voltage 1.5V~250V compatible with AC and DC.

6. What material are the contacts and pins?
Contact is gold material, PIN terminal is silver material, anti-oxidation and stable conduction.

7. What application scenarios is it suitable for?
Widely used in marine, medical equipment, new energy devices and access control system safety emergency stop.
