Key Features

• Professional vertical structure design for water tank installation
• Adopts reed / magnetic switch induction principle for precise detection
• Main material: SS + PP, optional NBR, PVDF, NYLON
• IP65 dustproof and waterproof grade adapt to harsh environment
• Standard 3/8″ thread size for easy threaded mounting
• Overall length 86mm, compact size saves installation space
• Wide working temperature: -10℃ ~ +85℃
• Max voltage 220VDC, max current 1.0A, contact rating 50W
• Standard 350mm cable length, support customized wire length
• High precision liquid level indication and stable performance
• CE and RoHS certified for safety and environmental compliance
• 1-year factory warranty
• Support OEM, ODM, OBM personalized customization service
• Corrosion resistant for different liquid medium applications

Technical Specifications

Product Attributes

• Type: Vertical Water Tank Float Switch
• Principle: Reed / Magnetic Induction
• Material: SS, PP, NBR, PVDF, NYLON
• Thread: 3/8″
• Length: 86mm
• IP Rating: IP65
• Temperature: -10℃ ~ 85℃
• Electrical: 220VDC / 1.0A / 50W
• Cable: 350mm Customizable
• Certification: CE, RoHS

Product Advantages

This plastic vertical float switch is specially designed for water tank level control, adopting reliable reed magnetic switch sensing structure. It is made of SS and PP material, with NBR, PVDF and NYLON optional for anti-corrosion needs. IP65 protection suits dusty and wet working conditions, compact 86mm size and 3/8″ standard thread for quick installation. Stable electrical parameters and high detection accuracy, CE RoHS certified, 1-year warranty and full OEM/ODM/OBM customization available.

Applications

• Domestic and industrial water tank vertical liquid level control
• Water storage tank automatic water supply and overflow protection
• Humidifier, water dispenser and household appliance level sensor
• Small industrial equipment and mechanical water tank level indicator
• Environmental protection equipment liquid level monitoring system

product name:Plastic Vertical Float Switch
material: SS;PP
warranty: 1Year
customized support: OEM, ODM, OBM
Material: NBR, PVDF, NYLON etc..
Protection grade: IP65
Operating temperature: -10~+85℃
Max voltage: 220VDC
Max contact rating: 50W
Max current: 1.0A
Cable length: 350mm standard length or customized
Application: Liquid Level Indicator
Certificate: CE Certificate, RoHs
Theory: Reed/magnetic switch

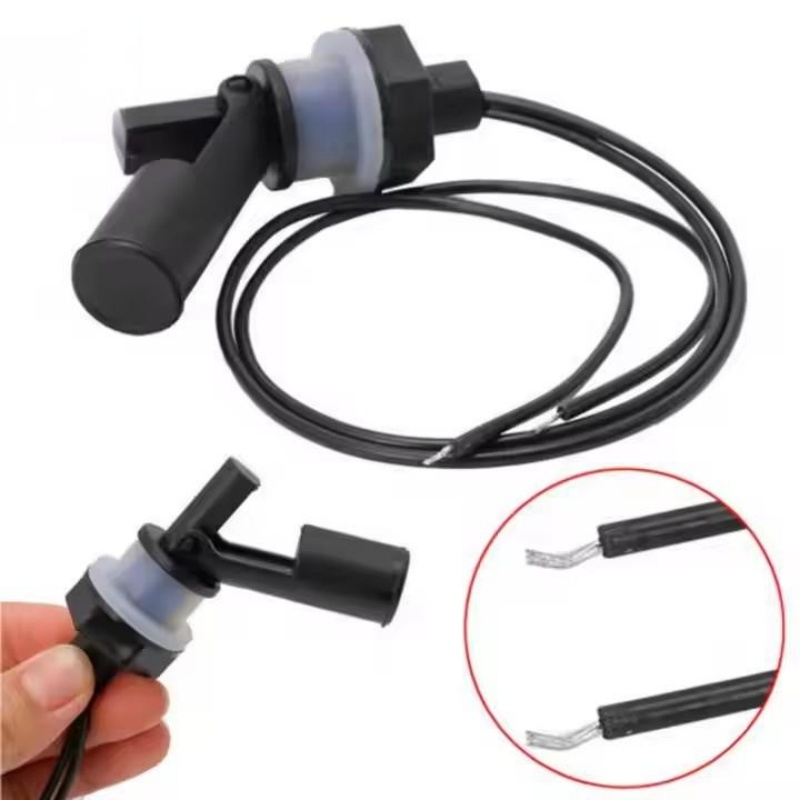

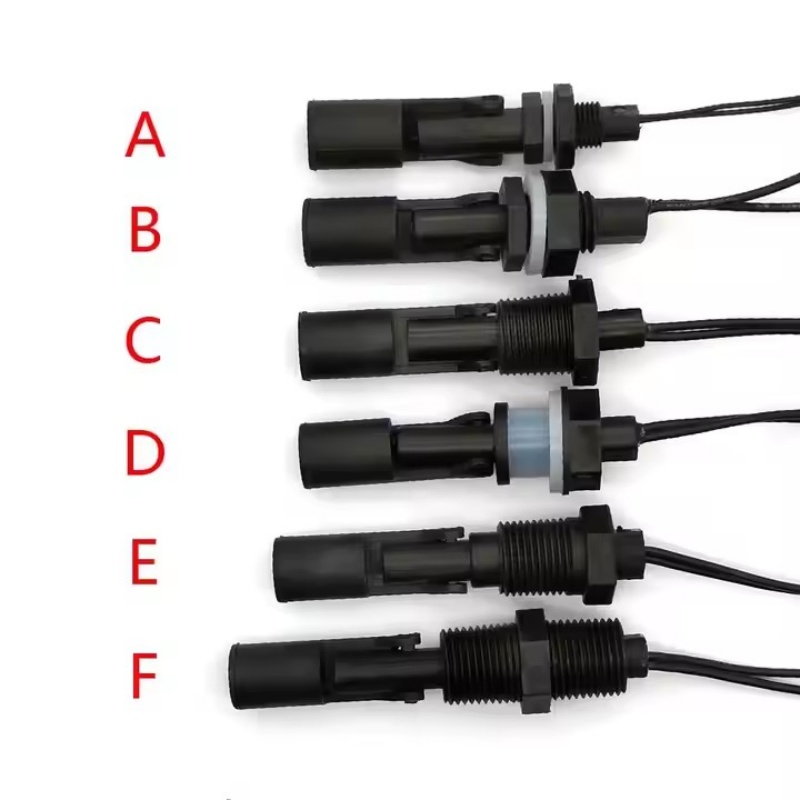

Product images

FAQ

1. What working principle does it adopt?
Adopts professional reed / magnetic switch induction principle for accurate level detection.

2. What materials are available?
Main SS+PP, optional NBR, PVDF and NYLON corrosion-resistant materials.

3. What is the protection level?
IP65 waterproof and dustproof, suitable for indoor and wet environment.

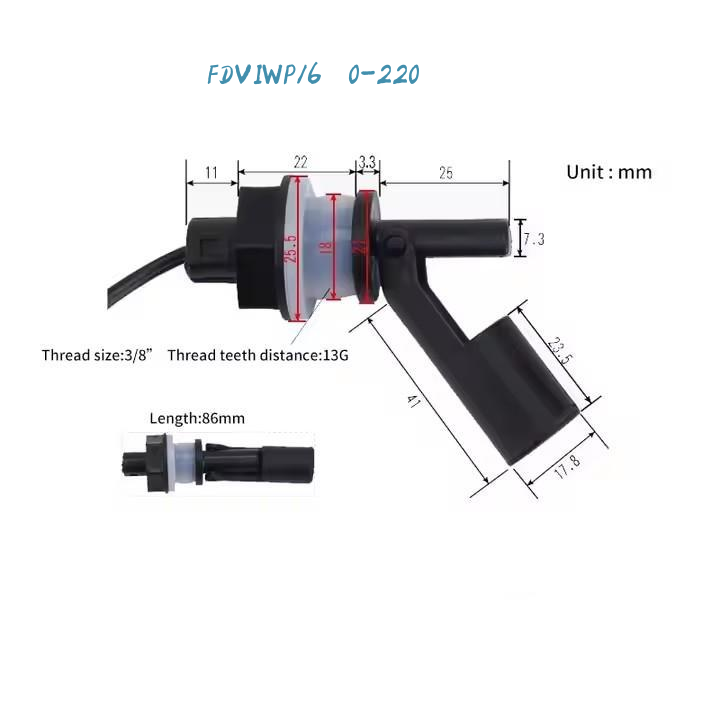

4. What size thread and length?
3/8″ standard thread, overall product length 86mm.

5. What electrical specifications?
Max 220VDC voltage, 1.0A current, contact load 50W.

6. Can cable length be customized?
Standard 350mm cable, support custom length as required.

7. Where is it commonly used?
Mainly used for water tanks, household appliances and industrial equipment vertical liquid level control.
