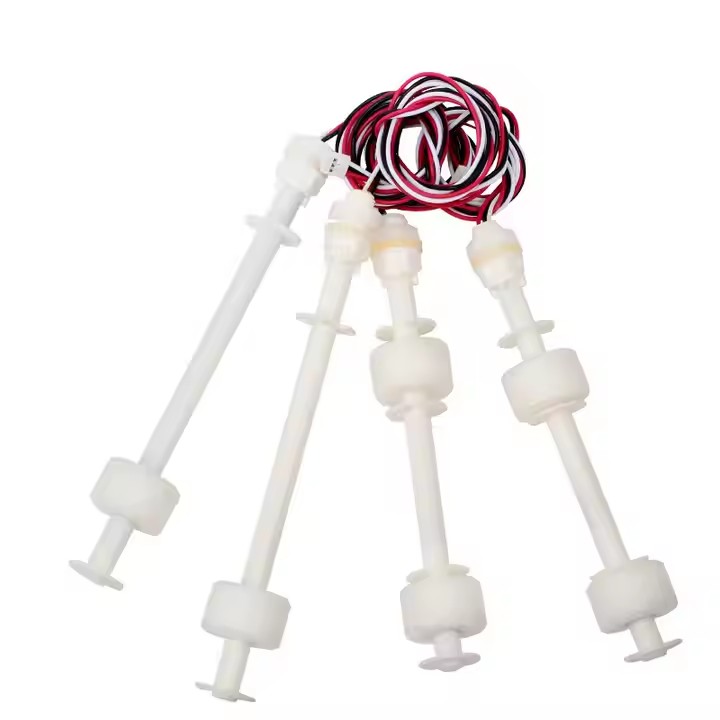

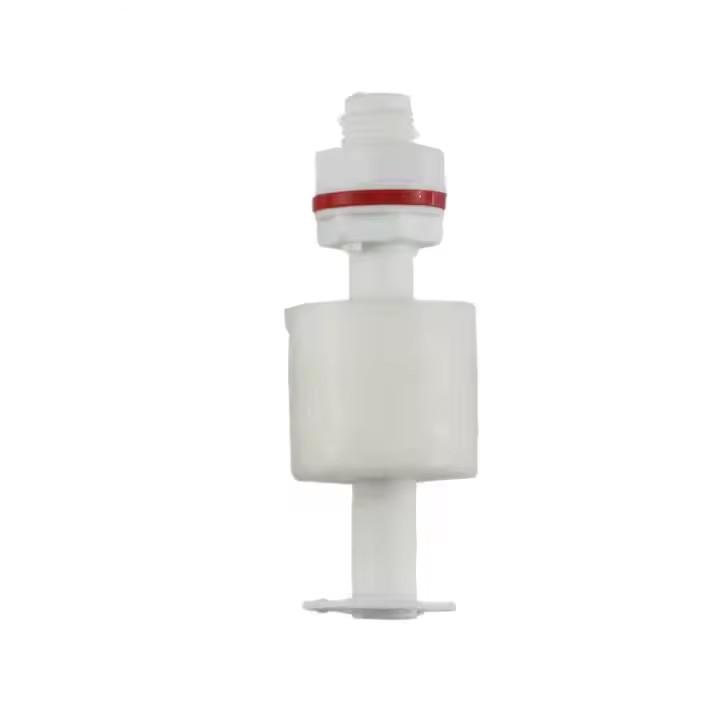

PP Liquid Level Sensor – IP63 Waterproof Smart Water Level Switch

Engineered for precision and durability, our ‌PP Liquid Level Sensor‌ is a ‌smart-enabled, IP63-rated‌ solution ideal for industrial and commercial liquid monitoring. Built with ‌high-grade PP, NBR, PVDF, or nylon materials‌, this sensor combines ‌magnetic reed switch technology‌ with robust waterproofing to deliver reliable performance in demanding environments.

Enquiry
SKU:SCJ5FD25PI08Category:
Description

Product name: Water Level Switch
Whether the smart: Yes
IP level: IP63
Operating Temperature: -10~+85℃
Max. Current: 3A
Max. Voltage: 220VDC
Max contact rating: 50W
Max contact resistance： 100mΩ
Min. breakdown voltage： 300VDC
Material： PP, NBR, PVDF, NYLON etc..
Application: Level Sensor
Theory; Reed/magnetic switch
Color； White, black, blue or as requested
Feature： Water-proof
Warranty：12 Months
