Key Features

• Standard 16mm mounting hole for universal panel installation
• Short body compact structure, space-saving easy assembly
• Momentary NO Normally Open circuit design
• Black actuator body with Red / Green / Blue color optional
• Color-coded design for easy function identification
• Quick-connect terminals for fast and convenient installation
• Optional IP65 waterproof and dustproof protection grade
• Long service life over 1 million mechanical cycles
• Silver alloy contact, stable and conductive
• Rated 3A current, max voltage up to 250V
• Available in 12V / 24V / 220V voltage variants
• Support OEM / ODM customized bulk order service

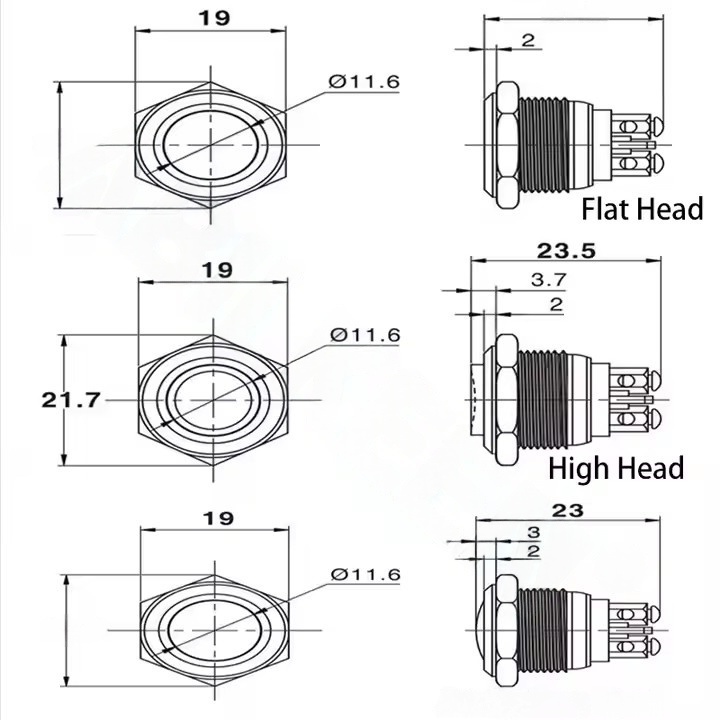

• Suitable for flat head and high head two styles application

Technical Specifications

Product Advantages

This 16mm short body NO momentary metal push button adopts black main body with red, green and blue optional color head for clear function distinction. Built with silver alloy contact for stable conductivity, rated 3A 250V and compatible with 12V/24V/220V circuit. Optional IP65 waterproof design adapts to various working environments, quick-connect terminal greatly simplifies installation. With more than 1 million mechanical service life, it is durable for long-term industrial use and supports OEM & ODM customization.

Applications

• Industrial control panel 16mm momentary NO switch
• CNC machinery and automation system control button
• Electrical equipment panel mounting push button
• Mechanical equipment normal open start stop switch
• 16mm short body color indicator replacement button

Product images

FAQ

1. What is the mounting size?
Standard 16mm mounting hole for direct installation.

2. Optional color?
Red, Green, Blue three color options with black body.

3. Circuit type?
Momentary NO Normally Open type.

4. Rated parameter?
3A max current, 250V max voltage.

5. Protection grade?
IP65 waterproof optional.
