Key Features

• Multi mounting size: 12mm/16mm/19mm/22mm/25mm/30mm optional
• Ultrathin short body mini design for limited thin panel space
• Premium black stainless steel & brass nickel housing

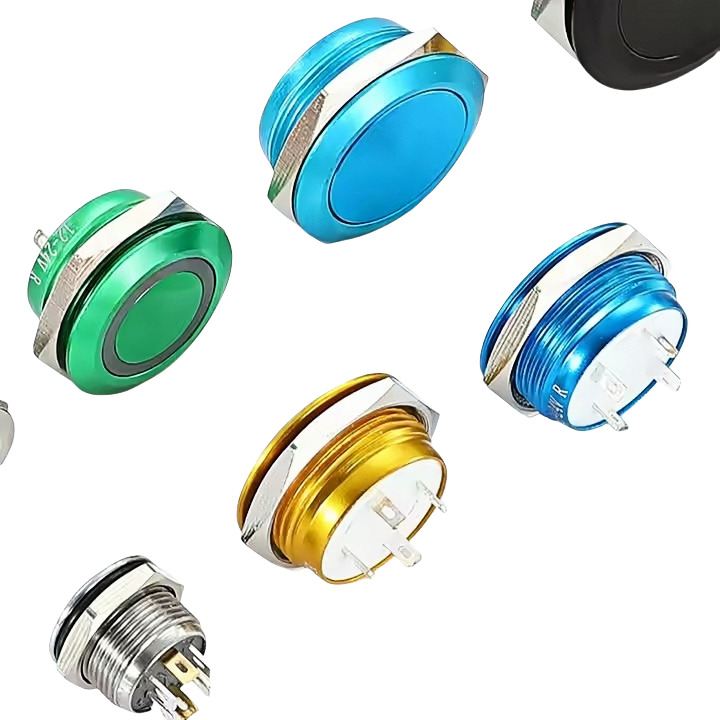

• Aluminum oxide finish optional for anti-scratch durability
• Flat head minimalist appearance elegant and fashionable
• Rich lamp colors: Red Yellow Green Blue White Orange RGB RB RG
• Wide lamp voltage range: 3V~220V compatible all mainstream voltage
• Standard 1NO normally open contact configuration
• Pure momentary self-reset press-on release-off function
• IP65 / IP67 high grade waterproof dustproof protection
• Rated 2A 220VAC load capacity for conventional control circuit
• Ultra high dielectric strength and insulation up to 2000VAC
• Max contact resistance ≤50mΩ stable electric conduction

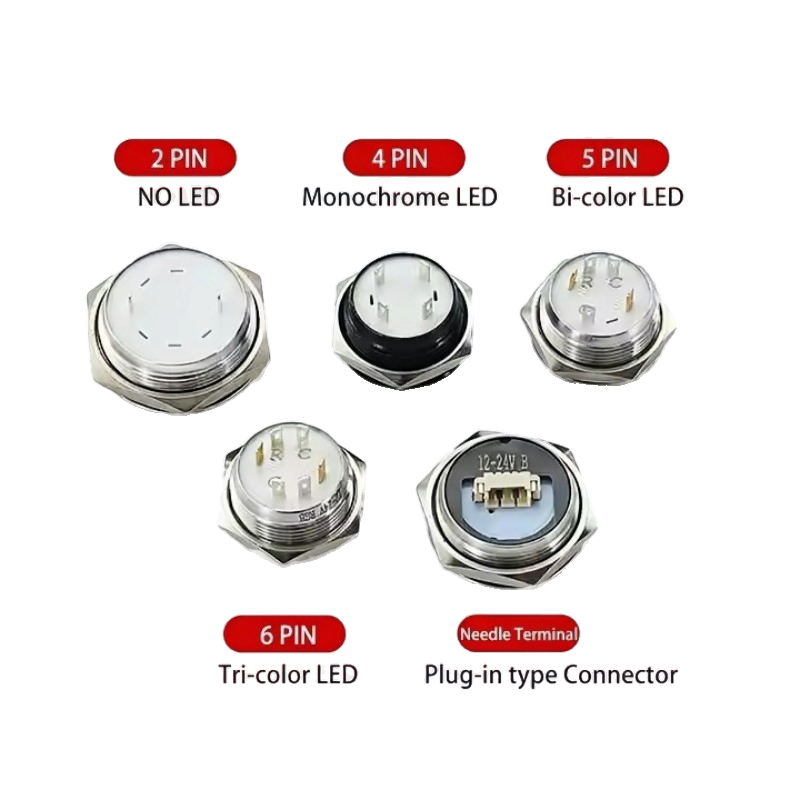

• Multiple pin terminals: 2PIN/4PIN/5PIN/6PIN plug-in type
• Silver contact material anti-oxidation long service life

Technical Specifications

Product Advantages

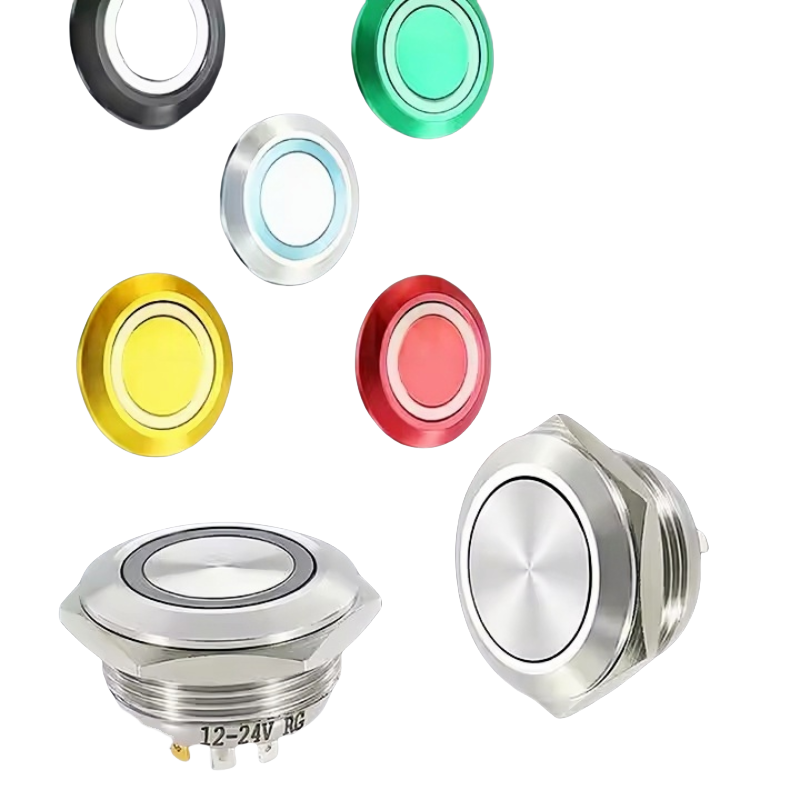

This multi-size RGB LED ultrathin metal push button covers 12mm to 30mm full mainstream mounting apertures, one product meets various hole size needs. Adopts ultrathin short-body design, perfectly suitable for ultra-thin panel and narrow installation space. Black stainless steel and nickel-plated brass material are rust-proof, corrosion-resistant and high-end textured. Support monochrome, two-color and RGB full-color LED lighting, voltage from 3V to 220V fully compatible. Standard 1NO momentary self-reset function, with IP65/IP67 high waterproof level, adapt to indoor, outdoor, vehicle and marine humid and dusty environment. Multiple pin terminals optional, easy wiring and batch matching for equipment manufacturers.

Applications

• Ultra-thin industrial control panel embedded button
• Automotive motorcycle RV RGB atmosphere light control switch
• Marine yacht waterproof equipment multi-size control button
• 12V/24V/110V/220V intelligent equipment LED button
• Computer case chassis personalized ultrathin DIY modification
• Electronic DIY project and multi-size equipment replacement button

FAQ

1. What sizes are available?
12mm,16mm,19mm,22mm,25mm,30mm full sizes optional.

2. Body feature?
Mini ultrathin short body design for thin and limited space.

3. LED color and voltage?
Multiple single/dual/RGB colors, voltage 3V~220V optional.

4. Waterproof level?
IP65 / IP67 high waterproof and dustproof grade.

5. Contact and function?
1NO normally open, momentary self-reset operation.
