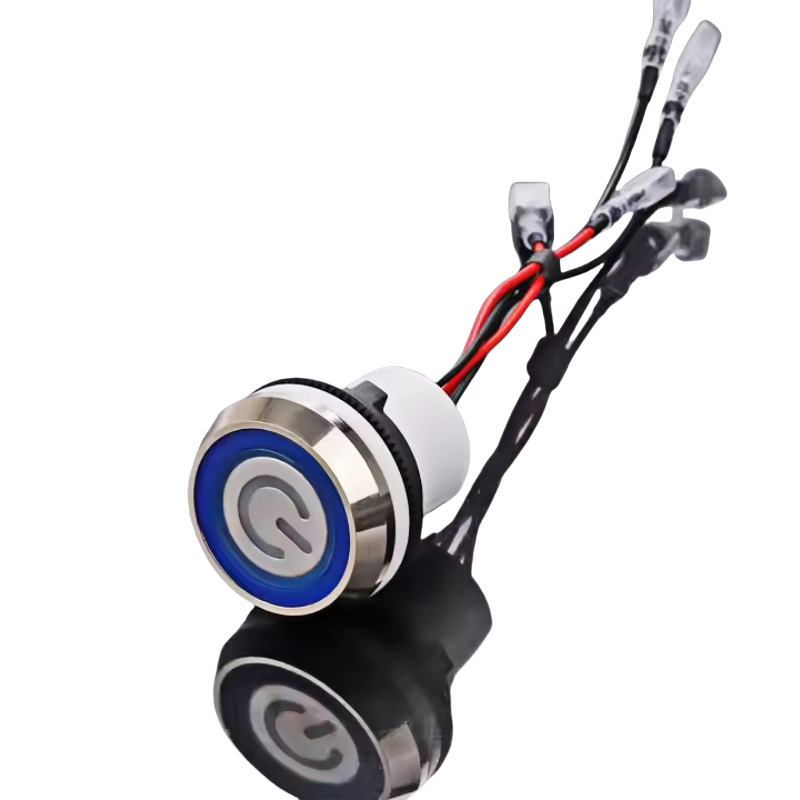

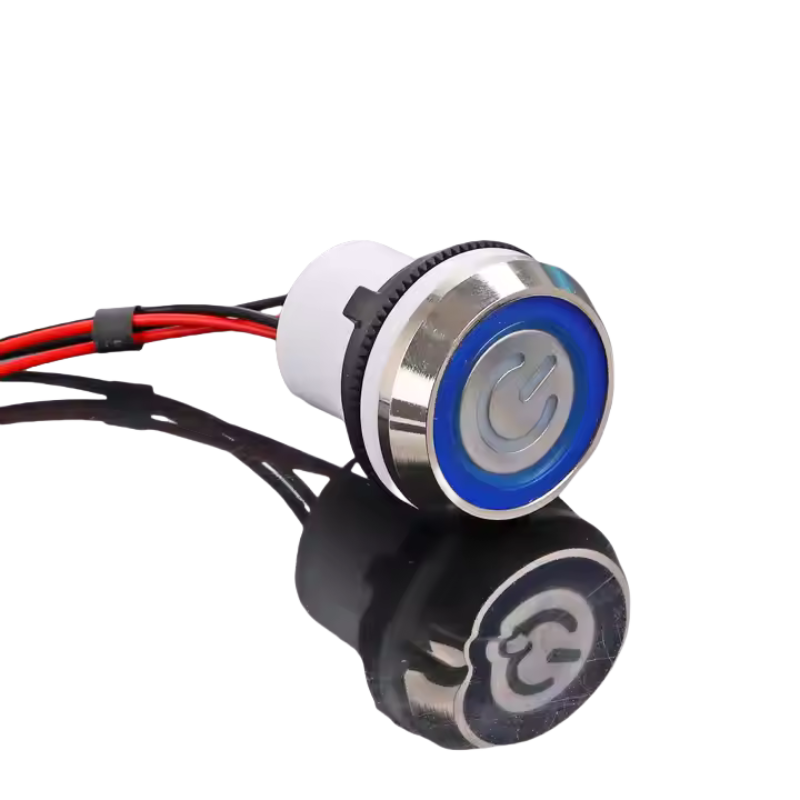

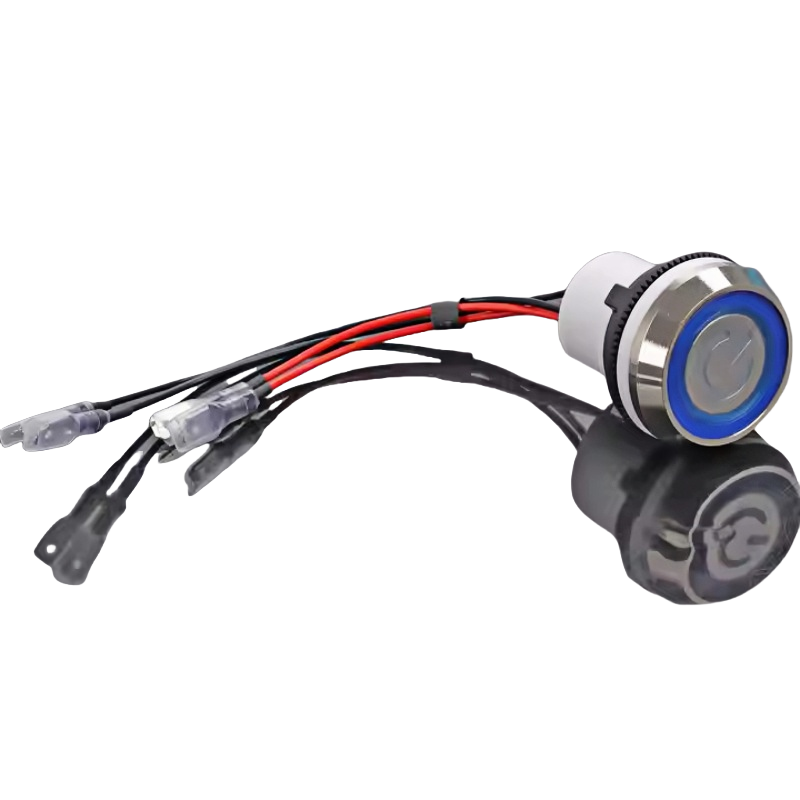

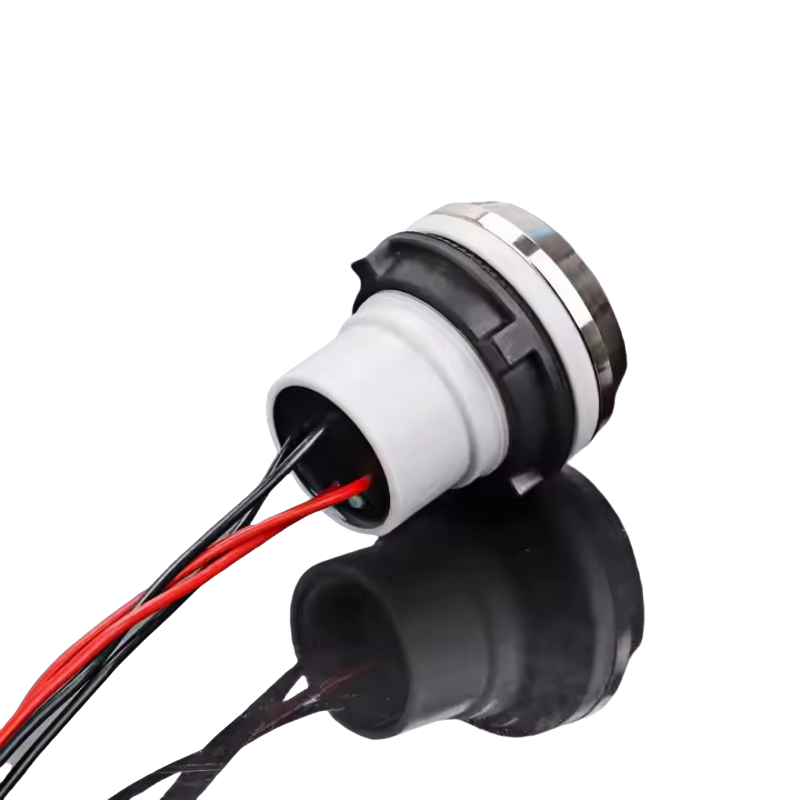

Durable 30mm metal push button switch with IP67 waterproof rating, designed for harsh environments. Features a 24V blue LED ring and power light for clear visibility, ideal for boats, RVs, and marine applications. Offers reliable momentary operation and long-lasting performance.
| Mounting Size | 30mm | ||
| Light Type | Ring Light + Power Symbol Light | ||
| LED Color | Blue | ||
| LED Voltage | 24V | ||
| Head Type | High Round / Flat / Domed Head | ||
| Contact Type | 1NO / 1NC / 1NO1NC Optional | ||
| Operation Type | Momentary / Latching | ||
| Waterproof Grade | IP67 | ||
| Terminal Type | Solder Terminal / Screw Terminal | ||
| Shell Material | Brass Nickel / Stainless Steel / Aluminum Oxidation | ||
| Contact Resistance | ≤50mΩ | ||
| Insulation Resistance | ≥1000MΩ | ||
| Dielectric Strength | 2000VAC | ||
| Operating Temperature | -20℃ ~ +55℃ | Application | Marine Boat, RV, Yacht, Industrial Panel, Outdoor Equipment |
This 30mm marine metal push button adopts ring and power dual lighted design with 24V blue LED, clear and beautiful status display. Multiple head shapes and contact configurations are available to meet different panel and circuit requirements. Support momentary self-reset and latching on-off two working modes. IP67 high waterproof grade perfectly adapts to marine, yacht, RV rainy and humid environment. Brass nickel and stainless steel housing are corrosion-resistant and suitable for long-term marine use. Solder and screw dual terminal options make wiring flexible and convenient, ideal for marine matching and industrial large panel installation.
1. Mounting size?
Standard 30mm mounting diameter.
2. Light style?
Ring LED plus power symbol double lighted design.
3. LED parameter?
24V blue LED indicator light.
4. Contact options?
1NO / 1NC / 1NO1NC multiple choices.
5. Waterproof level?
IP67 dustproof and waterproof for marine use.
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material |
