Key Features

• M10 standard thread design for quick and fixed installation
• Made of high quality PP / Plastic / POM durable material
• IP67 waterproof rating for dustproof and wet environment use
• Wide working temperature range: -40°C to 120°C
• Magnetic induction principle for precise liquid level control
• NO / NC normally open / normally closed contact optional
• 31mm compact sensor body length, suitable for narrow space
• Standard 350mm wire length, support customized length
• Max voltage 200VDC, max current 1.5A
• Rated load 10W / 50W for different circuit demands
• Certified by CE, RoHS, REACH, PAHS safety standards
• 1-year warranty support for stable after-sales service
• Support OEM and ODM customized service
• Compact structure, long service life and high stability

Technical Specifications

Product Attributes

• Thread: M10
• Housing Material: PP / Plastic / POM
• Protection: IP67
• Temperature Range: -40°C ~ 120°C
• Contact: NO / NC Optional
• Wire Length: 350mm Customizable
• Certification: CE, RoHS, REACH, PAHS

Product Advantages

This RoHS compliant M10 thread magnetic float switch adopts premium PP and POM material, featuring IP67 waterproof and wide temperature resistance from -40℃ to 120℃. Compact 31mm body with M10 thread saves installation space. Supports NO/NC contact and customizable wire length, matches 0.5A~1.5A current and 10W~50W load. Multiple international certifications ensure safety and environmental protection, 1-year warranty and OEM/ODM service available, perfect for commercial and industrial liquid level monitoring.

Applications

• Water dispenser and drinking equipment liquid level control
• Humidifier and household appliance water level detection
• Automotive and vehicle system fluid monitoring
• Industrial equipment and storage tank float sensor
• Environmental protection and water treatment level controller

Product Name: Tank Float Sensor Switch
IP level: IP67
Operating Temperature: -40C to 120C
Material: PP/PLASTIC/POM
SIZE: 31 SENSOR BODY LENGTH
Application: car, automobile,industry equipment ,humidifier,etc
Contact Form: N.O/N.C
Wire Length: 350mm or as required
Output: Switching Transducer
Max. Current: 1.5A
Max. Voltage: 200VDC
Rated Voltage: 100VDC/220VDC
Rated Current: 0.5A/1.5A
Rating Load: 10W/50W

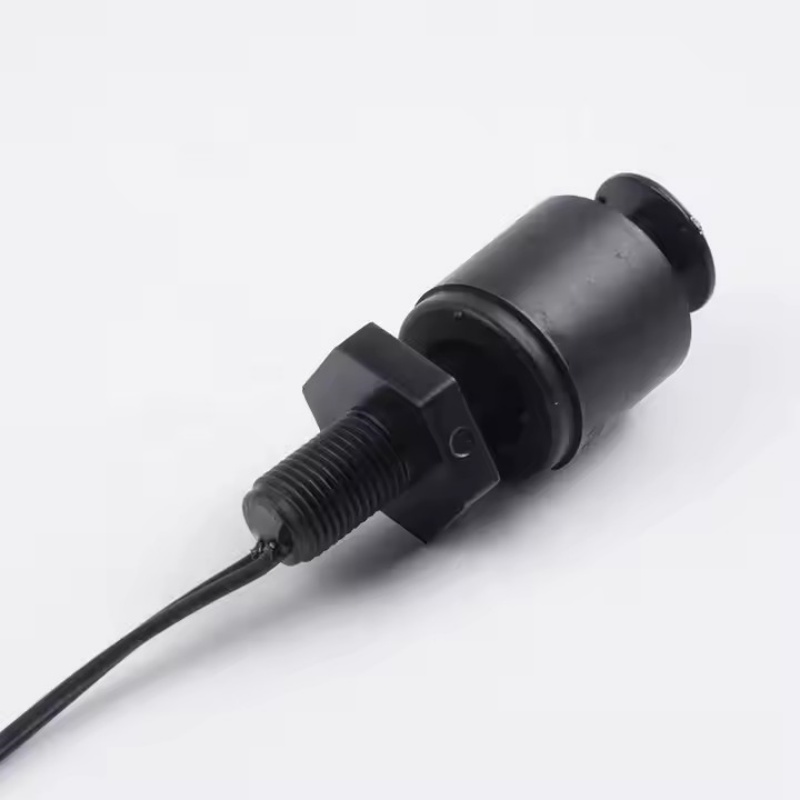

Product Images

FAQ

1. What is the thread size?
Standard M10 thread, easy for threaded fixed installation.

2. What waterproof level does it have?
IP67 waterproof grade, dustproof and suitable for wet indoor environment.

3. What working temperature range?
-40°C to 120°C, adapt to low and high temperature occasions.

4. Can I choose contact type?
Yes, support NO normally open and NC normally closed optional.

5. Is wire length customizable?
Standard 350mm, custom wire length is available.

6. What certifications does it pass?
CE, RoHS, REACH, PAHS certified, environmentally safe.

7. What are the common application scenarios?
Widely used in water dispensers, humidifiers, automobile equipment and industrial tank liquid level control.
