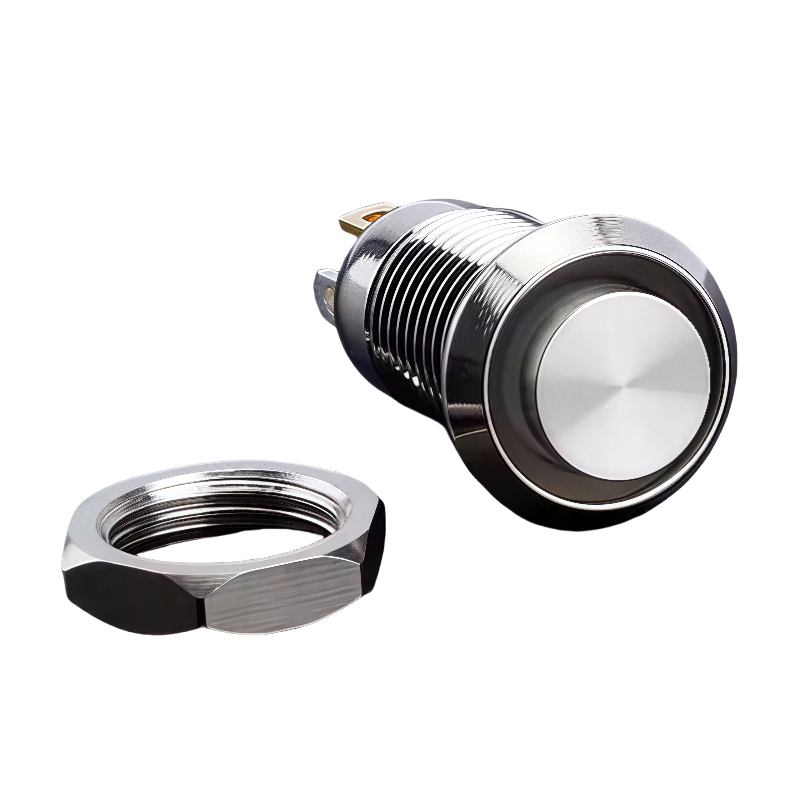

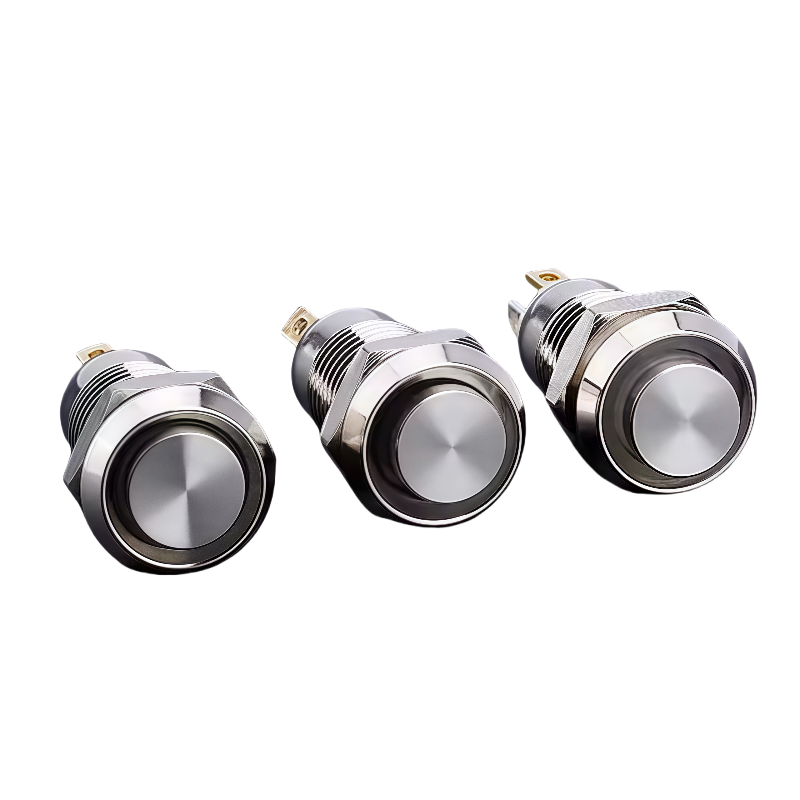

Compact and durable 10mm metal push button switch with self-locking (latching) function, ideal for control circuits and compact electronic devices. Operates on 12V power supply, featuring a clean design and reliable performance. Suitable for industrial equipment, automotive accessories, and DIY electronics.
| Mounting Size | 10mm |
| Operation Type | Self-Locking / Reset Latching |
| Contact Type | 1NO Normally Open |

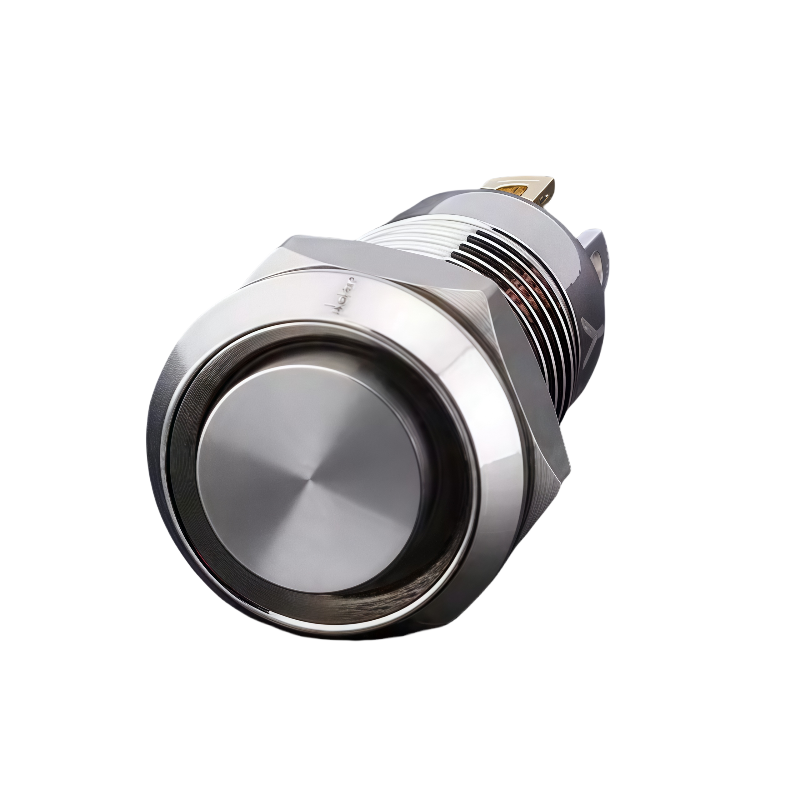

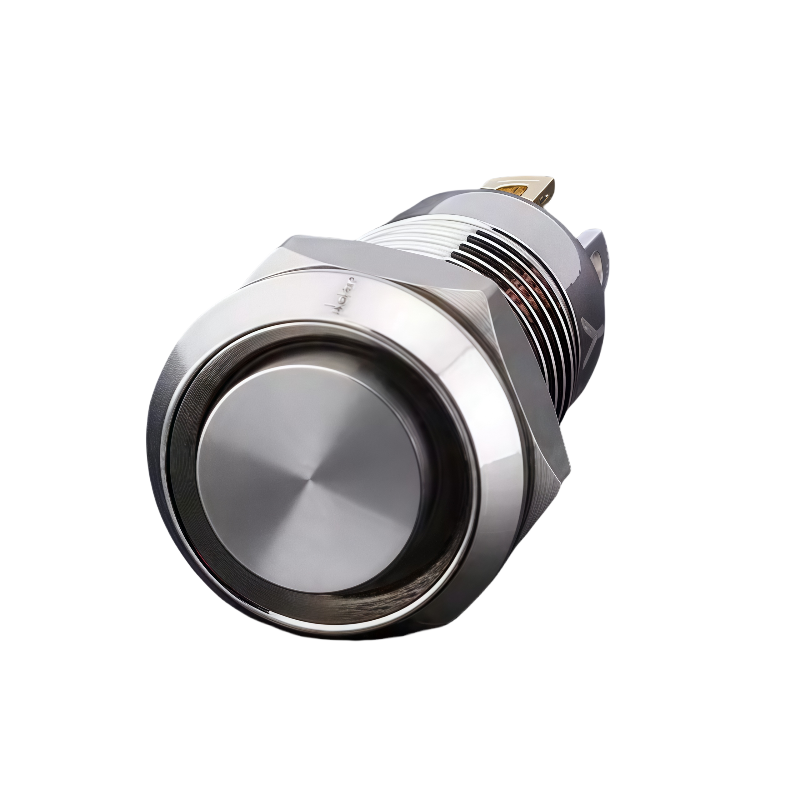

| Head Type | High Head |
| Rated Voltage | 12V |
| Shell Material | Stainless Steel |

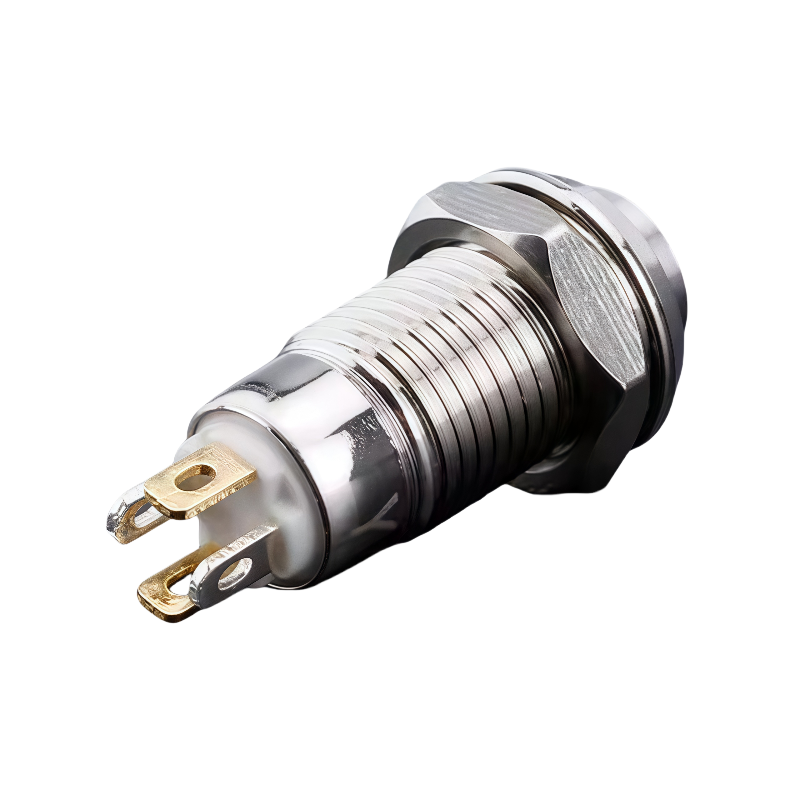

| Terminal Type | Solder Terminal / Pin Terminal |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000VAC |
| Operating Temperature | -20℃ ~ +55℃ |
| Contact Material | Silver Alloy |
| Application | Compact Electronic Device, Automotive Accessory, DIY Electronic Project |
This 10mm self-locking reset metal push button is designed for ultra-small installation space, high head appearance is easy to press and recognize. Adopts latching self-locking reset function, one press to lock on, press again to reset off, convenient for power and function control. Standard 1NO normally open contact matches most low-voltage circuit needs, perfectly compatible with 12V system. Stainless steel shell is anti-rust and wear-resistant, supporting solder terminal and pin terminal two wiring methods, flexible installation. Excellent insulation and dielectric strength ensure safe and stable operation, ideal for small equipment, automotive accessories and electronic DIY projects.
1. Mounting hole size?
Ultra-small standard 10mm mounting diameter.
2. Operation function?
Self-locking and reset latching on/off design.
3. Contact configuration?
1NO normally open for conventional control circuits.
4. Voltage compatibility?
Perfectly suitable for 12V low voltage system.
5. Terminal type?
Solder terminal and pin terminal dual optional for wiring.
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material |
