Key Features

• Professional side mount design for confined narrow installation space
• Built-in smart monitoring function for precise fuel & water level detection
• Dual material optional: Stainless Steel 304/316 and corrosion-resistant PP
• IP67 full waterproof grade for moisture, fuel and chemical environment
• Ultra wide high and low temperature resistance: -30℃ ~ +200℃
• Max 220VDC voltage and 1.5A current load capacity
• Max contact rating 10W / 50W for automation and alarm system
• NO / NC normally open and normally closed contact optional
• Standard 350mm wire length, support customized cable length
• OEM size customization available for special tank installation
• Waterproof and anti-corrosion, suitable for fuel and liquid medium
• Easy side installation, stable performance for long-term operation

Technical Specifications

Product Attributes

• Type: Side Mount Fuel & Water Float Switch
• Feature: IP67 Waterproof, Smart Monitoring
• Material: SUS304, SUS316, PP
• Temperature Range: -30℃ ~ 200℃
• Voltage: 220VDC
• Current: 1.5A
• Load: 10W / 50W
• Contact: NO / NC
• Cable: 350mm Customizable
• Custom: OEM Size Custom Available

Product Advantages

This side mount IP67 high temperature fuel float sensor adopts dual optional materials of stainless steel 304/316 and PP, with excellent oil resistance, chemical resistance and waterproof performance. It withstands extreme temperature from -30℃ up to 200℃, perfectly suitable for high-temperature oil tank working conditions. Built-in smart monitoring ensures accurate liquid level feedback, 220VDC 1.5A stable electrical parameters and optional NO/NC contacts match pump and alarm control system. Side mounting saves space, cable and size support OEM customization, durable for long-term industrial use.

Applications

• Industrial oil tank high temperature fuel level monitoring
• Reservoir and water tank side mounted liquid level control
• Mechanical equipment fuel storage tank smart sensing switch
• Chemical liquid tank corrosion resistant level detection
• Automation system liquid level alarm and pump interlock control

Product name:Level Floater Fuel Switch
Whether the smart: Yes
IP level: IP67
Operating Temperature: -30~+200℃
Material: Stainless Steel 304/316.PP
Application: Level Sensor
Operation Temperature: -30 ~ +200℃
Max. Current: 1.5A
Max. Voltage: 220VDC
Contact rating Max: 10W/50W
Contact Form: N.O/N.C
Wire length: 350mm or as require

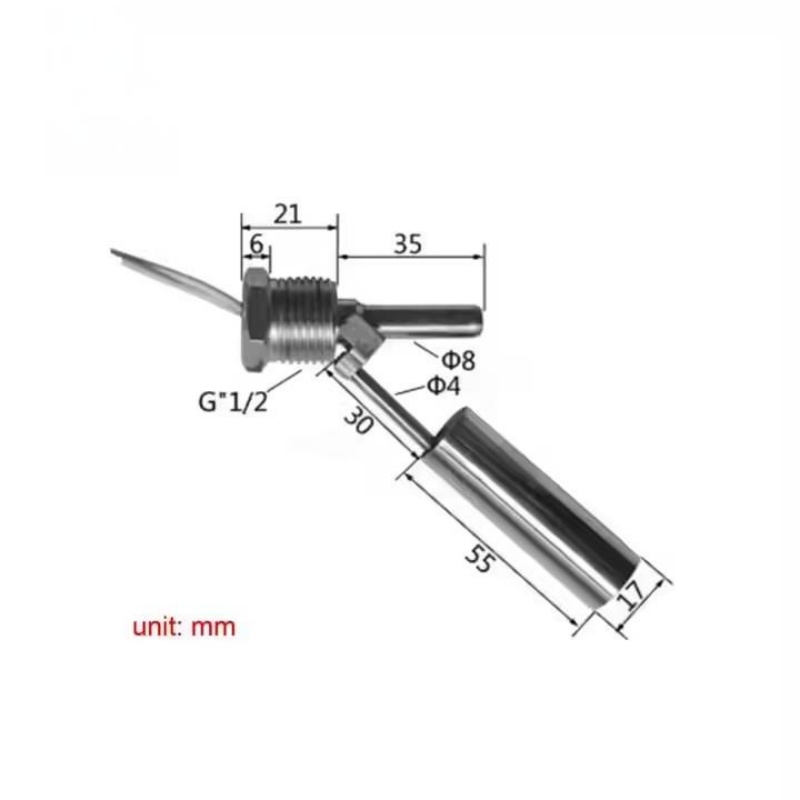

Size: OEM
Feature: Waterproof

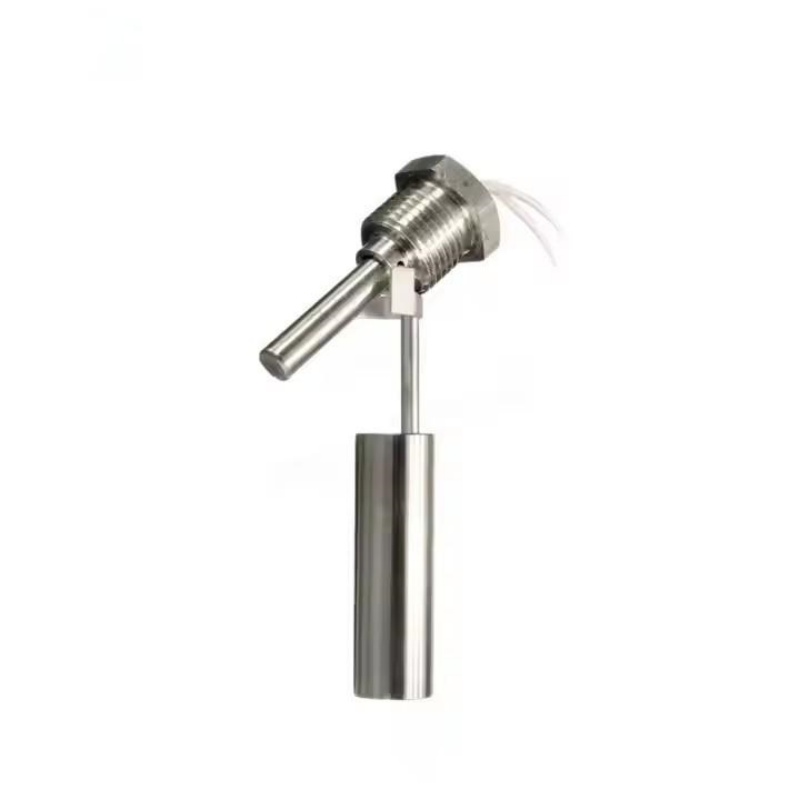

Product images

FAQ

1. What installation type is this sensor?
Adopts side mount structure, easy to install in narrow and confined tank space.

2. What material options are available?
Stainless steel 304/316 and corrosion-resistant PP two materials optional.

3. What waterproof grade does it have?
IP67 professional waterproof, adapt to wet, fuel and chemical environment.

4. What is the temperature resistance range?
-30℃ ~ +200℃, support ultra low and high temperature working conditions.

5. What electrical parameters does it support?
220VDC voltage, 1.5A current, contact load 10W/50W.

6. Are NO and NC contacts optional?
Yes, normally open and normally closed contact types are available.

7. What are the main application scenarios?
Widely used in oil tanks, water tanks, industrial reservoirs for smart fuel and water level monitoring.
