Our company’s piezoelectric switches have high durability, fast response, low power consumption, and compactness.Used for DIY projects of intelligent hardware development, impact sensor modules can be made, which can be programmed through a microcontroller to trigger tapping scenes (such as synchronized music rhythm and lighting control)

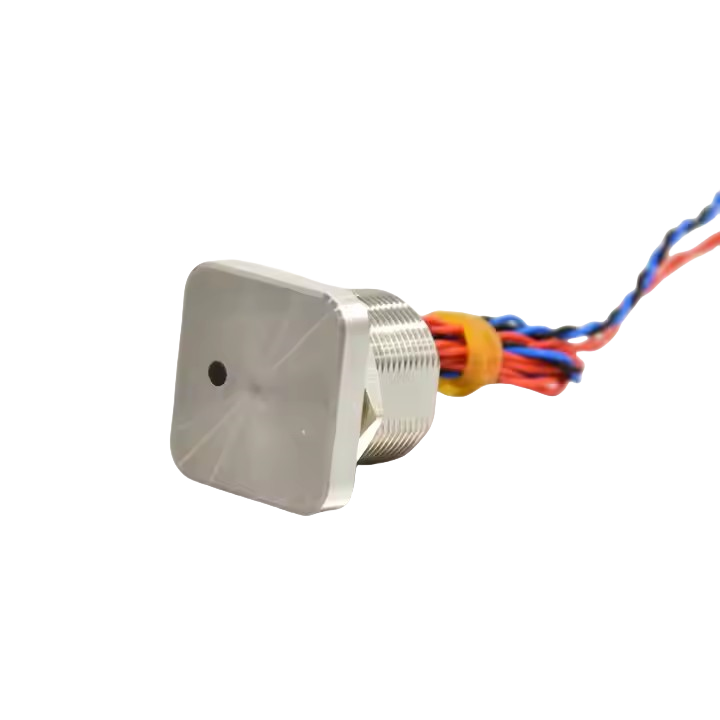

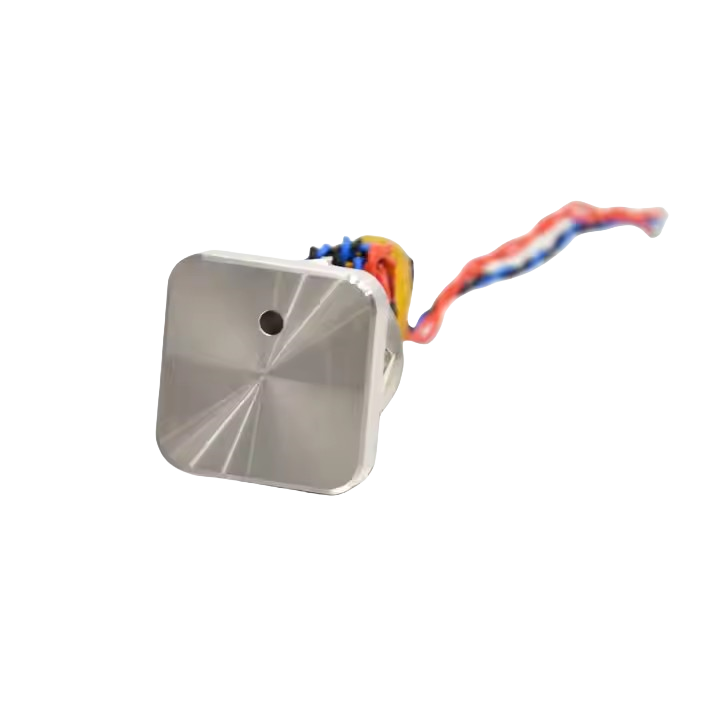

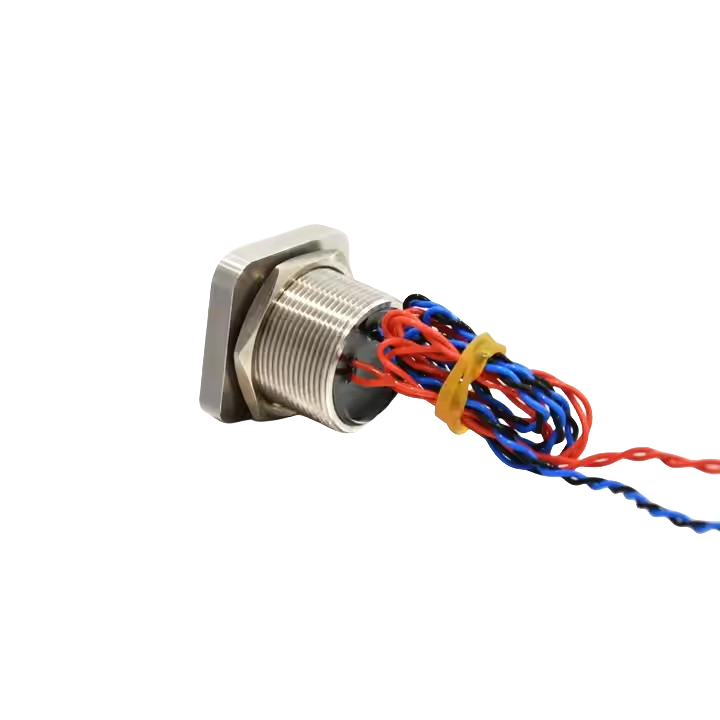

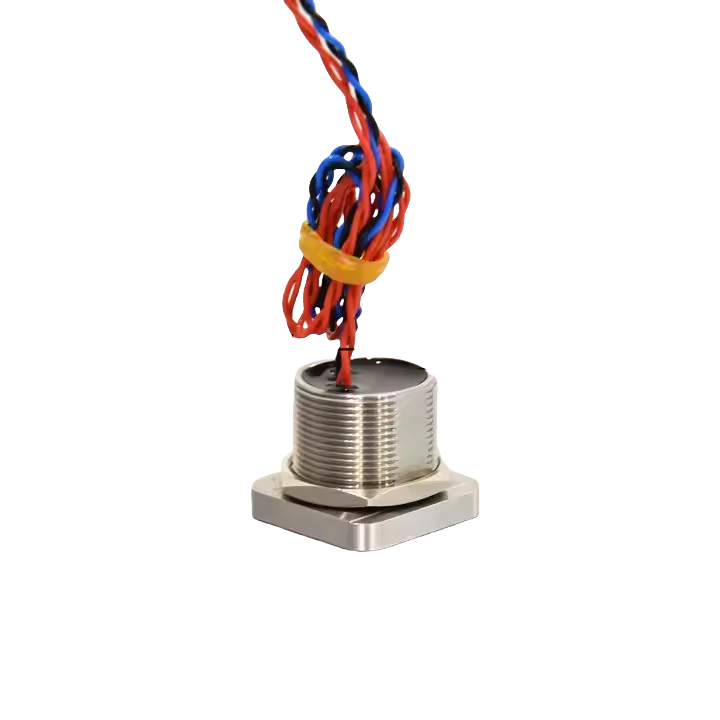

| Product Name | 22mm Square Head 2A Stainless Steel Momentary Piezo Touch Switch |
| Product Model | SCJ7P22SZ+Custom Attributes |
| Category | Piezo Switches |
| Mounting Size | 22mm |
| Operation Type | Momentary (Self-reset) |
| Head Type | Square & Multiple optional styles |
| Bezel Material | Metal |
| Head/Shell Material | SUS304 Stainless Steel, Aluminum Oxide, Anodized Metal |
| Protection Grade | IP68, IK69 (On request) |
| Certification | RoHS, CE (EN 60947-5-1:2017) |
| Working Temperature | -20℃ ~ 55℃ / -40℃ ~ +75℃ |
| Operating Force | 4 ~ 8N |
| Rated Voltage | 3-24V |
| Rated Current | 2A |
| Working Current | Below 20mA |
| Contact Resistance | Max 50mΩ |
| Insulation Resistance | Min 1000MΩ |
| Dielectric Intensity | 2000VAC, 50HZ/60HZ |
| Contact Material | Gold, Silver |
| Contact Configuration | 01-NC, 10-NO, 11-1NO+1NC, 22-2NO+2NC, 33-3NO+3NC, Prolongated Pulse |
| Lamp Type | Ring LED (Illuminated / Non-Illuminated) |
| LED Color | Blue, Green, Orange, Purple, Red, White, Yellow, Dual Color, TriColor |
| LED Voltage | 3V/5V/6V/12V/24V/36V/110V/220V (AC/DC Universal) |
| Shell Length | 8/9/10/12/13/16/17/17.5/18mm & Custom |
| Connection Type | Welding, Prewired |
| Wire Specification | 24AWG / 26AWG, 150mm / 300mm (Customizable) |
| Mechanical Life | 1,000,000 Times |
| Electrical Life | 1,000,000 Times |
| Total Lifespan | 40000 Hours |
| Application | Smart Hardware, DIY Projects, Impact Sensor, Lighting & Music Control, Industrial Equipment |
This 22mm square head momentary piezo switch is made of premium SUS304 stainless steel, featuring excellent corrosion resistance and structural rigidity. It is equipped with IP68 waterproof/dustproof and optional IK69 anti-impact performance, working reliably in wet, dusty and collision-prone industrial and outdoor environments. Adopting momentary self-reset design, it is perfectly suitable for instantaneous signal triggering and jog control. With 2A rated current and 3-24V wide voltage compatibility, it adapts to most low-voltage control circuits. Dual wiring methods including prewired harness and welding terminals greatly improve installation flexibility. Gold and silver contacts ensure stable electrical conduction and long service life. The product supports a full set of customization on head shape, LED light, contact mode and shell size, and complies with RoHS and CE standards for global sales and projects. It has fast response, low power consumption and long service life, and can be matched with single-chip microcomputers to realize tapping trigger, music rhythm and lighting linkage functions, which is an ideal component for smart hardware development, electronic DIY and various industrial control devices.
| Technical Parameter: | ||
| Working Temperature: | -20° – 55° | |
| Operating Temperature: | -40°C ~+75°C | |
| Terminal Type: | Wired with 150/300mm long 24AWG/26AWG or Customized | |
| Operating Force: | 4 to 8N | |
| Current: | below 20mA | |
| Rating: | 3- 24V, | |
| Contact Resistance: | 50mΩ max | |
| Insulation Resistance: | 1000MΩ Min | |
| Dielectric Intensity: | 2000VAC, 50HZ/60HZ | |
| Material: | SUS304 | |
| Life expectancy : | 40000hours | |
| Mechanical Life: | 1000000 times | |
| Electrical Life: | 1000000 times | |
| Protection Grade: | IP68 ，IK69 or Higher levels needs confirmation | |
| Compliant With Standards： | CE: EN 60947-5-1:2017 | |
1. What is the installation size and operation mode?
The mounting hole is 22mm with square head, and it adopts momentary (self-reset) operation mode.
2. What protection grades and certifications does it have?
It reaches IP68 waterproof & dustproof grade, IK69 anti-impact is optional; certified by RoHS and CE EN 60947-5-1:2017.
3. What are the core electrical parameters?
Rated voltage 3-24V, rated current 2A, working current below 20mA.
4. What temperature range and operating force?
Two options: -20℃~55℃ and -40℃~+75℃; operating force is 4 to 8N.
5. What about contact material and electrical performance?
Contacts are gold and silver; max contact resistance 50mΩ, min insulation resistance 1000MΩ, withstand 2000VAC.
6. What wiring methods are available?
Support welding and prewired (24AWG/26AWG), standard wire length 150mm/300mm, customizable.
7. Can I customize lights, head styles and contacts?
Yes. It supports various head shapes, multi-color/multi-voltage ring LED, and diverse contact configurations.
8. What is the service life?
Mechanical and electrical life are both 1 million times, total service life up to 40000 hours.
9. What are the main application scenarios?
Mainly used for smart hardware, DIY projects, sensors, lighting control and industrial waterproof equipment.
| Bezel | |
|---|---|
| Connection | |
| Contact Material | |
| Head Material | |
| Head Type | Concave with Chamfer, Concave With Round, Flat, Flat With Chamfer, Flat with Round, High Round, Square |
| Lamp | |
| Lamp Type | |
| LED Color | Blue, Double Color, Green, Orange, other, Purple, Red, TriColor, White, Yellow |
| LED Pressure | 12V, 24, 24V, 250V, 3V, 5V, 6V, AC 110V, AC 12V, AC 220V, AC 24V, AC 2V, AC 36V, AC 3V, AC 6V, DC 110V, DC 12V, DC 220V, DC 24V, DC 2V, DC 36V, DC 3V, DC 6V, other |
| Length of Shell | |
| Operation of Contact | 01-NC, 10-NO, 11 -1NO + 1NC, 22 -2NO + 2NC, 33 -3NO + 3NC, other, Prolongated Pulse |
| Shell Material | Aluminum Oxide(Black), Blue Anodized, Gold Anodized, Green Anodized, other, Purple Anodized, Red Anodized, Silver Anodized, SUS304 |
