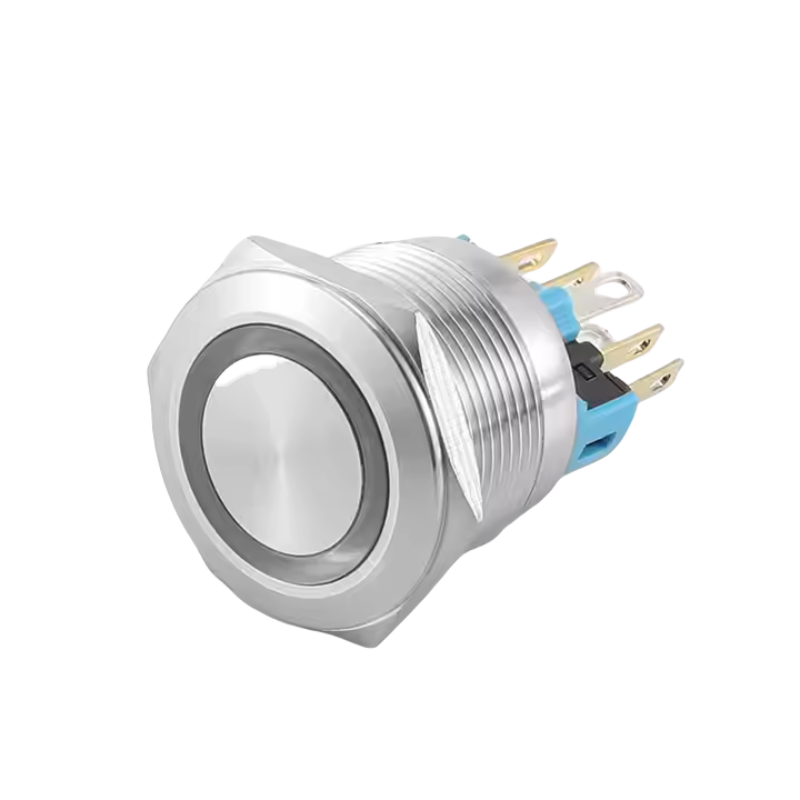

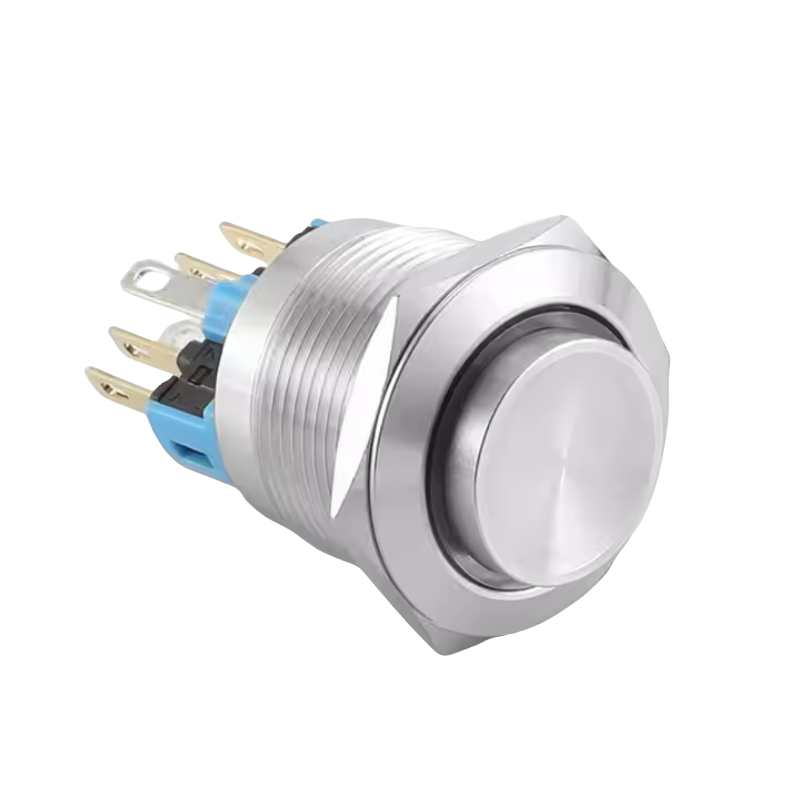

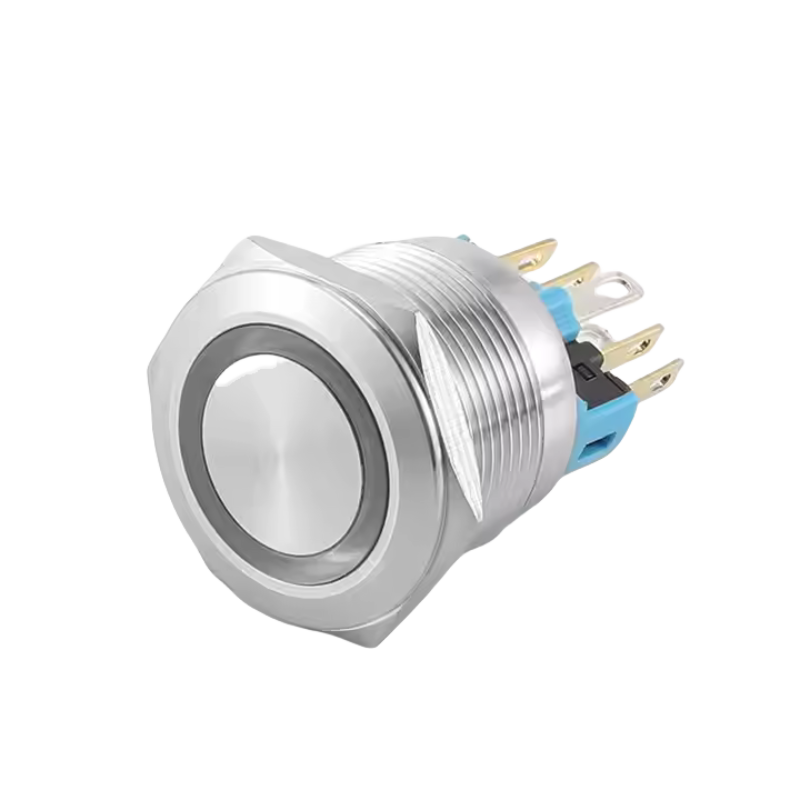

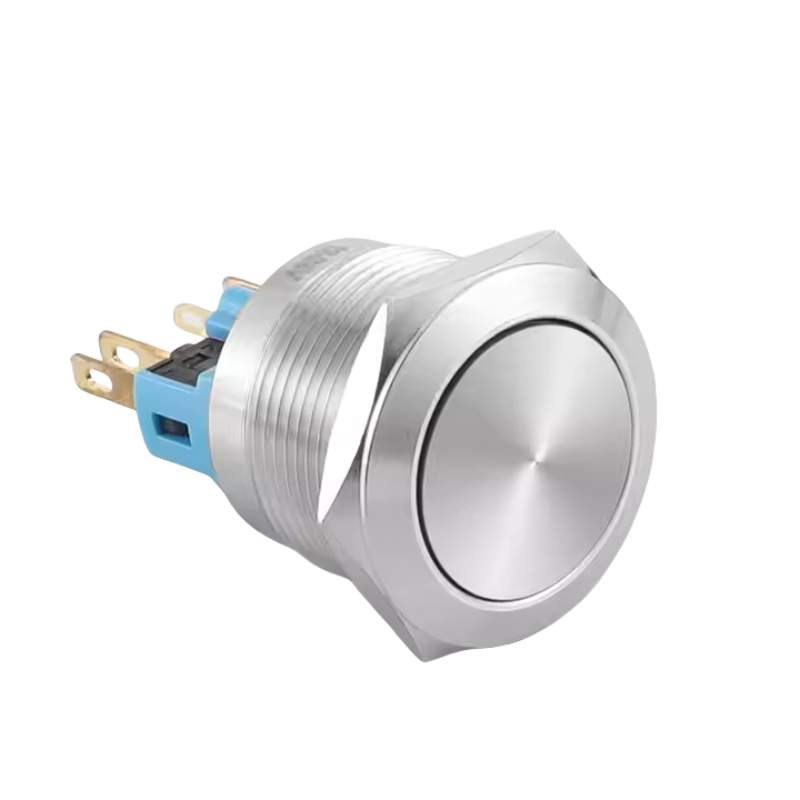

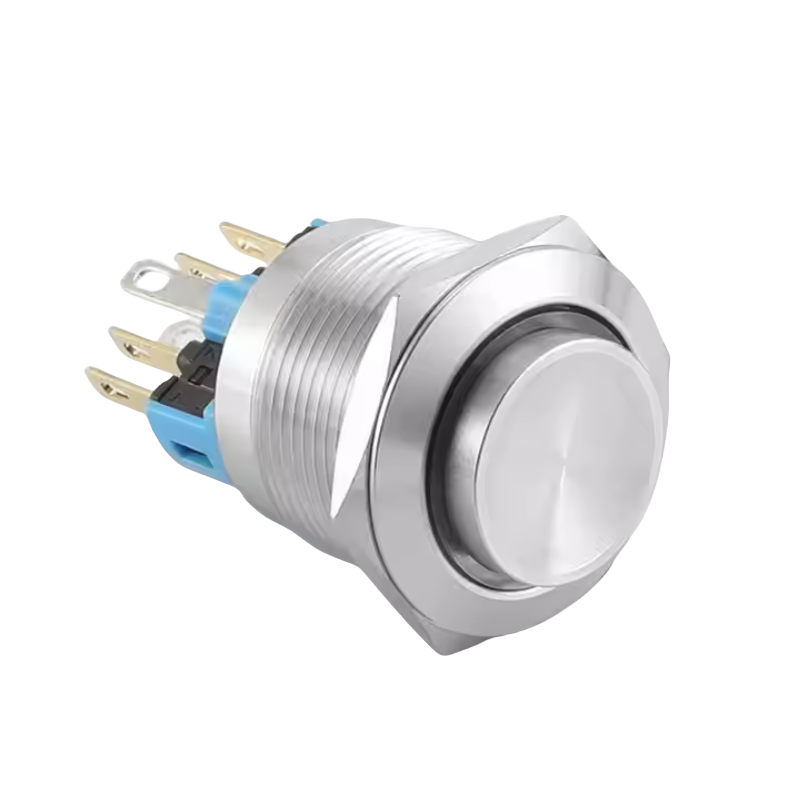

his 22mm stainless steel push button switch offers IP67 waterproof protection and is available in both self-locking and momentary functions. It features 1NO (Normally Open) and 1NC (Normally Closed) contacts, making it highly versatile for various applications. Designed for durability and reliability, it’s ideal for industrial controls, outdoor equipment, and harsh environment settings.
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000mΩ |
Dielectric Strength | 1000VAC min |
| Protection Levels | IK10 |
Ambient Temperature | -30℃~+80℃ |
Waterproof | IP65/IP66 |
| Pins | H65 / H65 Silver Plated / Gold |
| Nut | Nickel brass |
This 22mm stainless steel IP67 waterproof push button adopts premium stainless steel material, featuring excellent anti-corrosion, anti-rust and wear-resistant performance. Upgraded IP67 waterproof grade can completely prevent water immersion, splash and dust intrusion, perfectly suitable for outdoor, marine, humid and dusty harsh environments. Standard 1NO1NC contact structure meets a variety of positive and negative circuit control needs. Optional self-locking on-off and momentary trigger two working modes to match different equipment control logic. With IK10 impact resistance and ultra-wide temperature adaptability, it maintains stable performance all year round.
1. What is the mounting size?
Standard 22mm mounting hole diameter.
2. Shell material?
High-quality stainless steel, rust and corrosion resistant.
3. Waterproof level?
IP67 high-grade waterproof, fully dustproof and immersion resistant.
4. Contact configuration?
1NO1NC normally open + normally closed integrated design.
5. Latching and momentary available?
Yes, self-locking and momentary self-reset two modes optional.
| Contact Material | |
|---|---|
| Operation of Contact |
