The contact group of emergency stop switches is a fast acting flat jump type, with a simple and compact structure, short action stroke, and fast response speed, suitable for high-frequency scenarios.
| Technical Parameter: | |
| Working Temperature: | -5° – 40° |
| Wiring Ability: | Spiral embedded terminal, minimum wiring 1 * 0.5 square meters, maximum 2 * 1.5 square meters or 1 * 2.5 square millimeters |
| Rated Insulation Voltage: | Voltage 690V |
| Convientional Freeair Thermal Current: | 1th 10A, 6A (boxed) |
| Rating: | AC-15 ：220V/6A ；380V/4A ；500v/2A |
| DC-13 ： 24V/6A ；48V/3A； 110V/1A | |
| 220V/0.5A ；440V/0.25A | |
| Mechanical Life: | flat head and mushroom head and lamp head —–1 million times |
| other head— 500000 times | |
| Electrical Life: | flat head and mushroom head AC 500000 times; DC 200000 times, the remaining 50000 times |
| Protection Grade: | IP40 (IP65 waterproof button) |
| Compliant With Standards： | IEC60947-5-1 GB/T 14048.522mm Red Maintained Flat Emergency Stop Switch With LED Lamp |

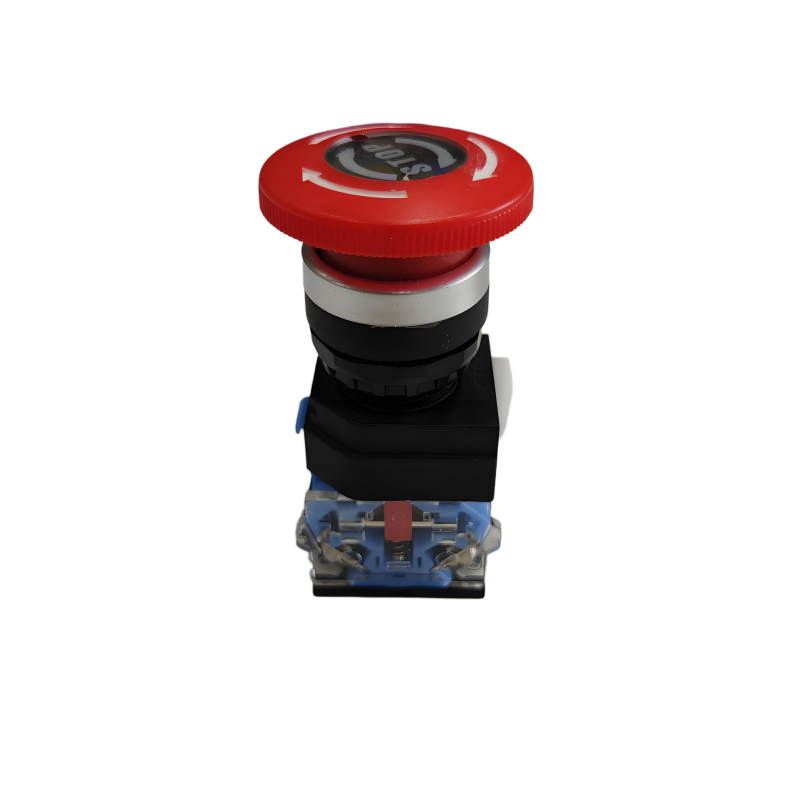

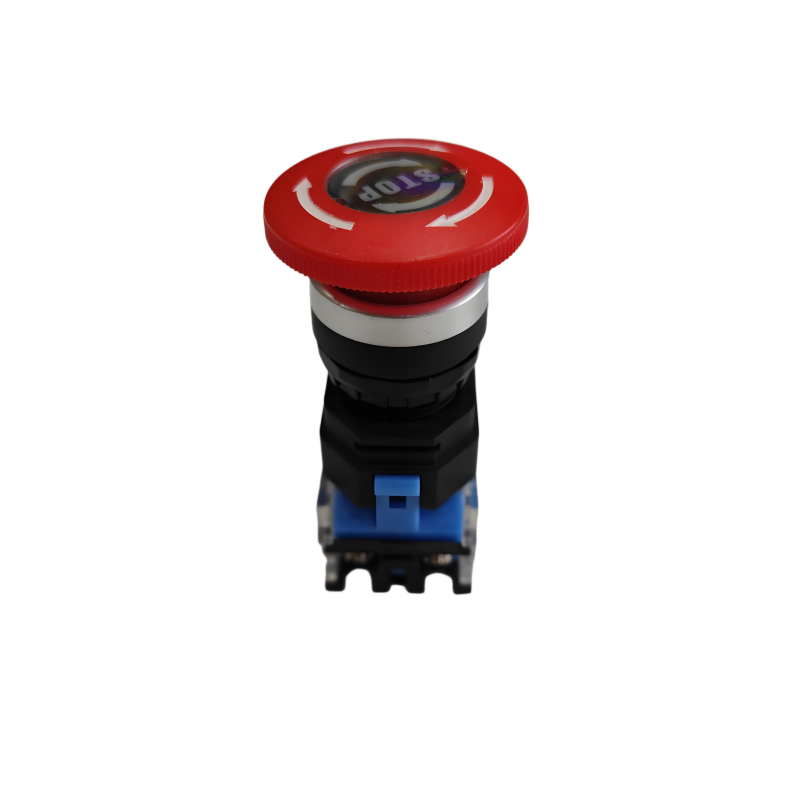

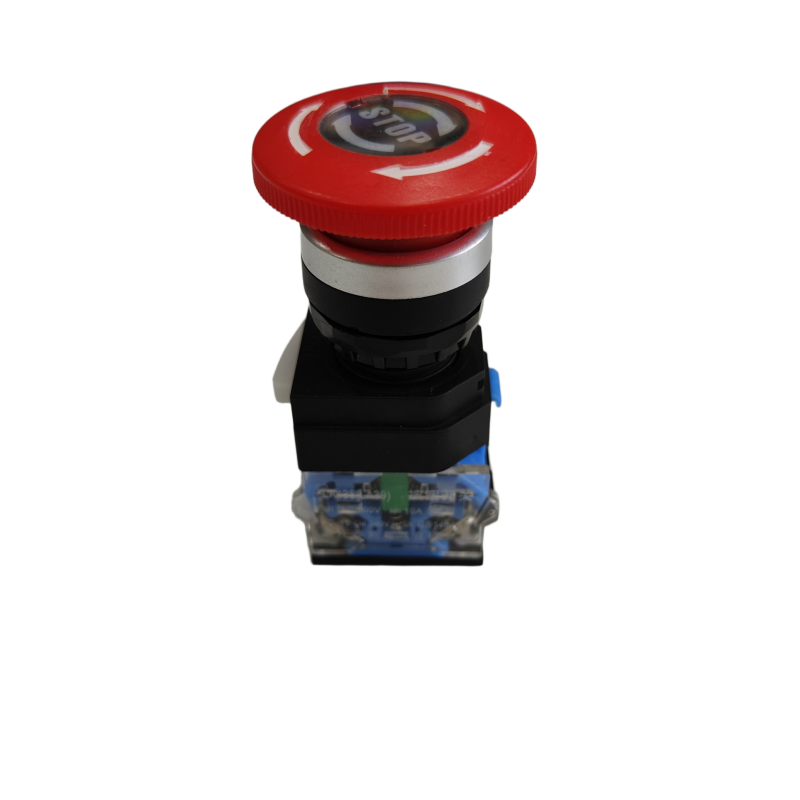

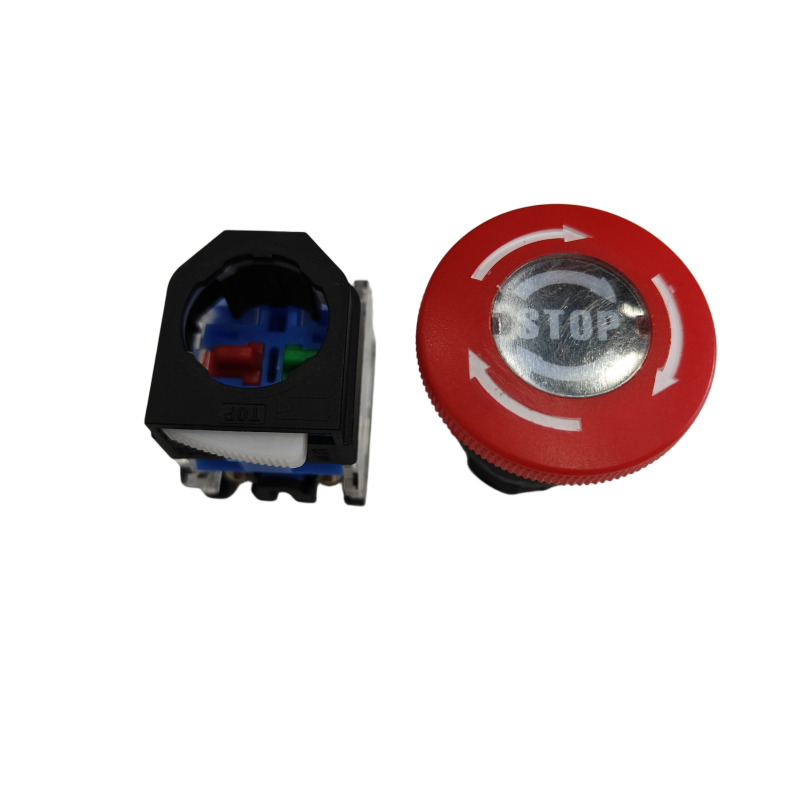

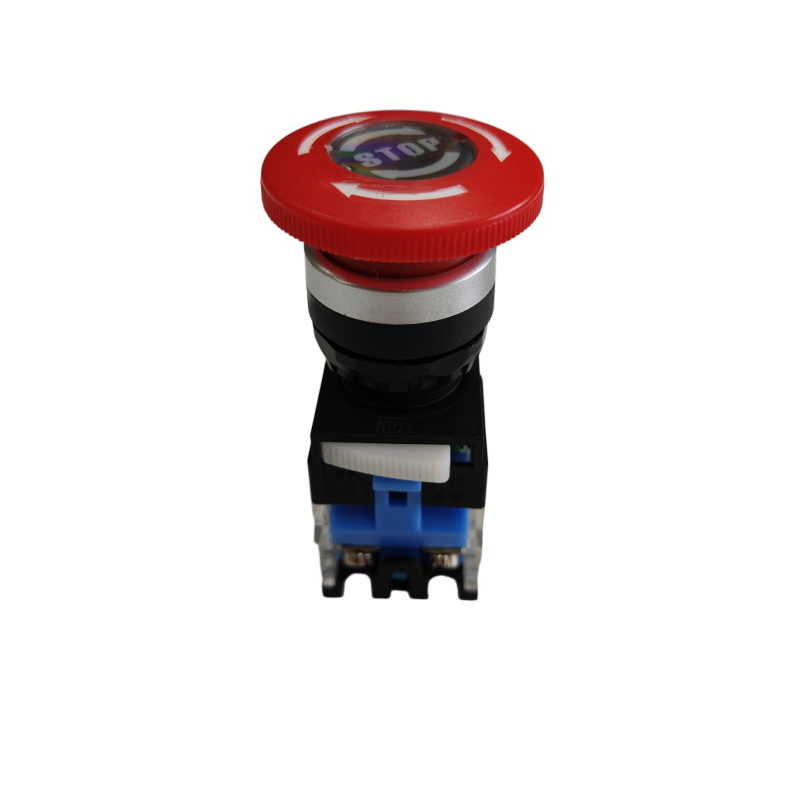

This 22mm STOP symbol mushroom maintained emergency switch adopts fast flat jump contact structure with short action stroke and fast response speed. It supports metal and plastic bezel optional, standard IP40 protection and optional IP65 waterproof version. Comply with IEC60947-5-1 and GB/T 14048.5 safety standards, 690V high insulation voltage and complete AC/DC load parameters. Mushroom head model reaches 1 million times mechanical life, durable for high frequency use. Spiral embedded terminal supports multi-spec wire wiring, easy installation and stable connection, ideal for industrial high-frequency equipment and safety control systems.
1. What is the mounting size?
Standard 22mm mounting hole, suitable for conventional industrial panel installation.
2. What protection levels are available?
Standard IP40, IP65 waterproof version is optional for wet environments.
3. What is the mechanical life?
Mushroom head type up to 1 million times, suitable for high frequency operation.
4. What material options are there?
Bezel available in metal and plastic; contact optional brass, gold, silver.
5. What standards does it comply with?
Meets IEC60947-5-1 and GB/T 14048.5 industrial safety standards.
6. What wiring wire size is supported?
Adaptable 0.5mm² to 2.5mm² wire with spiral embedded terminal.
7. What working scenarios is it for?
Perfect for high-frequency industrial machinery, automation lines, machine tools and indoor workshop safety control.
| Contact Material | |
|---|---|
| Head Type | |
| Position | Three Position Left Maintained And Right Momentary, Three Position Maintained, Three Position Momentary, Two Position Maintained, Two Position Momentary |
| Lamp | |
| Bezel |
