Key Features

• Submersible design for fully submerged liquid level detection
• IP67 waterproof & dustproof grade for harsh wet environments
• Made of plastic, NBR and silicone material, corrosion resistant
• Ultra wide working temperature: -40°C ~ 120°C
• 100mm sensor body length, compact and easy installation
• NO / NC normally open and normally closed contact optional
• Max 200VDC voltage and 1.5A current load capacity
• Rated load 10W / 50W, compatible with multiple control circuits
• Standard 350mm wire length, customizable on request
• Switch transducer output for stable signal transmission
• CE, RoHS, REACH, PAHS international certified
• 1-year factory warranty for reliable after-sales support
• Support OEM and ODM personalized customization service
• Durable structure for long-term submerged working life

Technical Specifications

Product Attributes

• Type: Submersible Float Level Controller
• IP Rating: IP67
• Material: Plastic , NBR , Silicone
• Temperature Range: -40°C ~ 120°C
• Contact: N.O / N.C Optional
• Wire Length: 350mm Customizable
• Certification: CE, RoHS, REACH, PAHS

Product Advantages

This submersible plastic float level controller adopts IP67 waterproof design, suitable for long-term submerged installation. Premium plastic, NBR and silicone materials provide excellent corrosion resistance and high & low temperature resistance from -40℃ to 120℃. 100mm compact body saves installation space, NO/NC optional contacts match various circuit designs. It supports 200VDC high voltage and 1.5A current load, with customizable wire length. Multiple international certifications ensure safety and environmental performance, 1-year warranty and OEM/ODM service available.

Applications

• Automotive and vehicle submerged liquid level monitoring
• Industrial equipment water tank & oil tank level control
• Humidifier and household appliance water level sensor
• Water treatment and environmental protection liquid level system
• Mechanical equipment submerged floating level transmitter

Product name： PP Float Switch
Max. Current： 1.5A
Max. Voltage： 200VDC
IP level： IP67
Operating Temperature： -40C to 120C
Material： plastic ,NBR,silicone
SIZE： 100MM SENSOR BODY LENGTH
Application： car, automobile,industry equipment ,humidifier,etc
Contact Form： N.O/N.C
Wire length： 350mm or as required
Output： Switching Transducer
Rated Voltage： 100VDC/220VDC
Rated current： 0.5A/1.5A
Rating Load： 10W/50W

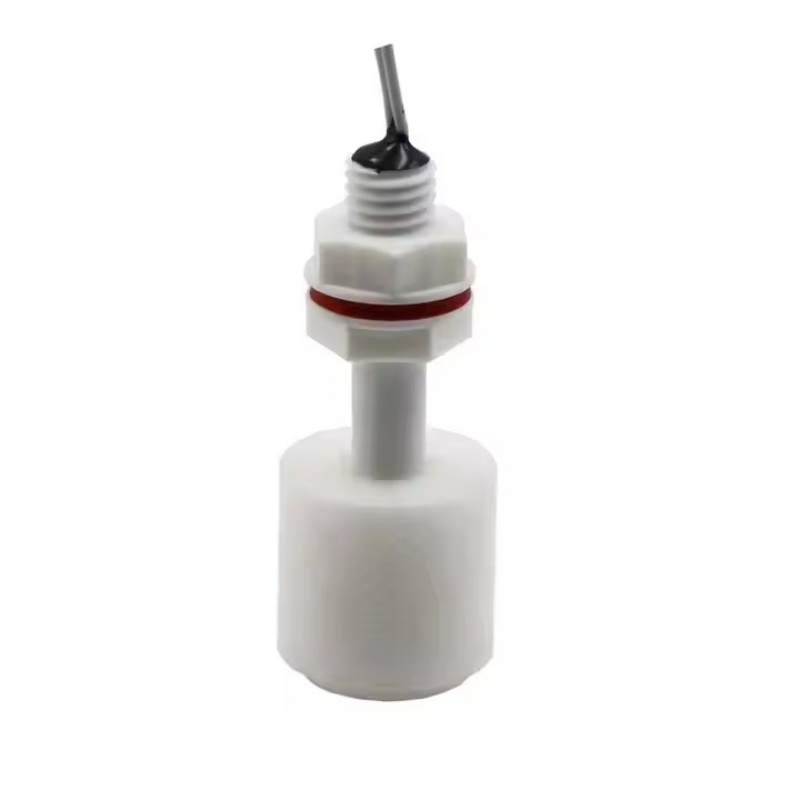

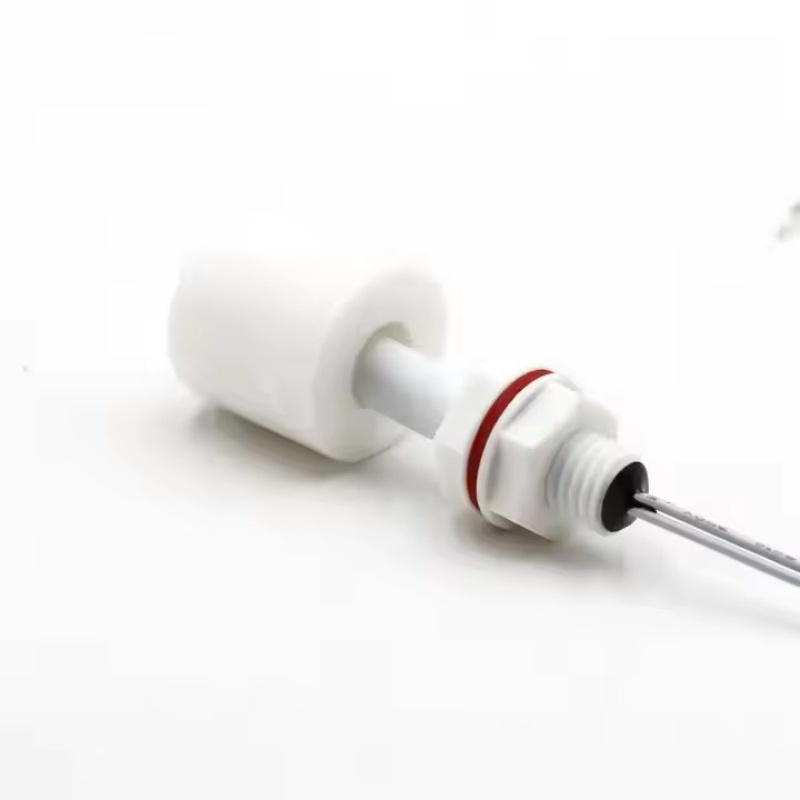

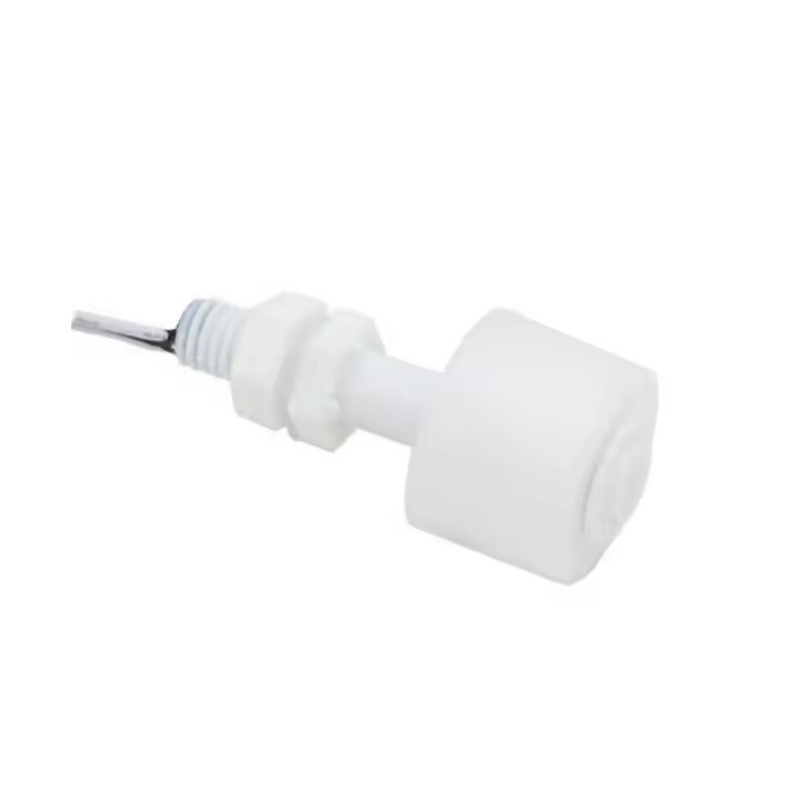

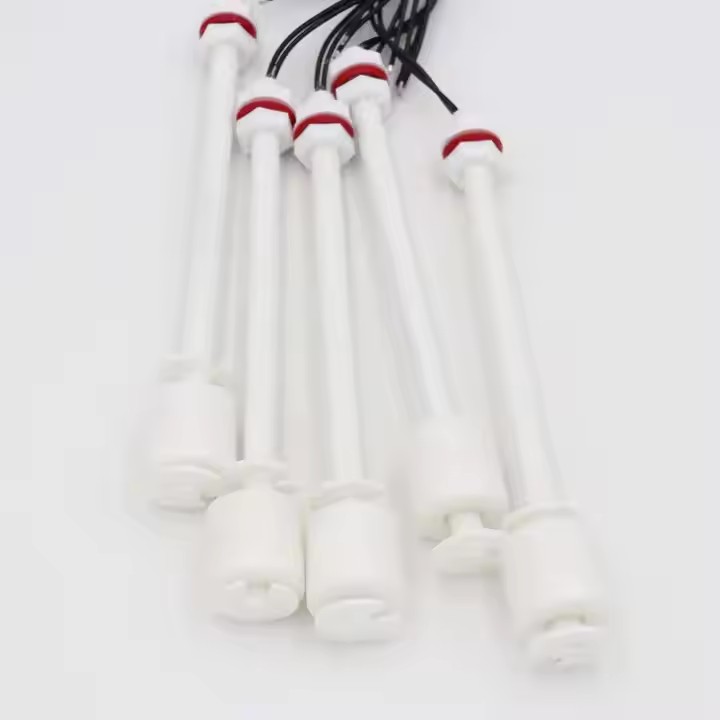

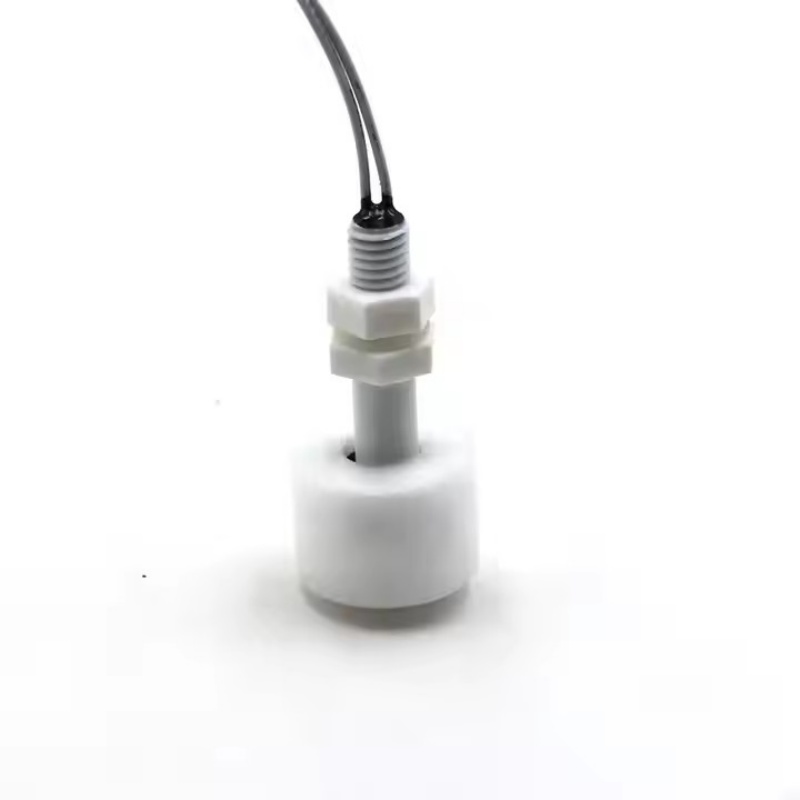

Product Images

FAQ

1. What is the waterproof level?
IP67 waterproof and dustproof, support long-term submerged use.

2. What material is it made of?
High quality plastic, NBR and silicone with corrosion resistance.

3. What temperature can it withstand?
Working temperature range: -40°C to 120°C, adapt to extreme environment.

4. Are NO and NC contacts available?
Yes, normally open and normally closed contact types are optional.

5. Can wire length be customized?
Standard 350mm, custom length is acceptable.

6. What certifications does it have?
CE, RoHS, REACH, PAHS multi international certification.

7. What are the main application scenarios?
Widely used in automobiles, industrial equipment, humidifiers and submerged liquid level control occasions.
