Key Features

• Waterproof cable type design for liquid tank submerged installation
• Adopts magnetic reed switch induction principle for stable detection
• High quality PVC and silicone waterproof construction
• Durable PP material float ball for long service life
• Wide voltage range: AC 125V~250V
• Rated current AC 16(4)A for high load control
• Cable length optional: 1m / 2m / 3m / 4m / 5m, support customization
• Two conductor size: 3×0.5mm² , 3×1.0mm² optional
• Simple on / off contact form for easy circuit matching
• Perfect for liquid tank pump control and liquid level alarm system
• 1-year warranty support
• OEM, ODM, OBM customized service available
• Corrosion resistant and waterproof for long-term wet use

Technical Specifications

Product Attributes

• Type: Cable Float Level Switch
• Material: PVC , Silicone , PP Float Ball
• Voltage: AC 125-250V
• Current: AC 16(4)A
• Cable Length: 1-5m Customizable
• Wire Spec: 3×0.5mm² / 3×1.0mm²
• Function: Liquid Level Control & Alarm

Product Advantages

This waterproof cable float level switch adopts premium PVC and silicone waterproof outer layer with PP float ball, built-in magnetic reed switch for reliable liquid level sensing. It supports AC125-250V wide voltage and 16A high current load. Multiple standard cable lengths from 1m to 5m are optional, and conductor size can be selected as needed. Simple on-off contact design is easy to connect, suitable for liquid tank pump automatic start-stop and level alarm. 1-year warranty and complete OEM/ODM/OBM customization support.

Applications

• Industrial liquid tank automatic pump start-stop control
• Water storage tank sewage discharge and liquid level alarm
• Wastewater treatment pool floating level monitoring
• Building water supply and drainage system float switch
• Chemical liquid storage tank waterproof level controller

Product name: Cable Float Switch
model number: cable level
Application: Liquid level alarm and control
Matetrial: PVC,Silicone
Applying Theory: Magnet reed switch
Voltage: AC 125-250V
Current: AC 16(4)A
Contact Form: Close/On
Cable length: 1m, 2m, 3m, 4m, 5m or customization
Float Ball Material: PP
Conductor Size: 3*0.5mm2, 3*1.0mm2

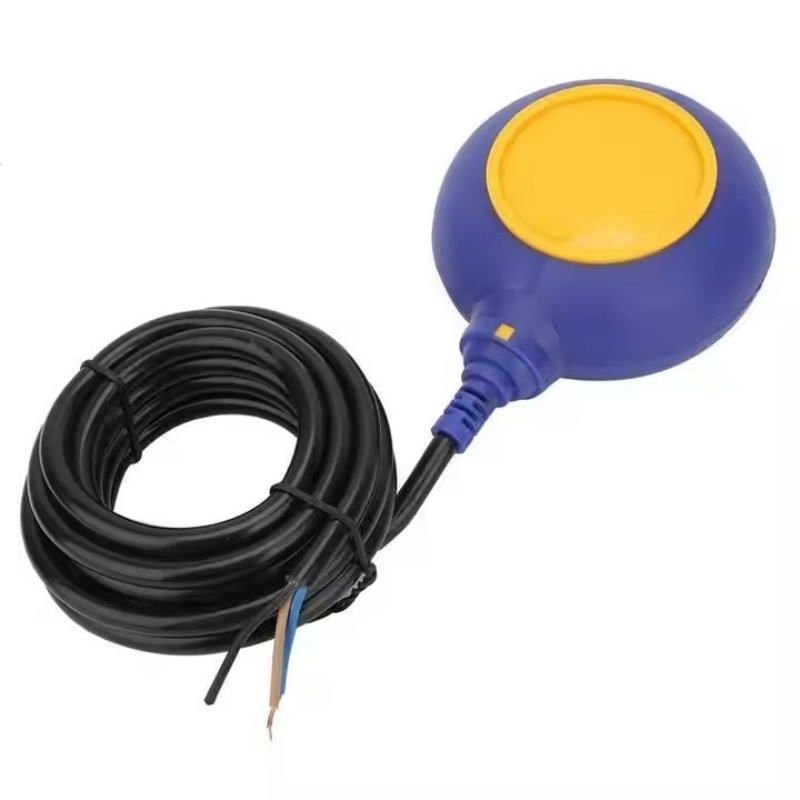

Product images

FAQ

1. What is the outer material?
Adopts waterproof PVC and silicone composite construction.

2. What voltage and current does it support?
AC 125-250V, rated current AC 16(4)A.

3. What cable lengths are available?
1m, 2m, 3m, 4m, 5m optional, also support custom length.

4. Are there different wire specifications?
Yes, 3×0.5mm² and 3×1.0mm² two options.

5. What is the main function?
Used for liquid tank water pump control and liquid level alarm detection.

6. Does it support customization?
Yes, support OEM, ODM, OBM personalized customization.
