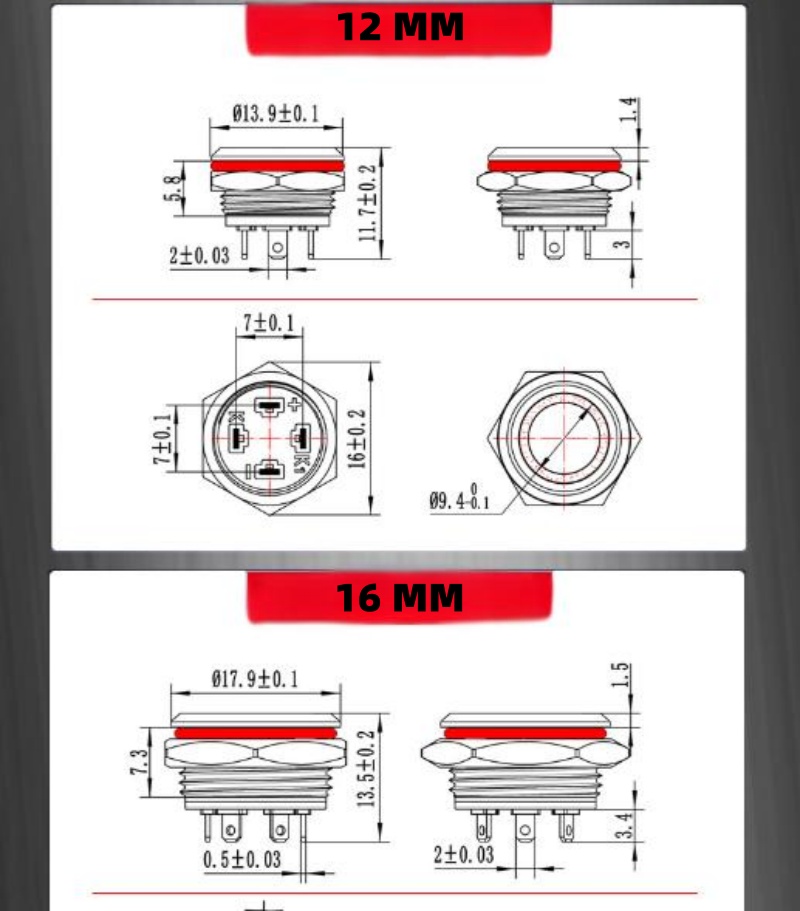

• Four standard sizes: 12mm, 16mm, 19mm, 22mm
• IP67 high-level waterproof & dustproof protection
• Short-body compact design for limited installation space
• Illuminated and non-illuminated versions optional
• Momentary (self-reset) operation type
• Multiple LED colors: Red, Green, Blue, White, Yellow
• High-quality metal housing for durability
• Silver-plated contacts & pins for stable conductivity
• Widely used for signal control and equipment operation

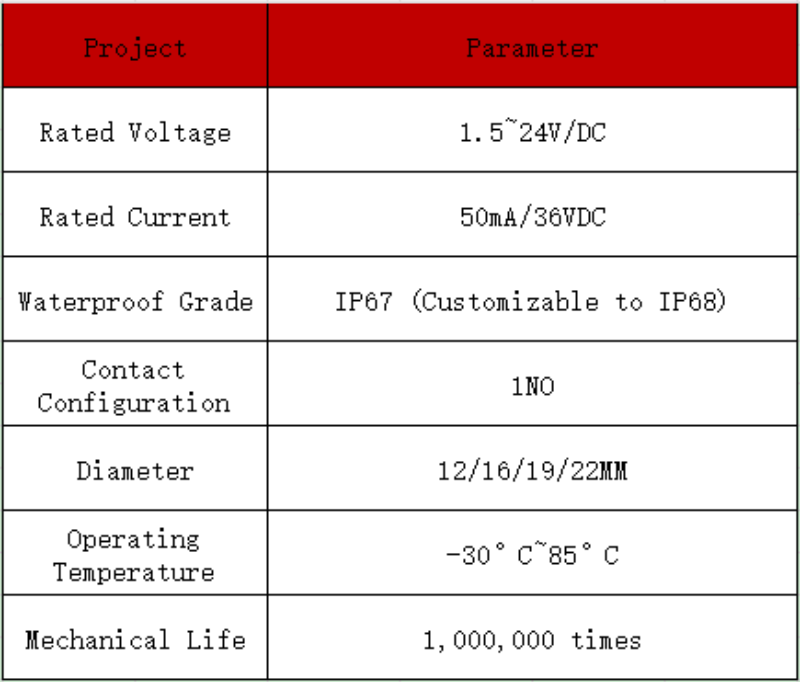

Technical Specifications

Product Advantages

This 12/16/19/22mm IP67 waterproof metal tactile switch adopts a short-body compact structure, ideal for devices with limited installation depth. IP67 protection ensures stable performance in damp and harsh environments. The illuminated version provides clear status indication, while silver-plated contacts deliver reliable electrical conductivity. With a long mechanical life and sturdy metal construction, it is widely used for signal control, industrial automation, instrument panels and compact equipment operation.

Applications

• Industrial control panels & automation equipment
• Signal indication & trigger systems
• Compact electronic & instrument devices
• Automotive & vehicle interior controls
• Outdoor & damp environment equipment
• Small machinery & household appliances

FAQ

1. What mounting sizes does this short-body tactile switch support?
It supports 12mm, 16mm, 19mm and 22mm standard mounting sizes.

2. Is this switch IP67 waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. Does it feature a short-body design?
Yes, it uses a short-body compact structure for space-limited installation.

4. Is it momentary type?
Yes, it is momentary (self-reset) tactile switch with 1NO contact.

5. Are illuminated versions available?
Yes, both illuminated and non-illuminated types are optional with multiple LED colors.

The post 12/16/19/22mm IP67 Waterproof Metal Tactile Switch Short-body Illuminated Momentary Signal Control appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

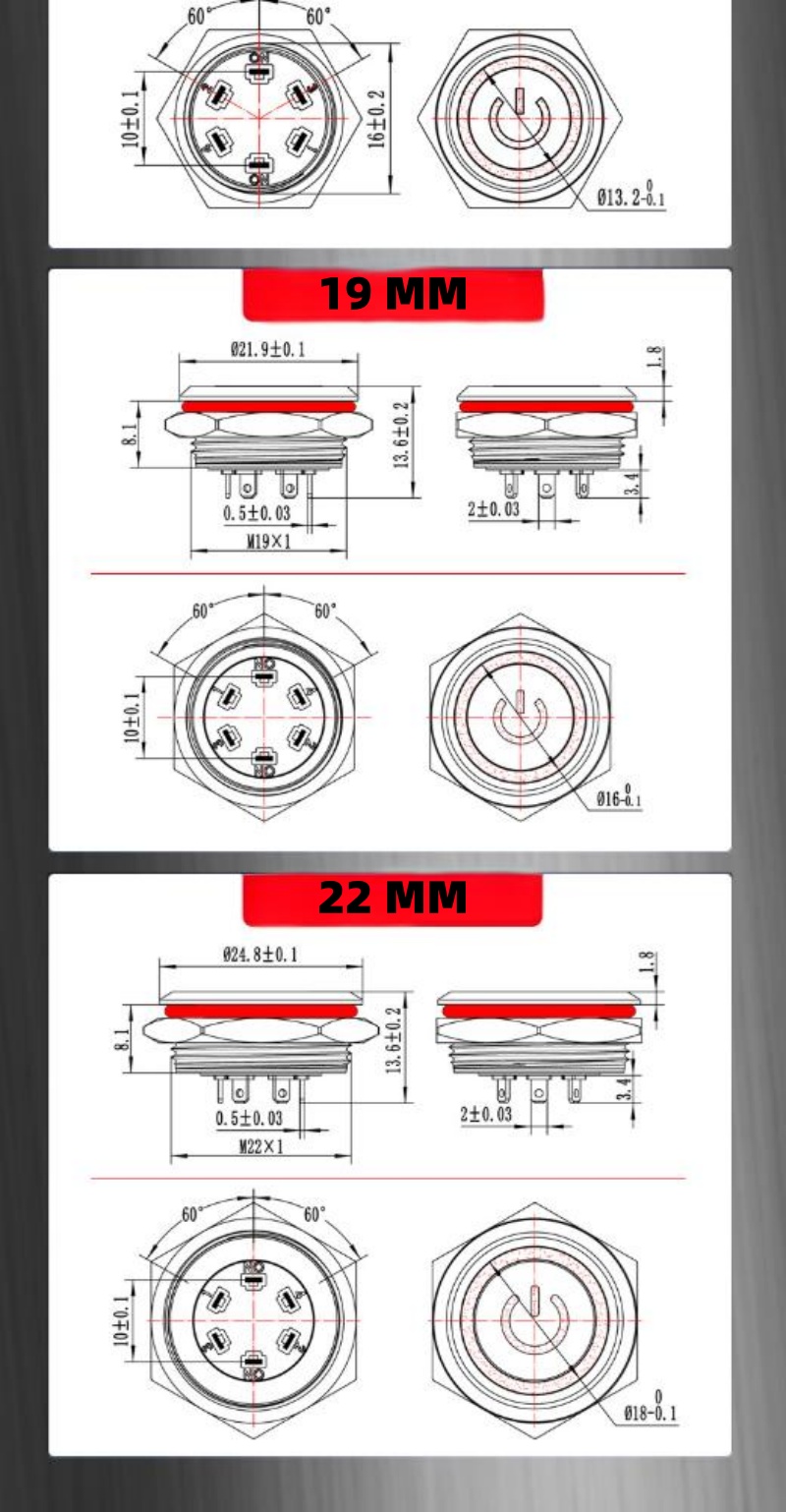

• Three standard sizes: 16mm, 19mm, 22mm
• IP67 high-grade waterproof & dustproof protection
• Maintained (latching) and momentary operation optional
• Illuminated and non-illuminated versions available
• Multiple LED colors: Red, Green, Blue, White, Yellow
• Flat and high round head styles optional
• High-quality metal housing for long service life
• Silver-plated contacts & pins for stable conductivity
• Widely used for signal control and power switching

Technical Specifications

Product Advantages

This 16/19/22mm IP67 waterproof metal push button switch provides reliable performance in harsh and humid industrial environments. It supports both maintained (latching) and momentary operation modes to meet different control needs. The illuminated version offers clear status indication with multiple LED color options. High-quality metal structure and silver-plated contacts ensure long mechanical life and stable electrical conductivity. It is widely used for signal control, power switching, automation equipment and industrial control panels.

Applications

• Industrial control panels & automation systems
• Signal indication & power control equipment
• Marine, outdoor and damp environment devices
• Automotive & vehicle control systems
• Medical equipment & instrumentation
• Household appliances & small machinery

FAQ

1. What sizes does this IP67 push button switch support?
It supports 16mm, 19mm and 22mm standard mounting sizes.

2. Is this switch IP67 waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

4. Are illuminated versions available?
Yes, both illuminated and non-illuminated types are provided with multiple LED colors.

5. What head types are optional?
Flat head and high round head styles are available for different installation needs.

The post 16/19/22mm Metal Push Button IP67 Waterproof Maintained/Momentary Signal Power Control appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Four standard sizes: 22mm, 25mm, 28mm, 30mm
• Non-illuminated design for simple and stable use
• IP67 waterproof & dustproof protection
• Maintained (latching) and momentary operation optional
• 1NO + 1NC double contact configuration
• Flat head style for standard panel installation
• High-quality metal housing for durability
• Gold-plated pins & silver-plated contacts
• Widely used for power start/stop and equipment control

Technical Specifications

Product Advantages

This 22/25/28/30mm non-illuminated metal push button switch provides stable and reliable performance for industrial control and power systems. IP67 waterproof rating ensures long-term use in humid, outdoor and harsh environments. It supports both maintained and momentary operation modes with 1NO1NC dual-contact structure for versatile circuit control. The non-illuminated design reduces failure rate and extends service life. Sturdy metal construction and high-quality contacts ensure stable electrical performance and long mechanical life.

Applications

• Industrial control panels & machinery start/stop
• Power supply & distribution control systems
• Marine, outdoor and damp environment equipment
• Automotive & vehicle modification control
• Heavy-duty equipment & automation devices
• Instrumentation & custom control panels

FAQ

1. What sizes does this non-illuminated switch support?
It covers 22mm, 25mm, 28mm and 30mm standard mounting sizes.

2. Is this switch waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

4. What contact configuration does it use?
It uses 1NO + 1NC double contact structure.

5. Is this switch illuminated?
No, it is non-illuminated type for stable and long-life use.

The post 22 25 28 30mm Metal Push Button Switch Non-Illuminated Maintained or Momentary Waterproof 1NO1NC Contacts appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

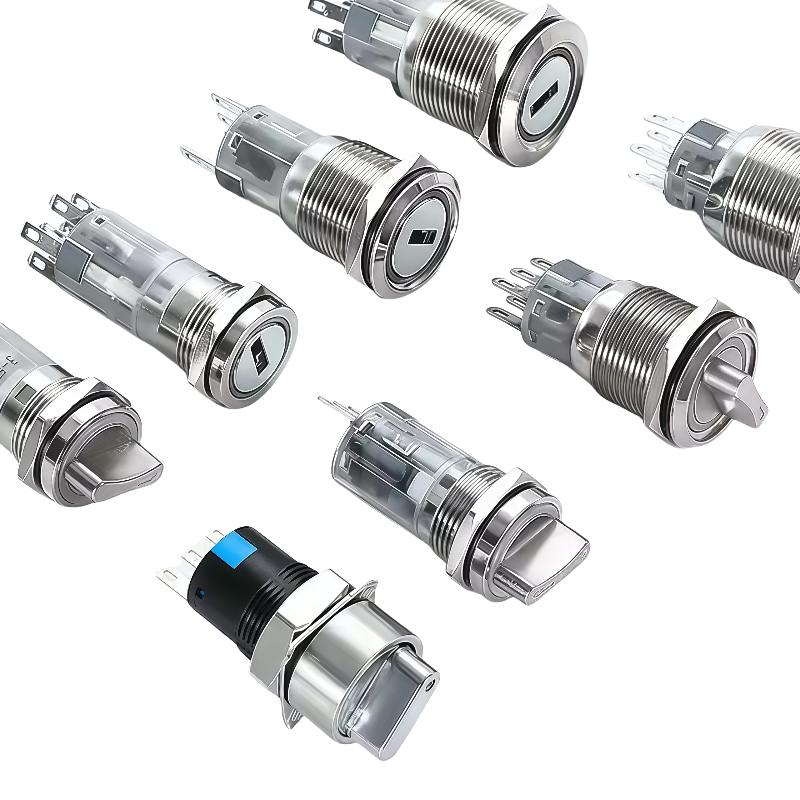

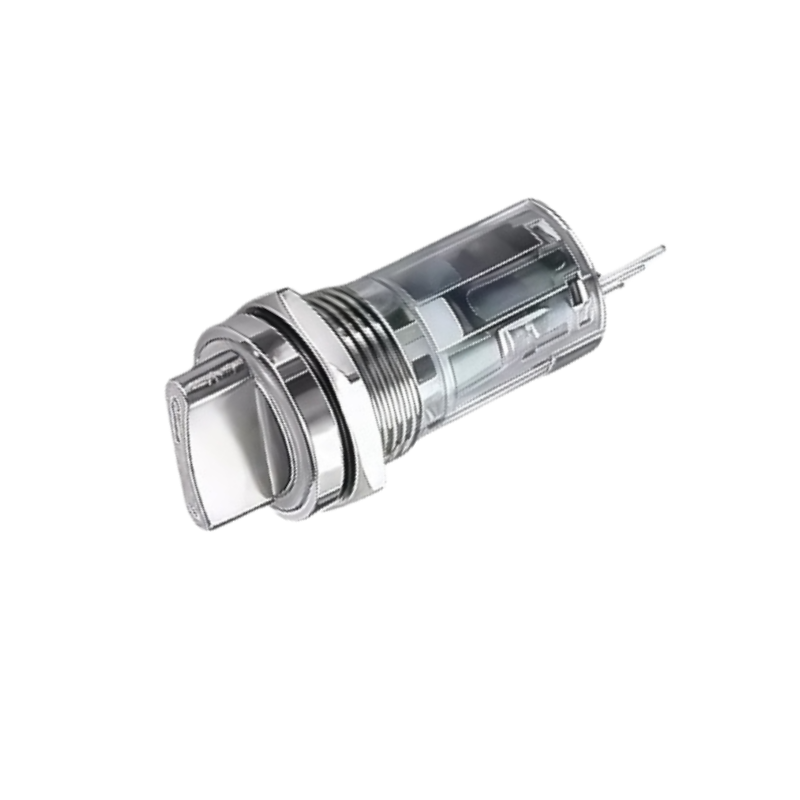

• Three universal mounting sizes: 16mm, 19mm, 22mm, compatible with most control panels and equipment housings

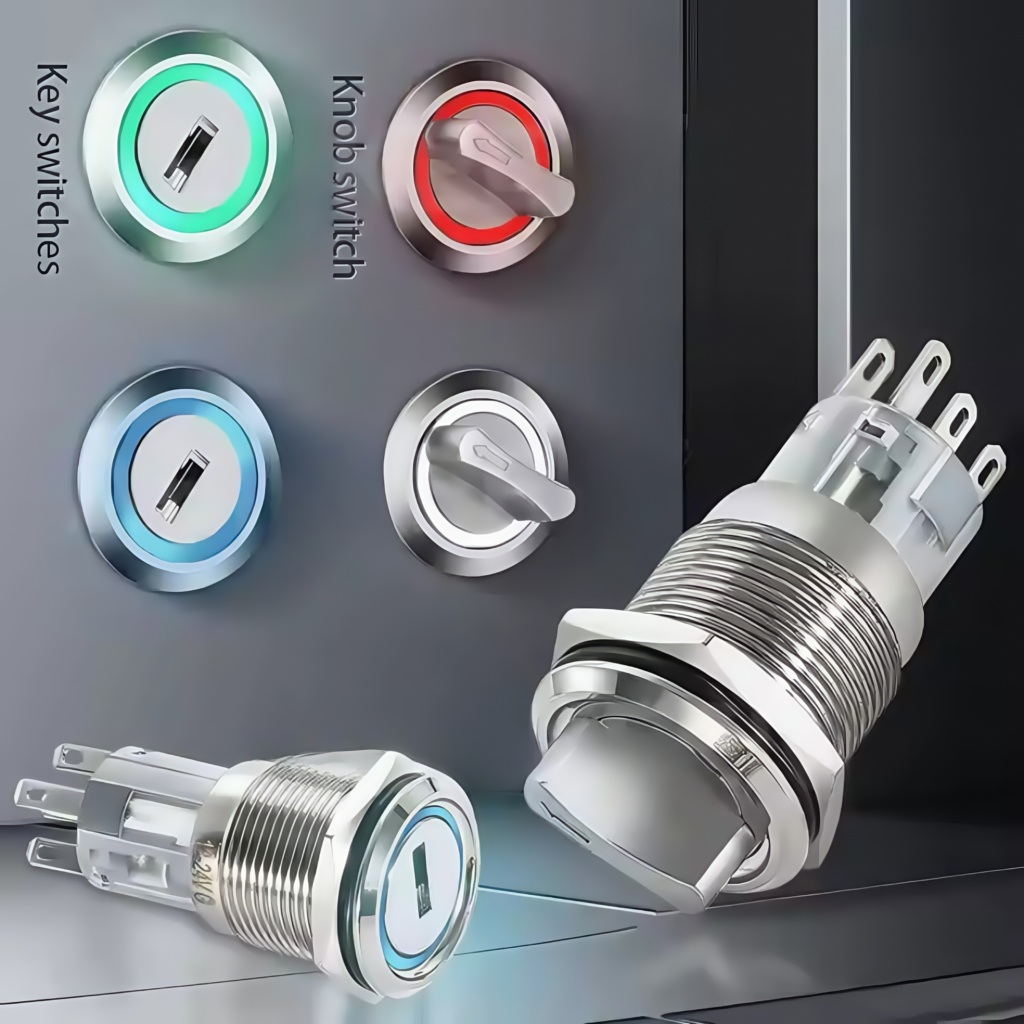

• Dual head options: rotary knob and key select head, meet ordinary use and anti-unauthorized operation demands
• 2-position & 3-position optional gears, flexible for multi-mode circuit switching and function selection
• Momentary and latching dual operation modes, adapt temporary trigger and fixed gear control logic
• Two contact combinations: 1NO1NC and 2NO2NC, for single and dual circuit design
• Rated 5A 250VAC, suitable for most conventional AC low-voltage control circuits

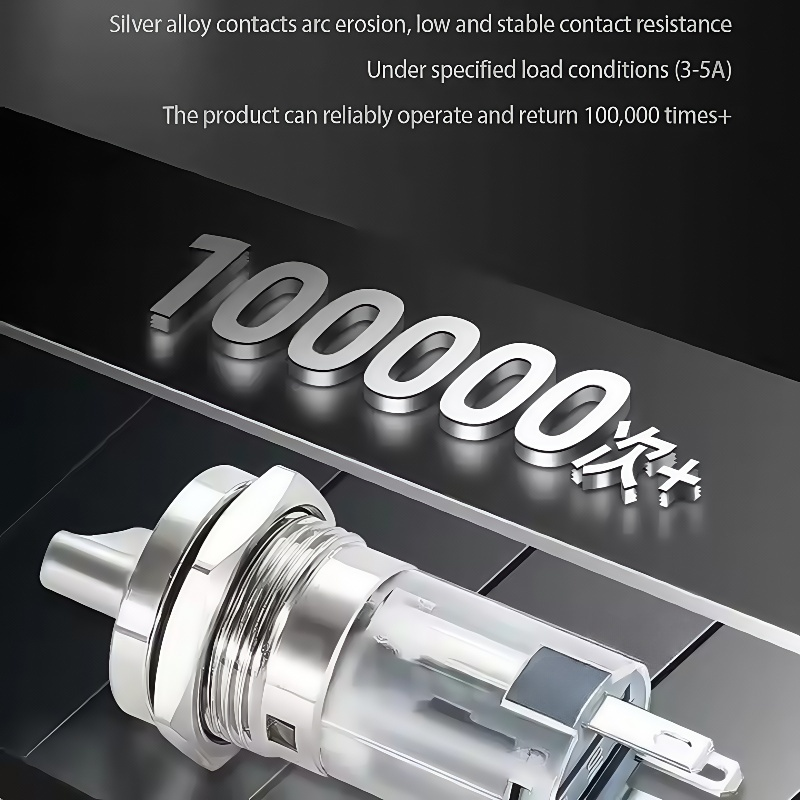

• Excellent electrical performance: max 50mΩ contact resistance, min 1000MΩ insulation resistance
• High dielectric strength, withstand 2000VAC to ensure long-term circuit safety

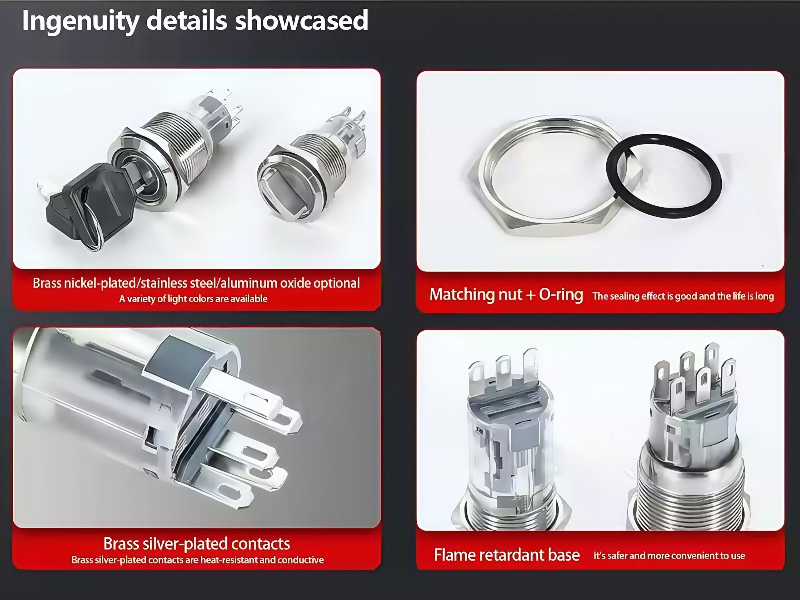

• Full metal shell, high mechanical strength, anti-rust, anti-corrosion and wear-resistant

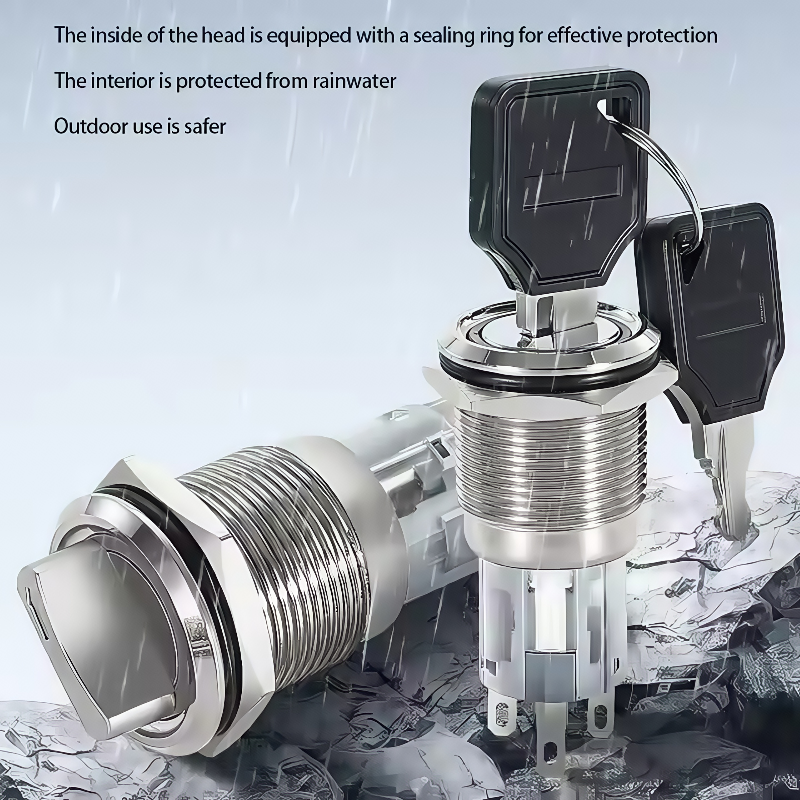

• IP65 high waterproof & dustproof grade, works stably in humid and dusty environments
• Plug-in terminal design, fast wiring and disassembly, improve assembly efficiency
• Compact integrated structure, save installation space for dense control modules
• Pure mechanical structure without smart modules, low failure rate and easy maintenance
• Wide adaptability for industrial, automotive and electronic application scenarios

Full Technical Specifications

Product Attributes

• Installation Size: 16mm, 19mm, 22mm Three Universal Sizes
• Head Style: Rotary Knob / Key Select Dual Options
• Gear: 2 Position / 3 Position Optional
• Operation: Momentary + Latching Dual Modes
• Contact: 1NO1NC / 2NO2NC Two Combinations
• Rated Spec: 5A 250VAC
• Contact Resistance: ≤50mΩ
• Insulation Resistance: ≥1000MΩ
• Withstand Voltage: 2000VAC
• Protection: IP65 Waterproof & Dustproof
• Shell: Metal Material, Sturdy & Durable
• Wiring: Plug-in Terminal for Quick Assembly
• Structure: Pure Mechanical (Non-smart)
• Core Strength: Multi-size, Multi-head, High Protection, Versatile

Product Advantages

This multi-size waterproof rotary switch is a highly versatile universal component. With three mainstream mounting diameters of 16mm, 19mm and 22mm, it can match almost all standard control panels on the market. Users can choose rotary knob or key head according to usage scenarios, which realizes free switching between ordinary operation and anti-misoperation/anti-unauthorized access. The optional 2/3 positions and dual operation modes fully meet various circuit control requirements. Two classic contact combinations adapt to single and dual circuit systems. With 5A 250VAC rating and excellent electrical parameters, it maintains stable conduction in low-voltage AC circuits. The metal housing enhances structural strength and corrosion resistance. IP65 protection grade enables the switch to work reliably in humid, dusty workshops and outdoor environments. Plug-in terminals simplify wiring and later maintenance. The pure mechanical structure has low failure rate and long service life. This cost-effective switch is suitable for a wide range of global industrial, automotive and electronic projects.

Application Scenarios

This multi-spec rotary switch is widely exported to Europe, North America, Southeast Asia and other global regions, covering industrial, automotive and civilian electronic fields.

• Industrial control cabinets and production line mode selector switches
• Automotive interior circuits and vehicle function control knobs
• Outdoor equipment and wet environment waterproof control components
• Public facilities and shared devices with key lock anti-theft demands
• Laboratory instruments and testing equipment gear switches
• General electronic products and customized control modules

FAQ

1. What mounting sizes are available for this switch?
It provides three optional mounting diameters: 16mm, 19mm and 22mm for wide compatibility.

2. What types of heads can I choose?
Two styles: common rotary knob and key select head for different usage needs.

3. What positions and operation modes does it support?
2-position and 3-position gears are available; it supports both momentary and latching modes.

4. What contact combinations are optional?
Two types: 1NO1NC and 2NO2NC for single and dual circuit designs.

5. What are the main electrical specifications?
Rated 5A 250VAC, max contact resistance 50mΩ, min insulation resistance 1000MΩ, withstand 2000VAC.

6. What is the IP rating and shell material?
IP65 waterproof and dustproof grade; the shell is made of metal for high durability.

7. What wiring method does it adopt?
It uses plug-in terminal to realize fast wiring and disassembly.

8. Does this switch have smart functions?
No, it is a pure mechanical switch without any smart modules.

9. What are the main application fields?
Widely used in industrial equipment, automotive systems and various electronic devices worldwide.

The post Rotary Switches Knob/Key Switches Waterproof Switch 2/3 Position Momentary Latching Select Key Switch Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
