In the design of industrial control panels, marine interfaces, and outdoor equipment, engineers are often faced with a fundamental choice: specify a momentary-action switch for start signals and jog commands, or a latching-action switch for power toggles and mode selection. This decision traditionally locks in functionality and can complicate inventory. The 22mm sealed metal push button switch with selectable operation shatters this paradigm. It delivers both functions in one robust, IP67-potted package, pre-wired for simplicity and illuminated for clarity. This component is engineered not just to withstand demanding environments, but to provide unprecedented flexibility within them, simplifying design logistics and enhancing panel reliability.
Core Innovation: Uncompromising Protection Through Potting Technology

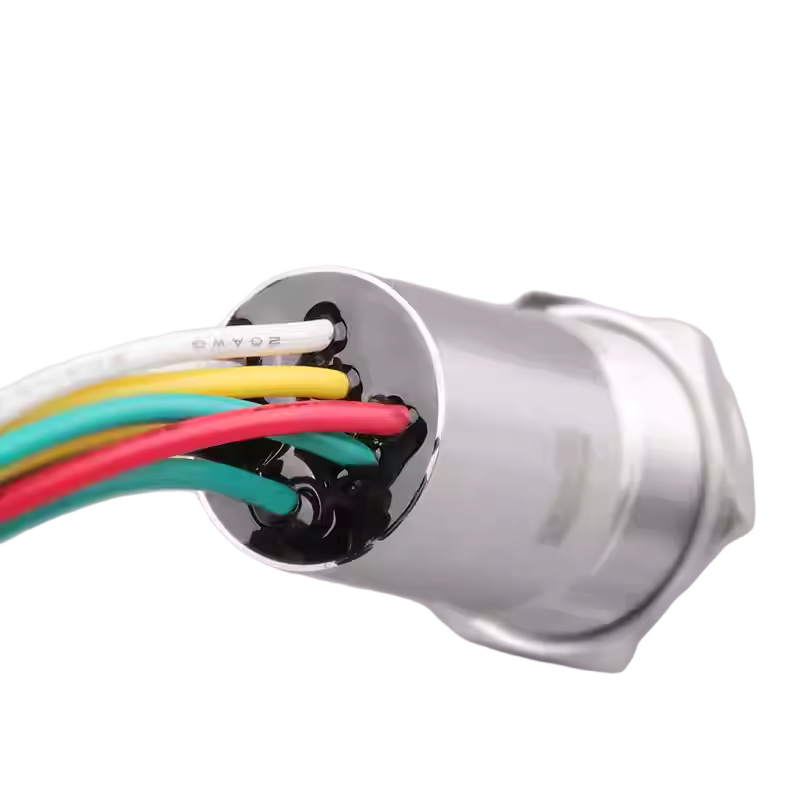

The foundation of this switch’s resilience is its IP67-rated potting technology. Unlike switches that rely solely on gaskets and seals, this unit undergoes a process where its entire internal assembly—the electrical contacts, switching mechanism, and LED circuitry—is encapsulated in a solid, cured epoxy resin.
The Potting Advantage: This creates a monolithic, impermeable barrier. Liquids, gases, dust, and corrosive agents have no path to reach the sensitive internal components. It offers superior protection against high-pressure washdowns, constant humidity, salt spray, and chemical exposure compared to conventional sealed switches.
Mechanical & Environmental Robustness: The potting compound immobilizes all parts, making the switch exceptionally resistant to shock, vibration, and thermal cycling. It prevents condensation inside the switch, a common failure point in environments with large temperature fluctuations. This makes it ideal for applications ranging from food processing plants to offshore marine equipment.
Operational Flexibility: Momentary and Latching in One Unit
The defining feature of this switch is its user-selectable operation mode. A simple internal configuration—often a slide switch or a changeable actuator—allows it to be set as either:
Momentary Action (Normally Open): The circuit closes only while the button is actively pressed, springing back to open upon release. This is the standard for functions like “Start,” “Jog,” “Horn,” or “Test.”
Latching Action (Maintained): Each press toggles the circuit state—on or off—and it stays in that position until pressed again. This is essential for “Power On/Off,” “Mode Selection,” or “Enable/Disable” functions.
This dual functionality means a single part number can serve multiple roles across different machines or even on the same panel, drastically reducing inventory complexity and procurement overhead for OEMs and maintenance teams.
Design for Practical Integration and Instant Clarity
Beyond its core protection and flexibility, the switch is designed for efficiency from the installer’s bench to the operator’s interface.
Pre-Wired for Speed: Supplied with a flexible, jacketed cable of specified length, terminated with a sealed gland, it eliminates field wiring to the switch terminals. This saves significant installation time, ensures a perfect, reliable seal at the cable entry point, and reduces the risk of connection errors.
Integrated LED Status Indicator: A bright LED provides immediate visual feedback. Whether indicating that a latching circuit is energized or confirming a momentary command, the light enhances operator awareness and system diagnostics. It integrates the indicator into the actuator, saving additional panel space and wiring for a separate lamp.
22mm Metal Housing: The industry-standard 22mm mounting diameter ensures compatibility with common panel cutouts. The metal bezel or housing, often stainless steel or with a corrosion-resistant finish, provides durability, a premium tactile feel, and effective heat dissipation.
Detailed Technical Profile
To specify this switch accurately, engineers rely on its comprehensive parameters:
Mounting Diameter: 22mm
Protection Rating: IP67 (Dust-tight and protected against temporary immersion)
Sealing Method: Epoxy Potting (Full internal encapsulation)
Operation Mode: User-Selectable (Momentary or Latching)
Electrical Rating: Typically 5A @ 125VAC / 2A @ 250VAC (Confirm via datasheet)
Voltage Compatibility: Wide range, commonly 12-24V DC/AC for the LED circuit
Termination: Pre-wired cable (standard lengths available)
Material: Metal bezel/housing with anti-corrosion treatment
Mechanical Life: ≥1,000,000 cycles (for the switching mechanism)
Application Scenarios: Solving Real-World Problems
This switch is specified for scenarios where its unique combination solves clear operational and logistical challenges:
OEM Manufacturing: Allows a single switch model to be used across a product line for different functions (e.g., power button on one machine, start button on another), simplifying the bill of materials and assembly process.
Water Treatment & Processing: The potted IP67 seal withstands harsh washdowns and humid environments, while the selectable function can serve as a latching pump enable switch or a momentary manual override.
Mobile & Agricultural Machinery: Resists vibration, dust, and weather. A single part can be stocked to replace both momentary horn buttons and latching light switches in the field.
Industrial Control Panels: Simplifies panel design by allowing engineers to standardize on one switch type, reducing procurement complexity. The pre-wired design speeds up cabinet assembly.
Conclusion: The Strategic Choice for Adaptive, Durable Control
The 22mm selectable-function sealed push button switch represents a significant evolution in control component design. It moves beyond being a simple part to becoming a strategic asset. By merging the highest grade of environmental protection with unparalleled functional flexibility and installer-friendly features, it addresses cost, reliability, and logistics simultaneously. For engineers designing the next generation of equipment that must perform reliably in tough conditions while simplifying supply chains, this switch offers a powerful and intelligent solution.
Ready to explore how this versatile switch can streamline your designs? Download the complete technical datasheet, IP certification documentation, and CAD models for the 22mm Selectable-Function Sealed Switch from our resource library. Contact our application engineering team to discuss custom pre-wire lengths, LED color options, or to request a test sample for your specific environmental validation program.
22mm Sealed Metal Push Button Switch Selectable Momentary Latching IP67 Potted Pre-wired with LED
