Metal push button switches are widely used in industrial, automotive, and home automation systems due to their durability and reliable performance. These switches provide a physical interface for controlling electrical circuits and are known for their long lifespan and resistance to environmental factors.
This guide will walk you through the key features, types, applications, and selection criteria of metal push button switches to help you choose the right one for your project.
What Is a Metal Push Button Switch?
A metal push button switch is an electromechanical device that allows users to open or close an electrical circuit by pressing a button made of metal, usually stainless steel or aluminum. These switches are commonly used where robustness and long-term reliability are required.
They can be divided into two main types:
- Momentary: Returns to its original state after being pressed.
- Latching: Maintains the pressed state until pressed again.
Common Features of Metal Push Button Switches
1. Durable Construction
Made from high-quality metals, these switches offer excellent resistance to wear, corrosion, and impact.
2. Long Operational Life
Designed for thousands to tens of thousands of operations, they maintain stable performance over time.
3. Versatile Sizes
Available in multiple sizes including 12mm, 16mm, 19mm, 22mm, and more, depending on installation requirements.
4. Waterproof Options
Many models feature IP65 or IP67 protection ratings, making them suitable for use in wet or dusty environments.

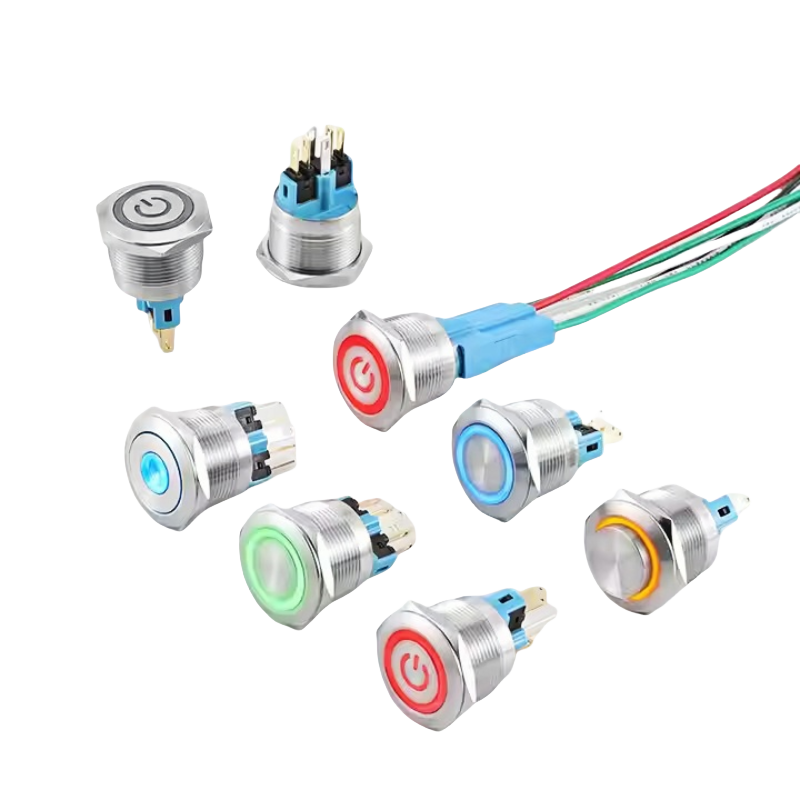

5. Illuminated Versions
Some switches come with LED rings or dots for improved visibility and status indication.
Types of Metal Push Button Switches
By Function:
- Momentary: Only active when pressed.
- Latching: Stays activated until pressed again.
By Contact Type:
- NO (Normally Open): Circuit closes when pressed.
- NC (Normally Closed): Circuit opens when pressed.
- CO (Changeover): Combines both NO and NC contacts.
By Voltage:
Most models operate at 12V or 24V DC, suitable for low-voltage control systems.
By Lighting:
- Single-color LEDs (red, green, blue)
- RGB LEDs for customizable lighting
- Ring or dot-style illumination
Typical Applications
Metal push button switches are used across various industries:
- Industrial Equipment: Control panels, emergency stop buttons, machine starters.
- Automotive Systems: Engine start, window controls, dashboard interfaces.
- Marine Controls: Navigation, lighting, and communication systems.
- Smart Home Automation: Custom lighting and security interfaces.
- Commercial Devices: Vending machines, ATMs, kiosks.
- DIY Electronics: Arduino and Raspberry Pi projects.
How to Choose the Right Switch
When selecting a metal push button switch, consider the following factors:
| Factor | Description |
|---|---|
| Size | Choose based on panel cutout (e.g., 12mm, 16mm) |
| Function | Momentary or latching |
| Contact Type | NO, NC, or CO |
| Voltage | Ensure compatibility with system voltage |
| Lighting | Optional LED for visibility |
| Waterproof Rating | IP65 or IP67 for harsh environments |
| Mounting Depth | Check available space behind panel |
Installation Tips
- Drill a clean hole matching the switch size.
- Insert the switch and secure it with a nut or mounting ring.
- Connect wires according to the wiring diagram.
- Test the function before full installation.
- Protect connections with insulation or heat shrink tubing.
Maintenance and Troubleshooting
To ensure long-term operation:
- Clean the surface regularly with a dry cloth.
- Check for signs of corrosion in humid environments.
- Inspect wiring connections periodically.
- Replace faulty switches as needed.
Common issues include:
- No response: Check wiring and power supply.
- Intermittent operation: Secure loose connections.
- LED failure: Test polarity and power source.
