Upgrade your machinery with a 22mm waterproof metal push button switch. Rated 10A high current, 1NO1NC contact, and pre-wired for fast installation. Ideal for industrial & automation projects.
Introduction

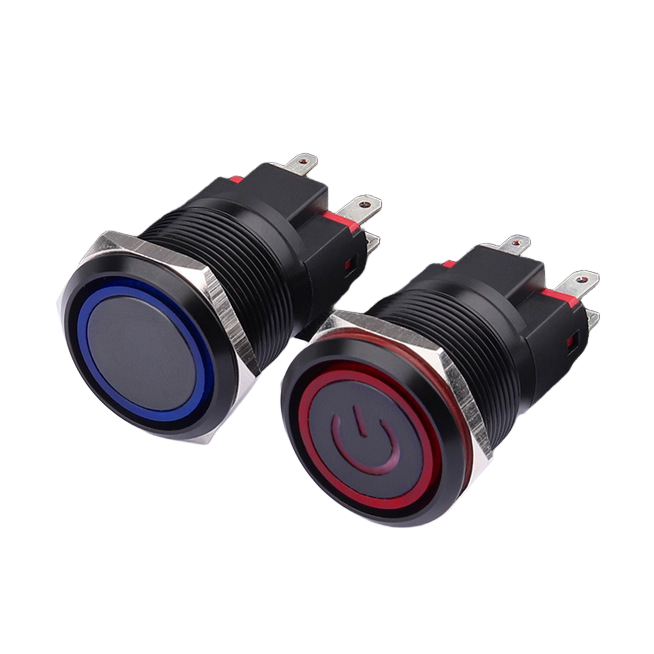

In industrial automation and heavy machinery, the reliability of a single component can determine the safety and uptime of an entire production line. The 22mm Black Waterproof Metal Push Button Switch (rated 10A High Current, 1NO1NC, with pre-wired leads) has become a standard specification for engineers and procurement specialists. This article analyzes its technical features, typical B2B applications, and why pre-wired, high-current switches reduce total installation costs.
Key Technical Specifications
Before selecting a push button switch for your control panel or equipment, verify these parameters against your system requirements:
| Parameter | Value |
|---|---|
| Mounting Hole | 22mm (industry standard for industrial switches) |
| Contact Form | 1NO1NC (One Normally Open + One Normally Closed) |
| Rated Current | 10A (suitable for high-current loads) |
| Material | Metal (black anodized or powder-coated) |
| Protection | IP67 / IK10 (Waterproof, dust-tight, vandal-resistant) |
| Termination | Pre-wired leads (typically 150-200mm, AWG 18 or similar) |
| Action Type | Latching or Momentary (check product datasheet) |
Why 1NO1NC Contacts Matter for Applications
The 1NO1NC (Single Pole Double Throw) configuration provides three critical advantages:
Redundant safety circuits – Use the NC channel for emergency stop monitoring.
Separate control logic – NO for starting a motor, NC for status feedback.
Compliance – Many industrial safety standards require both signal paths.
For example, in a conveyor control panel, the NO contact energizes the contactor coil, while the NC contact provides a “stop” confirmation signal to the PLC.
10A High Current – Direct Load Switching
Most 16mm or 19mm switches are rated for only 2-5A, requiring external relays. This 22mm 10A switch can directly control:
Small motors (≤ 1HP at 120VAC)
Solenoid valves
Industrial lighting banks
Heating elements
Eliminating intermediate relays reduces failure points and cabinet space – a key consideration for machine builders.
Pre-wired – Why Buyers Prefer It
Soldering terminals in a production environment adds labor cost and inconsistency. The pre-wired version offers:
Faster assembly – Plug into a connector or connect directly to terminal blocks.
Consistent torque – No loose screw terminals causing arcing or heat.
Lower rejection rate – Factory-soldered joints are more reliable than field soldering.
Typical Use Cases
This switch is commonly specified for:
| Industry | Application |
|---|---|
| Food & Beverage | Stainless steel control panels (IP67 washdown) |
| Agricultural machinery | Tractor, harvester, or sprayer controls |
| Marine equipment | Boat dashboard, pump controls (saltwater resistant) |
| EV charging stations | Emergency stop and start buttons |
| CNC & machine tools | Operator pendant stations |
Installation Best Practices
Panel thickness – Ensure 1–6mm metal or plastic panel.
Waterproof sealing – Use the included rubber gasket between nut and panel.
Wire management – Pre-wired leads are 200mm; extend with junction box if needed.
Polarity – 1NO1NC has no polarity, but keep consistent wiring for maintenance.
Conclusion
For B2B buyers seeking a balance between durability, current rating, and ease of installation, the 22mm Black Waterproof Metal Push Button Switch (10A, 1NO1NC, pre-wired) is a proven solution. Its IP67 rating stands up to washdown environments, while the high 10A contacts reduce relay count. Pre-wiring cuts assembly time – a direct saving on your BOM cost.
Need a sample for testing? Request a quote or contact our technical sales team with your annual volume and target price. We offer OEM customization (logo, wire length, connector type).
