Key Features

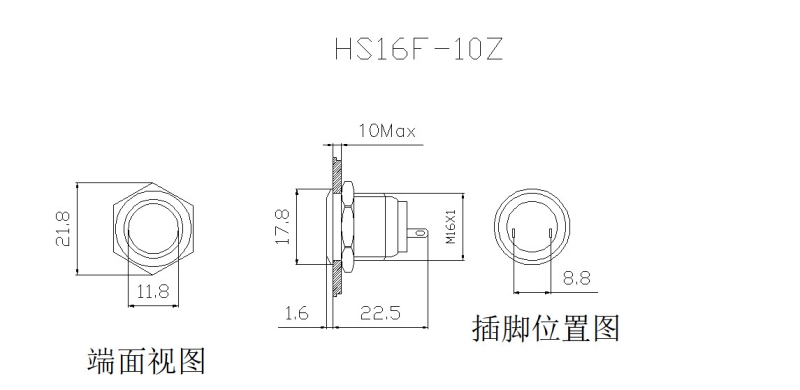

• 16mm standard mounting hole size
• Ball knob design for comfortable operation
• Stainless steel housing for corrosion resistance
• Silver-plated contacts for excellent conductivity
• Waterproof protection grade IP65 / IP67
• 1NO (1 Normally Open) contact configuration
• Non-illuminated type
• Durable structure for long service life

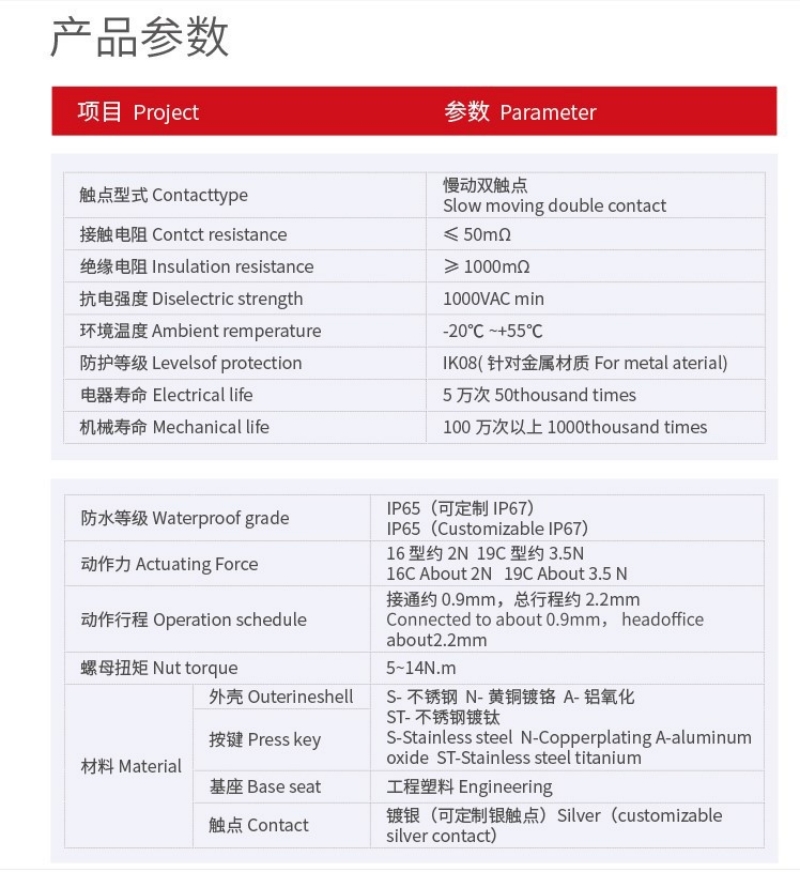

Technical Specifications

Product Advantages

This 16mm ball knob metal push button switch is built with high-quality stainless steel for excellent durability and corrosion resistance. The silver-plated contacts ensure stable electrical conductivity and low contact resistance. With IP65/IP67 waterproof and dustproof protection, it performs reliably in harsh industrial environments. The ball knob head provides smooth and clear tactile feedback, making it ideal for control panels, equipment operation, and industrial automation systems.

Applications

• Industrial control panels
• Automation machinery
• Electronic equipment
• Medical devices
• Automotive controls
• New energy equipment
• Outdoor & damp environment devices

FAQ

1. What is the mounting hole size for this switch?
The standard mounting size is 16mm, suitable for most industrial control panels.

2. Is this switch waterproof?
Yes, it supports IP65 / IP67 waterproof and dustproof protection.

3. What contact configuration does it use?
It uses 1NO (1 Normally Open) contact type.

4. What material is the switch body made of?
The housing is made of stainless steel with good corrosion resistance.

The post 16mm Ball Knob Metal Switch with Silver-Plated Contacts Waterproof Stainless Steel 1NO Push Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 12mm standard mounting hole size
• Ring LED illumination for clear status indication
• Flat head design for standard panel installation
• Maintained (latching) and momentary operation optional
• IP65 waterproof & dustproof protection
• Multiple LED colors: Red, Green, Blue, White, Yellow
• High-quality metal bezel & sturdy construction
• Silver-plated contacts for reliable conductivity
• Nickel plated brass & stainless steel housing
• NO (Normally Open) contact configuration

Technical Specifications

Product Advantages

This 12mm metal push button switch with ring LED illumination provides compact and reliable control for small devices and panels. The ring LED design offers bright and even status indication. It supports both maintained (latching) and momentary (self-reset) modes to meet different control needs. IP65 waterproof protection ensures stable performance in humid and dusty environments. High-quality metal construction and silver-plated contacts ensure long service life and stable electrical performance.

Applications

• Small control panels & electronic equipment
• Automotive & vehicle interior control
• DIY electronics & instrument panels
• Industrial automation & small machinery
• Household appliances & custom devices
• 12mm compact installation space projects

FAQ

1. What is the mounting size?
Standard 12mm mounting hole size.

2. What LED type does it use?
It uses ring LED illumination for clear status indication.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

4. Is this switch waterproof?
Yes, it has IP65 waterproof and dustproof protection.

5. What head type does it have?
It uses flat head design for standard panel installation.

The post 12mm Metal Push Button Switch with Ring LED Illumination Flat Head Maintained/Momentary Operation appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Four universal mounting sizes: 12mm, 16mm, 19mm, 22mm for diversified panel installation
• Short-body compact design, saves installation space for narrow equipment and automotive interiors
• Full waterproof performance, suitable for automotive and humid working environments
• Momentary operation mode with NO (Normally Open) contact for instantaneous signal output
• High-quality silver contact, excellent electrical conductivity and long service life
• Black aluminum oxide shell + metal bezel, wear-resistant and elegant appearance
• Dual terminal options: pin terminal and welding terminal for flexible wiring
• Multiple lamp solutions: Ring lamp and Ring+Power lamp to choose from
• Rich LED colors: Blue, Green, Red, White, Yellow, Dual Color, Tri-Color for status marking
• Two lamp modes: Illuminated and Non-Illuminated to meet different usage demands
• Professional design for automotive retrofit and on-board control systems
• Stable structure, easy to install and low maintenance for long-term use
• Wide compatibility with vehicles, outdoor equipment and general control devices

Technical Specifications

Product Attributes

• Mounting Size: 12/16/19/22mm Multi-size Optional
• Structure: Short Body Flat Head
• Operation Mode: Momentary
• Contact Form: NO
• Contact Material: Silver
• Shell: Black Aluminum Oxide
• Bezel: Metal
• Terminal: Pin / Welding
• Lamp Type: Ring, Ring+Power
• LED Color: Single / Dual / Tri-Color Available
• Feature: Waterproof
• Main Use: Automotive & General Electronic Devices

Product Advantages

This multi-size metal sensor switch offers four mainstream mounting diameters including 12mm, 16mm, 19mm and 22mm, which is highly compatible with most automotive control panels and common equipment housings. Adopting short-body flat head design, it occupies less space and is ideal for compact installation scenarios. The black aluminum oxide shell and metal bezel ensure wear resistance and nice texture, while built-in waterproof structure guarantees stable operation in humid vehicle environments. Equipped with silver contacts, the switch delivers reliable conduction. It supports pin and welding dual wiring methods to adapt different assembly processes. Various LED color options including tri-color, dual-color and single-color, together with two lamp styles, enable clear equipment status identification. As a professional momentary NO switch, it is specially optimized for automotive retrofits, and also works well for outdoor and conventional electrical control devices, featuring easy installation and long service life.

Applications

• Automotive interior modification and on-board function control buttons
• Vehicle central control panel and auxiliary signal sensor switches
• Car lighting, audio and electronic accessory control components
• Outdoor waterproof equipment and field sensor control devices
• General industrial control panels and electronic test equipment
• Low-voltage circuit signal triggering and sensing modules

FAQ

1. What mounting sizes does this switch provide?
It has four standard sizes: 12mm, 16mm, 19mm and 22mm for selection.

2. What is the operation type and contact configuration?
It is momentary operation type with NO (Normally Open) contact.

3. What are the main materials of the product?
The bezel is metal, the shell is made of black aluminum oxide, and the contact is silver.

4. What terminal connection ways are available?
Two options: pin terminal and welding terminal.

5. What lamp types and LED colors can I choose?
Lamp types: Ring lamp and Ring+Power lamp; LED colors include blue, green, red, white, yellow, dual color and tri-color.

6. Does this switch support waterproof function?
Yes, it has excellent waterproof performance, suitable for vehicles and humid environments.

7. What is the head style and body structure?
It adopts flat head and short body design, saving installation space.

8. What are the main application scenarios?
Mainly used for automotive retrofit, on-board equipment, outdoor devices and general control systems.

The post 12/16/19/22mm Metal Sensor Switch Waterproof Tri-Color Momentary Pin Terminal Automotive appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 12mm standard mounting hole size
• Mini compact metal tactile switch design
• Illuminated available for clear visual indication
• Momentary operation type for instant start & stop
• Waterproof and dustproof construction
• High-quality metal housing for long service life
• Sensitive tactile feedback, comfortable pressing
• Widely used for computer start stop and small equipment control

Technical Specifications

Product Advantages

This 12mm waterproof mini metal tactile switch adopts premium metal material with solid structure and excellent durability. The momentary tactile design provides sensitive pressing feeling, and the illuminated design makes the working status clear at a glance. Compact size saves installation space, while waterproof performance ensures stable use in daily and slightly harsh environments. It is an ideal choice for computer start-stop button, household appliances and small industrial control equipment.

Application Scenarios

• Computer case start stop button
• Small electronic equipment control
• Household appliance control panel
• Instrument and meter equipment
• Automation small control devices
• DIY electronic modification projects

FAQ

1. What is the mounting size of this tactile switch?
This mini metal tactile switch adopts standard 12mm mounting hole size for easy installation.

2. Is this switch momentary type?
Yes, it is momentary operation, suitable for start-stop one-touch control.

3. Does it come with LED illuminated function?
It supports illuminated design to show working status clearly.

4. Is this mini switch waterproof?
Built with waterproof structure, it can resist daily water splash and dust.

The post 12mm Waterproof Mini Metal Tactile Switch Illuminated Momentary for Computer Start/Stop appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 19mm standard mounting hole size
• Dual control function for power and signal switching
• IP68 high-grade waterproof & dustproof protection
• Custom legend / symbol available on request
• Illuminated and non-illuminated versions optional
• Multiple LED colors: Red, Green, Blue, White, Yellow
• Durable metal housing: stainless steel, brass, aluminum
• 2NO+2NC contact configuration for reliable control
• Gold-plated pins & silver contacts for stable conductivity

Technical Specifications

Product Advantages

This 19mm metal push button switch is designed for dual control of power and signal circuits, with ultra-high IP68 waterproof performance to adapt to harsh outdoor and humid environments. Custom legend / symbol service supports personalized identification for different equipment panels. High-quality metal structure, silver-plated contacts and gold-plated pins ensure long service life and stable electrical performance. It is widely used in industrial control cabinets, automation equipment, marine, medical and new energy facilities.

Applications

• Industrial control panels & cabinets
• Power supply & signal control systems
• Automation machinery & equipment
• Marine & outdoor electronic devices
• Medical equipment & instrumentation
• New energy & vehicle control systems
• Custom equipment with personalized symbols

FAQ

1. What is the mounting size of this switch?
Standard 19mm mounting hole size, suitable for most industrial control panels.

2. Is this switch waterproof?
Yes, it reaches IP68 high-level waterproof and dustproof on the front side.

3. Does it support dual control function?
Yes, it supports dual control with 2NO+2NC contact configuration for power and signal switching.

4. Can I customize the symbol / legend?
Yes, custom legend / symbol printing is available to match your equipment needs.

5. Are illuminated versions available?
Yes, both illuminated and non-illuminated types are optional with multiple LED colors.

The post 19mm Metal Push Button Dual Control IP68 Custom Legend Power Signal Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Three standard sizes: 16mm, 19mm, 22mm
• IP65 / IP67 waterproof & dustproof protection
• Screw terminal & pin terminal for flexible installation
• Momentary operation type
• Red, green, blue LED illuminated options
• High-quality metal housing for durability
• NO (Normally Open) contact configuration
• Gold/silver plated contacts for stable conductivity

Technical Specifications

Product Advantages

This 16/19/22mm waterproof metal push button switch is designed for reliable use in industrial environments. It provides IP65/IP67 waterproof and dustproof protection, suitable for humid, wet and outdoor equipment. The screw and pin terminal design makes installation fast and flexible. With gold/silver plated contacts and metal housing, it ensures long mechanical life and stable electrical performance. Ideal for control panels, automation machines, automotive and electronic equipment.

Applications

• Industrial control panels & cabinets
• Automation machinery & equipment
• Automotive & vehicle control systems
• Marine & outdoor electronic devices
• Household appliances & instrument panels
• Wet & harsh environment equipment

FAQ

1. What sizes does this push button support?
It supports 22mm and 25mm standard mounting sizes.

2. Is this switch waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

4. What contact configuration does it use?
It uses 1NO + 1NC double contact structure.

5. Is it pre-wired for easy installation?
Yes, pre-wired design supports direct plug-and-play installation.

The post 16/19/22mm Waterproof Metal Push Button Switch Screw/Pin Terminal Momentary Red/Green/Blue Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Available sizes: 12mm, 16mm, 19mm
• Black matte & polished metal housing
• IP67 waterproof & dustproof front protection
• Momentary (self-reset) operation type
• 1NO (1 Normally Open) contact configuration
• Tri-color LED: Red, Green, Blue optional
• Pre-wired design for fast and easy installation
• High tactile feedback, sensitive and stable
• Perfect for automotive start & retrofit use

Technical Specifications

Product Advantages

This 12/16/19mm black waterproof metal tactile switch features a stylish black metal housing with IP67 waterproof performance, making it ideal for automotive, modified vehicles, and harsh environment use. The pre-wired design allows direct plug-and-play installation without soldering. With clear tactile feedback, tri-color LED illumination, and 1NO stable contact, it delivers long service life and reliable performance for car start buttons, equipment modification, and custom control panels.

Application Scenarios

• Automotive start & engine control
• Car & vehicle modification/retrofit
• Off-road vehicle & boat control
• Equipment control panels
• DIY electronic projects
• Industrial small control devices

FAQ

1. What mounting sizes does this black tactile switch support?
It supports 12mm, 16mm and 19mm standard mounting sizes.

2. Is this switch waterproof?
Yes, it provides IP67 high-level waterproof and dustproof protection.

3. Does it come pre-wired for easy installation?
Yes, it uses pre-wired design for direct plug and play, no soldering required.

4. What LED colors are available?
Red, green and blue tri-color LED options are supported.

5. Is it momentary type?
Yes, it is momentary (self-reset) tactile switch with 1NO contact.

The post 12/16/19mm Black Waterproof Metal Tactile Switch Momentary 1NO Tri-Color LED Pre-wired Automotive Start Retrofit appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 12mm standard mounting hole size
• Mushroom head design for easy & safe operation
• Mini compact size for limited space
• Momentary (self-reset) operation type
• Illuminated dot LED for clear status indication
• Multiple colors: Red, Yellow, Blue, Green
• Gold-plated contacts & pins for high conductivity
• Metal bezel & nickel plated brass housing
• Welding connection for stable installation
• Perfect for power start & stop control

Technical Specifications

Product Advantages

This 12mm mushroom head mini metal push button switch is specially designed for compact power start/stop systems. The mushroom head provides larger contact area for safer and more comfortable operation. Mini size saves installation space for small devices. Momentary self-reset mode ensures precise control. Gold-plated contacts and pins deliver excellent conductivity and long service life. LED dot illumination with multi-color options offers clear working status indication.

Applications

• Power start & stop control systems
• Mini & compact electronic equipment
• Automotive & vehicle interior buttons
• Small control panels & instrument panels
• DIY electronics & modification projects
• Industrial automation & small machinery

FAQ

1. What is the mounting size?
Standard 12mm mounting hole size.

2. What head type does it use?
It uses mushroom head for easy and safe operation.

3. Is this momentary or latching?
It is momentary (self-reset) type.

4. What LED colors are available?
Red, yellow, blue and green are optional.

5. Is it suitable for start/stop control?
Yes, it is ideal for power start and stop applications.

The post 12mm Mushroom Head Mini Metal Push Button Switch Momentary Power Start/Stop Red Yellow Blue Green appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Four standard sizes: 12mm, 16mm, 19mm, 22mm
• IP67 high-level waterproof & dustproof protection
• Short-body compact design for limited installation space
• Illuminated and non-illuminated versions optional
• Momentary (self-reset) operation type
• Multiple LED colors: Red, Green, Blue, White, Yellow
• High-quality metal housing for durability
• Silver-plated contacts & pins for stable conductivity
• Widely used for signal control and equipment operation

Technical Specifications

Product Advantages

This 12/16/19/22mm IP67 waterproof metal tactile switch adopts a short-body compact structure, ideal for devices with limited installation depth. IP67 protection ensures stable performance in damp and harsh environments. The illuminated version provides clear status indication, while silver-plated contacts deliver reliable electrical conductivity. With a long mechanical life and sturdy metal construction, it is widely used for signal control, industrial automation, instrument panels and compact equipment operation.

Applications

• Industrial control panels & automation equipment
• Signal indication & trigger systems
• Compact electronic & instrument devices
• Automotive & vehicle interior controls
• Outdoor & damp environment equipment
• Small machinery & household appliances

FAQ

1. What mounting sizes does this short-body tactile switch support?
It supports 12mm, 16mm, 19mm and 22mm standard mounting sizes.

2. Is this switch IP67 waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. Does it feature a short-body design?
Yes, it uses a short-body compact structure for space-limited installation.

4. Is it momentary type?
Yes, it is momentary (self-reset) tactile switch with 1NO contact.

5. Are illuminated versions available?
Yes, both illuminated and non-illuminated types are optional with multiple LED colors.

The post 12/16/19/22mm IP67 Waterproof Metal Tactile Switch Short-body Illuminated Momentary Signal Control appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 12mm standard mounting hole size
• IP65 / IP67 waterproof & dustproof protection
• High round head design with clear power symbol
• Maintained (latching) and momentary operation optional
• Wide voltage range: 3V, 12V, 24V power supply compatible
• Illuminated ring LED with multiple color options
• High-quality metal housing for durability
• Silver-plated contacts & pins for stable conductivity
• Perfect for power control and equipment start/stop

Technical Specifications

Product Advantages

This 12mm waterproof metal push button switch is specially designed for power control applications. It features a high round head with a clear power symbol for intuitive operation. The IP67 waterproof structure ensures stable performance in humid and harsh environments. It supports both maintained (latching) and momentary modes, and is compatible with 3V, 12V, 24V wide voltage systems. High-quality metal construction and silver-plated contacts provide long service life and reliable electrical performance.

Applications

• Power supply equipment & control systems
• Industrial control panels & cabinets
• Automotive & vehicle interior controls
• Electronic device start/stop buttons
• Outdoor & damp environment equipment
• Small machinery & household appliances

FAQ

1. What is the mounting size of this switch?
Standard 12mm mounting hole size for easy installation.

2. Is this switch waterproof?
Yes, it supports IP65 / IP67 waterproof and dustproof protection.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

4. What voltage does it support?
It is compatible with 3V, 12V and 24V power supply systems.

5. Does it have a power symbol and high head?
Yes, it uses a high round head with a clear power symbol for power control.

The post 12mm Waterproof Metal Push Button Switch Maintained/Momentary High Height Head with Power Symbol for 3V 12V 24V Power Supply appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
