• 22mm standard mounting hole size
• 15A high current for heavy-duty power control
• IP67 waterproof & dustproof protection
• LED illuminated & non-illuminated versions optional
• Flat & high round head styles available
• Multiple LED colors: Red, Green, Blue, Yellow
• Large silver contacts for stable conductivity
• Gold-plated pins for low resistance & long life
• Sturdy metal housing: SUS304/316, aluminum oxide
• CE & ROHS certified quality

Product Advantages

This 22mm 15A high current metal push button switch is built for heavy-duty industrial power control. It supports 15A large current to drive high-power equipment safely. IP67 waterproof rating ensures stable performance in wet, outdoor and harsh environments. Large silver contacts and gold-plated pins provide excellent conductivity and long service life. LED illumination offers clear status indication. Multiple head styles and materials meet various installation needs.

Applications

• Industrial power start/stop control systems
• Heavy machinery & high-current equipment
• Automotive, marine & outdoor control panels
• Generator, inverter & power distribution devices
• CNC equipment & industrial automation systems
• Vehicle modification & engineering equipment

FAQ

1. What is the mounting size?
Standard 22mm mounting hole size.

2. What is the rated current?
15A high current for heavy-duty power control.

3. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.

4. Does it support LED and non-illuminated versions?
Yes, both illuminated and non-illuminated are optional.

5. What material are the contacts?
Large silver contacts for high conductivity and stability.

The post 22mm high current metal push button swith with LED appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• M16×1 standard thread mounting hole size for panel installation
• IP67 & IP69K high level waterproof and dustproof protection grade
• Professional emergency stop design for industrial safety protection
• Switch combination optional: 1NO/1NC, 1NO1NC, 2NO/2NC, 2NO2NC
• Three shell material: SUS304 stainless steel / brass nickel plating / aluminum oxidation
• Pin type plug-in wiring method, simple and stable installation
• Rated insulation voltage up to 250V for electrical safety isolation
• 3A heating current with stable temperature resistance performance
• Compatible rated voltage: 12V / 24V / 110V / 220V
• Complete AC and DC resistive & inductive load current parameters
• Premium silver plated gold contact material for stable conduction
• Corrosion & high temperature resistant SUS304 stainless steel housing
• Suitable for harsh wet, dust, outdoor and marine environments
• Instant power cutoff function to protect machine and personnel safety
• Ideal for industrial machinery, automation and outdoor installations

Product Attributes

• Connection: Plug in
• Head Material: SUS
• Shell Material: SUS304
• PIN Material: Silver
• Contact Operation: 1NO+1NC , 2NO+2NC Optional

Product Advantages

This IP67 IP69K waterproof stainless steel emergency stop switch adopts M16×1 thread mounting design. It supports multiple contact combinations and three housing materials including SUS304 stainless steel. With professional IP67/IP69K waterproof performance, it can adapt to harsh wet, dust, marine and outdoor environments. Silver plated gold contact ensures stable conductivity and long service life. Complete AC/DC current and voltage specifications match 12V to 220V systems, reliable for industrial machinery, automation equipment safety emergency power cutoff.

Applications

• IP67 IP69K waterproof industrial stainless steel emergency stop switch
• Automation system safety emergency cutoff metal push button
• Marine and outdoor high humidity dustproof emergency switch
• M16×1 thread panel mounting machinery safety button
• Harsh environment corrosion resistant SUS304 emergency switch

FAQ

1. Mounting specification?
M16×1 thread installation size.

2. Protection grade?
IP67 and IP69K professional waterproof and dustproof.

3. Contact combination?
1NO1NC / 2NO2NC and other multi combinations optional.

4. Housing material?
SUS304 stainless steel, brass nickel plating, aluminum oxidation.

5. Contact material?
High-performance silver plated gold contact.

The post Waterproof Emergency Switches Stainless Steel Emergency Metal Push Button Switches appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

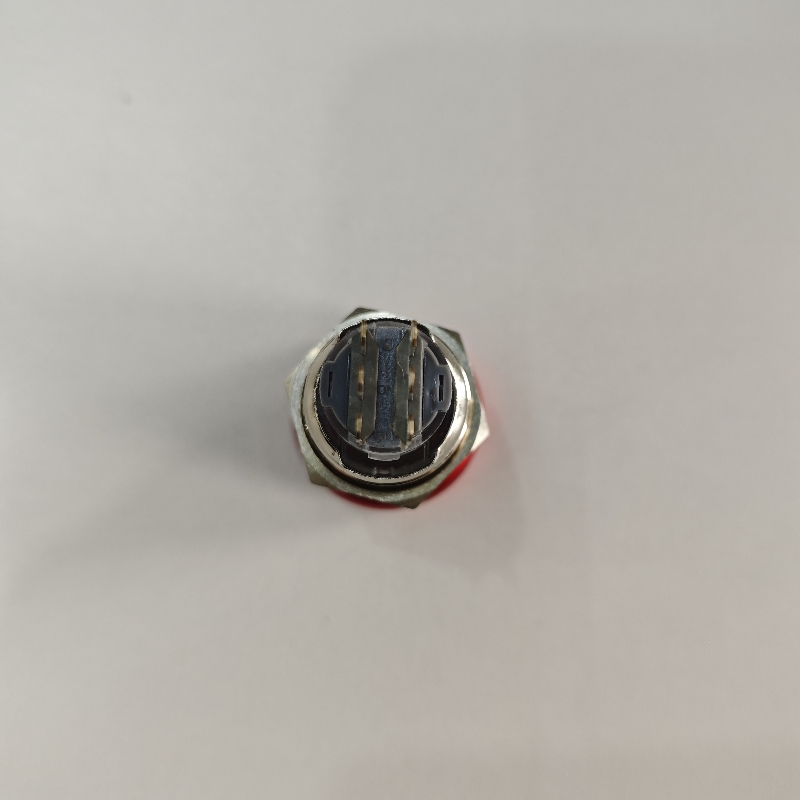

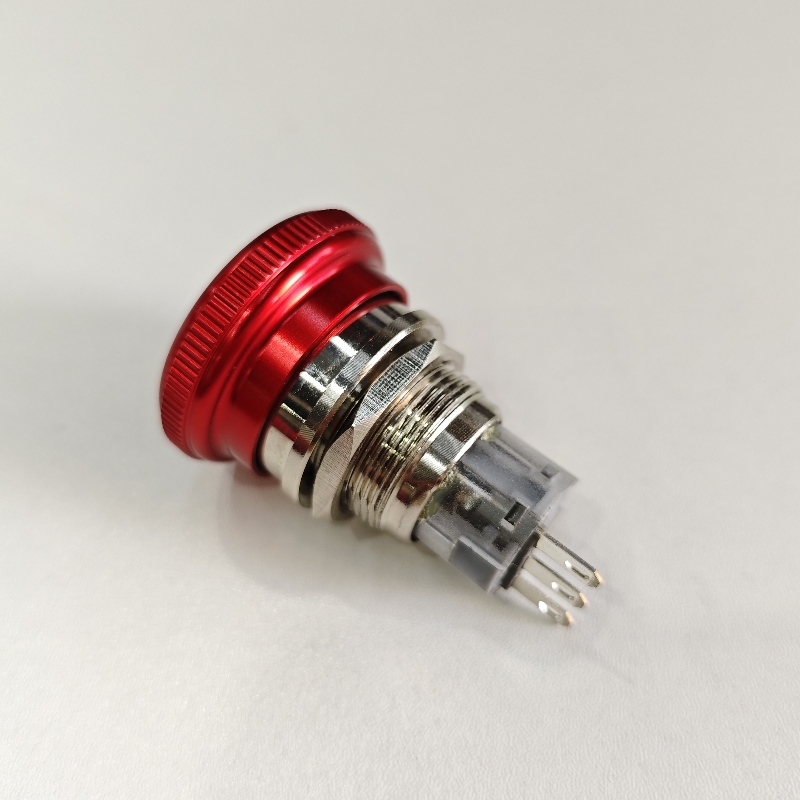

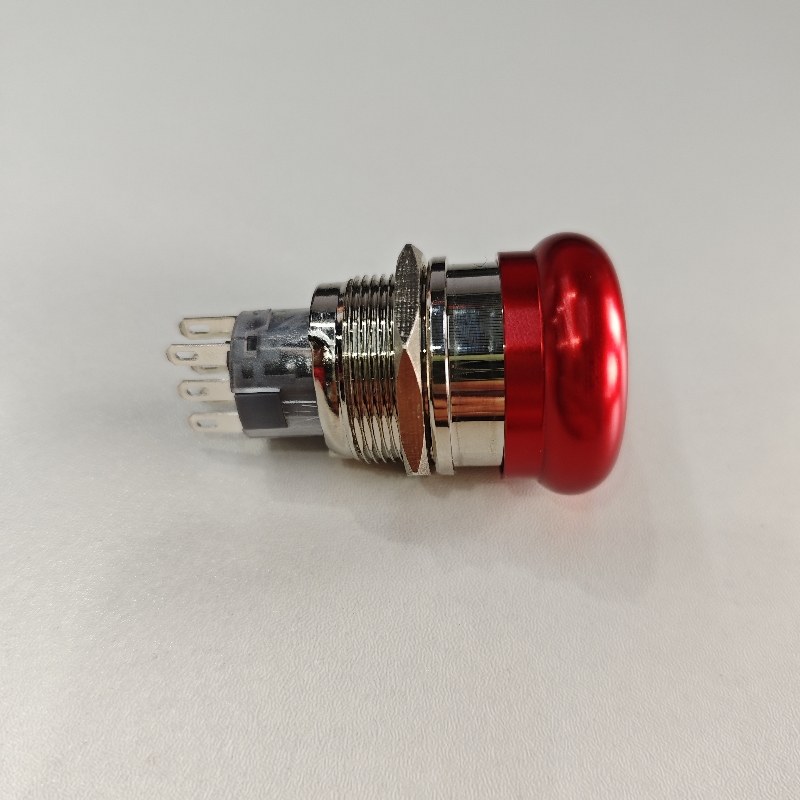

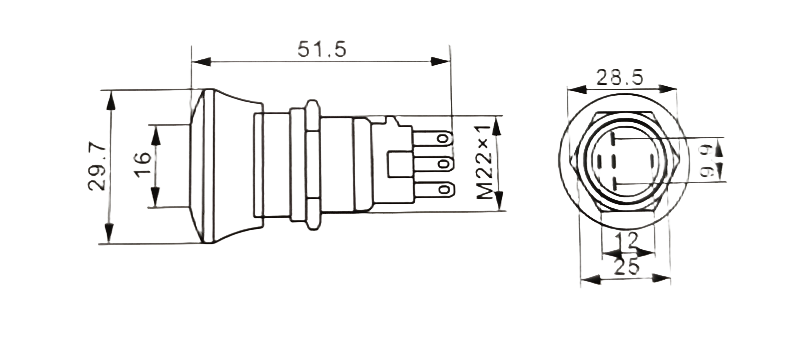

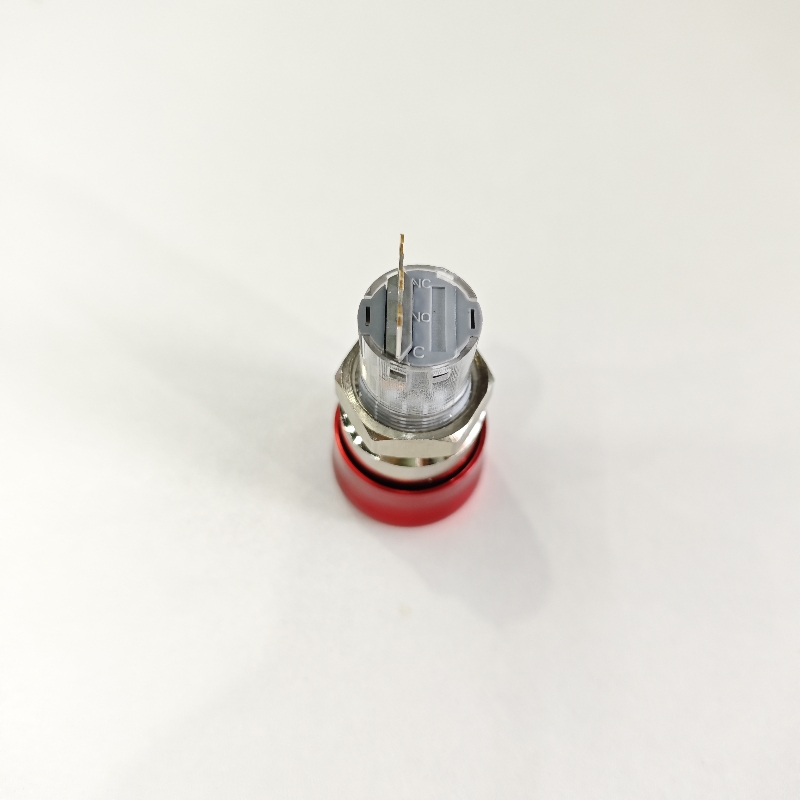

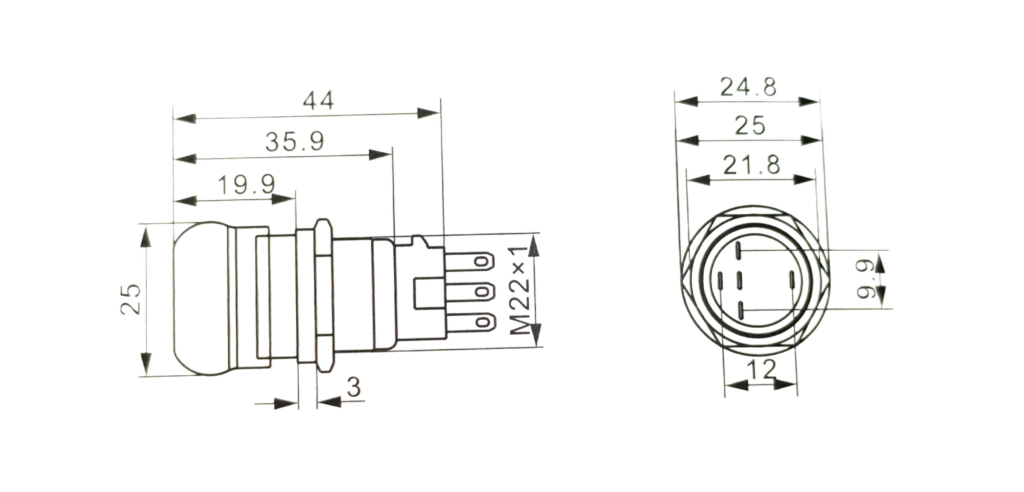

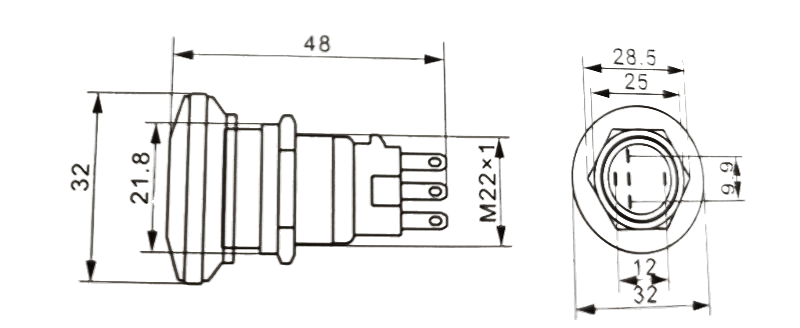

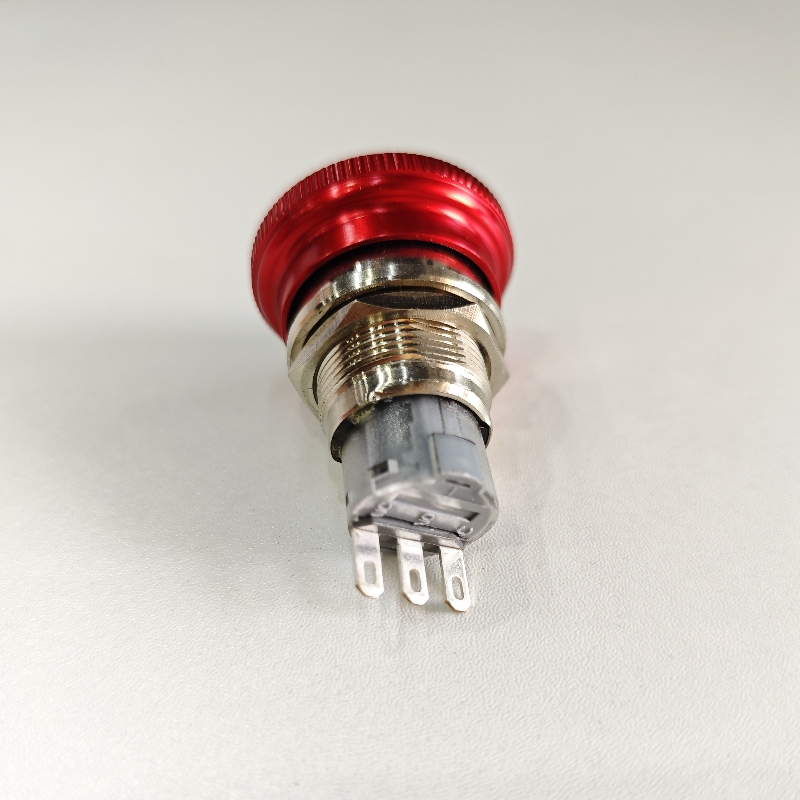

• M22×1 standard thread mounting hole for panel installation

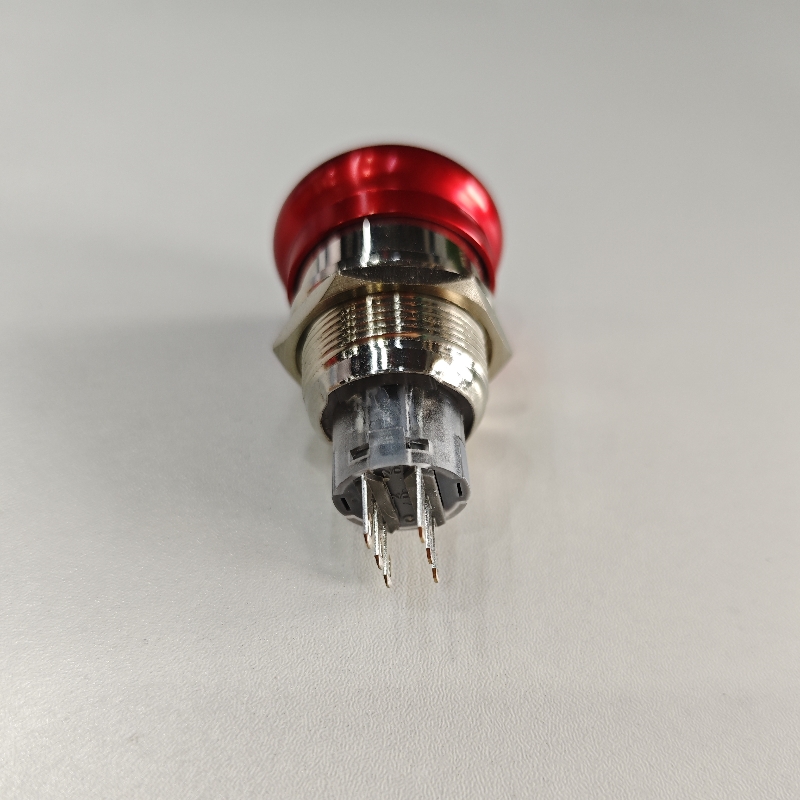

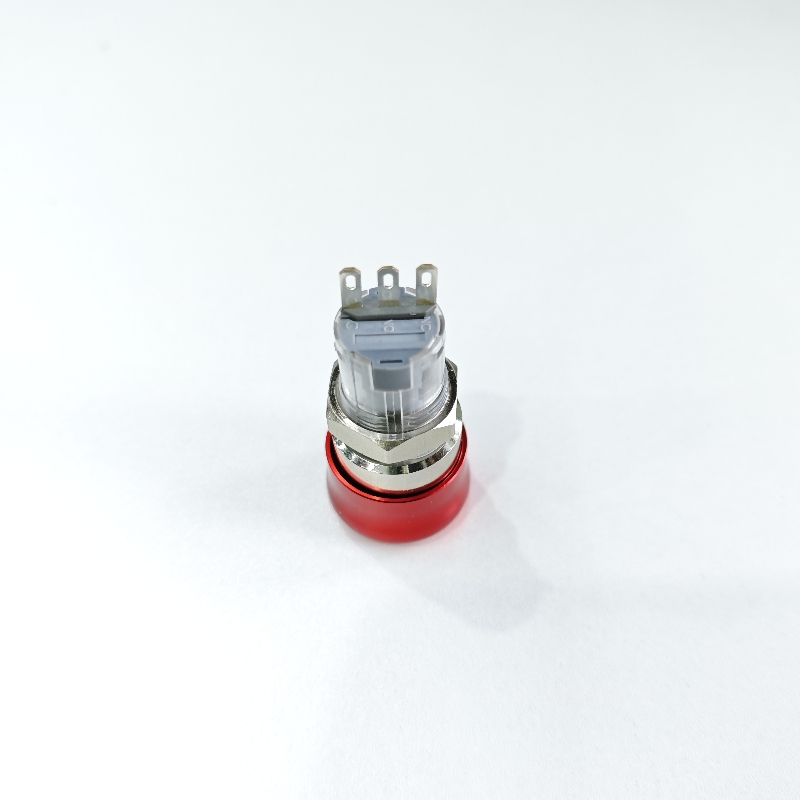

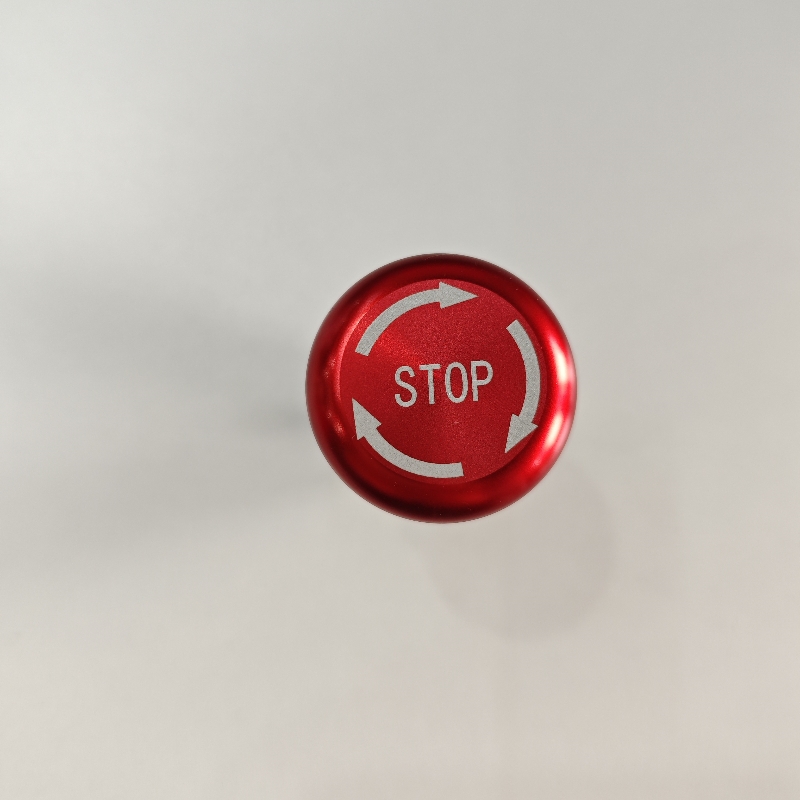

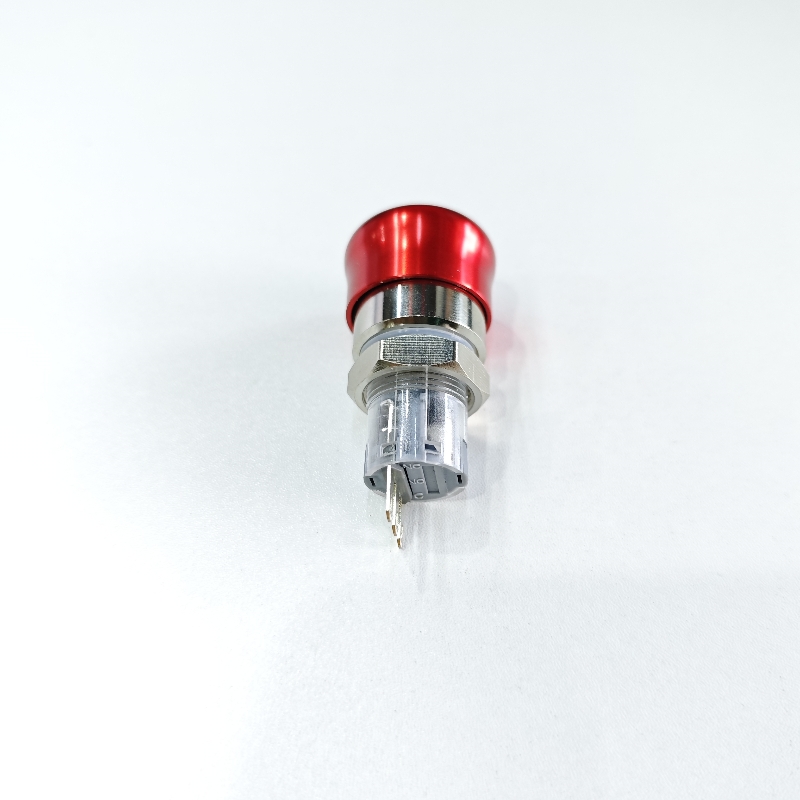

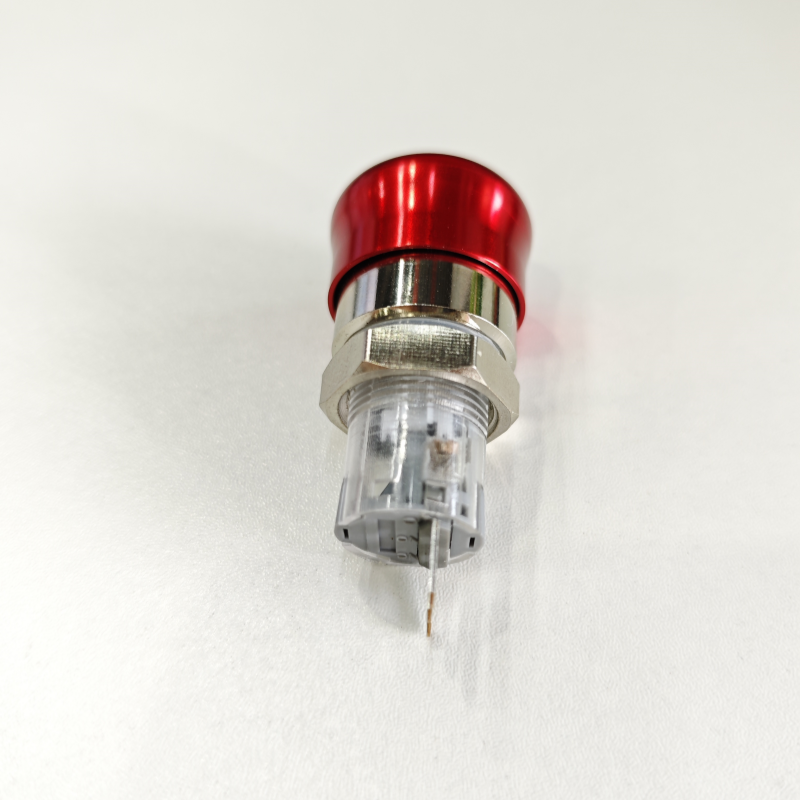

• Classic red mushroom head design for quick emergency recognition
• Dustproof structure, stable performance in dusty industrial environment
• Switch combination: 1NO/1NC, 1NO1NC, 2NO/2NC, 2NO2NC optional
• Multiple housing material: SUS304 / Chromium Plated Brass / Aluminum Oxidation
• Shell length 8mm, compact structure easy for narrow panel mounting
• Pin type plug-in wiring method, fast assembly and reliable connection
• Rated insulation voltage up to 250V for electrical isolation safety
• 3A heating current, stable temperature resistance during operation
• Wide rated voltage range: 12V / 24V / 110V / 220V
• Complete AC 50/60Hz & DC resistive and inductive load parameters
• High-grade silver plated gold contact for stable conductivity
• Durable metal construction anti-corrosion and long service life
• Instant emergency power off to protect personnel and machine safety
• Suitable for industrial machinery, automation and workshop equipment

Product Attributes

• Connection: Plug in
• Head Material: SUS
• PIN Material: Silver
• Shell Material: Chromium Plated Brass, SUS304
• Shell Length: 8mm
• Contact Operation: 1NO+1NC , 2NO+2NC Optional

Product Advantages

This dustproof red mushroom head emergency stop button adopts M22×1 thread mounting with 8mm short shell design. Obvious red mushroom head is easy to operate in emergency situations. Dustproof design adapts to dusty factory workshops. Multiple contact combinations and housing materials meet different project needs. Adopting silver plated gold contact, it provides stable conduction and long service life. Complete 12V–220V voltage and current parameters are compatible with most industrial control systems, ideal for industrial machinery and automation equipment emergency safety cutoff.

Applications

• M22 red mushroom head industrial dustproof emergency stop switch
• Automation equipment 1NO1NC safety emergency cutoff button
• Workshop dusty environment metal emergency push button
• Machinery control panel M22×1 thread mounting stop switch
• 3-220V universal industrial safety protection emergency button

FAQ

1. Mounting size?
M22×1 thread installation specification.

2. Design feature?
Red mushroom head + professional dustproof structure.

3. Contact type?
1NO1NC / 2NO2NC multi combinations optional.

4. Shell material?
SUS304 stainless steel, chromium plated brass, aluminum oxidation.

5. Voltage range?
Universal 12V to 220V for AC and DC systems.

The post Emergency Switches Metal Push Button Switch Dustproof Red Mushroom Head Emergency Stop Button 3-220V appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• M19×1 standard thread mounting hole for 19mm panel installation
• IP65 & IP67 dual waterproof rating for wet and dusty environments
• High-sensitivity emergency stop design for instant power disconnection
• Switch combination optional: 1NO/1NC, 1NO1NC, 2NO/2NC, 2NO2NC
• Shell material: SUS304 / Brass / Black Aluminum Oxide
• Short 8mm shell length, compact and easy to install
• Pin type plug-in wiring method for quick and stable assembly
• Rated insulation voltage up to 250V for electrical safety isolation
• 3A heating current with stable temperature resistance performance
• Wide rated voltage: 12V / 24V / 110V / 220V
• Complete AC 50/60Hz & DC resistive and inductive load parameters
• Premium silver plated gold contact for stable electric conduction
• Corrosion-resistant metal housing for long service lifespan
• Sealed structure prevents moisture and dust ingress
• Suitable for industrial automation, marine and food processing systems

Product Attributes

• Connection: Plug in
• Head Material: SUS
• PIN Material: Silver
• Shell Material: Aluminum Oxide(Black), Brass, SUS304
• Shell Length: 8mm
• Contact Operation: 1NO+1NC , 2NO+2NC Optional

Product Advantages

This 19mm IP65 IP67 waterproof emergency stop switch adopts M19×1 thread mounting and 8mm short shell design. Sealed waterproof structure adapts to wet, dusty and outdoor working conditions. Multiple contact combinations and three housing materials meet different application needs. Silver plated gold contact ensures stable conduction and durability. Complete voltage and current specifications cover 12V to 220V systems, ideal for industrial automation, marine equipment and food processing machinery emergency power cutoff protection.

Applications

• 19mm M19 thread IP65 IP67 waterproof emergency stop switch
• Industrial automation system safety emergency disconnect button
• Marine equipment corrosion resistant waterproof metal push button
• Food processing machinery dustproof sealed emergency switch
• Outdoor wet environment high durability safety control button

FAQ

1. Mounting size?
M19×1 thread installation specification, 19mm panel hole.

2. Protection grade?
IP65 and IP67 professional waterproof and dustproof level.

3. Contact combination?
1NO1NC / 2NO2NC and other multi combinations optional.

4. Shell material?
SUS304 stainless steel, brass, black aluminum oxide.

5. Structural feature?
8mm short shell, sealed moisture-proof and dust-proof structure.

The post Waterproof Metal Metal Push Button Switch Push Button Emergency Switches appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Multi size compatible: 16mm / 19mm / 22mm universal panel mounting
• M22×1 standard thread installation hole for standard panel layout
• High-quality SUS304 stainless steel body, corrosion and rust resistant
• 8mm short shell length, compact structure easy for installation
• Multiple switch combination: 1NO/1NC, 1NO1NC, 2NO/2NC, 2NO2NC
• Three optional shell material: Stainless steel / Brass nickel plating / Aluminum oxidation
• Pin type plug-in wiring method, fast assembly and stable connection
• Rated insulation voltage up to 250V for safe electrical isolation
• 3A heating current, stable temperature resistance in long operation
• Wide rated voltage range: 12V / 24V / 110V / 220V
• Complete AC 50/60Hz & DC resistive and inductive load parameters
• Premium silver plated gold contact for stable and sensitive conduction
• Durable metal structure adapts to harsh industrial environments
• Instant power cutoff protects machinery and personnel safety
• Ideal for power automation, manufacturing, robotics and heavy-duty equipment

Product Attributes

• Connection: Plug in
• Head Material: SUS
• Shell Material: SUS304
• PIN Material: Silver
• Shell Length: 8mm
• Contact Operation: 1NO+1NC , 2NO+2NC Optional

Product Advantages

This 16/19/22mm universal stainless steel emergency stop switch adopts M22×1 thread mounting and 8mm short shell design. It is made of high corrosion-resistant SUS304 stainless steel, with multiple housing materials and contact combinations optional to meet different project requirements. Adopting silver plated gold contact, it ensures sensitive response and long service life. Complete 12V–220V voltage and current parameters are compatible with most power automation systems. Rugged sealed structure performs well in harsh industrial sites, perfectly suitable for manufacturing lines, robotics and heavy equipment emergency safety power cutoff.

Applications

• 16/19/22mm universal M22 thread stainless steel emergency stop button
• Power automation system safety emergency cutoff metal switch
• Manufacturing machinery and robotics dedicated emergency button
• Harsh industrial environment corrosion resistant safety switch
• Heavy-duty equipment panel mounting emergency protection push button

FAQ

1. Compatible size?
Supports 16mm, 19mm, 22mm three mounting hole sizes.

2. Mounting standard?
M22×1 thread installation specification.

3. Contact type?
1NO1NC / 2NO2NC multiple circuit combinations optional.

4. Material feature?
SUS304 stainless steel, anti-corrosion and durable.

5. Voltage adaptation?
Compatible with 12V, 24V, 110V, 220V AC and DC systems.

The post Stainless Steel Metal Emergency Switches 16/19/22mm Stop Button for Power Automation Equipment appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
