• G1/2 standard thread interface, compatible with most common liquid pipelines for easy assembly
• Vertical installation design, optimized structure for vertical pipeline layout and space saving
• Magnetic induction principle, stable sensing for water and oil medium flow detection
• IP67 waterproof and dustproof grade, suitable for complex workshop and on-site environments
• 1.5-30L/min standard flow range, covering conventional medium flow demands
• High-quality PP and POM composite material, heat-resistant up to 120℃, durable & wear-resistant
• Dual DC voltage: 100VDC & 220VDC, adaptable to various DC control systems
• N.O and N.C dual contact modes, flexible for diverse circuit design requirements
• Two sets of current and load parameters: 0.5A(10W) / 1.5A(5W) for selection
• Wide working temperature: 80℃ ~ 120℃, works well in high-temperature liquid pipelines
• Built-in intelligent module, outputs stable switching transducer signals
• Standard 350mm connecting wire, customized wire length available for different installation needs
• Integrated compact structure, low failure rate and easy daily maintenance
• Versatile application for water pumps, automotive equipment, humidifiers and industrial machinery

Technical Specifications

Product Attributes

• Installation Way: Vertical Mounting
• Interface: G1/2″ Standard Thread
• Sensing Type: Magnetic Induction
• IP Rating: IP67 Waterproof & Dustproof
• Flow Range: 1.5-30L/min
• Applicable Medium: Water, Oil, General Liquids
• Material: PP + POM
• Temp Resistance: 80℃ ~ 120℃
• Voltage: 100VDC, 220VDC
• Contact: N.O / N.C Dual Options
• Current & Load: 0.5A(10W), 1.5A(50W)
• Signal Output: Switching Transducer
• Wire: 350mm, Custom Length Supported
• Smart Module: Built-in

Product Advantages

This G1/2 vertical magnetic flow switch adopts professional vertical mounting design, which is perfectly matched with vertical pipeline layouts. With IP67 waterproof and dustproof performance, it can operate stably in dusty and wet working environments. Using mature magnetic induction technology, it accurately monitors liquid flow between 1.5-30L/min, suitable for water, oil and other common liquid media. The PP and POM composite shell features excellent high temperature resistance up to 120℃, adapting to high-temperature pipeline working conditions. It supports 100VDC and 220VDC dual voltage, together with NO/NC two contact modes and multiple current & load combinations, to meet diversified circuit design demands. Equipped with intelligent signal conversion module, the output signal is stable and reliable. The standard 350mm lead wire can be customized in length for flexible on-site installation. The whole machine has a compact structure, low failure rate and convenient maintenance. It is a cost-effective flow detection component for water pumps, automotive fluid systems, humidifiers and various industrial equipment.

Applications

• Vertical water pump pipelines and circulation system flow monitoring switches
• Automotive internal liquid circuits and vehicle oil/water flow sensors
• Industrial humidifiers, atomization equipment flow control components
• High-temperature liquid pipelines and vertical fluid control equipment
• General industrial machinery fluid protection and signal feedback devices
• Outdoor pipeline equipment with dust and water resistance requirements

Max. Current:32A
Max. Voltage:380V AC
Pins:6P
Model Number:KN3C-203
Whether the smart:NO
Mechanical Life:10000Cycles
IP level:Ip67
Switch Function:ON/Off/ON
Switch control:on-off
Installation:screw fix
Rated current:10A,15A,20A,32A
Rated voltage:380V AC
Electric lifetime:10000cycles
Advantage:OEM,ODM supply
Certification:CE
Product images

FAQ

1. What is the installation type and thread specification?
It is vertical mounting type with G1/2 standard thread.

2. What protection grade and flow range does it have?
IP67 waterproof & dustproof grade; standard flow rate is 1.5-30L/min.

3. What medium and temperature is it suitable for?
Mainly for water, oil and other liquids; operating temperature 80℃ ~ 120℃.

4. Voltage, contact and electrical parameters?
Rated voltage: 100VDC / 220VDC; N.O/N.C contacts; 0.5A(10W) and 1.5A(50W).

5. What material is the switch body made of?
Made of high-quality PP and POM engineering plastic.

6. About wire length and output mode?
Standard wire length 350mm, customizable; output is switching transducer.

7. Does this flow switch have smart functions?
Yes, it is equipped with built-in intelligent module for signal conversion.

8. What is the working principle?
Adopts magnetic induction principle to detect liquid flow status.

9. Main application scenarios?
Applied to water pumps, automobiles, humidifiers and all kinds of industrial equipment.

The post KN3-203 Screw Type On-off 6 Pin Toggle Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

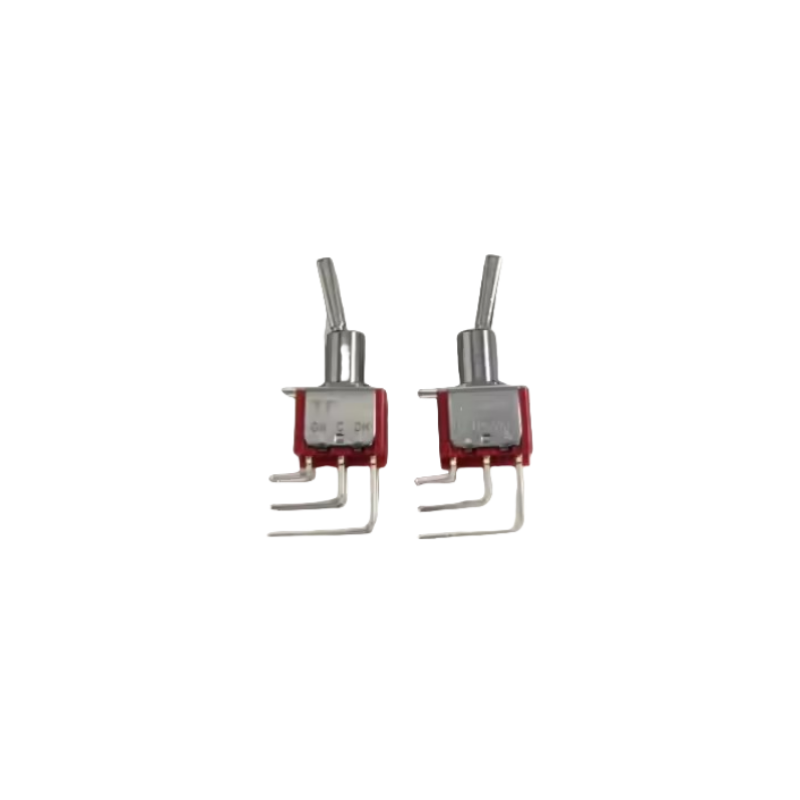

• Two gang ON-ON dual-circuit design, realizes two-way circuit switching for diversified control demands
• Multi-style installation: Flat, Vertical and Right Angle three forms to fit various PCB layouts
• PC thru-hole structure, standard through-hole design for convenient PCB soldering and assembly
• Dual electrical ratings: 3A 125VAC & 1.5A 250VAC for different load requirements
• Ultra-low contact resistance (less than 20mΩ), ensures stable current transmission
• Excellent insulation performance: ≥1000MΩ @ 500VDC, safe for circuit operation
• High dielectric strength, withstand 1000VAC for 1 minute without breakdown
• Flame-retardant PPA base with UL94V-0 rating, high safety for electronic equipment
• Premium material combination: Brass handle & sleeve (chrome/nickel plated), stainless steel shell
• Copper alloy contact and terminal, optional gold or silver plating for enhanced conductivity
• Tin-plated brass bracket, anti-oxidation and long-term stable connection
• Long service life: mechanical life over 40000 cycles, durable for frequent operation
• Compact size, space-saving for dense PCB and mini electronic products
• Wide compatibility for consumer electronics, instruments and industrial control boards

Technical Specifications

Product Attributes

• Circuit: Two Gang, ON-ON Function
• Mounting: Flat / Vertical / Right Angle, PC Thru-hole
• Rating: 3A 125VAC / 1.5A 250VAC
• Contact Resistance: ＜20mΩ
• Insulation Resistance: ≥1000MΩ (500VDC)
• Dielectric Strength: 1000VAC / 1min
• Base: PPA (UL94V-0 Flame Retardant)
• Main Metal Parts: Brass + Stainless Steel
• Plating: Chrome / Nickel / Tin / Gold / Silver Optional
• Mechanical Life: ≥40000 Cycles
• Smart Module: Non-smart

Product Advantages

This two gang ON-ON toggle switch supports three installation forms including flat, vertical and right angle, which can adapt to diverse PCB structural designs and layout requirements. Adopting standard PC thru-hole mounting, it is easy for soldering and assembly on circuit boards. It has two sets of AC electrical specifications to match different load circuits. With ultra-low contact resistance and high insulation & voltage resistance, the switch ensures safe and stable operation for a long time. The whole set adopts high-quality materials: UL94V-0 flame retardant PPA base improves fire safety; brass components with multiple plating treatments resist oxidation and wear; stainless steel shell enhances structural stability. Copper alloy contacts with gold or silver plating options further optimize conductive performance. The mechanical life reaches over 40000 cycles, featuring reliable hand feel and stable switching. Without complex smart components, it has low failure rate and cost performance. It is a universal electronic switch suitable for PCB modules, small home appliances, testing instruments, audio equipment and industrial control circuits.

Applications

• PCB circuit boards and modular electronic circuit switching components
• Small household appliances and portable electronic equipment gear switches
• Laboratory testing instruments and measuring device control buttons
• Audio equipment, stereo and signal channel selection switches
• Industrial control panels and low-voltage circuit auxiliary control parts
• DIY electronic projects and customized circuit control modules

Max. Current：3A
Max. Voltage：125V
Model Number：MT-0-102-A104-N104-RS
Mechanical Life：40000 times or more
Specification：3A 125VAC;1.5A 250VAC
Pedestal：PPA(UL94V-0)
handle：Brass, chrome plated
Shaft sleeve：Brass, nickel or chrome plated
Iron shell：Stainless steel
Bracket：Brass, tin plated
Contact piece/terminal Copper alloy, silver or gold plated
Contact resistance：Less than 20mΩ
Insulation resistance：500VDC not lower than 1000mΩ
Withstand voltage：1000VAC, 1 minute
Product images

FAQ

1. What is the circuit function and installation style of this switch?
It is two gang ON-ON type, supporting flat, vertical and right angle installation, with PC thru-hole structure for PCB mounting.

2. What are the rated electrical parameters?
Two options: 3A 125VAC and 1.5A 250VAC.

3. Electrical performance indicators?
Contact resistance ＜20mΩ; insulation resistance ≥1000MΩ (500VDC); withstand 1000VAC for 1 minute.

4. What materials and plating are used for each part?
Base: UL94V-0 PPA; handle & sleeve: brass (chrome/nickel plated); shell: stainless steel; bracket: tin-plated brass; contact & terminal: copper alloy (gold/silver plated optional).

5. How long is the mechanical service life?
The mechanical life is more than 40000 cycles.

6. Does this switch have smart functions?
No, it is a traditional mechanical toggle switch without smart module.

7. What are the advantages of the base material?
The base adopts PPA material with UL94V-0 flame retardant grade, which has good fire resistance and insulation.

8. What wiring and installation methods does it adapt to?
Designed for PC thru-hole soldering, suitable for standard PCB board assembly.

9. Main application scenarios?
Mainly used for PCB boards, home appliances, instruments, audio devices and industrial control equipment.

The post Two Gang on on Flat Vertical Right Angle PC Thru-hole Toggle Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

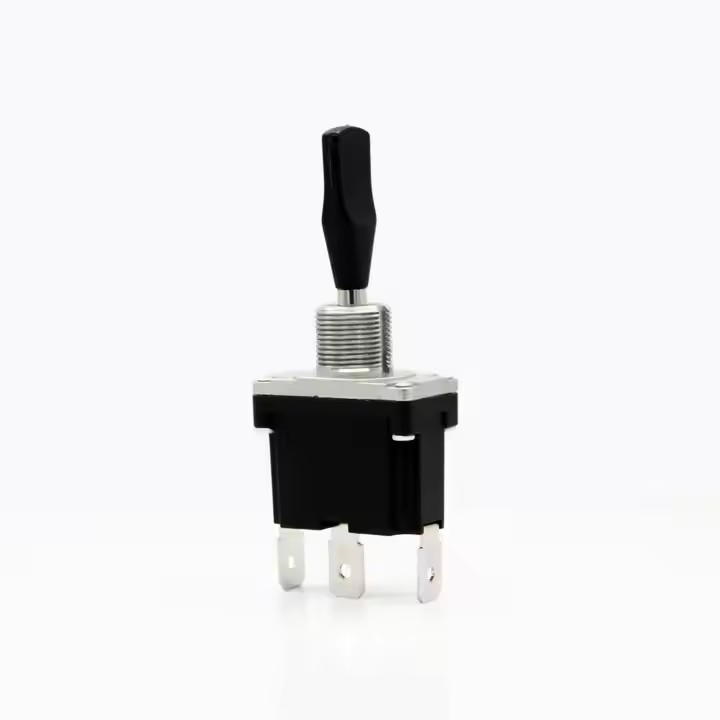

• 3-pin design with classic On-Off-On momentary function, flexible for dual-circuit instantaneous control
• Combined structure: sturdy metal handle + high temperature resistant nylon plastic body
• Integrated waterproof performance, adapts to wet, dusty outdoor and workshop environments
• Dual electrical ratings: 20A@125VAC and 15A@250VAC for different load requirements
• Super long mechanical life up to 100,000 cycles, stable for frequent operation
• High temperature resistant nylon material as main housing, excellent heat resistance
• Uniform black appearance, neat and unified for equipment assembly
• Pure mechanical structure without smart module, low failure rate and easy maintenance
• Standard 3-pin terminal, simple wiring and convenient assembly
• Compact overall size, saves installation space on control panels
• Momentary reset design, ideal for temporary signal and mode switching
• High load capacity, suitable for medium and high current AC circuits

Technical Specifications

Product Attributes

• Pins: 3 Pins
• Operation Mode: On-Off-On Momentary
• Handle: Metal
• Body Material: High Temperature Resistant Nylon
• Feature: Waterproof
• Color: Black
• Electrical Spec: 20A 125VAC / 15A 250VAC
• Mechanical Life: 100,000 Cycles
• Structure: Pure Mechanical (Non-smart)

Product Advantages

This 3-pin momentary toggle switch adopts a combination of metal handle and high-temperature nylon housing, which balances operating hand feel and environmental adaptability. It comes with reliable waterproof performance, so it can work stably in humid, dusty workshops and outdoor working sites. The On-Off-On momentary reset function is perfect for temporary circuit switching and instantaneous signal control. It supports two sets of AC electrical parameters up to 20A/250VAC, with strong load capacity to meet most medium and high current circuit demands. The mechanical life reaches 100,000 cycles, proving excellent durability after long-term frequent use. The high-temperature resistant nylon body can adapt to high-temperature working environments. It is a purely mechanical switch without complex smart components, featuring simple structure, low failure rate and easy installation and maintenance. The standard 3-pin design simplifies wiring work, and the unified black appearance is compatible with most equipment styles, which is a cost-effective choice for industrial machinery, outdoor equipment, automotive and general electrical appliances.

Applications

• Industrial machinery and workshop equipment instantaneous mode control switches
• Outdoor electromechanical devices and waterproof power control components
• Automotive electrical systems and vehicle temporary signal buttons
• High-temperature working equipment and thermal environment control panels
• General electrical appliances and power distribution auxiliary switches
• Electronic DIY projects and medium-current circuit control modules

Max. Current：20A
Max. Voltage：250VAC
Model Number：TW1-0-113-F00P0-MM0-A-WP
Whether the smart：NO
Mechanical Life：100000Cycles
Function：on off on(momentary)
Material：High temperature resistant nylon
Product name：TOGGLE SWTICH
Color：BLACK
Rating Current：20A 125VAC;15A 250VAC
Certification：NO
Product images

FAQ

1. How many pins and what is the switch function?
It is a 3-pin toggle switch with On-Off-On momentary reset function.

2. What is the material composition of the switch?
Equipped with metal handle, and the main body is made of high temperature resistant nylon plastic.

3. Does this switch support waterproof use?
Yes, it has built-in waterproof structure for humid and outdoor environments.

4. What are the rated current and voltage parameters?
20A 125VAC and 15A 250VAC, max voltage 250VAC, max current 20A.

5. What is the mechanical service life?
The mechanical life is 100,000 cycles.

6. What color is the switch?
The whole product is black.

7. Does it have smart functions or related certifications?
It is a pure mechanical switch without smart module, and no extra certifications.

8. What are the core strengths of this product?
Waterproof, high temperature resistance, long service life and high load capacity.

9. What main scenarios is it suitable for?
Widely used in industrial equipment, outdoor machinery, automotive and various electrical appliances.

The post Metal Handle Toggle Switches on OFF on (momentary) 3PINS Waterproof Plastic Handle appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

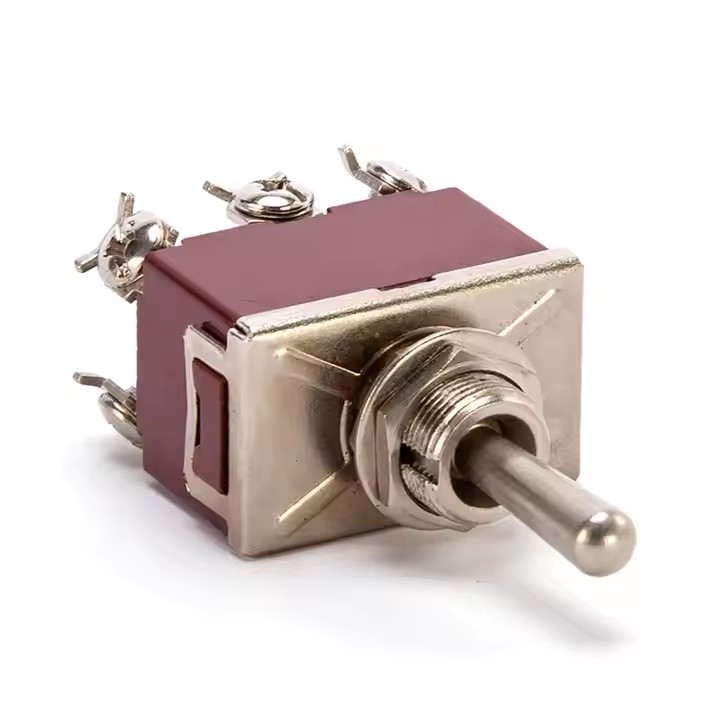

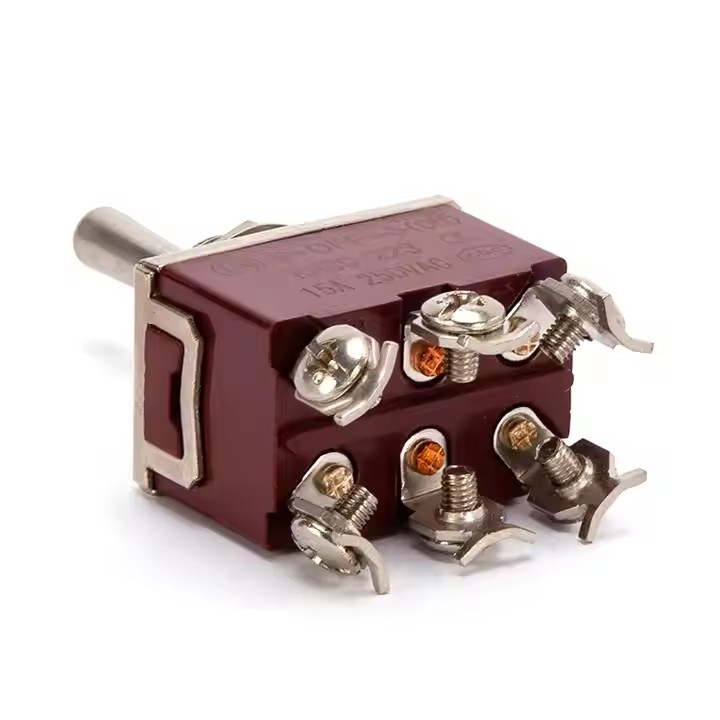

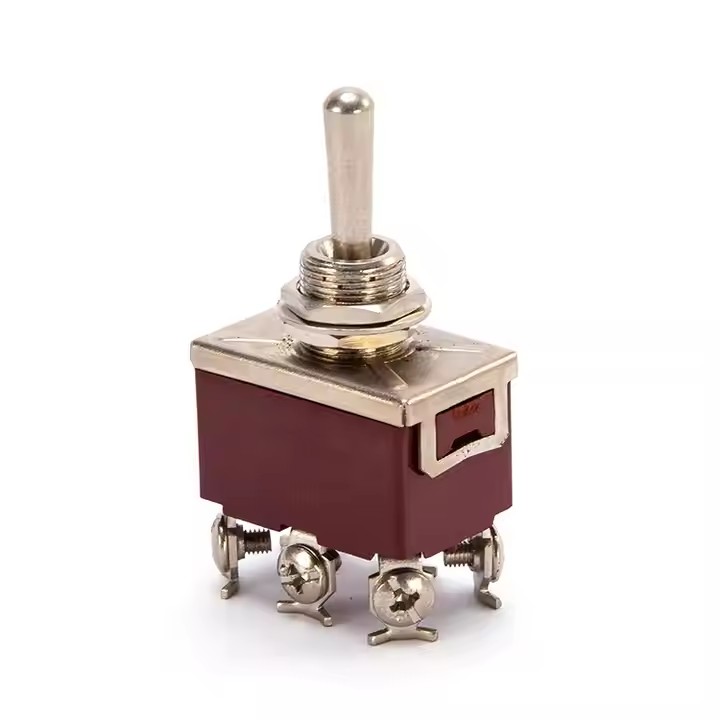

• Heavy-duty DPDT (Double Pole Double Throw) circuit design, ON-OFF-On three-position function for dual circuit control
• Multiple AC rating combinations available to match diverse load and voltage requirements
• High-strength bakelite case, heat-resistant and insulation for long-term stable operation
• Iron actuator, bushing and housing with nickel or chrome plating, anti-rust and wear-resistant
• Copper alloy contacts and terminals, optional silver or gold plating to enhance conductivity
• Excellent electrical performance: max contact resistance 50mΩ, insulation resistance ≥1000MΩ @ 500VDC
• High dielectric strength, withstand 1500VAC for 1 minute without breakdown
• Wide operating temperature range: -25℃ ~ +85℃, adapt to cold and hot working environments
• Durable service life: 40000 mechanical cycles, 10000 electrical cycles
• RoHS compliant, meets international environmental protection standards
• Robust heavy-duty structure, strong load capacity for medium and high current circuits
• Standard installation size, easy to assemble on control panels and equipment housings
• Classic toggle design, comfortable operation and clear gear positioning
• Low failure rate, convenient maintenance for industrial and commercial equipment

Technical Specifications

Product Attributes

• Circuit: DPDT (Double Pole Double Throw)
• Function: ON-OFF-On 3 Position
• Max Rating: 20A / 250V AC
• Multi Ratings: 3 groups of AC current & voltage combinations
• Contact Resistance: ≤50mΩ
• Insulation Resistance: ≥1000MΩ (500VDC)
• Withstand Voltage: 1500VAC / 1min
• Temp Range: -25℃ ~ +85℃
• Main Housing: Bakelite
• Metal Parts: Iron with Nickel / Chrome Plating
• Contact: Copper Alloy (Silver / Gold Plated)
• Mechanical Life: 40000 Cycles
• Electrical Life: 10000 Cycles
• Certification: RoHS

Product Advantages

This KN series heavy-duty DPDT toggle switch adopts professional double pole double throw structure and classic ON-OFF-On three-position function, which can realize stable dual-circuit switching. It is equipped with multiple sets of current and voltage specifications, covering common medium and high current AC circuits. The bakelite case features excellent heat resistance and insulation performance. All iron structural parts are treated with nickel or chrome plating to effectively prevent rust and abrasion. Copper alloy contacts with silver or gold plating options ensure low resistance and stable current transmission. The product has superior electrical insulation and high voltage resistance, and can work normally in a wide temperature range from -25℃ to +85℃. With 40000 mechanical cycles and 10000 electrical cycles, it has long service life. It has passed RoHS certification, complying with global environmental requirements. The heavy-duty structure has strong load-bearing capacity, solid workmanship and simple operation. It is a reliable switching component for industrial electromechanical equipment, power distribution systems and various commercial electrical appliances.

Applications

• Industrial electromechanical equipment and machine tool control panel switches
• Power distribution boxes and low-voltage distribution circuit control components
• Engineering machinery and heavy-duty equipment mode selection buttons
• Commercial electrical equipment and public power control switches
• Automation equipment and dual-circuit signal switching modules
• Electrical engineering assembly and DIY high-current circuit accessories

Max. Current：20A
Max. Voltage：250VAC
Model Number：KN3(B)-203AP
Mechanical Life：40000 cycles
Certification：RoHs
Rating：10A 125VAC, 6A 250VAC
15A 125VAC, 10A 250VAC
20A 125VAC, 15A 250VAC
Contact Resistance：50MΩ Max
Insulation Resistance：500VDC 1000MΩ Min
Dielectric Strength：1500VAC， 1 Minute
Operatiing Temperature：-25ºC~+85ºC
Electrical Life：10000 cycles
Circuit：DPDT
Switch function：ON-OFF-ON
Case：bakelite
Actuator：Iron, Nickel or chrome-plated
Bushing：Iron，nickel-plated
Housing：Iron，nickel-plated
Contact/Terminals：Copper Alloy, Silver or gold-plated
Product images

FAQ

1. What is the circuit type and switch function?
It is DPDT (Double Pole Double Throw) type with standard ON-OFF-ON three-position function.

2. What are the voltage and current ratings?
Max voltage 250VAC, max current 20A. Multiple options: 10A 125VAC/6A 250VAC; 15A 125VAC/10A 250VAC; 20A 125VAC/15A 250VAC.

3. Key electrical performance parameters?
Max contact resistance 50mΩ; insulation resistance ≥1000MΩ @500VDC; withstand 1500VAC for 1 minute.

4. What is the working temperature range?
The applicable temperature is -25℃ ~ +85℃.

5. Introduction to main materials?
Case: bakelite; actuator, bushing and housing: iron (nickel/chrome plated); contacts & terminals: copper alloy (silver/gold plated optional).

6. Service life parameters?
Mechanical life: 40000 cycles; Electrical life: 10000 cycles.

7. Does the product have environmental certification?
Yes, it has passed RoHS certification.

8. What are the core advantages of this switch?
Heavy-duty load capacity, excellent insulation & voltage resistance, wide temperature adaptability and durable plated structure.

9. Main application scenarios?
Widely used in industrial equipment, machinery, power distribution and marine electrical devices.

The post KN3 Series Heavy Duty Double Pole Double Throw Medium Toggle Switch Premium On-Off-On Product Category appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Heavy-duty SPST 2-pin on-off design, simple circuit control for single-path power switching
• Dual electrical ratings: 15A 250VAC & 20A 125VAC, strong load capacity for high-current circuits
• Premium housing material: Bakelite + PA66 composite, high temperature resistant, flame retardant & anti-deformation
• Silver-plated metal bat handle, wear-resistant, anti-oxidation and comfortable operation feel
• Low contact resistance (below 50mΩ), stable current transmission without voltage drop
• Excellent insulation performance: 500VDC insulation level, guarantee circuit safety
• Long service life: 40,000 mechanical cycles, 10,000 electrical cycles for frequent use
• Fully RoHS compliant, meets EU environmental standards for global export markets
• Compact standard structure, easy installation on control panels and equipment housings
• Pure mechanical structure, no electronic components, low failure rate & easy maintenance
• Wide temperature adaptability, suitable for indoor and conventional workshop environments
• Universal design for industrial machinery, commercial appliances and power distribution units

Technical Specifications

Product Attributes

• Circuit: SPST Single Pole Single Throw
• Pins: 2 Pins, ON/OFF Function
• Electrical Rating: 15A 250VAC / 20A 125VAC
• Handle: Silver-plated Metal Bat
• Housing: Bakelite + PA66 High Temp Material
• Contact Resistance: ＜ 50mΩ
• Insulation: 500VDC
• Service Life: Mechanical 40000 Cycles | Electrical 10000 Cycles
• Compliance: RoHS Standard (EU Environmental Directive)
• Structure: Pure Mechanical, Non-smart

Product Advantages

This heavy-duty SPST rocker toggle switch is engineered for high-current industrial and commercial applications. Adopting bakelite and PA66 composite housing, it features outstanding high temperature resistance and flame retardancy, which can withstand harsh working environments. The silver-plated metal bat handle is anti-oxidation and wear-resistant, ensuring stable operation after long-term use. With two universal AC ratings (15A 250V & 20A 125V), it covers most mainstream low and medium voltage circuits worldwide. The ultra-low contact resistance ensures stable power transmission, and 500VDC insulation performance fully guarantees electrical safety. The product complies with EU RoHS environmental regulations, restricting harmful substances, so it can be freely exported to EU, North America, Southeast Asia and other regions. Featuring long mechanical and electrical lifespan, simple mechanical structure and low maintenance cost, it is a cost-effective universal switching component for global equipment manufacturers and distributors.

Applications

• Global industrial machinery & production line power on/off control switches
• Commercial electrical appliances and large household equipment power components
• Automotive vehicles, engineering machinery and mobile equipment circuit control
• Power distribution boxes, low-voltage distribution systems and auxiliary control units
• Export-oriented electronic devices compliant with EU & North American RoHS standards
• Workshop equipment, outdoor general machinery and DIY power control projects

Max. current：15 A
Max. voltage：250 VAC
Model number：KN3(D)-101
Mechanical life：40000cycles
Function： ON OFF
Product name：Toggle switch
Material：bakelite/PA66
knob：SLIVERING
Pins：2PINS
Insulation resistance：500VDC
Contact resistance：below 50
Electrical life：10000
Certification：RoHs

Product images

FAQ

1. What circuit and pin type is this rocker switch?
It is SPST (Single Pole Single Throw) type with 2 pins, standard ON-OFF on/off function.

2. What are the voltage and current ratings?
Two ratings: 15A 250VAC and 20A 125VAC, max voltage 250VAC, max current 20A.

3. What materials are used for the switch?
The housing is made of bakelite or PA66 high-temperature material; the handle is silver-plated metal bat.

4. Electrical performance parameters?
Contact resistance is below 50mΩ, insulation voltage reaches 500VDC.

5. Service life of the switch?
Mechanical life: 40000 cycles; Electrical life: 10000 cycles.

6. Does this product have environmental certification?
Yes, it is RoHS certified, compliant with global environmental standards.

7. Is this a smart switch?
No, it is a pure mechanical heavy-duty switch without smart modules.

8. What are the core advantages?
High load capacity, high temperature resistance, low resistance and long service life.

9. Where is this switch mainly used?
Widely used in industrial equipment, commercial machinery, outdoor appliances and automotive electrical systems worldwide.

The post Heavy Duty 15A 250V 20A 125V Rocker Toggle Switch SPST 2 Pin on off Metal Bat appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Classic On-On dual-position function, suitable for two-way circuit switching and signal selection
• Ultra-compact miniature design, perfect for space-limited equipment and narrow control panels
• Black durable knob with comfortable operation feel, long-term use without loosening
• Solder terminal design, easy for PCB soldering and manual wiring, high connection reliability
• Dual electrical ratings: 3A 125VAC and 1.5A 250VAC to meet diverse load demands
• UL94V-0 flame retardant PPA base, excellent fire resistance and insulation
• Premium material combination: brass handle & shaft sleeve with nickel/chrome plating
• Stainless steel shell + tin-plated brass bracket, anti-rust and anti-oxidation
• Copper alloy contact & terminal, optional silver/gold plating for better conductivity
• Ultra-low contact resistance (less than 20mΩ) for stable current transmission
• Superior insulation: ≥1000MΩ @ 500VDC, ensures circuit safety
• High dielectric strength, withstand 1000VAC for 1 minute without breakdown
• Long mechanical life over 40000 cycles, durable for frequent operation
• Compact structure, low failure rate and easy maintenance for global use

Full Technical Specifications

Product Attributes

• Operation Mode: On-On Two-position Toggle
• Installation: Solder Terminal (PCB Compatible)
• Appearance: Mini Size + Black Knob
• Electrical Rating: 3A 125VAC / 1.5A 250VAC
• Flame Grade: UL94V-0
• Contact Resistance: ＜20mΩ
• Insulation Performance: ≥1000MΩ (500VDC)
• Dielectric Strength: 1000VAC / 1min
• Main Materials: PPA, Brass, Stainless Steel, Copper Alloy
• Service Life: Over 40000 Mechanical Cycles

Application Scenarios

This miniature toggle switch is widely exported to Europe, North America, Southeast Asia and other regions, suitable for various compact electronic products and circuit systems.

• PCB circuit boards and modular miniature electronic control units
• Portable electronic devices and handheld consumer electronics
• Laboratory testing instruments and measuring equipment control parts
• Smart home small appliances and intelligent terminal switches
• Audio equipment, signal channel selection and circuit switching components
• Electronic DIY projects and customized compact circuit modules

Product images

FAQ

1. What is the function and terminal type of this toggle switch?
It is an On-On two-position miniature toggle switch, equipped with standard solder terminals for soldering installation.

2. What are the rated current and voltage parameters?
Two specifications: 3A 125VAC and 1.5A 250VAC; maximum current 3A, maximum voltage 125VAC.

3. What materials are used for each component?
Pedestal: UL94V-0 PPA; handle & shaft sleeve: brass (nickel/chrome plated); shell: stainless steel; bracket: tin-plated brass; contact: copper alloy (silver/gold plated optional).

4. What are the core electrical performance indicators?
Contact resistance < 20mΩ; insulation resistance ≥1000MΩ under 500VDC; withstand 1000VAC for 1 minute.

5. How long is the mechanical service life?
The mechanical life reaches more than 40000 cycles for long-term frequent use.

6. What are the advantages of the PPA pedestal?
The PPA material meets UL94V-0 flame retardant standard, with excellent insulation and high temperature resistance.

7. Is this switch suitable for PCB boards?
Yes, the solder terminal design is specially optimized for PCB soldering assembly.

8. What is the feature of the knob?
It adopts durable black knob, with stable operation and good hand feel.

9. What main equipment is this switch used for?
Mainly used for PCB boards, portable electronics, testing instruments, smart home devices and DIY electronic modules worldwide.

The post on on Black Knob Solder Terminal Miniature Toggle Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Aircraft-grade industrial design, metal full housing, excellent vibration resistance for vehicle and marine environments
• 2-position DPDT (Double Pole Double Throw) contact structure, supports multiple switch functions
• Red & blue dual-color safety cover, effectively prevent accidental operation and improve safety
• Built-in red indicator light, clear visual display of working status at a glance
• Multiple functional modes: ON/ON, ON/Off/ON, ON/Off to meet diverse circuit demands
• 3-pin terminal design, standard wiring, convenient assembly and circuit connection
• Max rating: 20A current & 250VAC voltage, strong load capacity for industrial circuits
• IP11 protection grade, basic dustproof performance for daily industrial use
• Long mechanical life up to 40000 cycles, stable performance after frequent operation
• Full metal construction, sturdy structure, wear-resistant and long service life
• Professional for 12V-48V automotive and aviation electrical systems
• Support OEM customization on contact terminals and LED light colors
• Wide application for car control panels, marine equipment and industrial machinery worldwide

Full Technical Specifications

Product Attributes

• Structure: 2 Position, DPDT Double Pole Double Throw
• Pins: 3 Pins
• Working Modes: Multiple ON-OFF combinations
• Rating: 20A / 250VAC
• Applicable Voltage: 12V ~ 48V
• Protection: IP11 Dustproof
• Feature: Vibration Resistant, Anti-misoperation Safety Cover
• Light: Red Indicator LED
• Housing: Full Metal
• Service Life: 40000 Mechanical Cycles
• Custom: OEM Available

Application Scenarios

This aircraft-style DPDT toggle switch is exported to Europe, North America, Southeast Asia and other global regions, specially designed for vehicles, ships and heavy industrial equipment with anti-vibration and safety requirements.

• Automotive interior control panels and vehicle electrical function switches
• Marine vessels, yachts and other marine equipment control components
• Aviation equipment and aerospace auxiliary circuit control switches
• Heavy-duty industrial machinery and vibration workshop control buttons
• 12V-48V low-voltage electrical systems and power distribution modules
• Modified vehicles, engineering vehicles and special purpose equipment switches

Product images

FAQ

1. What is the contact type and position of this toggle switch?
It adopts DPDT (Double Pole Double Throw) contact type with 2 working positions.

2. How many pins and what working modes does it support?
It is 3-pin design, and supports three functions: ON/ON, ON/Off/ON and ON/Off.

3. What are the electrical rating parameters?
Maximum current 20A, maximum voltage 250VAC, suitable for 12V-48V automotive and aviation systems.

4. What about protection and vibration resistance?
The protection grade is IP11 with basic dustproof function, and the whole switch is vibration resistant.

5. What are the features of the safety cover and indicator light?
Equipped with red & blue dual-color safety cover to prevent misoperation, and built-in red indicator light for status display.

6. What material is the switch made of?
The whole body is made of high-strength metal material, sturdy and durable.

7. What is the mechanical service life?
The mechanical life reaches 40000 cycles for long-term frequent use.

8. Does it support customization service?
Yes, OEM customization is available for contact terminals and LED light colors.

9. What main equipment and regions is it suitable for?
Mainly used for cars, marine equipment, aviation devices and industrial machinery, sold globally.

The post Aircraft Toggle Switch with Red & Blue Safety Cover 2 Position Metal Dpdt Contact RED LIGHT for Car appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• M12*0.75 standard threaded design, matched with dedicated knob and bushing for standard panel installation
• High-quality brass handle, excellent corrosion resistance, long service life in harsh industrial environments
• Classic ON-OFF-ON three-position function, realizes flexible circuit switching and mode selection
• Red PPA main body material, sturdy structure and good insulation performance
• Solder terminal design, simple wiring, stable connection for PCB and conventional circuits
• Dual electrical ratings: 5A 125VAC and 2A 250VAC to meet different load requirements
• Long mechanical life up to 40000 cycles, stable operation after frequent use
• Pure mechanical structure without smart module, low failure rate and easy maintenance
• Precise manufacturing, comfortable hand feel and accurate gear positioning
• Compact overall structure, saves installation space for control panels and equipment housings
• Wide compatibility, suitable for various industrial and civil electronic equipment worldwide

Full Technical Specifications

Product Attributes

• Thread Size: M12*0.75
• Configuration: Equipped with Knob and Bushing
• Operation Mode: ON-OFF-ON Three Position
• Handle: Corrosion Resistant Brass
• Body Material: PPA (Red)
• Terminal: Solder Terminal
• Electrical Rating: 5A 125VAC / 2A 250VAC
• Mechanical Life: 40000 Cycles
• Structure: Pure Mechanical (Non-smart)
• Core Strength: Corrosion Resistance, Easy Installation

Application Scenarios

This M12*0.75 brass toggle switch is sold and used in Europe, North America, Southeast Asia and other global regions, reliable for conventional circuit switching tasks.

• Industrial control panels and mechanical equipment mode selection switches
• General household and commercial electrical appliance control components
• Laboratory testing instruments and measuring device circuit switches
• Electromechanical equipment and automation auxiliary control parts
• PCB circuit modules and wired electronic device terminals
• Electronic DIY projects and customized low-voltage control circuits

Max. Current: 5A
Max. Voltage: 125VAC
Whether the smart: NO
Mechanical Life: 40000Cycles
Function: on off on
Terminal: solder Terminal
Material: PPA
Color: RED
Rating Current: 5A 125VAC 2A 250VAC

Product images

FAQ

1. What is the thread size and matching parts of this toggle switch?
The thread specification is M12*0.75, and it is equipped with supporting knob and bushing for installation.

2. What is the switch function?
It adopts classic ON-OFF-ON three-position working mode for circuit switching.

3. What are the material and color of the switch?
The handle is made of corrosion-resistant brass; the main body is red PPA material.

4. What kind of terminal does it use?
It is designed with solder terminal, convenient for wiring and PCB soldering.

5. What are the voltage and current parameters?
Two ratings: 5A 125VAC and 2A 250VAC, max current 5A, max voltage 250VAC.

6. How long is the mechanical service life?
The mechanical life reaches 40000 cycles for long-term frequent operation.

7. Does this switch have smart functions?
No, it is a pure mechanical toggle switch without smart modules.

8. What is the advantage of the brass handle?
Brass material has excellent anti-corrosion performance, suitable for harsh industrial environments.

9. What main equipment is this switch suitable for?
Widely used in industrial equipment, general electrical appliances, instruments and electromechanical devices worldwide.

The post M12*0.75 Brass Handle Toggle Switch ON/OFF (ON) Knob and Bushing appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Ultra-compact sub-miniature design, perfectly fit narrow installation spaces and mini equipment housings
• Standard 3-pin layout with ON-ON dual-position function for bidirectional circuit control
• Compatible with both DC and AC low-current systems, wide circuit adaptability
• High-quality PPA material for the main body, excellent insulation and wear resistance
• Dual electrical ratings: 3A 125VAC and 1.5A 250VAC to meet diverse load demands
• Long mechanical life up to 40000 cycles, durable for frequent daily operation
• Pure mechanical structure without smart components, low failure rate and easy maintenance
• Simple internal structure, stable switching performance and comfortable operation feel
• Standard pin spacing, convenient for manual wiring and PCB assembly
• Lightweight & compact, ideal for mass production and mini electronic products
• Cost-effective design, widely exported and applied in global electronic industries

Full Technical Specifications

Product Attributes

• Type: Sub-miniature Toggle Switch
• Pins: 3 Pins
• Operation Mode: ON-ON Two Position
• Body Material: PPA
• Electrical Rating: 3A 125VAC / 1.5A 250VAC
• Max Load: 3A, 125VAC
• Mechanical Lifespan: 40000 Cycles
• Structure: Pure Mechanical (Non-smart)
• Core Advantage: Compact Size, Stable Performance

Application Scenarios

This sub-miniature toggle switch is popular in Europe, North America, Southeast Asia and other global markets, specially designed for various compact low-current electronic products.

• Ultra-narrow PCB circuit boards and miniature modular electronic components
• Portable consumer electronics and handheld small electrical devices
• Laboratory testing instruments, meters and miniature measuring equipment
• Small smart home appliances and compact intelligent terminals
• Audio equipment, signal channel selection and low-power circuit switches
• Electronic DIY projects and customized mini control modules

Product images

FAQ

1. What is the function and pin count of this toggle switch?
It is an ON-ON two-position toggle switch with 3 standard pins.

2. What are the rated current and voltage parameters?
Two specifications: 3A 125VAC and 1.5A 250VAC; maximum current 3A, maximum voltage 125VAC.

3. What material is the switch body made of?
The main body adopts high-quality PPA material with good insulation and durability.

4. What kind of circuit systems is it suitable for?
It is designed for low-current DC and AC circuit systems.

5. How long is the mechanical service life?
The mechanical life reaches 40000 cycles for long-term frequent use.

6. Does this switch have smart functions?
No, it is a pure mechanical switch without any smart modules.

7. What is the biggest feature of this product?
Ultra-small sub-miniature size, ideal for devices with limited installation space.

8. Is it easy to install and wire?
Yes, standard 3-pin design supports conventional wiring and PCB soldering.

9. What main products can this switch be used for?
Widely used for mini electronics, PCB boards, portable devices and testing instruments worldwide.

The post Sub-miniature Toggle Switches ON-ON 3 Pins appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 102 series SPDT (Single Pole Double Throw) circuit design, professional for power switching and circuit conversion
• Built-in reliable locking mechanism, effectively prevent accidental operation in high-vibration environments
• Dual electrical ratings: 20A 125VAC and 15A 250VAC, strong load capacity for AC power circuits
• Max current 20A and max voltage 250VAC, suitable for medium and high current power control systems
• Excellent anti-vibration performance, stable operation for mechanical equipment with severe vibration
• Integrated sturdy structure, durable body for long-term continuous use
• Pure mechanical locking structure, no smart modules, low failure rate and easy maintenance
• Standard industrial design, easy panel mounting and wiring
• Uniform specifications of the 102 series, good compatibility for batch equipment assembly
• Cost-effective industrial grade component, widely exported to global industrial markets

Full Technical Specifications

Product Attributes

• Series: 102 Series Industrial Toggle Switch
• Circuit: SPDT (Single Pole Double Throw)
• Structure: Locking Type (Anti-misoperation)
• Anti-feature: High Vibration Resistant
• Electrical Rating: 20A 125VAC / 15A 250VAC
• Max Load: 20A, 250VAC
• Structure Type: Pure Mechanical (Non-smart)
• Core Advantage: Locking & Anti-vibration, High Load

Product Advantages

This 102 series SPDT locking toggle switch adopts professional single pole double throw circuit, which is specially used for AC power switching and circuit conversion. The built-in locking structure can avoid misoperation caused by vibration, which greatly improves the safety of equipment operation. With two sets of high-current specifications up to 20A 125VAC and 15A 250VAC, it can bear medium and high power loads stably. The whole switch is made of solid materials with outstanding anti-vibration ability, adapting to harsh working conditions of vibrating machinery. It adopts pure mechanical design without complex electronic components, so the failure rate is low and daily maintenance is simple. As a standard product of 102 series, it has strong universality and is convenient for mass production and equipment matching. It is a reliable power control accessory widely used in global industrial fields.

Application Scenarios

This SPDT locking toggle switch is sold and applied in Europe, North America, Southeast Asia and other global regions, focusing on equipment with vibration and anti-misoperation requirements.

• Industrial machinery and production line equipment power switching switches
• Vibration-type mechanical devices and engineering equipment control components
• AC power distribution boxes and low-voltage power control panels
• Factory workshop electromechanical equipment and heavy-duty electrical appliances
• Mobile industrial devices and field operation electrical control units
• General industrial automation equipment and circuit conversion modules

FAQ

1. What circuit type and series does this toggle switch belong to?
It is SPDT (Single Pole Double Throw) locking toggle switch, belonging to the 102 series.

2. What are the rated current and voltage parameters?
Two specifications: 20A 125VAC and 15A 250VAC; maximum current 20A, maximum voltage 250VAC.

3. What is the biggest feature of this switch?
It is equipped with a locking mechanism, which can prevent accidental operation, and has excellent anti-vibration performance.

4. What working environment is it suitable for?
It is specially designed for high-vibration working environments such as industrial machinery.

5. Does this switch have smart functions?
No, it is a pure mechanical locking switch without any smart modules.

6. What is the main function of the locking structure?
The locking mechanism fixes the gear position to avoid misoperation caused by vibration or external touch.

7. What kind of circuits is it suitable for?
It is mainly used for AC power circuits and medium-high current power switching systems.

8. Is it convenient for installation and matching?
It is a standard 102 series product, with high universality, easy installation and batch matching.

9. What main equipment is this switch applied to?
Widely used in industrial machinery, vibrating equipment, power distribution devices and electromechanical products worldwide.

The post Single Pole Double Throw LOCK Toggle Switches 20A 125VAC 15A 250VAC 102 Series appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
