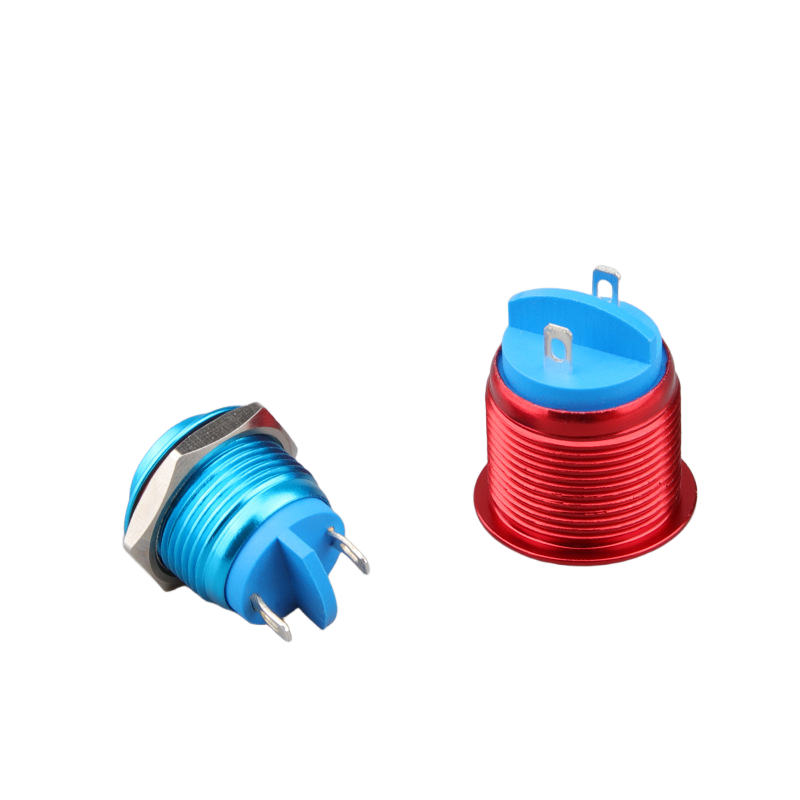

• Three standard sizes: 16mm, 19mm, 22mm
• IP65 / IP67 waterproof & dustproof protection
• Screw terminal & pin terminal for flexible installation
• Momentary operation type
• Red, green, blue LED illuminated options
• High-quality metal housing for durability
• NO (Normally Open) contact configuration
• Gold/silver plated contacts for stable conductivity

Technical Specifications

Product Advantages

This 16/19/22mm waterproof metal push button switch is designed for reliable use in industrial environments. It provides IP65/IP67 waterproof and dustproof protection, suitable for humid, wet and outdoor equipment. The screw and pin terminal design makes installation fast and flexible. With gold/silver plated contacts and metal housing, it ensures long mechanical life and stable electrical performance. Ideal for control panels, automation machines, automotive and electronic equipment.

Applications

• Industrial control panels & cabinets
• Automation machinery & equipment
• Automotive & vehicle control systems
• Marine & outdoor electronic devices
• Household appliances & instrument panels
• Wet & harsh environment equipment

FAQ

1. What sizes does this push button support?
It supports 22mm and 25mm standard mounting sizes.

2. Is this switch waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

4. What contact configuration does it use?
It uses 1NO + 1NC double contact structure.

5. Is it pre-wired for easy installation?
Yes, pre-wired design supports direct plug-and-play installation.

The post 16/19/22mm Waterproof Metal Push Button Switch Screw/Pin Terminal Momentary Red/Green/Blue Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Three standard sizes: 16mm, 19mm, 22mm
• Large mushroom head for easy emergency operation
• IP65 / IP67 waterproof & dustproof protection
• Momentary (self-reset) operation type
• Red and green button color options
• Pin terminal & screw terminal for flexible installation
• High-quality metal housing for durability
• Silver-plated contacts for stable conductivity
• NO (Normally Open) contact configuration

Technical Specifications

Product Advantages

This 16/19/22mm waterproof mushroom head metal push button switch is designed for easy operation and emergency control. The large mushroom head allows quick pressing even with gloves. IP65/IP67 waterproof and dustproof rating ensures reliable performance in harsh industrial environments. It supports both pin and screw terminals for flexible installation. With sturdy metal construction and silver-plated contacts, it provides long service life and stable electrical performance for machinery control panels and emergency stop systems.

Applications

• Industrial machinery & equipment control panels
• Emergency operation & quick stop systems
• Automation production lines
• Marine & outdoor electronic devices
• Automotive & vehicle control systems
• Heavy-duty & harsh environment equipment

FAQ

1. What sizes are available for this mushroom head switch?
It supports 16mm, 19mm and 22mm standard mounting sizes.

2. Is this switch waterproof?
Yes, it has IP65 / IP67 waterproof and dustproof protection.

3. What operation type does it use?
It uses momentary (self-reset) operation mode.

4. What terminal types are available?
Both pin terminal and screw terminal are available for flexible installation.

5. What colors are available?
Red and green button color options are supported.

The post 16/19/22mm Waterproof Mushroom Head Metal Push Button Switch Momentary Red/Green Button Pin/Screw Terminal appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

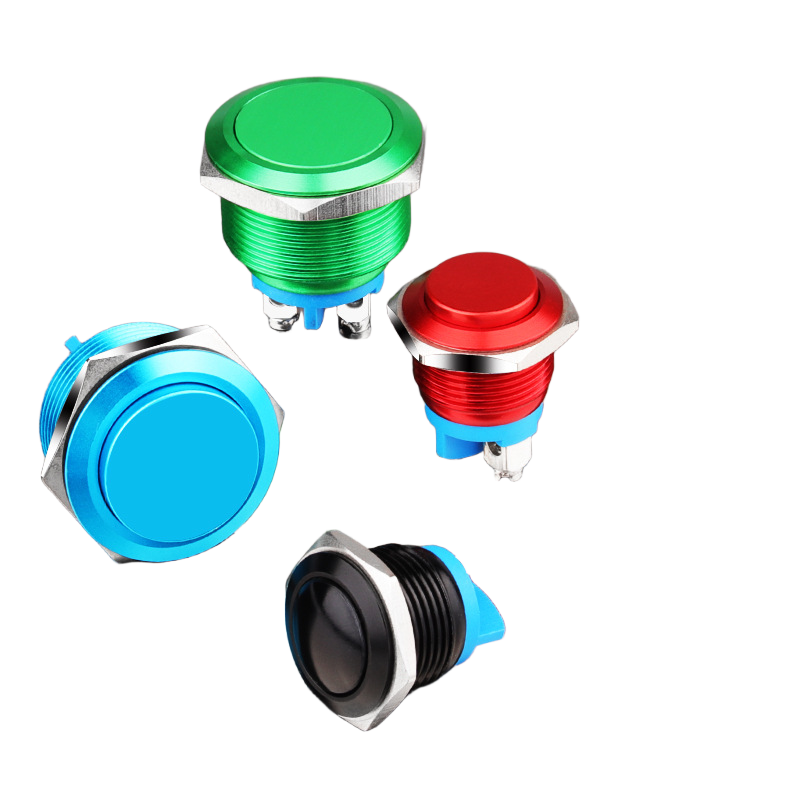

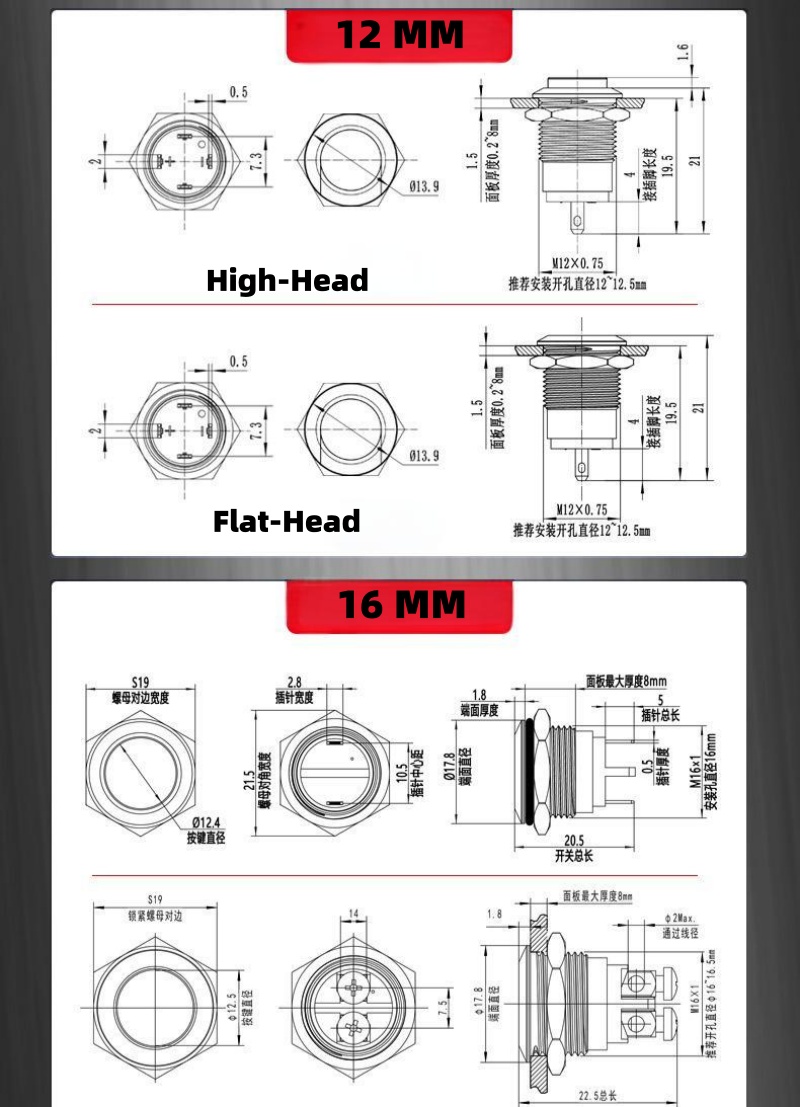

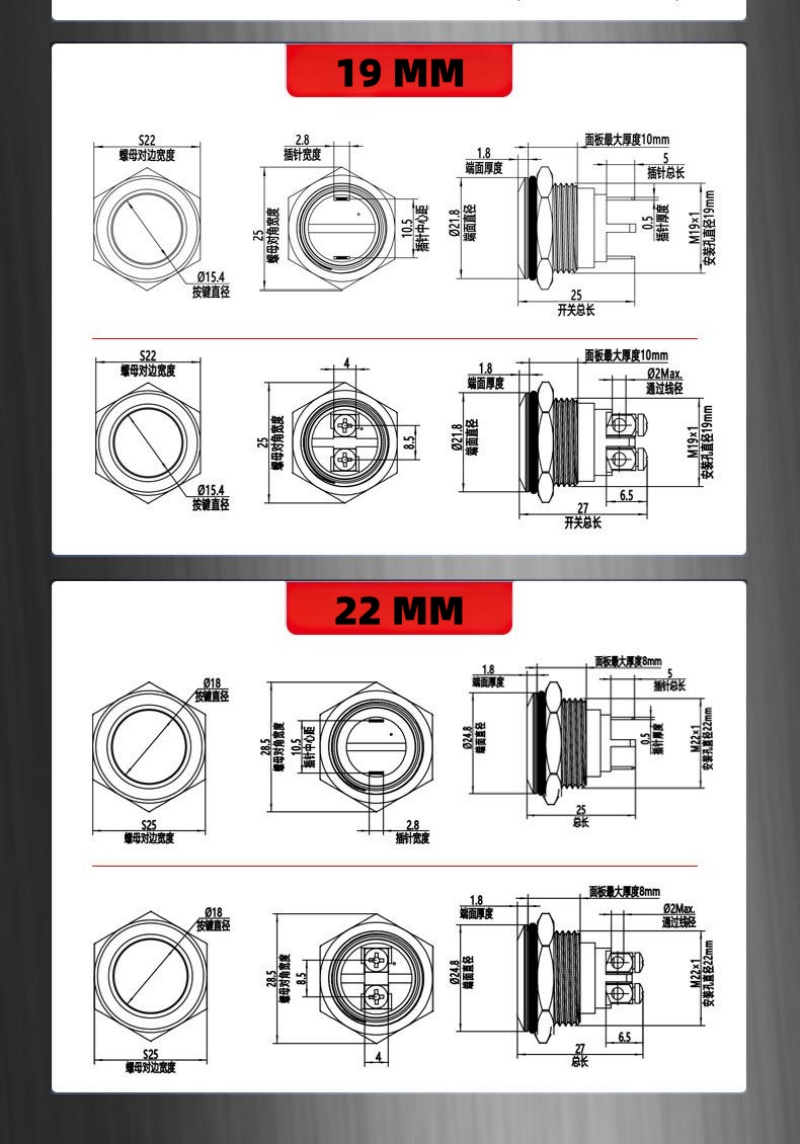

• Four sizes: 12mm, 16mm, 19mm, 22mm
• IP67 waterproof & dustproof protection
• Screw terminal for secure & easy wiring
• Three head types: High Round / Flat / Ball (Domed)
• Non-illuminated stable design
• Momentary (self-reset) operation
• NO (Normally Open) contact
• Silver-plated contacts for reliable conductivity
• Metal bezel & nickel plated brass housing
• Plug-in & screw connection optional

Technical Specifications

Product Advantages

This 12/16/19/22mm waterproof metal push button switch is designed for reliable industrial and outdoor use. IP67 waterproof rating ensures stable performance in humid, wet and dusty environments. Screw terminal provides firm wiring and easy installation. It offers three head styles (high round, flat, ball) to fit different panel designs. Non-illuminated structure reduces failure rate and extends service life. Momentary operation and silver-plated contacts ensure stable switching and long mechanical life.

Applications

• Industrial control panels & machinery
• Marine, boat & outdoor equipment
• Automotive & vehicle modification
• Waterproof power & signal control
• Equipment start/stop & operation systems
• Replacement for various panel switches

FAQ

1. What sizes are available?
12mm, 16mm, 19mm and 22mm standard mounting sizes.

2. Is this switch IP67 waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. What connection type does it use?
It uses screw terminal for secure and easy wiring.

4. What head types are optional?
High round, flat and ball (domed) head are available.

5. Is this switch illuminated?
No, it is non-illuminated type for stable and long-life use.

The post 12/16/19/22mm Waterproof Metal Push Button Switch Screw Terminal High/Flat/Ball Head Non-Illuminated Momentary appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 22mm standard mounting hole size
• 20A ultra high current for heavy-duty power control
• Black oxidized metal housing, anti-corrosion & durable
• IP67 waterproof & dustproof protection
• Maintained (latching) & momentary operation optional
• Ring / Ring+Power LED illuminated indication
• Multiple LED colors: Red, Blue, Orange, White, Yellow
• Flat & high round head styles optional
• 2NO double contact for safer & stable control
• Silver-plated pins for excellent conductivity

Technical Specifications

Body ColorBlack Oxide

Product Advantages

This 22mm 20A high current black metal push button switch is designed for heavy-duty power control and industrial equipment. It supports 20A large current to drive high-power devices safely. IP67 waterproof rating ensures stable performance in wet, outdoor and harsh environments. Black oxide surface provides excellent corrosion resistance and stylish appearance. Ring LED offers clear status indication. 2NO double contact structure improves safety and reliability. It supports both maintained and momentary modes for versatile use.

Applications

• Heavy-duty power start/stop systems
• Industrial machinery & high-current equipment
• Automotive, marine & outdoor control panels
• Generator, inverter & power distribution
• Black style industrial & custom equipment
• Vehicle modification & engineering devices

FAQ

1. What is the rated current?
It supports 20A high current for heavy-duty power control.

2. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary are optional.

4. What contact configuration does it use?
It uses 2NO double normally open contacts.

5. Is this switch illuminated?
Yes, it has ring LED for clear status indication.

The post 22mm Metal Push Button Switch 20A High Current Maintained/Momentary Waterproof Illuminated Power Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 16mm mounting diameter for panel installation
• Classic red mushroom head design for obvious emergency recognition
• IP67 high-level waterproof and dustproof protection for harsh environments
• Illuminated dot lamp type with multiple LED color options
• Optional LED color: Blue, Green, Red, White, Yellow
• Fixed 1NO+1NC contact configuration for universal safety circuit
• Full plastic bezel, head and shell material, lightweight and cost-effective
• Plug-in connection design for fast and convenient wiring
• Silver contact and silver PIN material for stable conduction
• Integrated waterproof structure prevents water and dust intrusion
• Wide application for civil, medical, marine, automotive and industrial devices

Technical Specifications

Product Attributes

• Bezel: Plastic
• Shell Material: Plastic
• Head Material: Plastic
• Head Type: Mushroom
• Head Color: Red
• Lamp: Illuminated
• Lamp Type: Dot
• LED Color: Blue, Green, Red, White, Yellow
• Contact Material: Silver
• PIN Material: Silver
• Operation of Contact: 1NO+1NC
• Mounting diameter: 16mm
• Connection: Plug in

Product Advantages

This 16mm plastic illuminated mushroom head emergency stop button adopts IP67 waterproof structure and full plastic body. Built-in dot style LED supports multiple color options to indicate working status clearly. Standard 1NO1NC contact meets most safety control circuit requirements. Plug-in wiring is easy to install and replace. Silver contact and pin ensure stable electrical performance. IP67 dustproof and waterproof design adapts to wet, dusty and semi-outdoor environments, ideal for elevators, medical equipment, marine facilities, automotive devices, home appliances and PC modding safety emergency stop control.

Applications

• 16mm panel IP67 illuminated mushroom head emergency stop button
• Elevator and access control system safety emergency push button
• Medical facility and hospital equipment waterproof illuminated E-stop switch
• Marine and boat wet environment dustproof emergency control button
• Automotive, home appliance and PC modding customized LED stop switch

FAQ

1. What is the mounting size?
Standard 16mm mounting diameter, suitable for 16mm reserved panel holes.

2. What is the waterproof grade?
IP67 professional waterproof and dustproof level, suitable for wet and dusty occasions.

3. Does it have LED light?
Yes, it is illuminated type with dot lamp design.

4. What LED colors are available?
Blue, Green, Red, White and Yellow optional.

5. What is the contact configuration?
Fixed 1NO+1NC contact combination for general safety circuits.

6. Wiring method?
Plug-in connection design, easy and fast wiring installation.

7. What scenarios is it suitable for?
Widely used in elevators, access control, medical equipment, marine, automotive, home appliances and PC modding.

The post 16mm Plastic Illuminated Emergency Stop Push Button IP67 1NO1NC appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 16mm mounting diameter for standard panel hole installation
• Classic red mushroom head design, eye-catching for emergency operation
• IP67 high waterproof and dustproof grade for harsh wet and dusty environments
• Non-illuminated mechanical type, simple structure and stable performance
• Dual operation type: Momentary self-resetting and Maintained latching optional
• Standard 1NO+1NC contact configuration for most safety control circuits
• High-quality gold contact material for good conductivity and oxidation resistance
• Silver PIN terminal, reliable plug-in connection and long service life
• Rated 5A current, wide voltage range 1.5V~250V AC/DC universal
• Full plastic bezel, head and shell, lightweight, cost-effective and corrosion-resistant
• Plug-in wiring method, easy installation, replacement and maintenance
• Professional IP67 sealed structure prevents dust and water intrusion

Technical Specifications

Product Attributes

• Bezel: Plastic
• Shell Material: Plastic
• Head Material: Plastic
• Head Type: Mushroom
• Head Color: Red
• Lamp: Non-Illuminated
• Contact Material: Gold
• PIN Material: Silver
• Operation of Contact: 1NO+1NC
• Operation type: Momentary, Maintained
• Mounting diameter: 16mm
• Connection: Plug in
• Rated Current & Voltage: 5A, 1.5V~250V AC/DC

Product Advantages

This 16mm IP67 non-illuminated mushroom head emergency stop switch adopts full plastic lightweight structure and IP67 sealed waterproof design. It supports momentary and maintained dual working modes, with standard 1NO1NC contact matching most industrial and civil safety circuits. Gold contact brings excellent conductivity and anti-oxidation ability, silver pin ensures stable plug-in connection. Wide 1.5V~250V AC/DC voltage and 5A current rating adapt to most power systems. Cost-effective, dustproof and waterproof, perfectly suitable for marine, medical, new energy and access control equipment emergency safety cutoff.

Applications

• 16mm panel IP67 plastic mushroom head waterproof emergency stop button
• Marine and boat wet environment dustproof non-illuminated safety switch
• Medical facility and hospital equipment mechanical emergency stop control
• New energy equipment and automation system 1NO1NC protection button
• Access control cabinet and intelligent equipment IP67 emergency shutdown switch

FAQ

1. What is the mounting size?
Standard 16mm mounting diameter, fits 16mm reserved panel mounting holes.

2. What is the waterproof level?
IP67 professional dustproof and waterproof rating, suitable for humid, dusty indoor and light outdoor environments.

3. Does it support two working modes?
Yes, both momentary self-resetting and maintained latching types are available.

4. What is the contact specification?
Adopts standard 1NO+1NC contact configuration for universal safety circuits.

5. What are the electrical parameters?
Rated current 5A, wide voltage 1.5V~250V compatible with AC and DC.

6. What material are the contacts and pins?
Contact is gold material, PIN terminal is silver material, anti-oxidation and stable conduction.

7. What application scenarios is it suitable for?
Widely used in marine, medical equipment, new energy devices and access control system safety emergency stop.

The post Plastic Material Emergency Stop Switch Button 16mm Mushroom Head IP67 Waterproof Emergency Stop 1NO1NC appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Three universal mounting sizes: 16mm / 19mm / 22mm for wide panel matching
• Classic red mushroom head design, instantly recognizable for emergency operation
• Full metal bezel and premium brass shell, waterproof, pressure and corrosion resistant
• Maintained latching operation type, stable power cutoff for long safety protection
• Non-illuminated mechanical structure, no light failure risk, high stability
• Multiple contact combinations: 1NO+1NC , 2NO+2NC for different circuit designs
• Plug-in connection method, fast wiring, easy installation and replacement
• Gold PIN material, good conductivity, anti-oxidation and long service life
• Low contact resistance ≤50MΩ, stable and sensitive electrical performance
• Rated 5A current, wide voltage 1.5V~250V compatible with AC/DC systems
• Integrated waterproof metal casing adapts to indoor workshop and outdoor conditions
• High durability mechanical structure for frequent industrial safety operation

Technical Specifications

Product Attributes

• Bezel: Metal
• Shell Material: Brass
• Head Type: Mushroom
• Head Color: Red
• Lamp: Non-Illuminated
• Operation of Contact: 1NO+1NC , 2NO+2NC
• Operation type: Maintained
• PIN Material: Gold
• Mounting diameter: 16mm, 19mm, 22mm
• Rated Current: 5A
• Rated Voltage: 1.5V~250V AC/DC
• Contact Resistance: ≤50MΩ
• Connection: Plug in

Product Advantages

This 16/19/22mm universal metal mushroom head emergency stop switch adopts durable brass waterproof shell and full metal bezel, with excellent pressure resistance, corrosion resistance and waterproof performance. It only supports maintained latching mode for stable emergency power cut-off. Multiple contact options of 1NO1NC and 2NO2NC meet various circuit requirements. Gold pin ensures anti-oxidation and stable connection, low contact resistance guarantees sensitive response. Wide 1.5V~250V AC/DC voltage and 5A current are compatible with most conventional control systems. Universal three-size design makes it widely adaptable to different panel equipment, ideal for machinery control, indoor workshop and outdoor safety applications.

Applications

• 16/19/22mm universal brass waterproof metal mushroom head emergency stop button
• Industrial mechanical equipment control panel maintained safety E-stop switch
• Outdoor automation and outdoor power equipment waterproof emergency cutoff button
• Dusty and humid workshop metal emergency switch with long-term latching protection
• Electrical cabinet, production line and general industrial equipment safety protection button

FAQ

1. What mounting sizes does it support?
It supports three common mounting diameters: 16mm, 19mm and 22mm for universal panel installation.

2. What is the operation mode?
Only maintained latching type, it stays off manually until reset, suitable for formal safety protection.

3. Is this switch waterproof?
Yes, it adopts waterproof metal brass housing, suitable for humid workshop and outdoor use.

4. What contact configurations are available?
1NO+1NC and 2NO+2NC two contact combinations to match different control circuits.

5. What are the electrical parameters?
Rated 5A current, wide voltage 1.5V~250V compatible with AC and DC, contact resistance ≤50MΩ.

6. What material is the shell and pin?
Shell is made of brass, pin is gold material, anti-rust, anti-oxidation and durable.

7. Where is this product commonly used?
Mainly used for machinery control, industrial equipment, production lines and outdoor waterproof safety emergency stop scenarios.

The post 16 19 22mm Metal Emergency Stop Switch Buttons Mushroom Waterproof Metal Material Maintained appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 16mm standard mounting hole size
• IP67 high-grade waterproof & dustproof protection
• LED illuminated & non-illuminated versions optional
• 2NO + 2NC dual control & dual channel design
• Multiple LED colors: Red, Green, Blue, White, Yellow
• Ring / Ring + Power LED light type
• Flat head for standard panel installation
• Silver-plated pins for stable conductivity
• High-quality brass & metal housing

Technical Specifications

Product Advantages

This 16mm IP67 waterproof metal push button switch is designed for dual-circuit control systems. It provides IP67 high-level waterproof and dustproof protection, suitable for long-term use in humid, outdoor and harsh environments. 2NO+2NC dual control structure realizes independent dual-channel switching. LED illuminated version offers clear status indication with multiple color options. Silver-plated pins ensure efficient conductivity and stable electrical performance. The sturdy metal structure provides long service life for industrial automation and dual-control equipment.

Applications

• Industrial dual-circuit control panels
• Automation equipment & machinery
• Marine & outdoor electronic devices
• Dual-channel power & signal control systems
• Automotive & vehicle modification control
• Security & intelligent control equipment

FAQ

1. What is the mounting size?
Standard 16mm mounting hole size.

2. Is this switch IP67 waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. What contact configuration does it use?
It uses 2NO + 2NC dual control dual channel structure.

4. Does it support LED illumination?
Yes, LED illuminated and non-illuminated versions are optional.

5. What is the pin material?
It uses silver-plated pins for excellent conductivity.

The post 16mm Metal Push-button Switch with LED, IP67 Waterproof and Dustproof Function, 2NO2NC Dual Control and Dual Channels appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 12mm standard mounting hole size
• Oxidized black metal housing for anti-corrosion
• Non-illuminated (no light) design
• IP65 / IP67 waterproof & dustproof protection
• Maintained (self-locking) & momentary (self-resetting) optional
• 3A high current capacity
• Flat & high round head styles optional
• Gold-plated pins for stable conductivity
• NO (Normally Open) contact configuration

Technical Specifications

Product Advantages

This 12mm oxidized black metal push button switch provides stable and reliable performance for small control equipment. Non-illuminated design ensures lower failure rate and longer service life. IP65/IP67 waterproof rating adapts to humid and outdoor environments. It supports both maintained (self-locking) and momentary (self-resetting) modes to meet different control needs. Gold-plated pins and sturdy metal structure ensure stable conductivity and long mechanical life.

Applications

• Small control panels & electronic devices
• Industrial control & automation equipment
• Automotive & vehicle interior buttons
• Outdoor & damp environment small devices
• DIY electronics & instrument panels
• Household appliances & small machinery

FAQ

1. What is the mounting size?
Standard 12mm mounting hole size.

2. Is this switch illuminated?
No, it is non-illuminated (no light) type.

3. Is it waterproof?
Yes, it supports IP65 / IP67 waterproof and dustproof protection.

4. Does it support maintained and momentary modes?
Yes, both self-locking (maintained) and self-resetting (momentary) are optional.

5. What is the current rating?
It supports 3A high current capacity.

The post 12mm Metal Push-button Switch No light Oxidized Black Self-locking Self-resetting, Waterproof with 3A High Current Capacity appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 22mm standard mounting hole size
• 15A high current for heavy-duty power control
• IP67 waterproof & dustproof protection
• LED illuminated & non-illuminated versions optional
• Flat & high round head styles available
• Multiple LED colors: Red, Green, Blue, Yellow
• Large silver contacts for stable conductivity
• Gold-plated pins for low resistance & long life
• Sturdy metal housing: SUS304/316, aluminum oxide
• CE & ROHS certified quality

Product Advantages

This 22mm 15A high current metal push button switch is built for heavy-duty industrial power control. It supports 15A large current to drive high-power equipment safely. IP67 waterproof rating ensures stable performance in wet, outdoor and harsh environments. Large silver contacts and gold-plated pins provide excellent conductivity and long service life. LED illumination offers clear status indication. Multiple head styles and materials meet various installation needs.

Applications

• Industrial power start/stop control systems
• Heavy machinery & high-current equipment
• Automotive, marine & outdoor control panels
• Generator, inverter & power distribution devices
• CNC equipment & industrial automation systems
• Vehicle modification & engineering equipment

FAQ

1. What is the mounting size?
Standard 22mm mounting hole size.

2. What is the rated current?
15A high current for heavy-duty power control.

3. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.

4. Does it support LED and non-illuminated versions?
Yes, both illuminated and non-illuminated are optional.

5. What material are the contacts?
Large silver contacts for high conductivity and stability.

The post 22mm high current metal push button swith with LED appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
