The post Heavy Duty High Current 16mm/19mm/22mm Metal Push Button Switch – Screw Terminal Type for Machinery & Equipment appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 8mm standard panel mounting size
• IP65 waterproof and dustproof protection
• High-brightness LED, non-glare and clear signal
• Long lifespan up to 40,000 hours
• Multiple voltage options: 3-6V, 9-24V, 25-48V, 110-220V
• Five LED colors: Red, Green, Blue, White, Yellow
• Pin terminal design for easy wiring
• PA66 flame retardant base for safety
• Brass & stainless steel metal construction
• Flat head for standard panel installation

Technical Specifications

Product Advantages

This 8mm IP65 waterproof LED pilot indicator light provides stable and clear signal indication for various equipment. IP65 protection ensures reliable use in damp and dusty environments. High-brightness LED beads offer long service life up to 40,000 hours. It supports wide voltage range and multiple color options to meet different needs. Pin terminals enable quick and easy installation. The flame-retardant base and metal structure ensure safety and durability for industrial control panels and electrical equipment.

Applications

• Industrial control panels and machinery
• Electrical equipment and power cabinets
• Automotive and vehicle signal systems
• Marine and outdoor electronic devices
• Instrumentation and household appliances
• DIY electronics and automation projects

FAQ

1. What is the mounting size?
Standard 8mm panel mounting size.

2. Is this indicator light waterproof?
Yes, it has IP65 waterproof and dustproof protection.

3. What voltages are available?
It supports 3-6V, 9-24V, 25-48V, 110-220V.

4. What LED colors can I choose?
Red, green, blue, white and yellow are available.

5. What is the lifespan of the LED?
Long lifespan up to 40,000 hours.

The post 8mm IP65 Waterproof LED Pilot Indicator Light – Panel Mount with Pin Terminals appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 22mm standard mounting size
• High round head & flat head optional
• Illuminated design with clear status indication
• Maintained (latching) and momentary operation selectable
• IP65 waterproof & dustproof protection
• Silver alloy contacts for stable conductivity
• 1NO+1NC double contact configuration
• Multiple LED colors: Red, Green, Blue, White, Yellow
• Plastic bezel & shell for cost-effective use

Technical Specifications

Product Advantages

This 22mm illuminated push button switch provides reliable and economical control for industrial equipment and panels. It supports both high round head and flat head styles, with maintained and momentary functions to meet different operation needs. IP65 protection ensures stable performance in dusty and damp environments. Silver alloy contacts deliver good conductivity and long service life. The 1NO+1NC contact configuration enables versatile circuit control. Illuminated design offers clear working status indication for safe operation.

Applications

• Industrial control panels and machinery
• Equipment start/stop and signal control
• Electrical cabinets and distribution boxes
• Automation and small power devices
• Commercial and household electrical equipment
• General industrial and electronic control systems

FAQ

1. What is the mounting size?
Standard 22mm mounting hole size.

1. Is this switch illuminated?
Yes, it is illuminated with LED for clear status indication.

3. Does it support high head and flat head?
Yes, both high round head and flat head are optional.

4. Does it support maintained and momentary modes?
Yes, both maintained and momentary operation are selectable.

5. What contact configuration does it use?
It supports 1NO+1NC, NO, NC and 2NO contact types.

The post 22mm Illuminated Push Button Switch High/Flat Head Selectable Maintained/Momentary IP65 Silver Alloy Contacts 1NO1NC appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting size, widely compatible with industrial control panels
• Dual operation modes: momentary and maintained for diverse control demands
• Flat head design, simple appearance and comfortable operation feeling
• Integrated waterproof structure, adapt to humid industrial working environments
• Classic 1NO+1NC contact configuration for universal circuit matching
• Silver contact material, excellent conductivity and long service life
• Plastic bezel and plastic shell, lightweight and cost-effective
• Built-in illuminated LED, available in 6 optional colors: Black, Blue, Green, Red, White, Yellow
• Complete electrical performance, suit for AC and DC circuit systems
• Compliant with CE, EN60947-5-1, IEC60947-5-1 and GB/T14048.5 standards
• Reliable performance, low failure rate for long-term continuous operation
• Easy installation and wiring, ideal for various industrial control equipment

Technical Specifications

Product Attributes

• Mounting Dimension: 22mm
• Operation Type: Momentary & Maintained
• Feature: Waterproof & Illuminated
• Head Style: Flat
• Bezel & Shell: Plastic
• Contact: Silver
• Contact Form: 1NO + 1NC
• LED Color: Black / Blue / Green / Red / White / Yellow
• AC Rating: 380V/220V, 4.5A
• DC Rating: 220V/110V, 0.6A
• Insulation Voltage: 660V
• Impulse Voltage: 2.5kV
• Thermal Current: 10A

Product Advantages

This 22mm flat illuminated push button switch supports both momentary and maintained operation modes to meet different control logic requirements. It adopts plastic overall structure and silver contacts, which ensures stable electrical conduction and cost efficiency. The waterproof design enables it to work normally in humid workshops and equipment cabins. Multiple LED colors are available for status distinction. With complete AC and DC electrical parameters, it covers most conventional industrial circuits. The product passes CE certification and complies with international and national electrical standards, featuring stable performance, long mechanical life and easy installation. It is a cost-effective control component for industrial automation and electrical equipment.

Applications

• Industrial control cabinet start, stop and function selection buttons
• Automation machinery equipment operation panel control switches
• Electrical equipment and power distribution box signal control components
• Production line equipment momentary jog and latching control system
• General electromechanical device waterproof operation and status indicator switch

FAQ

1. What operation modes does this push button support?
It has two modes: momentary (self-reset) and maintained (latching) for selection.

2. What is the contact configuration and contact material?
It uses 1NO+1NC contact combination, and the contact is made of silver for stable conduction.

3. What materials are used for the switch body?
The bezel and outer shell are all made of plastic with lightweight structure.

4. Does it have indicator light and optional colors?
Yes, it is illuminated type. Optional LED colors include Black, Blue, Green, Red, White and Yellow.

5. What are the main electrical parameters?
AC: 380V/220V 4.5A; DC: 220V/110V 0.6A, insulation voltage 660V, impulse voltage 2.5kV.

6. Does this button have waterproof performance?
Yes, it is designed with waterproof function for humid working environments.

7. What standards does the product comply with and where to use?
It meets CE, IEC and GB standards, mainly used for industrial control panels and automation equipment.

The post 22mm Push Button Illuminated Flat 1NO1NC Waterproof Momentary/Maintained appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 22mm mounting aperture, compatible with most industrial control panels and cabinets
• Pure momentary operation mode, automatic reset after release for jog and signal control
• Full plastic structure including bezel, head and shell, lightweight and cost-effective
• Flat head design, comfortable touch and neat appearance for panel assembly
• Built-in illuminated indicator, optional Red and Green LED colors for status distinction
• Standard 1NO+1NC contact configuration, widely used for various control circuits
• Complete electrical parameters, stable performance for AC and DC working circuits
• Compliant with GB/T14048.5, EN/IEC60947-5-1 international and national standards
• Low failure rate, long service life for long-term continuous industrial operation
• Simple installation and wiring, no complicated assembly required
• Universal design for mechanical equipment and electrical control systems

Technical Specifications

Product Attributes

• Mounting Dimension: 22mm
• Operation Type: Momentary / Self-reset
• Head Style: Flat
• Body Material: Plastic (Bezel, Head, Shell)
• Default Head Color: Green
• LED Color: Green, Red
• Contact: 1NO + 1NC
• Insulation Voltage: 600V
• Impulse Voltage: 2.5kV
• Thermal Current: 10A
• AC Parameter: 240V / 3A
• DC Parameter: 250V / 0.27A

Product Advantages

This 22mm flat momentary push button adopts full plastic construction, which is lightweight, economical and easy to install. It only supports momentary self-reset operation, which is specially designed for jogging, instantaneous start and signal triggering work. Equipped with 1NO+1NC universal contacts and dual-color LED indicators (red and green), it can clearly display equipment operating status. The product has complete electrical performance and strictly complies with GB and IEC electrical standards, ensuring safe and stable operation in AC and DC circuits. With simple structure, sensitive operation and low failure rate, it is a practical and cost-effective control component for various industrial electrical equipment.

Applications

• Industrial control cabinet instantaneous start, stop and jog control buttons
• Automation machinery equipment operation panel signal trigger switch
• Production line equipment temporary operation and manual control components
• Electrical box and distribution cabinet auxiliary signal control switch
• General electromechanical device momentary operation and status indication button

FAQ

1. What operation mode does this push button adopt?
It is a pure momentary self-reset type, which will automatically rebound after being pressed and released.

2. What materials are used for the whole switch?
The bezel, button head and outer shell are all made of high-quality plastic.

3. What contact configuration does it have?
It adopts classic 1NO+1NC (1 normally open + 1 normally closed) contact combination.

4. Does it have indicator light and optional colors?
Yes, it is an illuminated model. Optional LED colors are green and red.

5. What are the core electrical parameters?
Ui 600V, Uimp 2.5kV, Ith 10A; AC 240V/3A, DC 250V/0.27A.

6. What standards does the product comply with?
It complies with GB/T14048.5 and EN/IEC60947-5-1 electrical safety standards.

7. What are the main application scenarios?
It is widely used for instantaneous control and signal indication of industrial control cabinets, automation equipment and electromechanical devices.

The post 22MM Illuminated Flat Button Switch Momentary Plastic Push Button with 1NO1NC Contacts appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

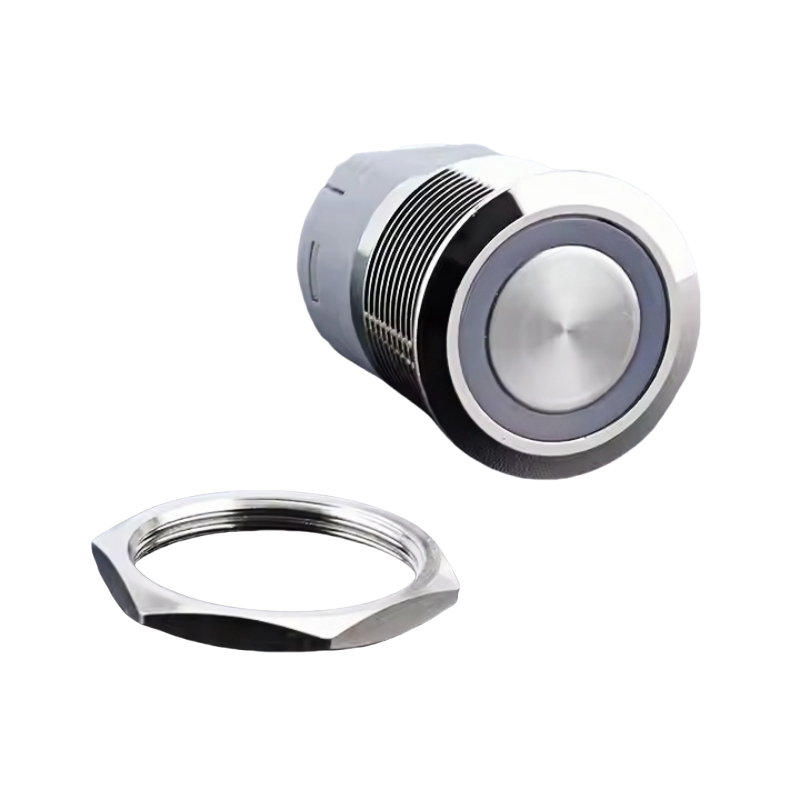

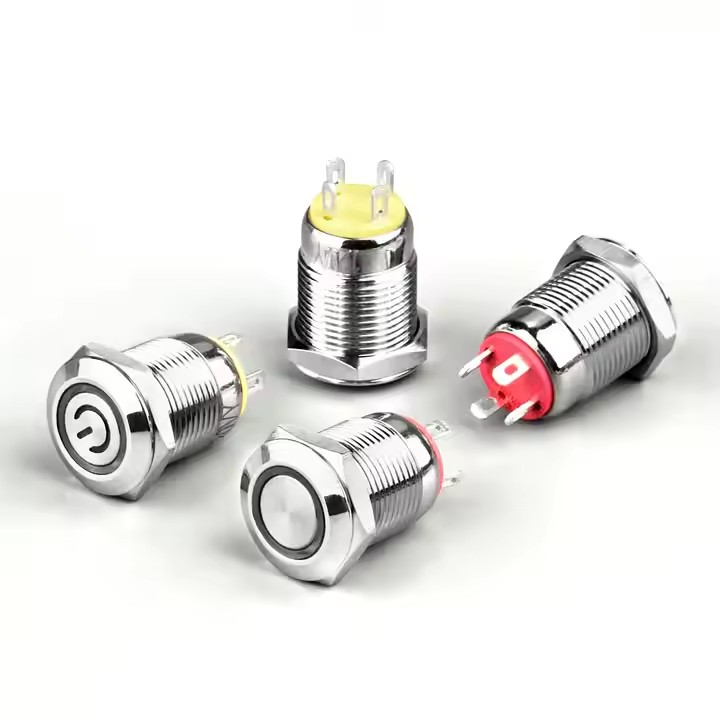

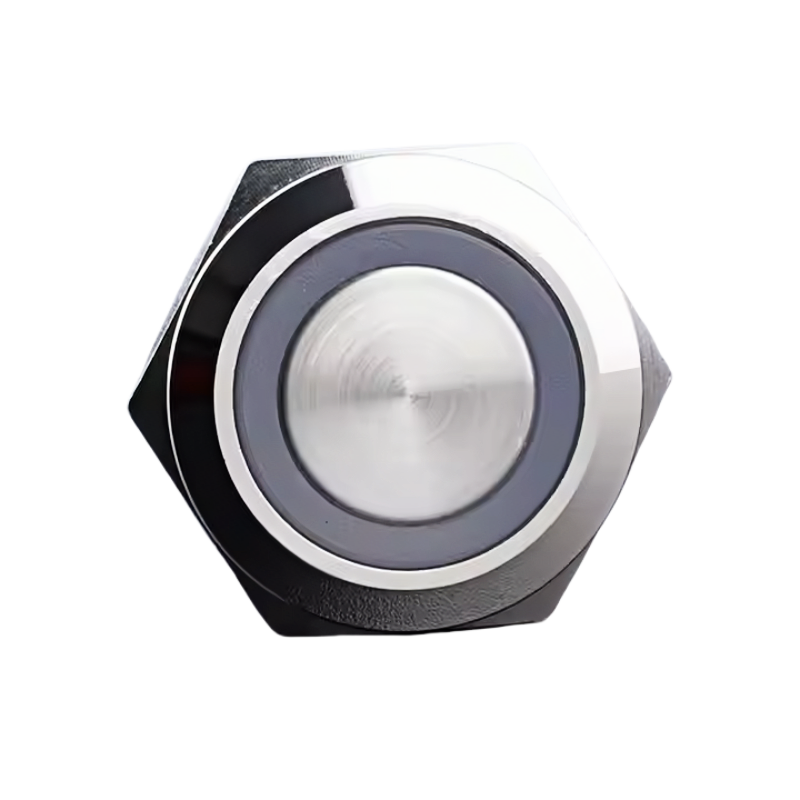

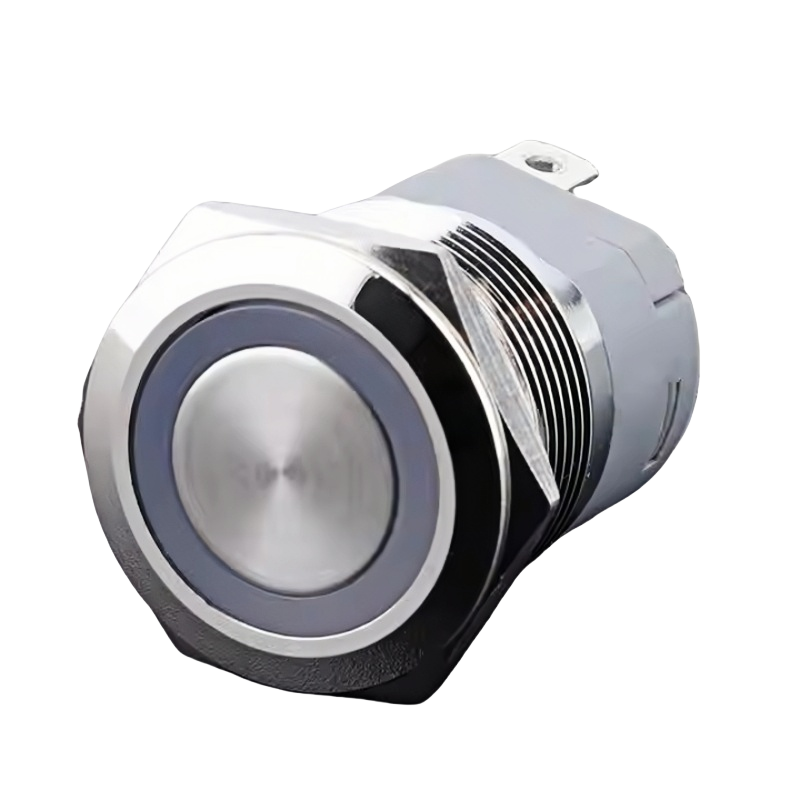

• 12mm standard mounting hole size
• Ring LED illumination for clear status indication
• Flat head design for standard panel installation
• Maintained (latching) and momentary operation optional
• IP65 waterproof & dustproof protection
• Multiple LED colors: Red, Green, Blue, White, Yellow
• High-quality metal bezel & sturdy construction
• Silver-plated contacts for reliable conductivity
• Nickel plated brass & stainless steel housing
• NO (Normally Open) contact configuration

Technical Specifications

Product Advantages

This 12mm metal push button switch with ring LED illumination provides compact and reliable control for small devices and panels. The ring LED design offers bright and even status indication. It supports both maintained (latching) and momentary (self-reset) modes to meet different control needs. IP65 waterproof protection ensures stable performance in humid and dusty environments. High-quality metal construction and silver-plated contacts ensure long service life and stable electrical performance.

Applications

• Small control panels & electronic equipment
• Automotive & vehicle interior control
• DIY electronics & instrument panels
• Industrial automation & small machinery
• Household appliances & custom devices
• 12mm compact installation space projects

FAQ

1. What is the mounting size?
Standard 12mm mounting hole size.

2. What LED type does it use?
It uses ring LED illumination for clear status indication.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

4. Is this switch waterproof?
Yes, it has IP65 waterproof and dustproof protection.

5. What head type does it have?
It uses flat head design for standard panel installation.

The post 12mm Metal Push Button Switch with Ring LED Illumination Flat Head Maintained/Momentary Operation appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Four universal mounting sizes: 12mm, 16mm, 19mm, 22mm for diversified panel installation
• Short-body compact design, saves installation space for narrow equipment and automotive interiors
• Full waterproof performance, suitable for automotive and humid working environments
• Momentary operation mode with NO (Normally Open) contact for instantaneous signal output
• High-quality silver contact, excellent electrical conductivity and long service life
• Black aluminum oxide shell + metal bezel, wear-resistant and elegant appearance
• Dual terminal options: pin terminal and welding terminal for flexible wiring
• Multiple lamp solutions: Ring lamp and Ring+Power lamp to choose from
• Rich LED colors: Blue, Green, Red, White, Yellow, Dual Color, Tri-Color for status marking
• Two lamp modes: Illuminated and Non-Illuminated to meet different usage demands
• Professional design for automotive retrofit and on-board control systems
• Stable structure, easy to install and low maintenance for long-term use
• Wide compatibility with vehicles, outdoor equipment and general control devices

Technical Specifications

Product Attributes

• Mounting Size: 12/16/19/22mm Multi-size Optional
• Structure: Short Body Flat Head
• Operation Mode: Momentary
• Contact Form: NO
• Contact Material: Silver
• Shell: Black Aluminum Oxide
• Bezel: Metal
• Terminal: Pin / Welding
• Lamp Type: Ring, Ring+Power
• LED Color: Single / Dual / Tri-Color Available
• Feature: Waterproof
• Main Use: Automotive & General Electronic Devices

Product Advantages

This multi-size metal sensor switch offers four mainstream mounting diameters including 12mm, 16mm, 19mm and 22mm, which is highly compatible with most automotive control panels and common equipment housings. Adopting short-body flat head design, it occupies less space and is ideal for compact installation scenarios. The black aluminum oxide shell and metal bezel ensure wear resistance and nice texture, while built-in waterproof structure guarantees stable operation in humid vehicle environments. Equipped with silver contacts, the switch delivers reliable conduction. It supports pin and welding dual wiring methods to adapt different assembly processes. Various LED color options including tri-color, dual-color and single-color, together with two lamp styles, enable clear equipment status identification. As a professional momentary NO switch, it is specially optimized for automotive retrofits, and also works well for outdoor and conventional electrical control devices, featuring easy installation and long service life.

Applications

• Automotive interior modification and on-board function control buttons
• Vehicle central control panel and auxiliary signal sensor switches
• Car lighting, audio and electronic accessory control components
• Outdoor waterproof equipment and field sensor control devices
• General industrial control panels and electronic test equipment
• Low-voltage circuit signal triggering and sensing modules

FAQ

1. What mounting sizes does this switch provide?
It has four standard sizes: 12mm, 16mm, 19mm and 22mm for selection.

2. What is the operation type and contact configuration?
It is momentary operation type with NO (Normally Open) contact.

3. What are the main materials of the product?
The bezel is metal, the shell is made of black aluminum oxide, and the contact is silver.

4. What terminal connection ways are available?
Two options: pin terminal and welding terminal.

5. What lamp types and LED colors can I choose?
Lamp types: Ring lamp and Ring+Power lamp; LED colors include blue, green, red, white, yellow, dual color and tri-color.

6. Does this switch support waterproof function?
Yes, it has excellent waterproof performance, suitable for vehicles and humid environments.

7. What is the head style and body structure?
It adopts flat head and short body design, saving installation space.

8. What are the main application scenarios?
Mainly used for automotive retrofit, on-board equipment, outdoor devices and general control systems.

The post 12/16/19/22mm Metal Sensor Switch Waterproof Tri-Color Momentary Pin Terminal Automotive appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 12mm standard mounting hole size
• Mini compact metal tactile switch design
• Illuminated available for clear visual indication
• Momentary operation type for instant start & stop
• Waterproof and dustproof construction
• High-quality metal housing for long service life
• Sensitive tactile feedback, comfortable pressing
• Widely used for computer start stop and small equipment control

Technical Specifications

Product Advantages

This 12mm waterproof mini metal tactile switch adopts premium metal material with solid structure and excellent durability. The momentary tactile design provides sensitive pressing feeling, and the illuminated design makes the working status clear at a glance. Compact size saves installation space, while waterproof performance ensures stable use in daily and slightly harsh environments. It is an ideal choice for computer start-stop button, household appliances and small industrial control equipment.

Application Scenarios

• Computer case start stop button
• Small electronic equipment control
• Household appliance control panel
• Instrument and meter equipment
• Automation small control devices
• DIY electronic modification projects

FAQ

1. What is the mounting size of this tactile switch?
This mini metal tactile switch adopts standard 12mm mounting hole size for easy installation.

2. Is this switch momentary type?
Yes, it is momentary operation, suitable for start-stop one-touch control.

3. Does it come with LED illuminated function?
It supports illuminated design to show working status clearly.

4. Is this mini switch waterproof?
Built with waterproof structure, it can resist daily water splash and dust.

The post 12mm Waterproof Mini Metal Tactile Switch Illuminated Momentary for Computer Start/Stop appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 19mm standard mounting hole size
• Dual control function for power and signal switching
• IP68 high-grade waterproof & dustproof protection
• Custom legend / symbol available on request
• Illuminated and non-illuminated versions optional
• Multiple LED colors: Red, Green, Blue, White, Yellow
• Durable metal housing: stainless steel, brass, aluminum
• 2NO+2NC contact configuration for reliable control
• Gold-plated pins & silver contacts for stable conductivity

Technical Specifications

Product Advantages

This 19mm metal push button switch is designed for dual control of power and signal circuits, with ultra-high IP68 waterproof performance to adapt to harsh outdoor and humid environments. Custom legend / symbol service supports personalized identification for different equipment panels. High-quality metal structure, silver-plated contacts and gold-plated pins ensure long service life and stable electrical performance. It is widely used in industrial control cabinets, automation equipment, marine, medical and new energy facilities.

Applications

• Industrial control panels & cabinets
• Power supply & signal control systems
• Automation machinery & equipment
• Marine & outdoor electronic devices
• Medical equipment & instrumentation
• New energy & vehicle control systems
• Custom equipment with personalized symbols

FAQ

1. What is the mounting size of this switch?
Standard 19mm mounting hole size, suitable for most industrial control panels.

2. Is this switch waterproof?
Yes, it reaches IP68 high-level waterproof and dustproof on the front side.

3. Does it support dual control function?
Yes, it supports dual control with 2NO+2NC contact configuration for power and signal switching.

4. Can I customize the symbol / legend?
Yes, custom legend / symbol printing is available to match your equipment needs.

5. Are illuminated versions available?
Yes, both illuminated and non-illuminated types are optional with multiple LED colors.

The post 19mm Metal Push Button Dual Control IP68 Custom Legend Power Signal Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Three standard sizes: 16mm, 19mm, 22mm
• IP65 / IP67 waterproof & dustproof protection
• Screw terminal & pin terminal for flexible installation
• Momentary operation type
• Red, green, blue LED illuminated options
• High-quality metal housing for durability
• NO (Normally Open) contact configuration
• Gold/silver plated contacts for stable conductivity

Technical Specifications

Product Advantages

This 16/19/22mm waterproof metal push button switch is designed for reliable use in industrial environments. It provides IP65/IP67 waterproof and dustproof protection, suitable for humid, wet and outdoor equipment. The screw and pin terminal design makes installation fast and flexible. With gold/silver plated contacts and metal housing, it ensures long mechanical life and stable electrical performance. Ideal for control panels, automation machines, automotive and electronic equipment.

Applications

• Industrial control panels & cabinets
• Automation machinery & equipment
• Automotive & vehicle control systems
• Marine & outdoor electronic devices
• Household appliances & instrument panels
• Wet & harsh environment equipment

FAQ

1. What sizes does this push button support?
It supports 22mm and 25mm standard mounting sizes.

2. Is this switch waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

4. What contact configuration does it use?
It uses 1NO + 1NC double contact structure.

5. Is it pre-wired for easy installation?
Yes, pre-wired design supports direct plug-and-play installation.

The post 16/19/22mm Waterproof Metal Push Button Switch Screw/Pin Terminal Momentary Red/Green/Blue Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
