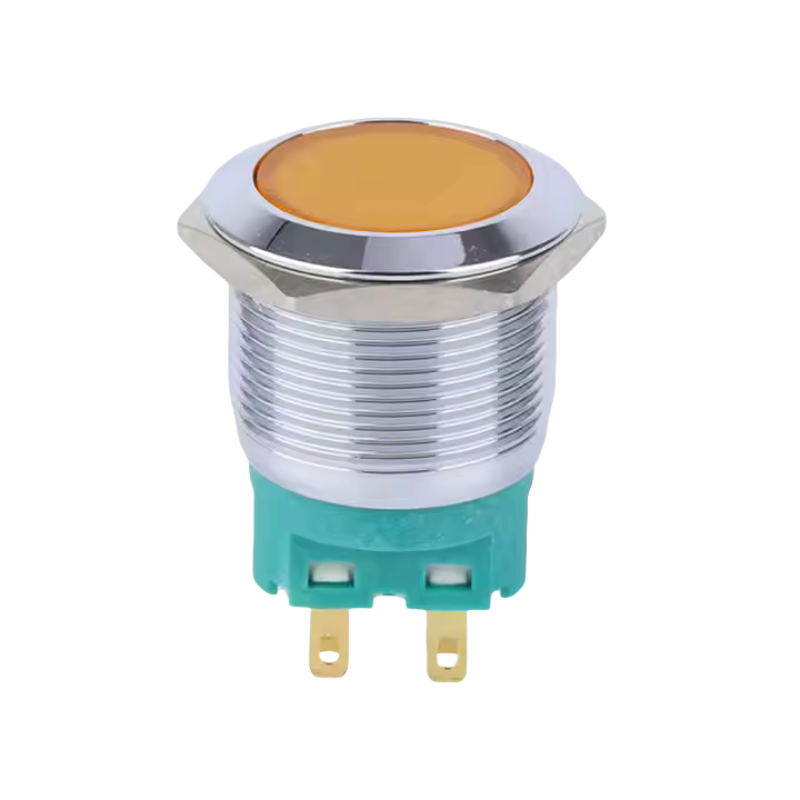

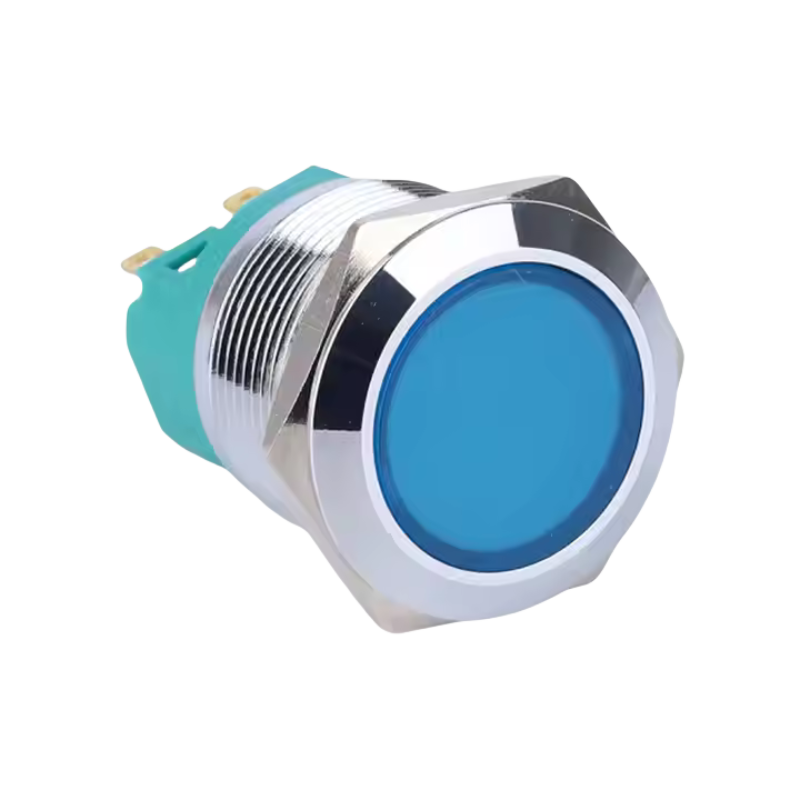

• 22mm standard mounting hole size
• Rated current: 5A, stable performance
• IP67 waterproof & dustproof protection

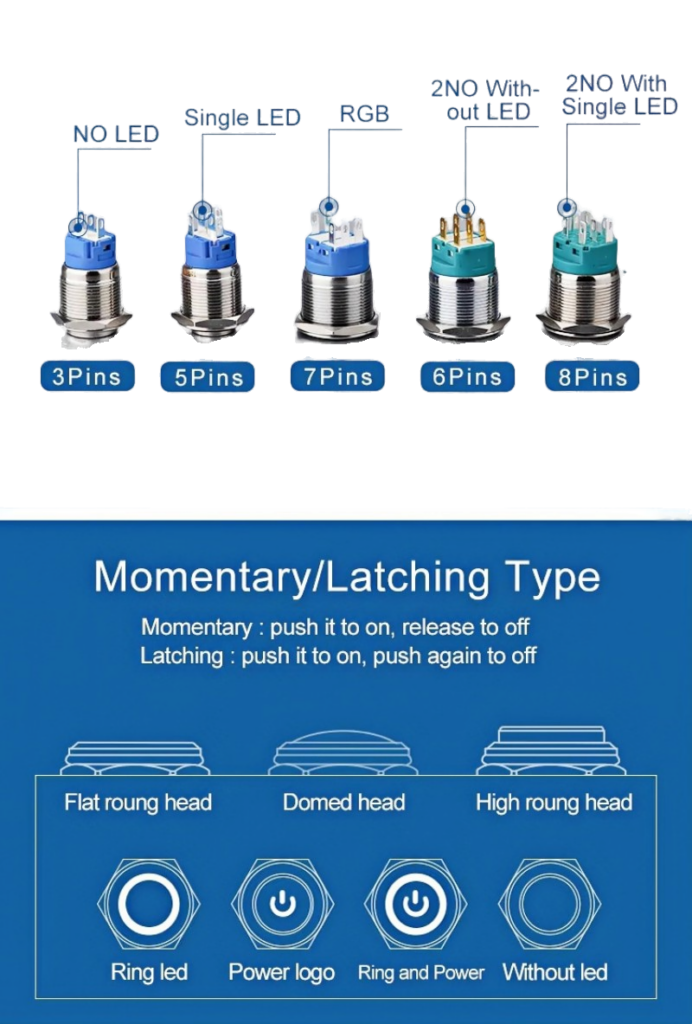

• Latching (self-locking) & momentary (self-reset) optional
• LED illuminated with multi-color options
• Ring / power symbol / dot LED types
• Flat head & high round head available
• 1NO+1NC contact configuration
• Stainless steel / aluminum oxide / copper plated
• Plug-in connection for quick installation

Product Advantages

This 22mm metal push button switch provides reliable control for industrial and electrical equipment. 5A rated current ensures safe and stable operation. IP67 waterproof rating adapts to humid, outdoor and harsh environments. It supports both latching and momentary modes to meet different control needs. Rich LED colors and multiple head styles offer flexible choices. Silver-plated contacts and sturdy metal housing guarantee long service life.

Applications

• Industrial control panels & automation equipment
• Waterproof power start/stop systems
• Automotive, marine & outdoor devices
• Instrument & electrical control panels
• Home appliances & machinery operation
• Various 5A power control applications

FAQ

1. What is the mounting size?
Standard 22mm mounting hole size.

2. What is the rated current?
5A for safe and stable control.

3. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.

4. Does it support latching and momentary modes?
Yes, both latching and momentary are optional.

5. What LED types are available?
Ring, power symbol and dot LED are optional.

The post 22MM Metal Push Button Switch Waterproof 5A Current Led Switch Ip67 Self-locking/self-healing appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Full customized metal push button solution
• Multiple head styles: Flat Head / Raised Head / Ball Head
• Multi mounting size: 8/10/12/16/19/22mm
• IP65 waterproof and dustproof grade
• Dual function: Momentary self-reset / Latching self-locking
• Rated up to 10A 250VAC heavy duty
• Body material: Brass nickel plated
• Multiple pin options: 2/3/4/6 pin terminals
• LED color and voltage customizable (12V blue optional)
• Contact configuration: 1NO1NC / 2NO2NC optional

Product Advantages

This customized metal push button switch supports full personalized customization in size, head shape, LED color, voltage and pin definition. Available in flat, raised and ball head designs to match different panel aesthetics and installation needs. Multiple mounting diameters from 8mm to 22mm cover most standard panel holes. IP65 waterproof structure adapts to indoor and light outdoor environments. Both momentary self-reset and latching locking functions are optional, suitable for industrial equipment, home appliances and custom electronic projects.

Applications

• Custom industrial control panels
• Mechanical equipment and automation devices
• Home appliance and electronic product modification
• DIY electronic projects and custom cabinets
• Instrument panel and smart device control
• IP65 indoor and light outdoor equipment

FAQ

1. What head types are available?
Flat head, raised head and ball head for selection.

2. What mounting sizes do you support?
8mm, 10mm, 12mm, 16mm, 19mm, 22mm full range.

3. Does it support momentary and latching?
Yes, self-reset momentary and self-locking latching optional.

4. Is this switch customizable?
Yes, size, head shape, LED, voltage and pins all customizable.

5. What is the protection level?
IP65 waterproof and dustproof for daily industrial use.

The post Customized Metal Push Button Switch Flat Head Raised Head Ball Head Self Reset Button Switches appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

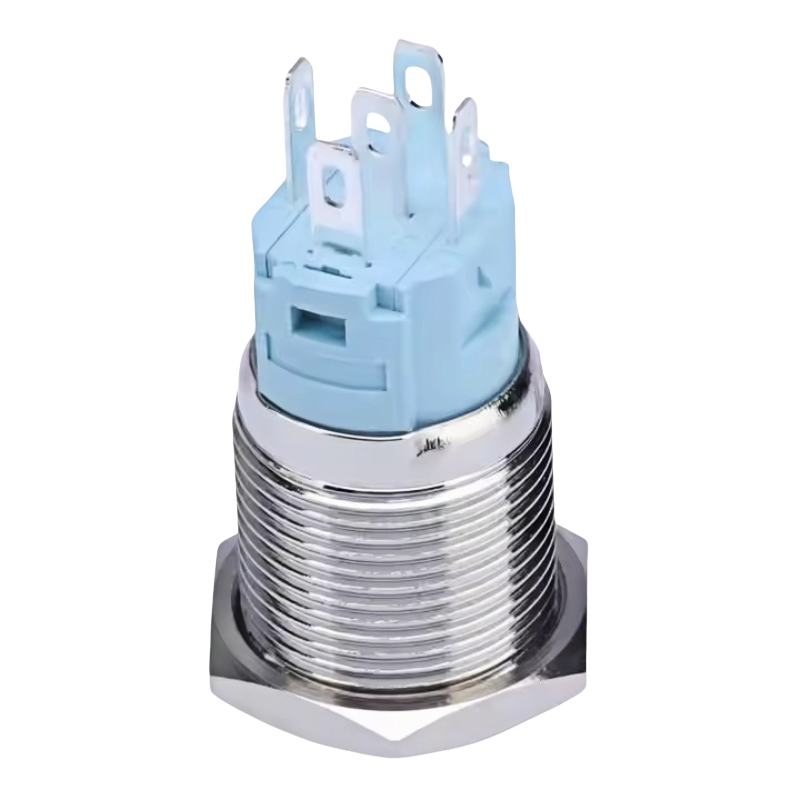

• 16mm standard mounting hole diameter
• 18A high current rating for heavy-duty power control
• Pure self-locking (latching) operation type
• Elegant high round head design
• Premium brass nickel plated shell housing
• 1NO normally open contact configuration
• Low contact resistance ≤50mΩ
• High dielectric strength up to 2000VAC
• Comes with nut and waterproof rubber O-ring
• Silver contact and pin for stable conductivity

Product Advantages

This 16mm 18A high current self-locking metal push button switch is specially designed for heavy-duty power equipment and industrial machinery. With 18A large current capacity, it can safely control high-power loads. Adopting high round head appearance and brass nickel-plated shell, it is wear-resistant, corrosion-resistant and elegant. Stable latching function keeps the circuit on/off steadily without continuous pressing. Ultra-low contact resistance and high withstand voltage ensure safe and long-term stable operation. Equipped with waterproof O-ring, it improves dustproof and moistureproof performance for indoor industrial scenarios.

Applications

• Industrial machinery high power start-stop control
• Automotive, engineering vehicle power switches
• Power distribution equipment and electrical cabinets
• High-current home appliances and mechanical equipment
• DIY high-power modification and control panels
• All scenarios requiring 18A large current latching switch

FAQ

1. What is the mounting size?
Standard 16mm mounting hole diameter.

2. What is the rated current?
Supports up to 18A high current for heavy duty use.

3. Is it self-locking type?
Yes, pure latching / self-lock operation design.

4. What material is the shell?
High-quality brass nickel plated material.

5. Does it come with installation accessories?
Yes, equipped with fixing nut and waterproof rubber O-ring.

The post 16mm High Current Self-lock Type Push Button 18A Power Control Switch Metal Push Button Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 19mm standard mounting hole, compatible with most industrial control panels and equipment housings for universal installation
• IP67 high waterproof & dustproof grade, fully adapts to wet, dusty and outdoor harsh working environments
• 3-position main design with momentary self-reset function, also supports 2-position maintained & momentary modes
• 6-pin terminal layout, equipped with 2NO2NC (2 Normally Open + 2 Normally Closed) contact structure for dual-circuit control
• Dual connection options: solder terminal and plug-in terminal, flexible for different wiring demands
• Stainless steel enclosure, anti-rust, anti-corrosion and high mechanical strength for long service life
• Silver contacts and silver pins, ultra-low contact resistance ≤50mΩ, stable current transmission
• Excellent electrical performance: min 1000MΩ insulation resistance, withstand 2000VAC dielectric strength
• Wide operating temperature: -20℃ ~ +55℃, works stably in cold and normal temperature environments
• Rotary head design with precise gear positioning, comfortable operation and clear switching feedback
• Pure mechanical structure without smart modules, low failure rate and easy daily maintenance
• Compact integrated structure, saves installation space for dense control cabinets and machinery
• Strict industrial standards, reliable quality for export to global industrial markets

Full Technical Specifications

Product Attributes

• Mounting Size: 19mm Standard Panel Hole
• IP Grade: IP67 Full Waterproof & Dustproof
• Core Mode: 3 Position Momentary (Self Reset)
• Optional Mode: 2 Position Maintained / Momentary
• Pins: 6 Pins
• Contact: 2NO2NC Dual Circuit Structure
• Terminal: Solder & Plug-in Dual Wiring
• Housing: Stainless Steel
• Contact & Pin: Silver Material
• Contact Resistance: ≤50 mΩ
• Insulation Resistance: ≥1000 MΩ
• Withstand Voltage: 2000 VAC
• Temp Range: -20℃ ~ +55℃
• Structure: Pure Mechanical (Non-smart)
• Core Strength: IP67 Protection, Dual Wiring, Multi-mode Selection

Product Advantages

This 19mm IP67 waterproof rotary switch is a high-performance industrial control component designed for harsh environments. With IP67 top-level waterproof and dustproof capability, it can work reliably in rainy, splash and heavy dust scenes. The main 3-position momentary self-reset function meets the demand for temporary signal triggering, and it also supports 2-position maintained and momentary modes for diversified circuit design. The 6-pin and 2NO2NC structure realizes synchronous control of two independent circuits, greatly improving equipment integration. It provides solder and plug-in dual wiring solutions, adapting to manual wiring and PCB assembly in different scenarios. Made of stainless steel shell and silver contacts/pins, the product features anti-corrosion, low resistance and stable conduction. Excellent electrical indicators and wide temperature adaptability ensure stable operation all year round. As a pure mechanical switch, it has simple structure and low failure rate. Fast delivery cycle also supports bulk procurement for industrial projects. It is a cost-effective choice for global industrial automation and mechanical equipment.

Application Scenarios

This IP67 self-reset rotary switch is widely exported to Europe, North America, Southeast Asia and other global regions, specially used for equipment in wet and dusty industrial environments.

• • Industrial automation production lines and temporary trigger control components
  • Outdoor engineering machinery and field operation equipment selector knobs
  • Wet workshop equipment, food machinery and washing industry control switches
  • Dust-prone workshop machinery and metallurgical equipment circuit controllers
  • Low-voltage dual-circuit control cabinets and power distribution auxiliary parts
  • Marine equipment and waterfront electromechanical device mode selectors

FAQ

1. What is the mounting size and IP protection level?
The standard mounting hole is 19mm, and the protection grade reaches IP67 with excellent waterproof and dustproof performance.

2. What are the main operation mode and position?
The main design is 3-position with momentary self-reset function; it also supports 2-position maintained and 2-position momentary modes.

3. How many pins and what contact configuration does it have?
It is equipped with 6 pins and adopts 2NO2NC (2 Normally Open + 2 Normally Closed) dual-circuit contact structure.

4. What wiring types are available?
It supports two connection ways: solder terminal and plug-in terminal for flexible use.

5. What are the materials of shell, contacts and pins?
The enclosure is stainless steel; both contacts and pins are made of silver for good conductivity.

6. What are the key electrical parameters?
Max contact resistance 50mΩ, min insulation resistance 1000MΩ, dielectric strength up to 2000VAC.

7. What is the working temperature range?
It can operate stably within -20℃ to +55℃.

8. Does this switch have smart functions?
No, it is a pure mechanical rotary switch without any smart modules.

9. What kind of equipment and environments is it suitable for?
It is widely used in industrial machinery, automation equipment and other devices working in wet, dusty harsh environments worldwide.

The post 19mm Momentary Waterproof 6 Pin Rotating Select Switch 2NO2NC 3 Position Self Reset Selector Switch Rotary Switches appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

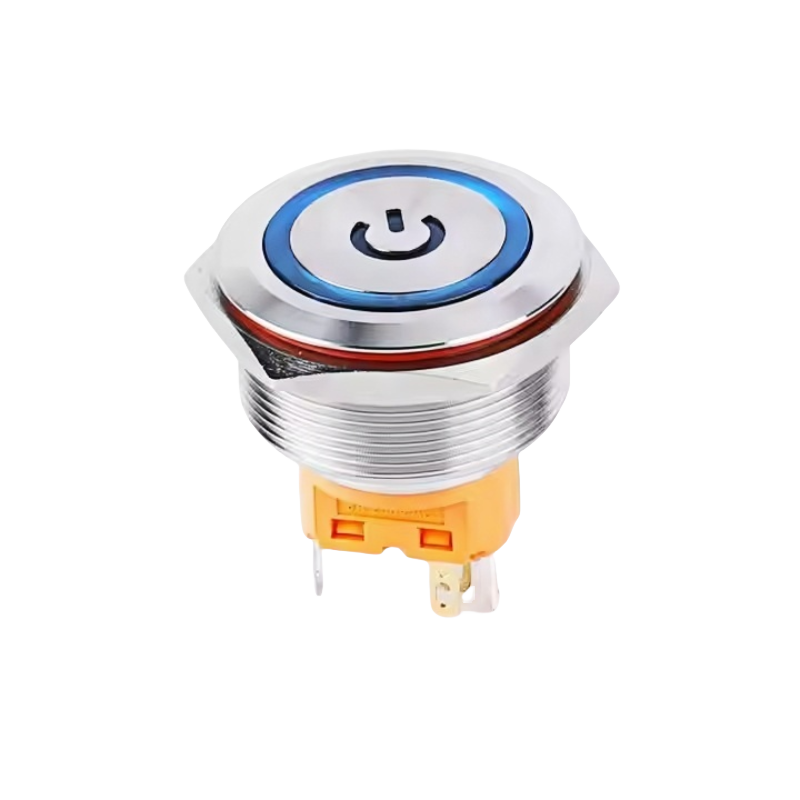

• 30mm standard large mounting hole size
• Self-latching on/off lock function, stable power control
• IP67 full waterproof and dustproof protection
• 12V blue LED, multi-color & multi-voltage customizable
• Ring LED / power symbol dual illumination style
• Flat round head for elegant panel installation
• 1NO1NC contact configuration, 5-pin terminal
• Stainless steel housing, corrosion resistant & durable
• Low contact resistance ≤50mΩ, high safety performance
• Custom logo, housing color and connector acceptable

Product Advantages

This 30mm IP67 waterproof self-locking metal push button is designed for large equipment power control and industrial panels. Standard 30mm installation aperture fits most large control cabinets. 12V blue LED ring and power symbol provide clear working status reminder, and support customized voltage and multi-color options. Stainless steel body is anti-rust and anti-corrosion, suitable for indoor and wet outdoor environments. 1NO1NC circuit design ensures safe and stable switching, latching/momentary dual functions meet different control requirements. Custom logo and appearance support personalized equipment matching.

Applications

• Large industrial control cabinet power switch
• Automotive, marine and engineering equipment control
• Outdoor waterproof electrical and automation devices
• 12V system equipment start-stop control panel
• Custom instrument panel and modified equipment
• Public equipment and heavy-duty power control system

FAQ

1. What is the mounting size?
Standard 30mm mounting hole diameter.

2. Is it self-locking type?
Yes, self-latching on/off function, momentary optional.

3. What LED voltage and color are available?
Standard 12V blue; red, green, yellow, white and multi-voltage customizable.

4. Is it IP67 waterproof?
Yes, IP67 waterproof and dustproof grade.

5. Can I customize logo and color?
Yes, custom symbol, housing color and connector are supported.

The post Self Lock on off Metal 30mm Metal Push Button Switch 12V Blue Led Power Switch IP67 Waterproof appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

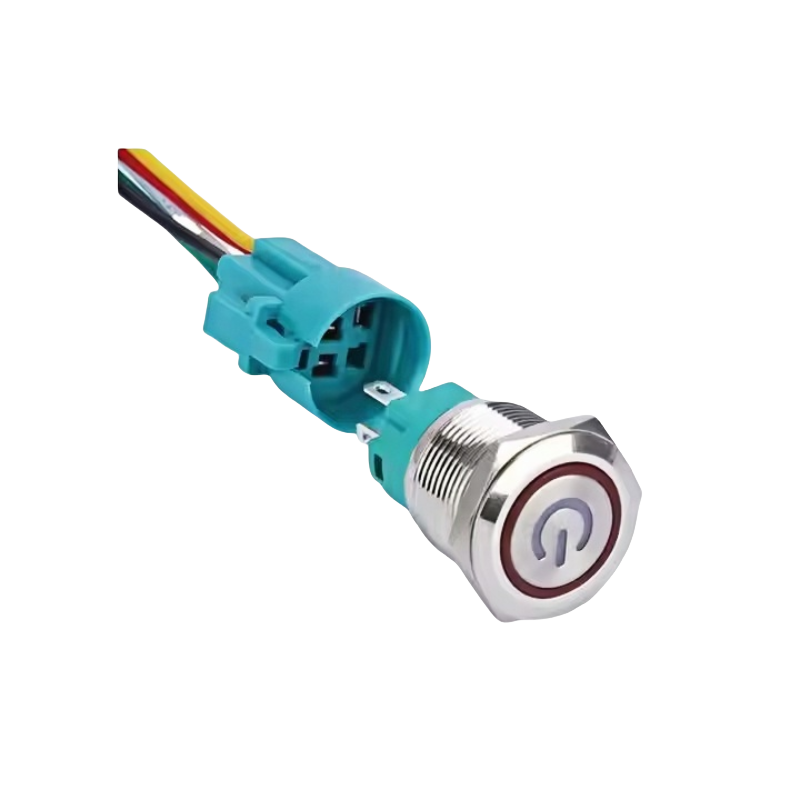

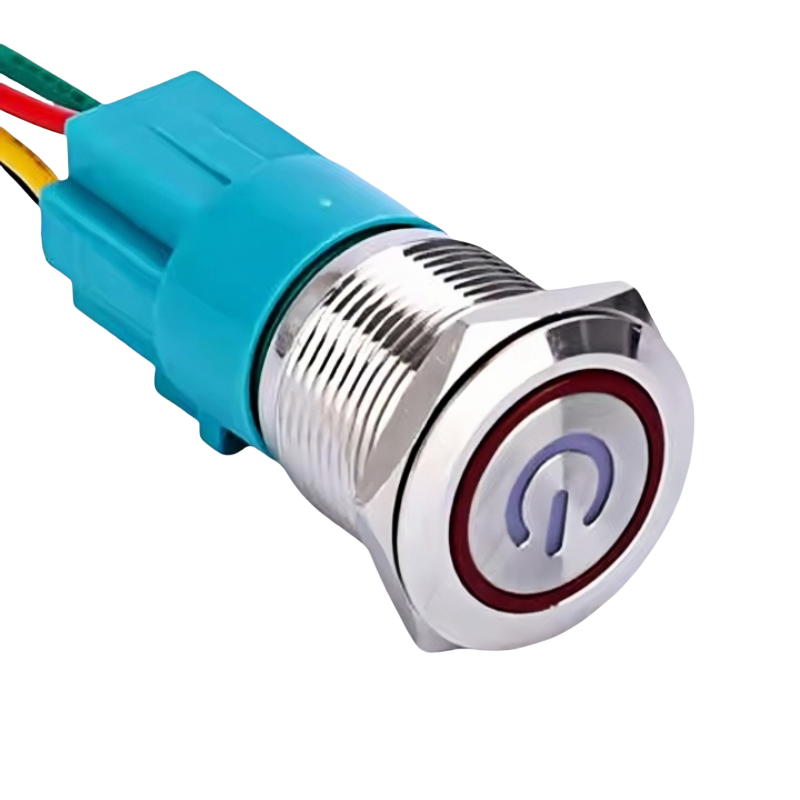

• 19mm standard mounting hole size
• Waterproof reset & lock dual function
• Power symbol LED illuminated indicator
• Momentary reset / latching lock optional
• Flat head design for neat panel installation
• 1NO1NC standard contact configuration
• High-grade material: Nickel Plated Brass / Stainless Steel
• Ultra-low contact resistance ≤50mΩ
• High insulation resistance ≥1000MΩ
• Withstand voltage up to 2000VAC for safety
• Wide working temperature: -20℃ ~ +55℃
• Perfect for car modification & vehicle control

Product Advantages

This 19mm waterproof reset lock metal push button switch is specially designed for automotive modification and vehicle control panels. Built-in power symbol LED provides clear working status indication. Support momentary self-reset and latching self-locking two working modes to meet different circuit control needs. Nickel plated brass and stainless steel housing features anti-corrosion, anti-rust and durable performance. Stable electrical parameters ensure safe and reliable use in vehicle circuits, adapting to complex temperature environments.

Applications

• Car interior modification & function control
• Automotive power start and auxiliary switch
• Vehicle refitting light and equipment control
• Engineering vehicle and special vehicle panel
• Marine boat waterproof control system
• 19mm hole industrial and electronic equipment

FAQ

1. What is the mounting size?
Standard 19mm mounting hole diameter.

2. Does it have power symbol LED light?
Yes, power symbol LED illuminated for clear indication.

3. Support reset and lock function?
Yes, momentary reset and latching lock optional.

4. What material is the shell?
Nickel plated brass and stainless steel optional.

5. Is it suitable for car modification?
Absolutely, professionally designed for automotive switch kits.

The post Waterproof Reset Lock Metal Illuminated Metal Push Button Switch 19mm Power Symbol Lighted Switch Kits for Car appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

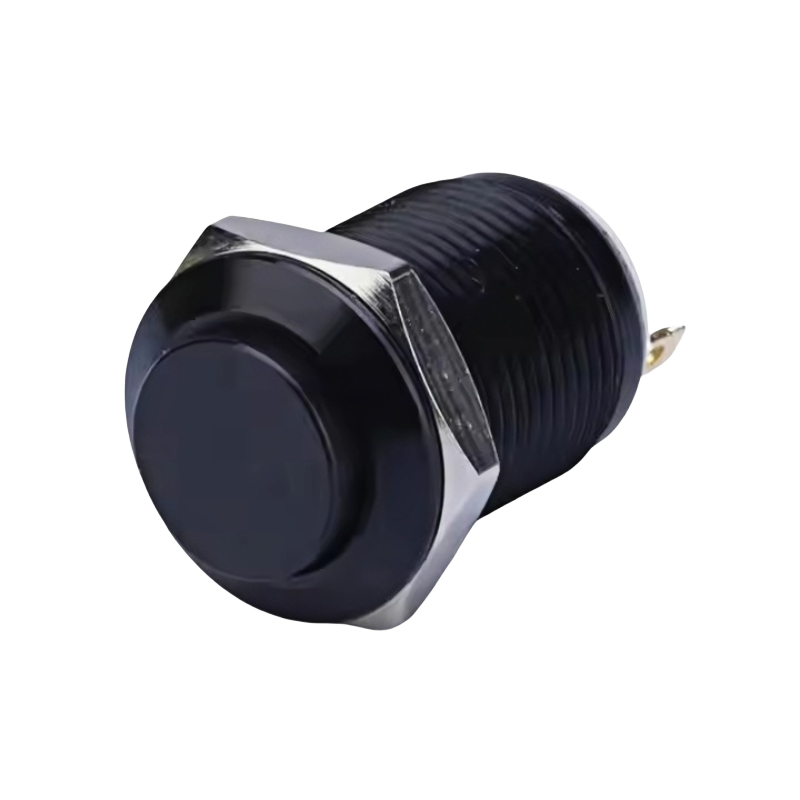

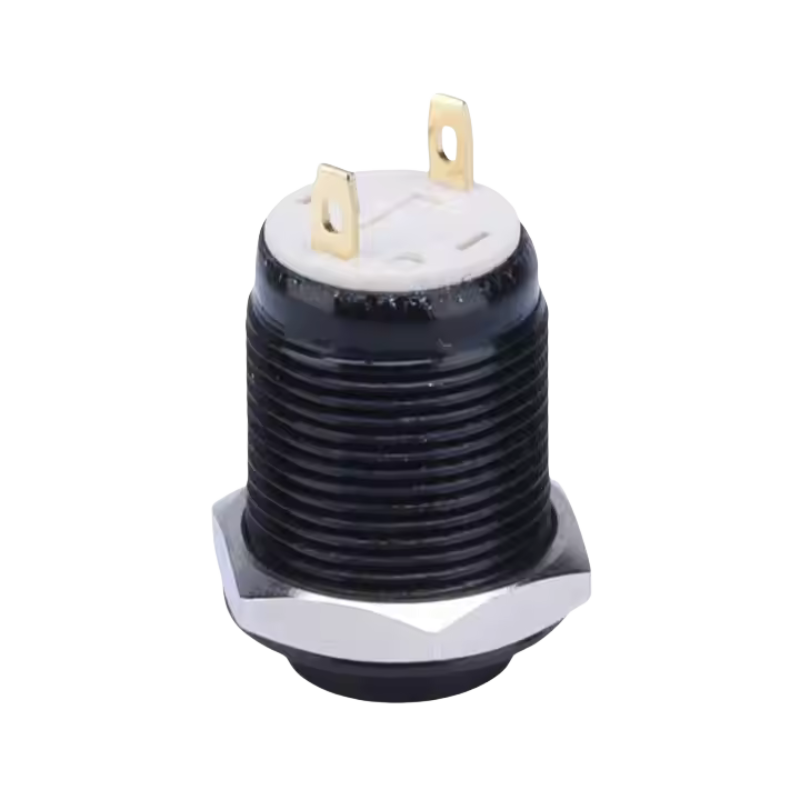

• 12mm standard mini mounting hole size
• Mini compact size for narrow panel installation
• Pure momentary auto return function
• Non-illuminated no light design
• Elegant black aluminum oxide housing
• High round head comfortable pressing feeling
• 1NO normally open contact configuration
• 2-pin simple terminal design
• Low contact resistance ≤50mΩ
• High insulation & 2000VAC dielectric strength
• Comes with nut and rubber gasket
• Custom connector support available

Product Advantages

This 12mm mini black metal push button switch adopts ultra-compact design, perfect for small equipment and narrow control panels. Adopting black aluminum oxide surface treatment, it is wear-resistant, anti-fingerprint and stylish in appearance. Pure momentary auto return operation meets one-touch temporary control needs. Non-light design is suitable for simple and minimalist equipment. Stable electrical parameters and excellent insulation performance ensure long-term safe use. Equipped with installation nut and rubber gasket for easy assembly and dustproof sealing.

Applications

• Mini electronic equipment & small instrument panels
• Automotive interior hidden function switch
• Home appliance and smart device control
• DIY electronic projects and modified equipment
• Compact industrial control and embedded panels
• All scenarios requiring 12mm miniature momentary button

FAQ

1. What is the mounting size?
Standard 12mm mini mounting hole diameter.

2. Is it momentary auto return type?
Yes, momentary self-reset, no locking function.

3. Does this button have LED light?
No, it is non-illuminated without light.

4. What material is the shell?
High-quality black aluminum oxidation material.

5. Does it come with installation accessories?
Yes, matched nut and rubber gasket are included.

The post Mini Waterproof Momentary Switch Metal Black Auto Return 12mm Metal Push Button Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 16mm standard mounting hole size
• Momentary self-reset operation type
• 12V / 24V universal LED voltage optional
• Blue LED available, multi-color customizable
• Custom symbol illuminated design
• Flat round head for neat panel mounting
• 1NO1NC complete contact structure
• 5-pin terminal with harness connector
• Brass nickel plated shell, durable & corrosion resistant
• Low contact resistance ≤50mΩ
• High insulation and 2000VAC dielectric strength
• Wide working temperature: -20℃ ~ +55℃

Product Advantages

This 16mm momentary LED metal push button supports 12V and 24V common voltage systems, widely used in vehicles, ships and industrial equipment. Custom symbol LED lighting provides unique status indication, with blue as standard and multiple colors optional. Brass nickel-plated shell is wear-resistant and anti-corrosion for long service life. Momentary self-reset design is suitable for temporary trigger control. Equipped with matching harness connector, plug-and-play, no complicated wiring required. Stable electrical parameters adapt to complex temperature environments and daily long-term use.

Applications

• Automotive interior modification & function control
• Marine and boat electrical control systems
• 12V/24V industrial equipment control panel
• Instrument and smart device button control
• DIY electronic projects and equipment upgrading
• Commercial equipment and automation systems

FAQ

1. What is the mounting size?
Standard 16mm mounting hole diameter.

2. Does it support 12V and 24V?
Yes, 12V/24V are available, other voltages can be customized.

3. What LED colors are optional?
Standard blue, red, green, yellow, white, orange customizable.

4. Does it come with harness connector?
Yes, matched harness connector for easy installation.

5. What is the operation mode?
Momentary self-reset type, suitable for one-touch trigger.

The post Illuminated 12V 24V Blue Led 16mm Momentary Metal Push Button Switch With Harness Connector appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 22mm standard panel mounting hole size
• 12V / 24V wide voltage for marine & automotive systems
• Full-surface illuminated LED for high visibility
• Momentary self-reset & latching self-locking optional
• Flat round head for elegant panel installation
• 1NO1NC complete contact configuration
• 5-pin terminal with plug-in connection
• Premium stainless steel housing, corrosion & rust resistant
• Multiple LED colors: Blue, Red, Green, Yellow, White, Orange
• Multi LED voltage customizable: 3V~220V
• Low contact resistance ≤50mΩ
• High insulation & 2000VAC dielectric strength
• Wide working temperature: -20℃ ~ +55℃

Product Advantages

This 22mm 12V/24V marine waterproof metal push button is specially designed for boat, RV and automotive panel control. Full-surface glowing LED provides ultra-clear status indication even in dark environments. Stainless steel body offers excellent corrosion resistance, perfectly adapting to marine humid and salt fog environments. Supports momentary and latching two modes to meet on/off and trigger control needs. Rich LED colors and multi-voltage customization support various circuit systems. Plug-in 5-pin design makes installation and wiring quick and convenient.

Applications

• Marine boat & yacht control panel switches
• RV, caravan and vehicle interior light control
• 12V/24V automotive modification & function switch
• Waterproof outdoor equipment and automation panels
• Industrial control cabinet and instrument equipment
• Custom panel mount electronic project installation

FAQ

1. What is the mounting size?
Standard 22mm panel mounting hole.

2. Is it suitable for marine use?
Yes, stainless steel corrosion-resistant design perfect for boat and marine environments.

3. Does it support 12V and 24V?
Yes, 12V/24V standard, other voltages customizable.

4. What LED style is it?
Full-surface illuminated LED with multiple color options.

5. Momentary and latching available?
Yes, both momentary self-reset and latching self-locking optional.

The post 22mm Mini 12V Marine 12-24V Waterproof on Off Panel Mount Illuminated Momentary Metal Push Button Switch With Lamp appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Multi mounting size: 16mm / 19mm / 22mm optional
• Start & stop dedicated LED indicator design
• 12V / 24V universal voltage for automotive systems
• Waterproof dustproof performance for harsh environment
• Black and silver two color housing optional
• Flat head design for seamless panel installation
• Momentary / latching dual operation optional
• 1NO1NC complete contact configuration
• High-grade brass nickel plated shell
• Pin terminal & plug-in connection for easy wiring
• Low contact resistance ≤50mΩ
• High insulation and 2000VAC dielectric strength
• Wide working temperature: -20℃ ~ +55℃

Product Advantages

This 16/19/22mm customizable metal push button switch is specially developed for automotive start-stop and function control. Multiple installation sizes cover most car panel hole requirements. Built-in start-stop dedicated LED light clearly displays working status. 12V and 24V universal voltage fits most vehicle electrical systems. Black and silver classic color matching is suitable for various interior styles. Brass nickel-plated shell is anti-corrosion and wear-resistant, with waterproof performance adapting to complex vehicle environment. Momentary and latching modes can be selected to meet different modification and control needs.

Applications

• Car engine start stop one button control
• Automotive interior modification function switch
• 12V/24V vehicle dashboard control panel
• Marine boat and RV waterproof control system
• Industrial equipment start-stop button panel
• DIY electronic project multi-size custom switch

FAQ

1. What sizes are available?
16mm, 19mm and 22mm three optional mounting sizes.

2. Is it dedicated for car start stop?
Yes, with dedicated start-stop LED light for status display.

3. Does it support 12V and 24V?
Yes, 12V/24V universal for most vehicles.

4. What color options are there?
Classic black and silver housing for selection.

5. Momentary and latching available?
Yes, both momentary self-reset and latching self-locking optional.

The post 16/19/22mm Customized Size Metal Push Button Switch Start/Stop LED Light for Car Switch Waterproof Black/Silver 12V 24V appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
