• Multi-mode design: available in 2-position and 3-position configurations to meet diverse gear selection demands
• Dual operation types: supports both maintained (latching) and momentary (reset) working modes
• Standard 1NO1NC (1 Normally Open + 1 Normally Closed) contact structure for flexible circuit control
• High-quality silver contacts, low contact resistance, stable current transmission and anti-oxidation
• 16mm standard installation size, universal for mainstream industrial control panels
• Integrated plastic bezel and plastic shell, lightweight, insulation and impact resistance
• Black rotary head, classic industrial appearance, compatible with most equipment styles
• Non-illuminated design, simple structure, low failure rate and long service life
• Easy panel mounting and wiring, no complex assembly steps
• Compact overall structure, saves installation space for control cabinets and machinery
• Versatile performance, suitable for indoor industrial environments and global market applications

Full Technical Specifications

Product Attributes

• Installation Dimension: 16mm Standard Panel Mount
• Position: Optional 2-Position / 3-Position
• Operation: Maintained & Momentary Dual Modes
• Contact Type: 1NO1NC (1 Open + 1 Close)
• Contact Material: Silver
• Bezel & Shell: Plastic
• Rotary Head: Black, Non-Illuminated
• Core Strength: Multi-mode, Universal Size, Stable Conductivity

Product Advantages

This 16mm rotary selector switch is a multi-functional industrial control component. It provides two position choices (2-position and 3-position) and two operation modes (maintained and momentary), which can adapt to different circuit control logic. Adopting classic 1NO1NC contact combination and high-purity silver contacts, the switch ensures excellent electrical conductivity and long-term anti-oxidation performance. The plastic bezel and shell feature good insulation and shock resistance, suitable for conventional industrial working environments. The 16mm standard size is highly universal and compatible with most industrial control panels. The black non-illuminated rotary head has a simple and durable structure, without easily damaged lamp components, effectively reducing failure rate. The product is easy to install and wire, with compact layout, which is an economical and practical choice for equipment gear switching and circuit selection. It meets the usage requirements of industrial fields around the world.

Application Scenarios

This multi-functional rotary switch is widely exported to Europe, North America, Southeast Asia and other global regions, mainly used for gear selection and circuit switching of industrial equipment.

• Industrial machinery and production line equipment mode selector switches
• Electrical control cabinets and power distribution panel gear control components
• Automation equipment and robotic circuit selection units
• General electromechanical devices and engineering machinery control panels
• Testing instruments and laboratory equipment function adjustment switches
• Commercial electrical equipment and low-voltage control system accessories

FAQ

1. What position and operation modes does this rotary switch support?
It has 2-position and 3-position optional configurations, and supports both maintained (latching) and momentary (reset) operation modes.

2. What is the contact type and material?
The contact structure is 1NO1NC (1 Normally Open + 1 Normally Closed), and the contact material is silver for stable conduction.

3. What is the installation size and main materials?
The standard installation size is 16mm; both the bezel and outer shell are made of plastic.

4. What is the style of the rotary head?
It adopts black rotary head design, and there is no built-in indicator lamp (non-illuminated).

5. What are the advantages of silver contacts?
Silver contacts have low contact resistance, good electrical conductivity and strong anti-oxidation ability for long-term use.

6. Is this switch suitable for panel installation?
Yes, 16mm is a common industrial panel opening size, easy for installation and fixation.

7. What is the difference between maintained and momentary modes?
Maintained mode keeps the position after rotation; momentary mode will automatically reset when releasing the handle.

8. Does this product have indicator lights?
No, it is a non-illuminated rotary switch without LED or signal lamps.

9. What main equipment is it applied to?
Widely used in industrial machinery, control cabinets, automation devices and various electromechanical equipment worldwide.

The post 16mm Rotary Selector Switch 2-Position/3-Position Maintained/Momentary with 1NO1NC Contacts appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 16mm mounting size, suitable for universal control panel installation
• Two working modes: 2-position (2P) and 3-position (3P) maintained operation
• Key operated design for authorized access and equipment safety protection
• Classic 1NO1NC normally open and normally closed contact configuration
• Silver contact material for excellent conductivity and stable circuit connection
• Full plastic bezel, head and shell, lightweight and durable structure
• Black appearance, simple and practical for various control cabinets
• Non-illuminated design, simple structure and low failure rate
• Maintained position function, keep stable state after switching
• Professional safety switch for restricting unauthorized operation
• Compact structure, easy wiring and long service life

Technical Specifications

Product Attributes

• Mounting Dimension: 16mm
• Operation Mode: 2P / 3P Maintained Selector
• Contact Type: 1NO1NC
• Contact Material: Silver
• Bezel: Plastic
• Head: Black Plastic
• Shell: Plastic
• Lamp Status: Non-Illuminated
• Operation Type: Key Operated Lock Switch

Product Advantages

This 16mm key operated selector switch adopts standard 16mm installation size, compatible with most industrial control panels. It supports 2-position and 3-position maintained switching, and is equipped with 1NO1NC contact layout to meet diverse circuit control demands. The silver contacts ensure good electrical conductivity and stable operation. The whole set uses plastic materials for bezel, head and shell, which is lightweight, durable and cost-effective. The key locking design effectively prevents unauthorized operation of equipment and improves operational safety. With black appearance and non-illuminated structure, this switch features simple installation, convenient wiring and reliable performance for long-term use.

Applications

• Industrial control cabinet key-locked circuit selection and power control
• Mechanical equipment operation panel permission management switch
• Automation machine tool safety access control component
• Electrical equipment and power distribution box lock-type selector switch
• Public facilities and special equipment anti-misoperation control switch

FAQ

1. What is the standard mounting size of this key switch?
The standard installation aperture is 16mm, which is widely used for conventional control panels.

2. How many position modes does this selector switch support?
It has two optional modes: 2-position (2P) and 3-position (3P) maintained position.

3. What is the contact configuration and contact material?
It adopts 1NO1NC (1 normally open + 1 normally closed) configuration, and the contact is made of silver.

4. What materials are used for the switch body?
The bezel, head and outer shell are all made of plastic, and the head color is black.

5. Does this key switch have an indicator lamp?
No, it is designed as non-illuminated type without built-in indicator lamp.

6. What is the feature of maintained position design?
After switching the gear by key, the switch will keep the current state steadily without accidental reset.

7. What are the main application scenarios?
Mainly used for industrial control cabinets, mechanical equipment and electrical devices that need key permission control.

The post 16MM Key Operated Selector Switch Black 2P/3P Maintained Position with 1NO1NC Configuration appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

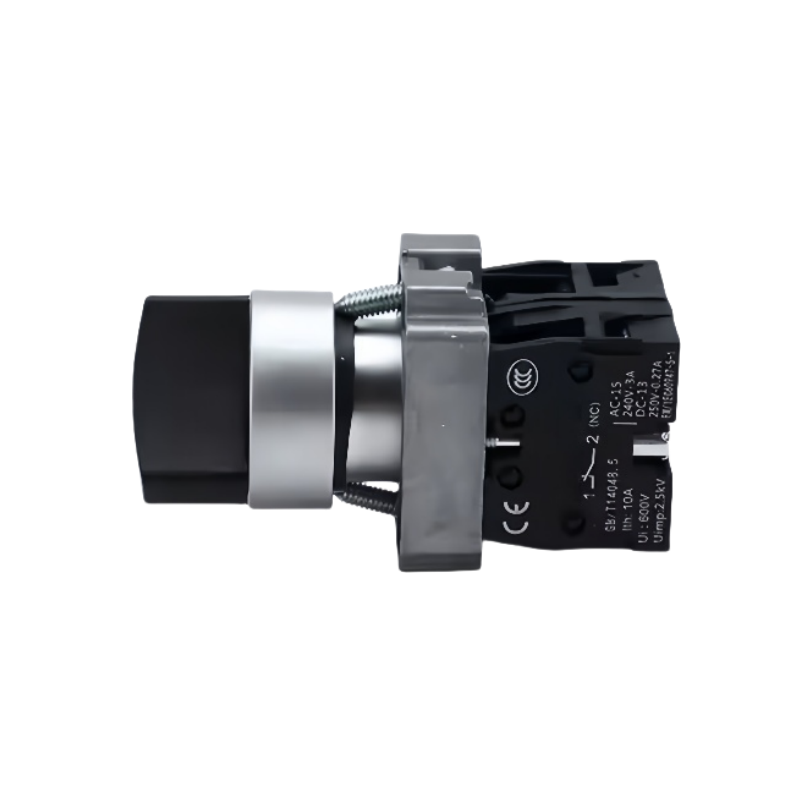

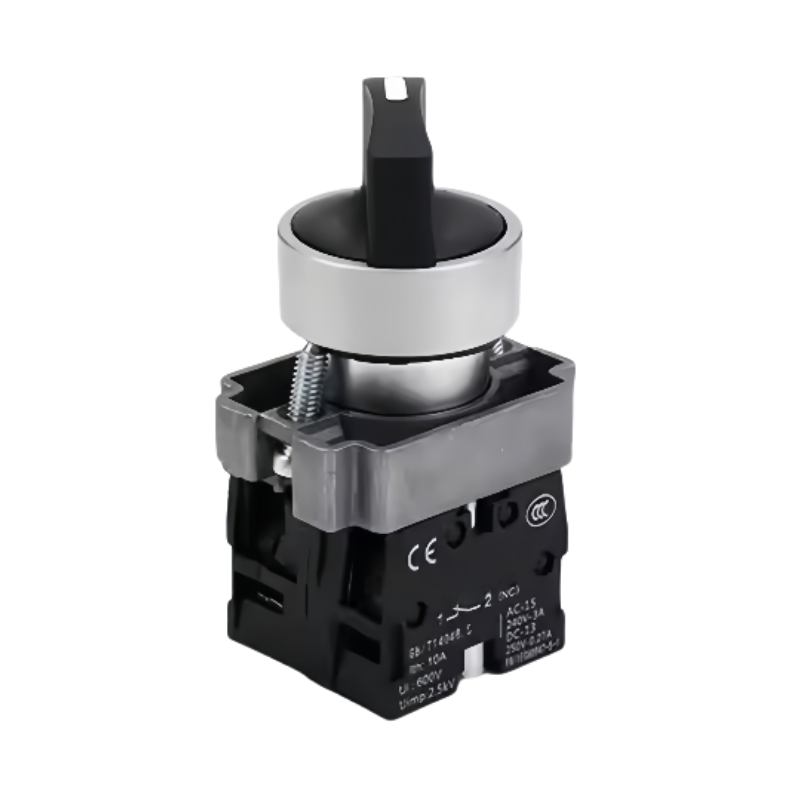

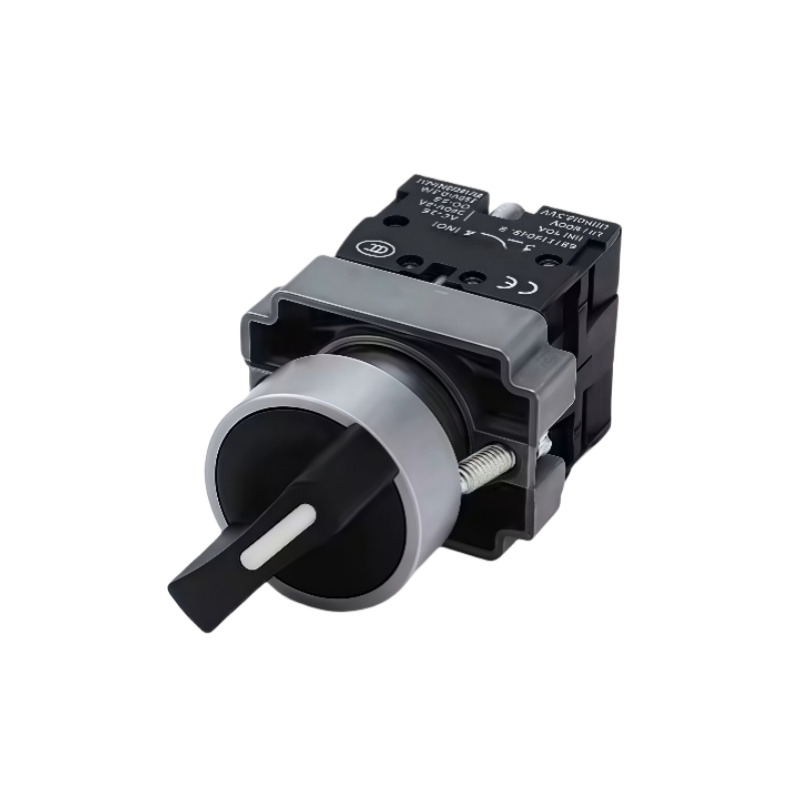

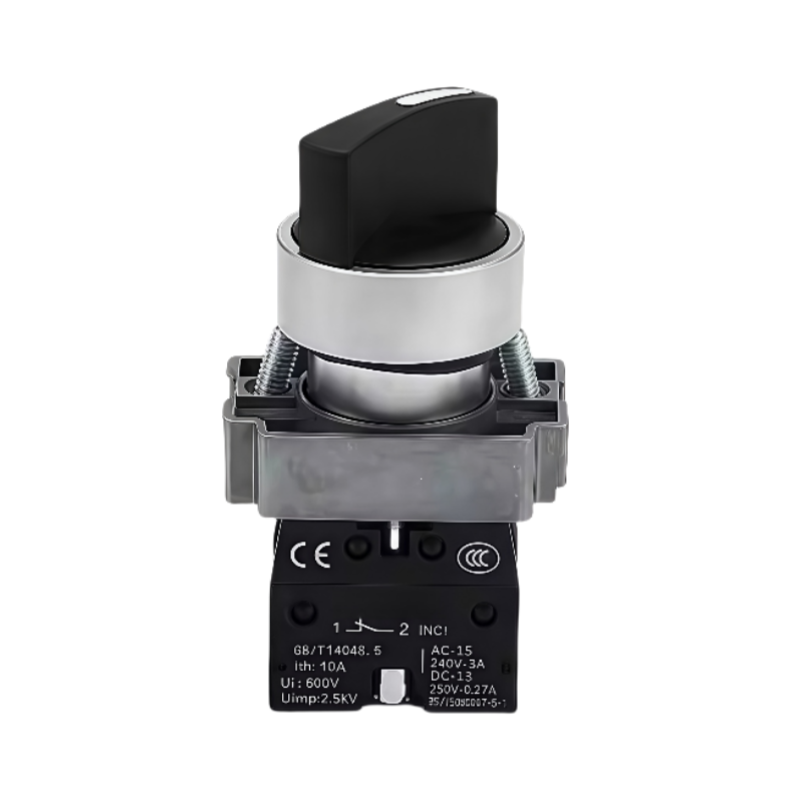

• Universal 22-30mm mounting size, compatible with two mainstream panel hole sizes for wide applicability
• 2P (2-position) and 3P (3-position) optional configurations to meet different gear selection requirements
• Dual operation modes: maintained (latching) and momentary (reset) for flexible circuit control logic
• Standard 1NO1NC (1 Normally Open + 1 Normally Closed) contact structure for signal switching
• High-purity silver contacts, low contact resistance, excellent conductivity and anti-oxidation performance

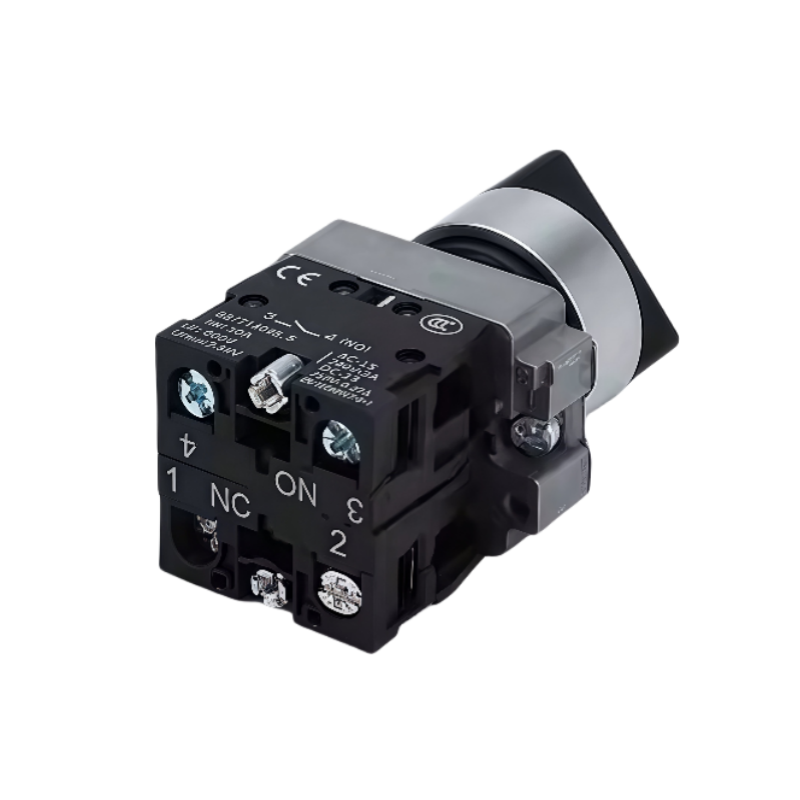

• Crimp type connection terminal, fast wiring, firm connection and suitable for mass assembly
• Full plastic structure including bezel, rotary head and shell, good insulation and impact resistance
• Uniform black appearance, classic industrial style matching most control panels and equipment
• Non-illuminated design, simple structure, fewer vulnerable parts and low failure rate
• Rated thermal current 10A, supports AC-15 and DC-13 load categories for diverse voltage systems
• Compliant with EN60947 and IEC60947-5-1 international standards, safe and reliable for global use
• Compact body, easy installation and maintenance, cost-effective for industrial projects

Full Technical Specifications

Product Attributes

• Mounting Dimension: 22mm & 30mm Dual Universal Size
• Position: 2P / 3P Optional
• Operation: Maintained + Momentary Dual Modes
• Contact: 1NO1NC, Silver Material
• Wiring: Crimp Connection
• Main Material: Plastic (Bezel / Head / Shell)
• Color: Black
• Lamp: Non-Illuminated
• Rated Current: 10A
• Load Type: AC-15, DC-13
• Compliance: EN60947, IEC60947-5-1

Product Advantages

This 22-30mm universal rotary switch is a versatile industrial control component. It adapts to two common panel opening sizes of 22mm and 30mm, greatly improving equipment compatibility. With selectable 2-position and 3-position gears, as well as maintained and momentary dual working modes, it can meet complex circuit control demands. The 1NO1NC silver contact ensures stable current transmission and long service life. The crimp terminal design simplifies wiring work and is suitable for batch production and on-site installation. The all-plastic structure has good insulation and anti-collision performance, and the black non-illuminated rotary head has a simple structure with low failure risk. The product reaches 10A rated current and supports AC-15 and DC-13 typical load categories, covering most AC and DC low-voltage control circuits. It strictly follows EN60947 and IEC60947-5-1 international electrical standards, with reliable quality for export to global markets. It is an economical and practical choice for industrial control and mechanical equipment.

Application Scenarios

This universal rotary switch is widely sold in Europe, North America, Southeast Asia and other global regions, focusing on industrial low-voltage control fields.

• Indoor electrical control cabinets and power distribution box gear switching components
• Industrial automation equipment and production line mode selector switches
• Engineering machinery and mobile mechanical control panel accessories
• Low-voltage AC/DC control systems and signal conversion modules
• Testing instruments and laboratory equipment function adjustment knobs
• Commercial electromechanical devices and general industrial electrical appliances

FAQ

1. What mounting sizes and position options does this switch have?
It supports 22mm and 30mm two panel sizes, with 2P (2-position) and 3P (3-position) optional gears.

2. What operation modes and contact structure are equipped?
It has maintained (latching) and momentary (reset) dual modes, adopting standard 1NO1NC contact configuration.

3. What is the contact material and wiring type?
The contact is made of silver; the terminal adopts crimping connection for fast and firm wiring.

4. What are the material and appearance features?
The bezel, rotary head and shell are all made of plastic; overall color is black, and there is no indicator lamp.

5. What are the electrical parameters and load categories?
Rated thermal current is 10A; AC-15 for 380VAC/220VAC, DC-13 for 220VDC/110VDC.

6. Which international standards does the product comply with?
It is manufactured in accordance with EN60947 and IEC60947-5-1 international electrical standards.

7. What is the difference between maintained and momentary modes?
Maintained mode locks the position after rotation; momentary mode automatically resets when the hand is released.

8. What are the advantages of 22-30mm universal size?
It is compatible with two mainstream panel holes, reducing model types and improving application scope.

9. What main equipment is this switch suitable for?
Widely used in industrial control cabinets, automation machinery, engineering equipment and low-voltage systems worldwide.

The post 22-30mm Rotary Switch Black 2P/3P Maintained/Momentary 1NO1NC appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Multiple mounting sizes: 22mm, 25mm, 28mm, 30mm
• Black oxide metal finish for anti-corrosion and matte texture
• Ring type LED indicator with soft visual effect
• IP67 waterproof and dustproof grade
• Maintained latching and momentary operation optional
• Pre-wired design for quick plug-and-play installation
• Multiple LED colors: Red, Green, Blue, White, Yellow
• Durable metal housing for long mechanical life
• Suitable for automotive power start and equipment control

Technical Specifications

Product Advantages

This 22-25-28-30mm black oxide metal push button switch adopts premium black oxide surface treatment, providing excellent anti-rust, anti-corrosion and high-grade matte appearance. Built with IP67 waterproof performance, it adapts to outdoor, vehicle and humid working environments. Ring type soft LED light makes status display clear and elegant. Support both maintained and momentary modes, and pre-wired structure saves installation time without extra soldering. Solid metal construction ensures stable conductivity and long service life.

Application Scenarios

• Automotive power start and modification retrofit
• Vehicle interior control and custom panel
• Industrial control cabinet and equipment start stop
• Outdoor electronic and damp environment devices
• New energy equipment and power control system
• High-end instrument and intelligent terminal panel

FAQ

1. What mounting sizes does this black oxide switch have?
It covers 22mm, 25mm, 28mm and 30mm large standard mounting sizes.

2. What is the surface treatment of the switch?
Adopts black oxide metal treatment, anti-corrosion, wear-resistant and matte texture.

3. Does it support maintained and momentary function?
Yes, both latching maintained and self-reset momentary types are optional.

4. Is it pre-wired for easy installation?
Comes with pre-wired harness, direct installation without soldering.

5. Is this switch waterproof?
IP67 waterproof and dustproof, suitable for automotive and outdoor use.

The post Black Oxide Metal Push Button Switch 22/25/28/30mm Ring-Type Maintained/Momentary Waterproof Power Start Pre-wired for Automotive appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 22mm standard mounting hole size
• Black oxide metal housing for anti-corrosion & stylish look
• 10A high current for heavy-duty power control
• 1NO1NC double contact configuration
• IP67 waterproof & dustproof protection
• Illuminated & non-illuminated versions optional
• Multiple LED colors: Red, Green, Blue, White, Yellow
• Pre-wired design for plug-and-play installation

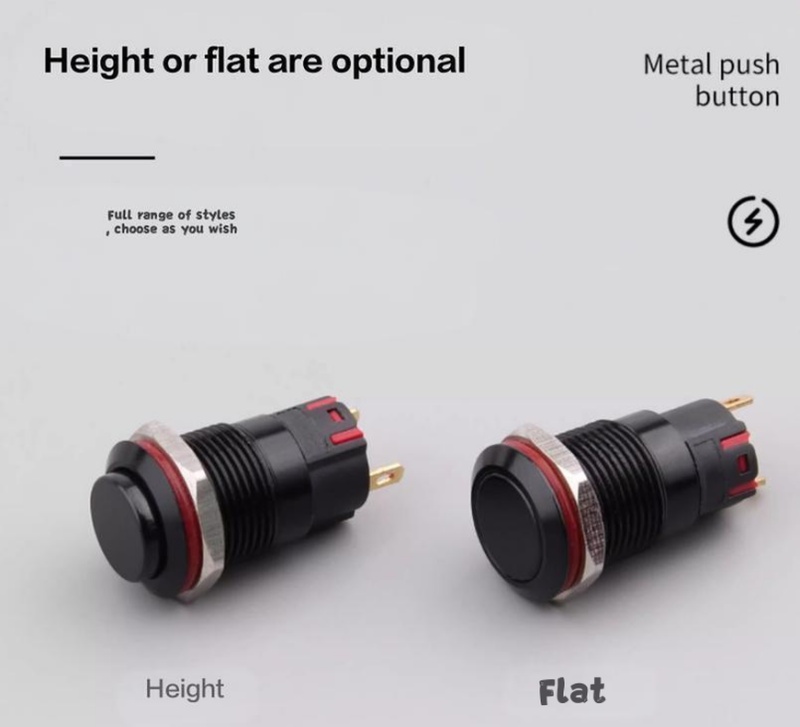

• Flat head style for stable panel mounting

Technical Specifications

Product Advantages

This 22mm black waterproof metal push button switch is designed for high-power control scenarios. It supports 10A large current and 1NO1NC dual-contact structure to meet complex circuit control needs. IP67 waterproof grade ensures stable performance in humid and harsh environments. The black oxide metal shell is anti-corrosion and durable. Pre-wired design allows fast installation without soldering. Gold-plated contacts provide excellent conductivity and long service life.

Applications

• Industrial power start & stop systems
• Automotive & vehicle modification control
• Marine & outdoor electronic equipment
• Control panels & machinery operation
• High-current power distribution devices
• Medical & intelligent instrument panels

FAQ

1. What is the mounting size of this switch?
Standard 22mm mounting hole size for industrial control panels.

2. What is the rated current?
It supports 10A high current for heavy-duty power control.

3. Is this switch waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

4. What contact configuration does it use?
It uses 1NO + 1NC double contact structure.

5. Is it pre-wired for easy installation?
Yes, pre-wired design supports direct plug-and-play installation.

The post 22mm Black Waterproof Metal Push Button Switch 10A High Current 1NO1NC Power Start with Pre-wired appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• Standard 16mm mounting size, widely compatible with industrial control panels and equipment panels
• Dual operation modes: maintained (latching) and momentary (self-reset) for diverse control needs
• Flame-retardant shell material, high safety for long-term power circuit application
• Excellent waterproof performance, works stably in humid working environments
• Flat head design with classic black appearance, simple and practical for panel assembly
• Fully illuminated with multi-color LED: Blue, Green, Red, White, Yellow optional
• 1NO+1NC contact configuration, universal design for most power control circuits
• Silver contact and silver pin, low resistance and stable electrical transmission
• Welding connection type, firm wiring and strong vibration resistance
• Rugged overall structure, long service life and low failure rate
• Professional power start switch for industrial and commercial equipment

Technical Specifications

Product Attributes

• Mounting Dimension: 16mm
• Operation Type: Maintained & Momentary
• Shell: Flame-retardant Material
• Head Style: Flat, Black
• Function: Waterproof & Illuminated
• LED Color: Blue / Green / Red / White / Yellow
• Contact: 1NO + 1NC
• Contact Material: Silver
• Pin Material: Silver
• Terminal: Welding Connection

Product Advantages

This 16mm illuminated push button adopts flame-retardant shell, which greatly improves safety for power control circuits. It supports both maintained and momentary operation to meet different control logic. Equipped with five optional LED colors, it can clearly distinguish equipment operating status. Both contacts and pins are made of silver to ensure stable conduction. The welding terminal makes wiring firm and not easy to fall off. With reliable waterproof capability, the switch can adapt to humid workshops and field equipment. Standard 1NO+1NC contacts and 16mm universal installation size make it highly compatible. It is a safe and durable choice for equipment power start and industrial control systems.

Applications

• Industrial equipment main power start and stop control panel
• Automation machinery maintained and jog dual-purpose control switch
• Electrical cabinet and distribution box waterproof circuit control components
• Commercial equipment multi-status indication and power switch
• General electromechanical device flame-retardant power start button

FAQ

1. What operation modes does this push button support?
It has two optional modes: maintained (latching) and momentary (self-reset).

2. What is the shell characteristic and head style?
The shell is made of flame-retardant material, with flat design and black head color.

3. How many LED colors are available for selection?
Five colors: Blue, Green, Red, White and Yellow for different status marking.

4. What is the contact configuration and material?
It uses 1NO+1NC contact form, and both contact and pin are made of silver.

5. What kind of connection terminal does it use?
It adopts welding connection, which is firm and suitable for long-term use.

6. Does this button have waterproof and flame-retardant functions?
Yes, it features waterproof performance and flame-retardant shell for higher safety.

7. What are the main application scenarios?
Mainly used for power start, circuit control and status indication of various industrial and mechanical equipment.

The post 16mm Illuminated Push Button Multi-Color LED Maintained/Momentary Waterproof Power Start Switch appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 16mm standard mounting hole size
• Black oxide metal housing for anti-corrosion & stylish look
• IP67 waterproof & dustproof protection
• High current design for stable power control
• Maintained (latching) and momentary operation optional
• Custom engraving / symbol / text available
• Illuminated ring LED with multiple color options
• Flat head style for standard panel installation
• Silver-plated contacts for excellent conductivity
• Perfect for access control & security systems

Technical Specifications

Product Advantages

This 16mm black metal push button switch is specially designed for access control and security systems. It features IP67 waterproof performance and high current capability for reliable long-term use. The black oxide metal shell is anti-corrosion and durable. Custom engraving service supports personalized text, symbol and logo to meet different identification needs. It supports both maintained and momentary modes with LED illumination for clear status indication. High-quality structure ensures stable performance and long service life.

Applications

• Access control systems & door control panels
• Security equipment & interlock systems
• Industrial control & automation devices
• Custom control panels with engraved symbols
• Automotive & vehicle interior control
• Outdoor & damp environment security equipment

FAQ

1. What is the mounting size of this switch?
Standard 16mm mounting hole size for general control panels.

2. Is this switch waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.

3. Does it support custom engraving?
Yes, custom text, symbol and logo engraving are available.

4. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary operation are optional.

5. What is this switch mainly used for?
It is widely used for access control, security systems and custom control panels.

The post 16mm Black Metal Push Button Waterproof High Current Maintained Momentary Switch Access Control Custom Engraving appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 16mm standard mounting hole size
• Black oxidized metal housing for anti-corrosion
• 10A high current for stable power control
• IP67 waterproof & dustproof protection
• Maintained (latching) and momentary operation optional
• Flat & high round head styles optional
• Non-illuminated stable & long-life design
• Silver-plated contacts & pins for good conductivity
• Welding connection for firm installation
• Perfect for power start/stop systems

Technical Specifications

Product Advantages

This 16mm black metal push button switch is designed for power start and equipment control. It supports 10A high current to meet heavy-duty operation needs. IP67 waterproof rating ensures reliable performance in humid, outdoor and harsh environments. Black oxidized surface provides excellent anti-corrosion and stylish appearance. It offers both maintained and momentary modes with flat/high round head options for versatile installation. Non-illuminated structure reduces failure rate and extends service life.

Applications

• Power start/stop control systems
• Industrial control panels & machinery
• Automotive & vehicle modification
• Marine & outdoor electronic equipment
• Black style custom control panels
• Small power devices & instruments

FAQ

1. What is the mounting size?
Standard 16mm mounting hole size.

2. What is the rated current?
It supports 10A high current for power control.

3. Is this switch waterproof?
Yes, it has IP67 waterproof and dustproof protection.

4. Does it support maintained and momentary modes?
Yes, both maintained and momentary operation are optional.

5. Is this switch illuminated?
No, it is non-illuminated type for stable use.

The post 16mm Black Metal Push Button Switch 10A Maintained or Momentary Waterproof Power Start appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 22mm standard mounting hole size
• 20A ultra high current for heavy-duty power control
• Black oxidized metal housing, anti-corrosion & durable
• IP67 waterproof & dustproof protection
• Maintained (latching) & momentary operation optional
• Ring / Ring+Power LED illuminated indication
• Multiple LED colors: Red, Blue, Orange, White, Yellow
• Flat & high round head styles optional
• 2NO double contact for safer & stable control
• Silver-plated pins for excellent conductivity

Technical Specifications

Body ColorBlack Oxide

Product Advantages

This 22mm 20A high current black metal push button switch is designed for heavy-duty power control and industrial equipment. It supports 20A large current to drive high-power devices safely. IP67 waterproof rating ensures stable performance in wet, outdoor and harsh environments. Black oxide surface provides excellent corrosion resistance and stylish appearance. Ring LED offers clear status indication. 2NO double contact structure improves safety and reliability. It supports both maintained and momentary modes for versatile use.

Applications

• Heavy-duty power start/stop systems
• Industrial machinery & high-current equipment
• Automotive, marine & outdoor control panels
• Generator, inverter & power distribution
• Black style industrial & custom equipment
• Vehicle modification & engineering devices

FAQ

1. What is the rated current?
It supports 20A high current for heavy-duty power control.

2. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.

3. Does it support maintained and momentary modes?
Yes, both maintained (latching) and momentary are optional.

4. What contact configuration does it use?
It uses 2NO double normally open contacts.

5. Is this switch illuminated?
Yes, it has ring LED for clear status indication.

The post 22mm Metal Push Button Switch 20A High Current Maintained/Momentary Waterproof Illuminated Power Button appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.

• 12mm standard mounting hole size
• Oxidized black metal housing for anti-corrosion
• Non-illuminated (no light) design
• IP65 / IP67 waterproof & dustproof protection
• Maintained (self-locking) & momentary (self-resetting) optional
• 3A high current capacity
• Flat & high round head styles optional
• Gold-plated pins for stable conductivity
• NO (Normally Open) contact configuration

Technical Specifications

Product Advantages

This 12mm oxidized black metal push button switch provides stable and reliable performance for small control equipment. Non-illuminated design ensures lower failure rate and longer service life. IP65/IP67 waterproof rating adapts to humid and outdoor environments. It supports both maintained (self-locking) and momentary (self-resetting) modes to meet different control needs. Gold-plated pins and sturdy metal structure ensure stable conductivity and long mechanical life.

Applications

• Small control panels & electronic devices
• Industrial control & automation equipment
• Automotive & vehicle interior buttons
• Outdoor & damp environment small devices
• DIY electronics & instrument panels
• Household appliances & small machinery

FAQ

1. What is the mounting size?
Standard 12mm mounting hole size.

2. Is this switch illuminated?
No, it is non-illuminated (no light) type.

3. Is it waterproof?
Yes, it supports IP65 / IP67 waterproof and dustproof protection.

4. Does it support maintained and momentary modes?
Yes, both self-locking (maintained) and self-resetting (momentary) are optional.

5. What is the current rating?
It supports 3A high current capacity.

The post 12mm Metal Push-button Switch No light Oxidized Black Self-locking Self-resetting, Waterproof with 3A High Current Capacity appeared first on Ruggedized Metal Push Buttons & Professional Control Switches.
